The APS red American regulator is a high-performance voltage regulator designed for reliability and precision. With its axle design, it ensures accurate and easy in-place adjustment, featuring a humanized interface for smooth operation. The regulator boasts a porous heat dissipation housing to prevent overheating, ensuring durability. Equipped with a copper core coil and high-quality carbon brush, it guarantees precise voltage regulation. Its intelligent digital display provides clear monitoring, making it user-friendly.
Application range
The APS voltage regulator, featuring a precise axle mechanism and effective porous heat dissipation, is perfectly suited for a range of environments—from residential and commercial spaces to demanding industrial applications. It delivers reliable performance within 0-300V AC at 50/60Hz, maintaining stability and preventing overheating in any setting.
Product parameters
TDGC2 Single – phase Series parameters
| Model | Rated capacity (KVA) | Number of phases | Rated frequency (Hz) | Rated input voltage (V) | Rated voltage range (V) | Rated output current (A) |
| TDGC2/TDGC2J – 0.2 | 0.2 | 1 | 50 | 220 | 0 – 250 | 0.8 |
| TDGC2/TDGC2J – 0.5 | 0.5 | 2 | ||||
| TDGC2/TDGC2J – 1 | 1 | 4 | ||||
| TDGC2/TDGC2J – 2 | 2 | 8 | ||||
| TDGC2/TDGC2J – 3 | 3 | 12 | ||||
| TDGC2/TDGC2J – 4 | 4 | 16 | ||||
| TDGC2/TDGC2J – 5 | 5 | 20 | ||||
| TDGC2/TDGC2J – 7 | 7 | 28 | ||||
| TDGC2/TDGC2J – 10 | 10 | 40 | ||||
| TDGC2/TDGC2J – 15 | 15 | 60 | ||||
| TDGC2/TDGC2J – 20 | 20 | 80 | ||||
| TDGC2/TDGC2J – 30 | 30 | 120 | ||||
| TDGC2/TDGC2J – 40 | 40 | 160 | ||||
| TDGC2/TDGC2J – 50 | 50 | 200 | ||||
| TDGC2/TDGC2J – 60 | 60 | 240 | ||||
| TDGC2/TDGC2J – 80 | 80 | 320 | ||||
| TDGC2/TDGC2J – 100 | 100 | 400 |
TDGC2 Three – phase Series parameters
| Model | Rated capacity (KVA) | Number of phases | Rated frequency (Hz) | Rated input voltage (V) | Rated voltage range (V) | Rated output current (A) |
| TDGC2/TDGC2J – 3 | 3 | 3 | 50 | 380 | 0 – 430 | 4 |
| TDGC2/TDGC2J – 3 | 6 | 8 | ||||
| TDGC2/TDGC2J – 9 | 9 | 12 | ||||
| TDGC2/TDGC2J – 12 | 12 | 16 | ||||
| TDGC2/TDGC2J – 15 | 15 | 20 | ||||
| TDGC2/TDGC2J – 20 | 20 | 27 | ||||
| TDGC2/TDGC2J – 30 | 30 | 40 | ||||
| TDGC2/TDGC2J – 40 | 40 | 54 | ||||
| TDGC2/TDGC2J – 50 | 50 | 67 | ||||
| TDGC2/TDGC2J – 60 | 60 | 80 | ||||
| TDGC2/TDGC2J – 70 | 70 | 94 | ||||
| TDGC2/TDGC2J – 80 | 80 | 107 | ||||
| TDGC2/TDGC2J – 90 | 90 | 120 | ||||
| TDGC2/TDGC2J – 100 | 100 | 134 | ||||
| TDGC2/TDGC2J – 120 | 120 | 160 | ||||
| TDGC2/TDGC2J – 150 | 150 | 200 | ||||
| TDGC2/TDGC2J – 200 | 200 | 270 | ||||
| TDGC2/TDGC2J – 250 | 250 | 335 | ||||
| TDGC2/TDGC2J – 300 | 300 | 400 |
APS red American regulator size, weight and carton quantity
| Packaging (carton) | Model | Product size (length * width * height cm) | Inner box dimensions (length * width * height cm) | Outer box dimensions (length * width * height cm) | Number of cartons (only) | Net weight of single unit (kg) | Total net weight (kg) |
| cardboard box | APS – 0.5KVA | 24*17*20 | 23*17*20 | 50*35*22 | 4 | 3.8 | 17 |
| cardboard box | APS – 1KVA | 27*21*23.5 | 27*21*24 | 44*29*26 | 2 | 6.8 | 15 |
| cardboard box | APS – 2KVA | 27*21*23.5 | 27*21*24 | 44*29*26 | 2 | 8.3 | 18 |
| cardboard box | APS – 3KVA | 31*26*25 | 31*27*26 | 55*33*28 | 2 | 10.5 | 23 |
| cardboard box | APS – 5KVA | 24*29*26 | 37*28*31 | 37*28*31 | 1 | 16 | 17.5 |
Product Features

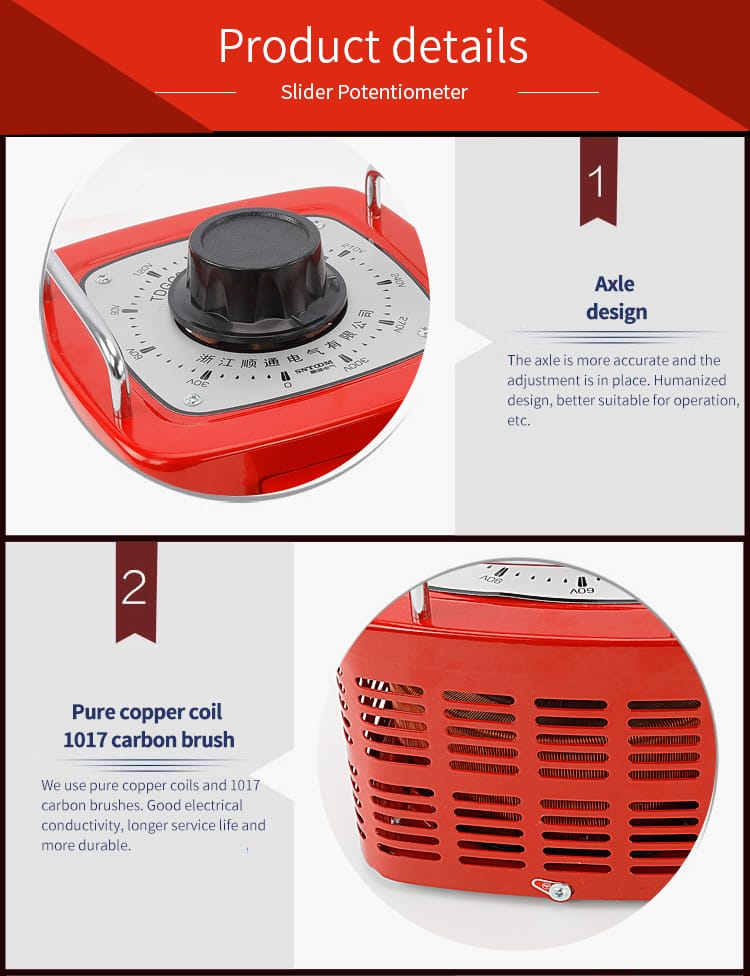

- The APS voltage regulator features an axle design that allows for more accurate in-place adjustment. With a slider potentiometer equipped with a copper core coil and high-quality carbon brush, it ensures precise voltage control, meeting diverse voltage requirements effectively.
- Designed with user-friendliness in mind, the APS voltage regulator offers a comfortable operation experience. Its compact size and thoughtful layout make it easy to install and operate, saving space and enhancing usability in various settings.
- Equipped with a porous heat dissipation housing, the APS voltage regulator effectively prevents damage due to excessive temperature during operation. This feature ensures stable performance and prolongs the service life of the device.
- Utilizing pure copper coils and 1017 carbon brushes, the APS voltage regulator boasts excellent electrical conductivity, longer service life, and enhanced durability. These high-quality components guarantee reliable performance under various conditions.
- The APS voltage regulator is designed for plug-and-play convenience, eliminating the need for complex wiring. This user-friendly feature makes it easy to use and integrate into different systems, saving time and effort.
- With a focus on safety, the APS regulator includes multiple protection features to safeguard against electrical faults. Its reliable quality and robust design ensure consistent performance, making it a trustworthy choice for all voltage regulation needs.
Product installation and instructions
- Unboxing and Inspection: Carefully unpack the APS voltage regulator and check for any physical damage. Ensure all components and accessories are present as per the manual.
- Location Selection: Choose a well-ventilated, dry location away from direct sunlight and heat sources. Ensure there is enough space around the regulator for heat dissipation.
- Mounting: Place the regulator on a stable, flat surface. If wall mounting, use appropriate screws and fixings to secure it in place, ensuring it’s easily accessible for operation and maintenance.
- Wiring Connection: Connect the input power supply to the regulator’s input terminals, ensuring correct phase, neutral, and ground connections. For single-phase regulators, connect the load to the output terminals. For three-phase regulators, connect all three phases and neutral as required.
- Initial Testing: Turn on the power supply and slowly adjust the regulator’s output voltage using the axle or slider potentiometer. Monitor the output voltage on the LCD screen to ensure it stabilizes at the desired level.
- Final Inspection and Use: Once the output voltage is stable, conduct a final inspection of all connections and the regulator’s operation. Ensure the heat dissipation housing is functioning and the regulator remains cool during operation. The APS regulator is now ready for use.
Note:When using the APS voltage regulator, ensure proper connection to avoid overloading. Place it in a well-ventilated area to prevent overheating and ensure long-term reliability.
