Effectively reducing axial fan noise requires a comprehensive approach combining multiple strategies. Key methods include optimizing blade design, implementing passive noise control techniques, and considering installation effects. Advanced techniques like active noise cancellation can further minimize noise while maintaining fan efficiency.

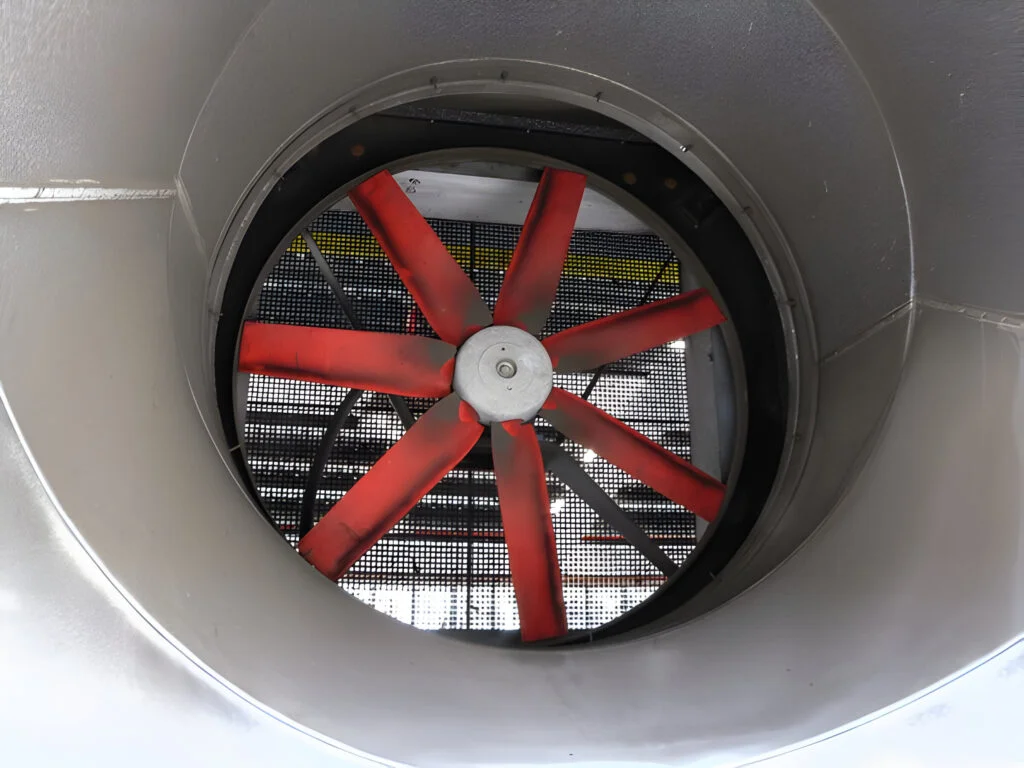

Axial Fan Noise Sources
Aerodynamic Noise Generation Mechanisms
Axial fans generate noise through three primary aerodynamic mechanisms: turbulent inflow, blade-vortex interaction, and tip leakage flow.
Turbulent inflow results from non-smooth air entering the fan, causing blade loading fluctuations and noise generation. Upstream obstructions or environmental factors often contribute to this phenomenon. Flow straighteners or redesigned inlets promoting laminar flow can reduce turbulent inflow noise.
Blade-vortex interaction occurs when fan blades encounter vortices from upstream components or other blades. This creates pressure fluctuations and subsequent noise. Optimized blade spacing and shape, along with vortex generators, can mitigate blade-vortex interaction noise.
Tip leakage flow produces high-frequency noise due to air escaping through the gap between blade tips and fan housing, creating small vortices. Minimizing the tip gap, using winglets on blade tips, or implementing advanced sealing techniques can address this issue.
Mechanical Noise Sources
Mechanical components contribute to axial fan noise alongside aerodynamic factors. Address motor, bearings, and vibration to reduce overall noise.
Motor noise originates from electromagnetic forces. Select high-quality motors with proper balancing and insulation. Use variable frequency drives to optimize motor speed and decrease noise at lower speeds.
Bearing noise results from friction and imperfections in rolling elements. Choose precision bearings with appropriate lubrication and ensure correct installation.
Vibration-induced noise occurs when rotating components are imbalanced or when the fan structure resonates with operational frequencies. Implement dynamic balancing techniques, use vibration isolators, and design a rigid fan housing to reduce vibration. Secure all components tightly and fix loose parts that may rattle during operation.
Factors Affecting Noise Levels
Fan Speed
Fan speed directly affects noise levels in axial fans. Noise output increases as rotational speed rises. This increase follows a logarithmic pattern, with noise levels growing by approximately 15 decibels for each doubling of fan speed.
Blade Design
Blade design impacts axial fan noise reduction as much as fan speed. Key aspects to optimize include:
- Blade count: Increasing blades distributes load and reduces noise, but balance with efficiency.
- Blade shape: Airfoil-shaped blades outperform flat or curved ones in efficiency and noise reduction. Smooth leading and trailing edges minimize turbulence.
- Blade angle: Optimal angle of attack improves airflow and reduces turbulence-induced noise.
- Blade spacing: Even spacing prevents harmonic noise issues.
- Material selection: Choose vibration-dampening materials to reduce resonance. Composite materials or specific metal alloys offer noise-reducing properties.
- Serrated trailing edges: This feature breaks up air vortices, lowering overall noise levels.
Installation Effects
Proper installation minimizes axial fan noise. Consider these factors for optimal performance and noise reduction:
Mounting:
- Use vibration isolators to prevent structural vibrations from amplifying noise
- Secure and align the fan correctly to avoid imbalance issues
Inlet and outlet conditions:
- Install inlet bells or guards to improve airflow and reduce turbulence
- Use diffusers or silencers at the outlet to manage air discharge and minimize noise
- Maintain adequate clearance around the fan to prevent airflow restrictions
Fan location:
- Place away from bends, obstructions, or sudden changes in duct size
- Install sound-absorbing materials in the surrounding area to reduce reflected noise
Blade Design Features for Noise Reduction
Beveled Blade Tips
Beveled blade tips reduce axial fan noise by altering airflow at the blade’s outer edge. This modification targets high-velocity areas and strong vortices, key noise sources in axial fans.
Creating a beveled tip involves cutting the blade’s trailing edge at a 30 to 45-degree angle. This design weakens the tip vortex and disrupts coherent wake structures, minimizing noise generation.
Bevel angle and length are crucial design factors. Longer bevels often provide better noise reduction but may affect fan efficiency.
Combining beveled tips with other noise-reducing features, such as swept blades or serrated trailing edges, can enhance overall noise reduction. This approach allows for substantial noise decrease without compromising fan performance.
Trailing Edge Serrations and Vortex Control Devices
Trailing edge serrations and vortex control devices reduce axial fan noise effectively. Serrations add a saw-tooth pattern to the blade’s trailing edge, disrupting large-scale vortex formation and decreasing turbulence. This modification lowers broadband and tonal noise while maintaining fan performance.
Vortex control devices are small protrusions or indentations on the blade surface that alter airflow and vortex formation. These include vortex generators, dimples, and riblets. They break up large vortices into smaller, quieter ones or redirect airflow to minimize turbulence.
Airfoil Shape Optimization
Airfoil thickness, camber, and leading edge design reduce axial fan noise. Adjusting these parameters minimizes turbulence and improves aerodynamic performance.
Thickness affects noise reduction. Thinner airfoils produce less noise but require balance with structural integrity. Optimize thickness to reduce noise while maintaining blade strength.
Camber influences lift and drag. Proper camber distribution evens pressure across the blade surface, reducing noise-inducing vortices.
Leading edge design controls noise. Smooth, rounded edges minimize flow separation and turbulence. Serrations or sinusoidal patterns on the leading edge disrupt noise-producing vortices.
Passive Noise Control Strategies
Inlet and Outlet Silencers/Attenuators for Absorbing Sound
Inlet and outlet silencers absorb sound waves in axial fan systems, reducing noise levels. Two main types exist: reactive and dissipative silencers.
Reactive silencers use chambers and baffles to reflect sound waves, canceling out noise. They excel at low frequencies but may increase pressure drop. Dissipative silencers employ sound-absorbing materials like mineral wool or foam to convert sound energy into heat. These perform better at mid to high frequencies and typically cause less airflow resistance.
Acoustic Lining and Wrapping of the Fan Casing
Acoustic lining and wrapping of the fan casing reduce noise transmission through housing walls. This passive noise control strategy complements silencers at the inlet and outlet.
Select sound-absorbing materials like foam, fiberglass, or mineral wool for implementation. These materials convert sound energy into heat through friction. Consider temperature resistance, moisture absorption, and fire safety when choosing materials.
Apply acoustic lining to the fan casing interior for full coverage. Use specialized acoustic wraps or barriers for external application. These methods effectively reduce low-frequency noise.
Perforated Surfaces and Porous Materials for Noise Absorption
Perforated surfaces and porous materials effectively absorb noise in axial fan systems. These passive noise control strategies convert sound energy into heat through friction. Perforated surfaces reduce high-frequency noise, while porous materials work across a broader frequency range.
Metal sheets with small holes placed around the fan casing serve as perforated surfaces. Hole size and spacing can be optimized for specific noise frequencies. Porous materials include foam, fiberglass, or mineral wool applied to the fan housing interior.
Combining perforated surfaces with porous backing materials creates a resonant system, enhancing sound absorption. Select materials that withstand the axial fan’s operating conditions, including temperature, humidity, and potential contaminants.
Vibration Isolation Mounts and Flexible Duct Connectors
Vibration isolation mounts and flexible duct connectors reduce noise in axial fan systems by minimizing vibration transmission. These components work together to decrease noise propagation from the fan to surrounding structures.
Rubber or neoprene pads serve as vibration isolation mounts between the fan and its mounting surface. These mounts absorb vibrations, preventing structural transfer. Select mounts with appropriate stiffness and load-bearing capacity for the fan’s size and weight.
Flexible duct connectors, made of reinforced fabric or elastomeric materials, interrupt the direct path of vibration transmission. Install these connectors between the fan and ductwork. Choose connectors compatible with system airflow requirements and operating conditions.
Combine both strategies for optimal results. Install isolation mounts at the fan’s base and use flexible connectors at inlet and outlet. This approach reduces structure-borne noise and vibrations effectively.
Active Noise Cancellation Techniques
Feedback Control System Using Microphones and Speakers
Feedback control systems with microphones and speakers reduce axial fan noise through active noise cancellation. Microphones near the fan detect noise, while speakers emit canceling sound waves. The system controller processes microphone input in real-time, analyzing noise frequency, amplitude, and phase. It generates inverse sound waves through speakers to neutralize the original noise.
Adaptive Algorithms for Broadband Noise Reduction
Adaptive algorithms enhance active noise cancellation in axial fans by continuously adjusting to changing noise patterns. These algorithms reduce low-frequency noise more effectively than fixed-parameter systems.
Digital signal processors (DSPs) integrate adaptive algorithms into noise control systems. DSPs analyze fan noise signatures in real-time and generate anti-noise signals. Filtered-X Least Mean Square (FXLMS) and Recursive Least Squares (RLS) algorithms are suitable for fan noise applications.
FAQs
Can Axial Fan Noise Reduction Techniques Be Applied to Existing Installations?
Axial fan noise reduction techniques can be applied to existing installations. Options include adding sound-absorbing materials, installing vibration isolators, and modifying fan blades. These retrofits can effectively decrease noise levels in current setups.
How Does Temperature Affect Axial Fan Noise Levels?
Higher temperatures increase noise due to air density changes and component expansion. Lower temperatures generally result in quieter operation.
How Do Different Fan Materials Impact Noise Generation and Reduction Efforts?
Different fan materials impact noise generation and reduction. Composite materials reduce vibration and noise compared to metal. Plastic fans are quieter but less durable. Acoustically-treated materials absorb sound, while smooth surfaces minimize turbulence-induced noise.
