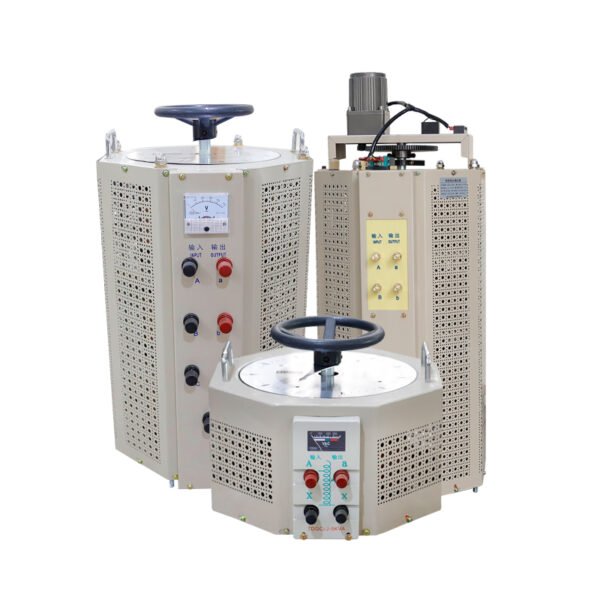

New Type Single-Phase Three-Phase Voltage Regulator TDJGC2

New Type Single-Phase Three-Phase Voltage Regulator TDJGC2

The New Type Single-Phase Three-Phase Voltage Regulator TDJGC2 is engineered to provide precise voltage regulation for both single-phase and three-phase electrical systems. Designed with advanced technology, it ensures stable and reliable voltage output, protecting electrical equipment from overvoltage or undervoltage damage.

Highlights

Advanced Technology for Precise Voltage Control
Wide Application for Both Single and Three-Phase Systems
Enhanced Efficiency and Long-Term Durability

Product Details

Product Introduction

The new single-phase and three-phase voltage regulator TDJGC2 is an efficient and energy-saving power regulation device that uses advanced autotransformer technology to achieve continuous and smooth voltage regulation. The regulator is designed to be compact, small in size, lightweight, and easy to carry and install. Whether for single-phase or three-phase applications, TDJGC2 can provide stable output voltage, waveform distortion free, and effectively protect electrical equipment. It has a wide range of applications, covering multiple fields such as industrial control, laboratory testing, and household appliances, making it an ideal choice for achieving precise voltage control. The TDJGC2 regulator also has overload protection function, ensuring safe use and easy maintenance.

Technical Parameters

The basic parameters of the voltage regulator are shown in the table.
The insulation class of the voltage regulator is Class A.
The average temperature rise limit of the coil is 60℃.
Overload capability: The voltage regulator is allowed to exceed the rated output current value for a short time, but it cannot exceed the table.

Model	Rated Capacity（KVA）	Phase	Rated Frequency（Hz）	Rated Input Voltage（V）	Output Voltage Range（V）	Rated Input Current （A）
TDGC2-0.2	0.2	1	50	220	0 ~ 250	0.8
TDGC2-0.5	0.5	1	50	220	0 ~ 250	2
TDGC2-1	1	1	50	220	0 ~ 250	4
TDGC2-2	2	1	50	220	0 ~ 250	8
TDGC2-3	3	1	50	220	0 ~ 250	12
TDGC2-5	5	1	50	220	0 ~ 250	20
TDGC2-7	7	1	50	220	0 ~ 250	28
TDGC2-10	10	1	50	220	0 ~ 250	40
TDGC2-15	15	1	50	220	0 ~ 250	60
TDGC2-20	20	1	50	220	0 ~ 250	80
TDGC2-30	30	1	50	220	0 ~ 250	120
TSGC2-3	3	3	50	380	0 ~ 430	4
TSGC2-6	6	3	50	380	0 ~ 430	8
TSGC2-9	9	3	50	380	0 ~ 430	12
TSGC2-12	12	3	50	380	0 ~ 430	16
TSGC2-15	15	3	50	380	0 ~ 430	20
TSGC2-20	20	3	50	380	0 ~ 430	27
TSGC2-30	30	3	50	380	0 ~ 430	40

Product Features

Voltage regulation: TDJGC2 can achieve continuous and smooth regulation of output voltage, meeting the specific voltage requirements of different loads and devices.
Stable waveform: During the process of adjusting the voltage, the voltage regulator can maintain the stability of the output waveform, ensuring that the electrical equipment receives high-quality power supply.
Widely applicable: TDJGC2 can provide reliable voltage regulation for both single-phase and three-phase applications, suitable for various fields such as industrial control, laboratory testing, household appliances, etc.
Overload protection: Equipped with overload protection function, it can automatically cut off the power supply in case of abnormal voltage or excessive load, protecting the safety of electrical equipment and voltage regulators themselves.
Energy conservation and environmental protection: adopting advanced energy-saving design, reducing energy consumption, improving energy utilization efficiency, and complying with modern green environmental protection concepts.

Product installation and instructions

The new single-phase three-phase voltage regulator TDJGC2 is easy to install, and users need to ensure that the installation environment is dry and ventilated to avoid moisture and high temperatures. Place the regulator steadily in a fixed position and secure it with screws to ensure stability. Next, according to the input and output voltage requirements of the device, correctly connect the power line and load line, pay attention to distinguishing between the phase line and neutral line, and ensure that the wiring is firm and reliable. After completing the wiring, carefully check whether each connection point is tightened to avoid short circuits or open circuits. Finally, before turning on the power, confirm that all settings are correct before starting to use. During use, regular inspection and maintenance are required to ensure the long-term stable operation of the regulator. Please follow the product manual to ensure safe use.
