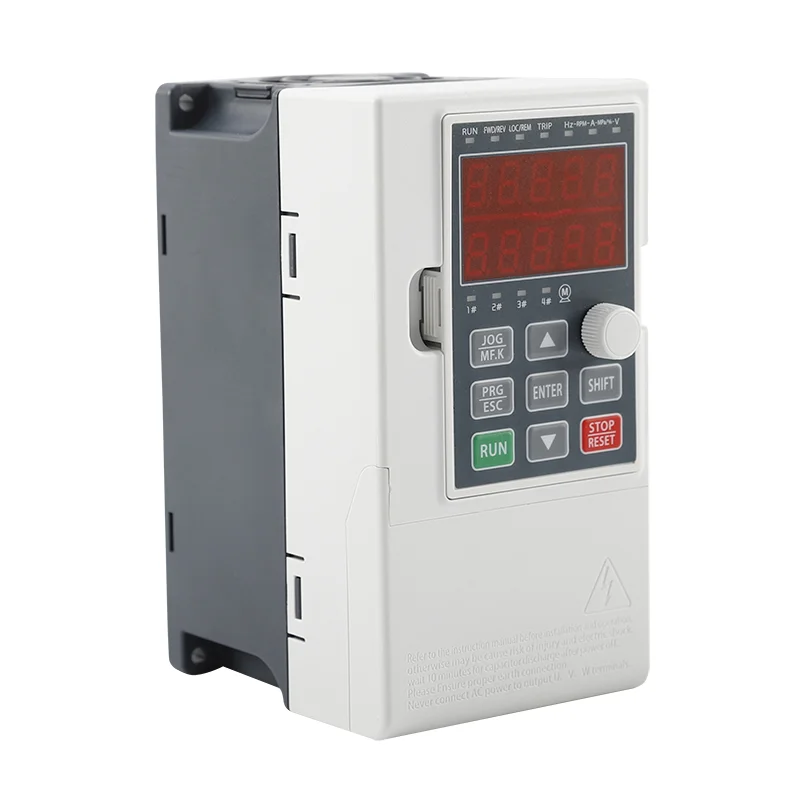

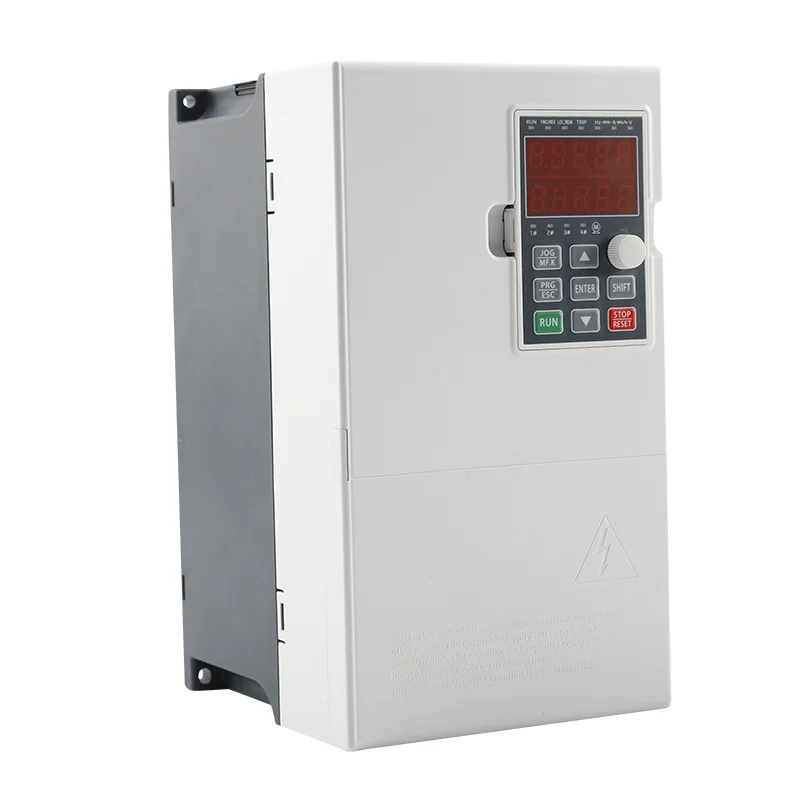

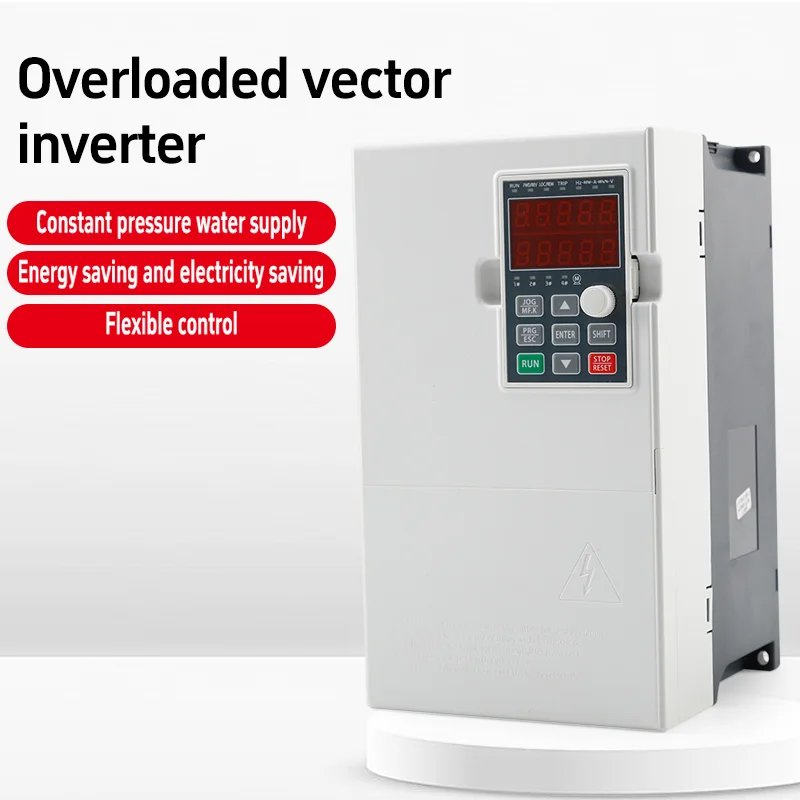

The SHBF700 series overloaded vector inverter is an energy-efficient and versatile drive solution designed to meet diverse industrial demands. Supporting both single-phase (220V ±15%) and three-phase (220V/380V ±15%) inputs, it offers a wide power range from 0.75KW to 15KW with corresponding current outputs up to 32A. Featuring intelligent speed regulation, constant pressure water supply control, and PLC torque-speed modes, it ensures flexible, stable, and precise operation. With a robust design, multi-protection functions, and intuitive LED display, this series combines reliability, safety, and user-friendliness for broad industrial applications.
Application environment
The SHBF700 series inverters thrive in demanding industrial environments with moisture, dust, or voltage fluctuations (±15%). Their thickened three-proof coating ensures moisture-proof, anti-static, and dust-resistant operation, delivering stable, energy-efficient performance.
Product parameters
| Model No. | Input rated voltage (V) | Rated output power (KW) | Rated output current (A) | Dimension | Remark |
| SHBF400-02S0.75G | Single phase 220V ±15% | 0.75KW | 4A | 155.5X85X106 | A |
| SHBF700-02S1.5G | 1.5KW | 7A | 155.5X85X106 | ||
| SHBF700-02S2.2G | 2.2KW | 9.6A | 155.5X85X106 | ||
| SHBF700-02S3.7G | 3.7KW | 17A | 211X117.5X137 | B | |
| SHBF700-02S5.5G | 5.5KW | 25A | 259X148X167 | C | |
| SHBF700-02T0.75G | 3phase 220V ±15% | 0.75KW | 3.8A | 155.5X85X106 | A |
| SHBF700-02T1.5G | 1.5KW | 5.1A | 155.5X85X106 | ||
| SHBF700-02T2.2G | 2.2KW | 9.6A | 155.5X85X106 | ||
| SHBF700-02T3.7G | 3.7KW | 17A | 211X117.5X137 | B | |
| SHBF700-02T5.5G | 5.5KW | 25A | 259X148X167 | C | |
| SHBF700-02T7.5G | 7.5KW | 32A | 259X148X167 | ||
| SHBF700-04T0.75G | 3phase 380V±15% | 0.75KW | 2.1A | 155.5X85X106 | A |
| SHBF700-04T1.5G | 1.5KW | 3.8A | 155.5X85X106 | ||
| SHBF700-04T2.2G | 2.2KW | 5.1A | 155.5X85X106 | ||
| SHBF700-04T3.0G | 3.0KW | 6.8A | 155.5X85X106 | ||
| SHBF700-04T4.0G | 4.0KW | 9A | 155.5X85X106 | ||
| SHBF700-04T5.5G | 5.5KW | 13A | 211X117.5X137 | B | |
| SHBF700-04T7.5G | 7.5KW | 17A | 211X117.5X137 | ||
| SHBF700-04T11G | 11KW | 25A | 259X148X167 | C | |
| SHBF700-04T15G | 15KW | 32A | 259X148X167 |

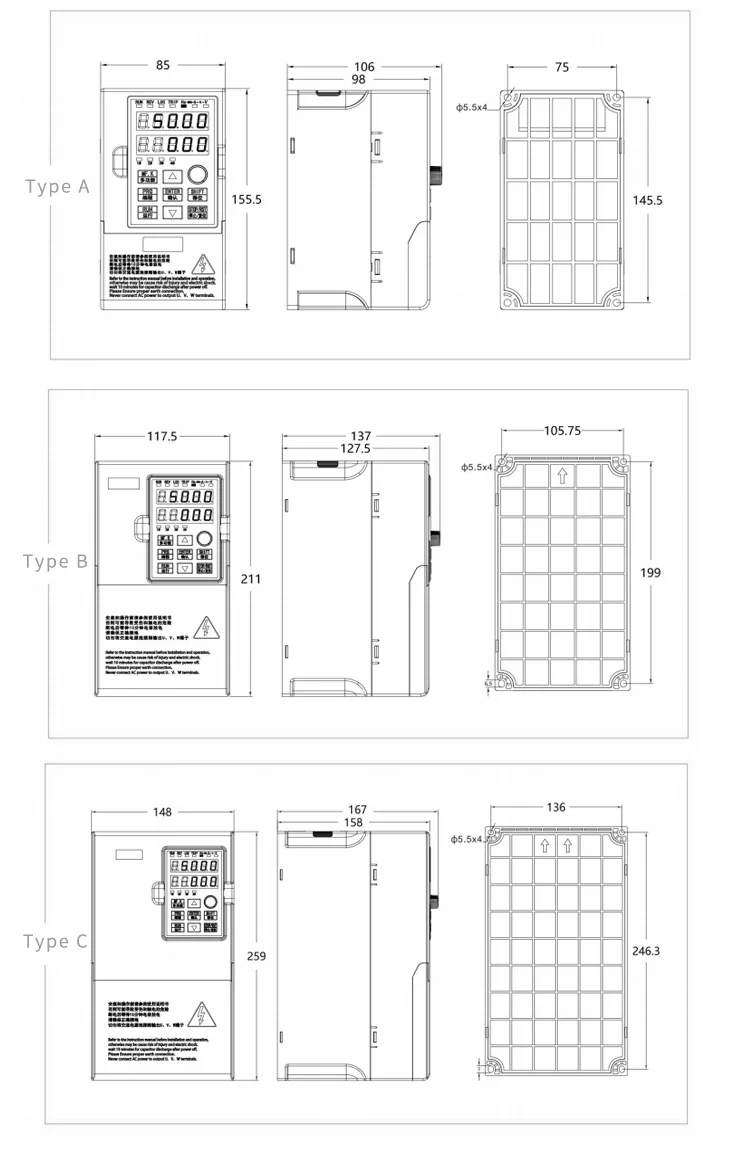

Dimension
Product Features
- Supports single/three-phase input (220V/380V ±15%) with 0.75-15KW output range. Three size options (A/B/C) fit varied installations. Ideal for pumps, fans, and industrial equipment, enabling intelligent speed control and stable pressure regulation in diverse scenarios.
- Optimizes energy efficiency while reducing costs. Integrates overcurrent, overvoltage, and overload protection to safeguard motors. Extends equipment lifespan and ensures reliable performance in continuous operation, balancing sustainability with durability.
- Offers PLC torque-speed control and 0-400Hz frequency range for accurate motor adjustments. Enables stepless speed regulation to meet dynamic process demands, enhancing efficiency in manufacturing, HVAC, and other precision-driven applications.

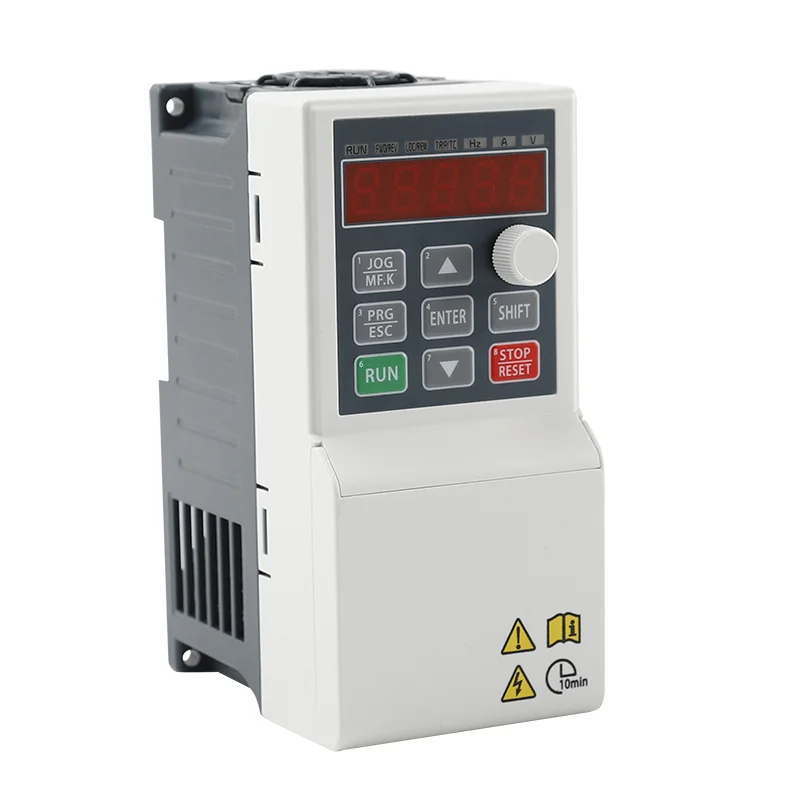

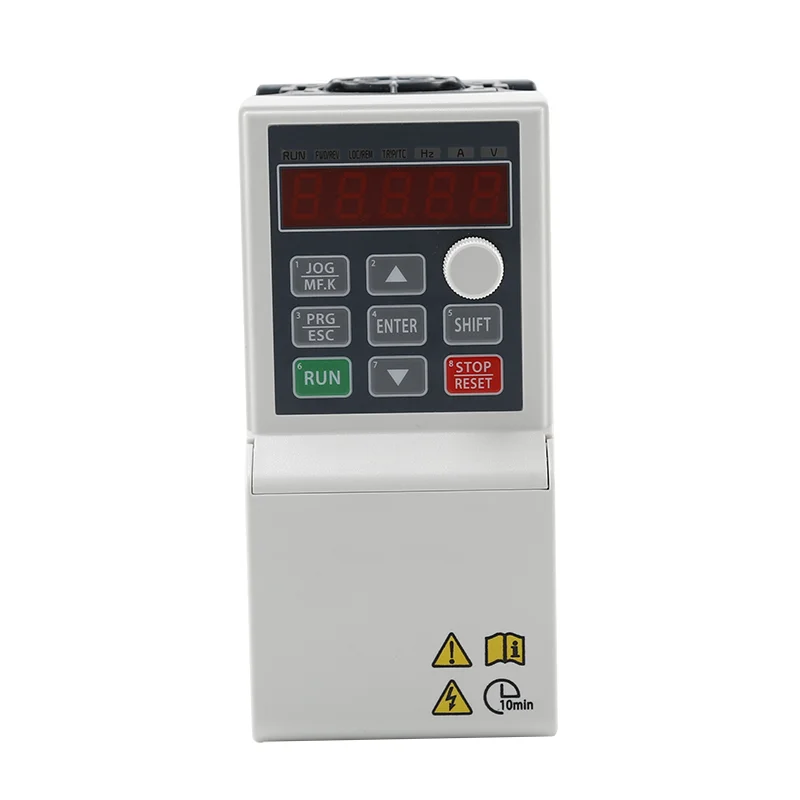

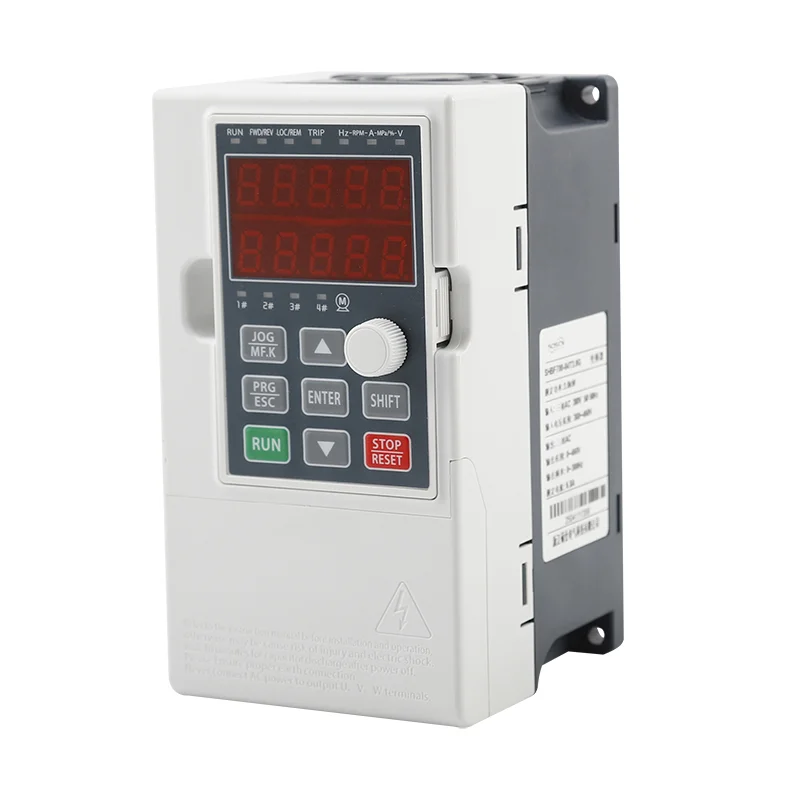

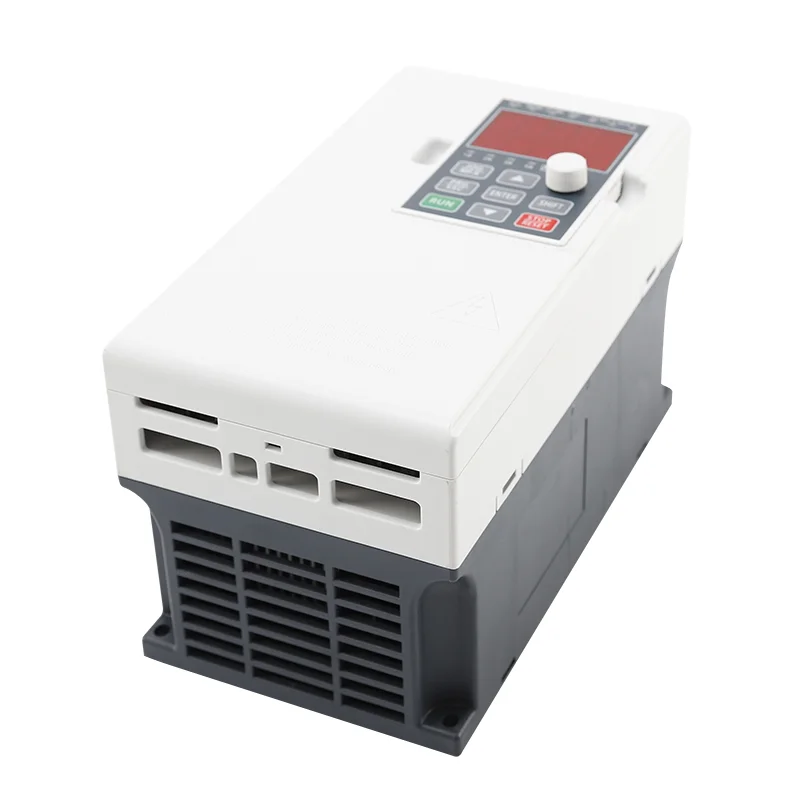

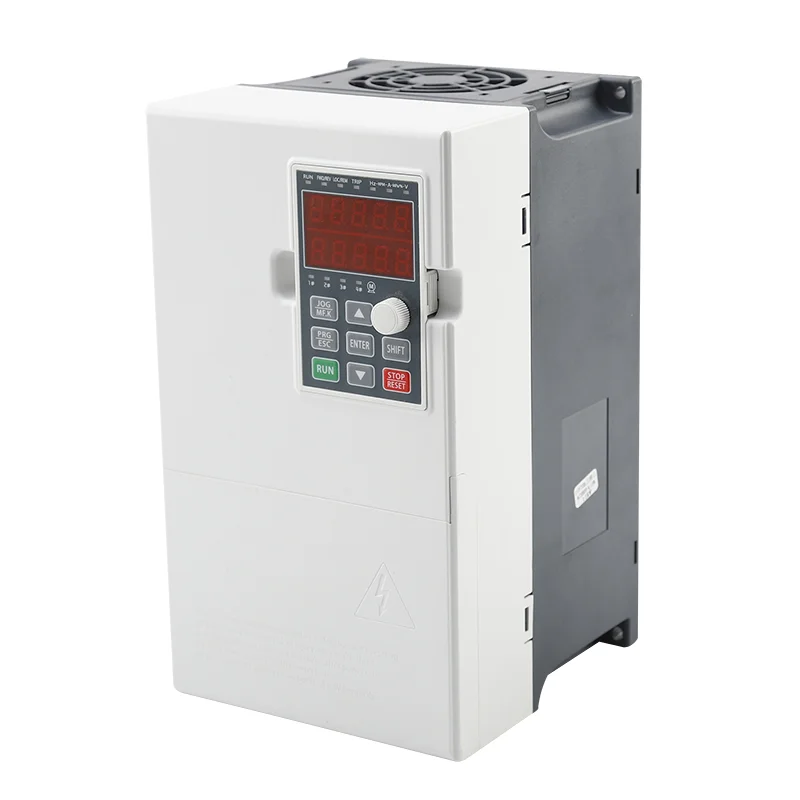

- Features a clear LED display and user-friendly controls (RUN/STOP/RESET). Simplifies parameter setup and real-time tracking of voltage, current, and frequency. Reduces operational complexity and supports quick troubleshooting.

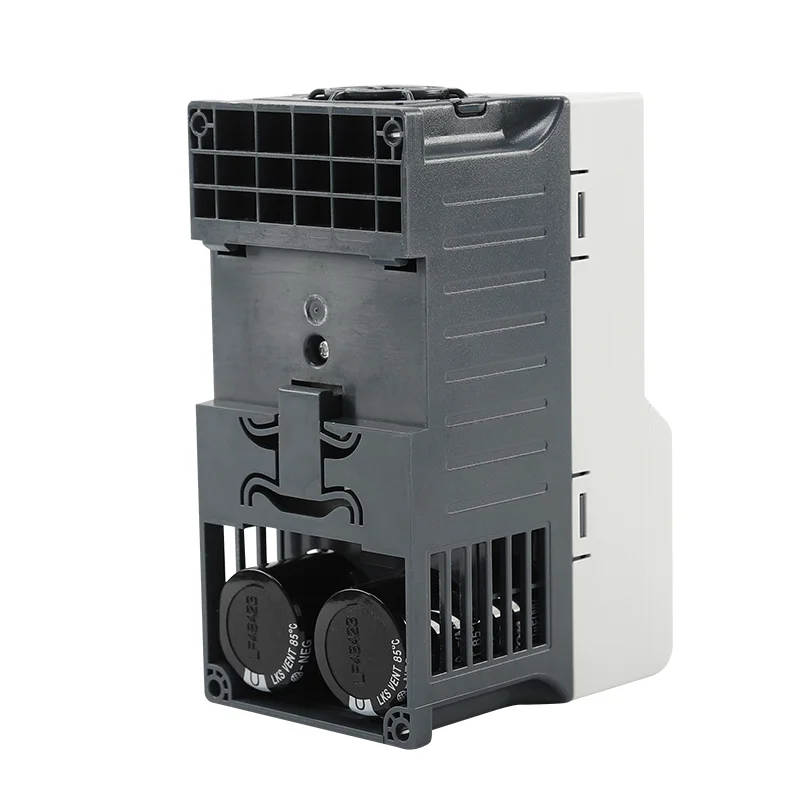

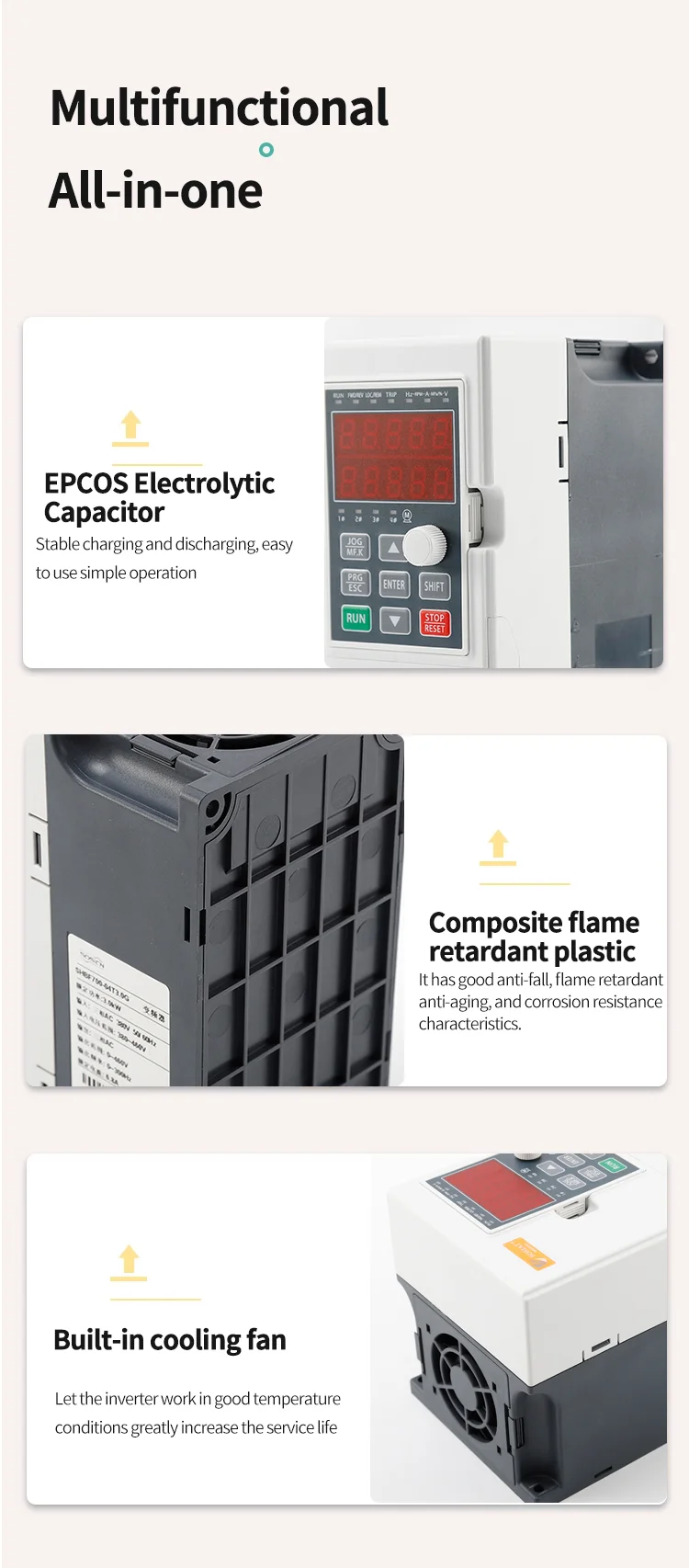

- Built with moisture/dust-resistant coating, flame-retardant casing, and built-in cooling fan. Withstands harsh environments and maintains stable performance during prolonged use. Minimizes maintenance needs and ensures long-term reliability.
- Equipped with short-circuit, overtemperature, and phase-loss protection. Proactively detects faults and halts operation to prevent damage. Meets industrial safety standards, providing secure and uninterrupted performance for critical applications.
Product installation and instructions
- Ensure a dry, well-ventilated environment free from corrosive gases and dust for SHBF700 installation. Use its brackets to secure the unit on a stable surface, maintaining clearance around the built-in cooling fan for efficient heat dissipation and stable operation under the thickened three-proof coating protection.
- Connect the input power according to the model’s voltage specification (single/three-phase ±15%) using properly rated cables, ensuring reliable grounding. Verify voltage stability within the specified range to prevent operational faults or overload tripping during use.

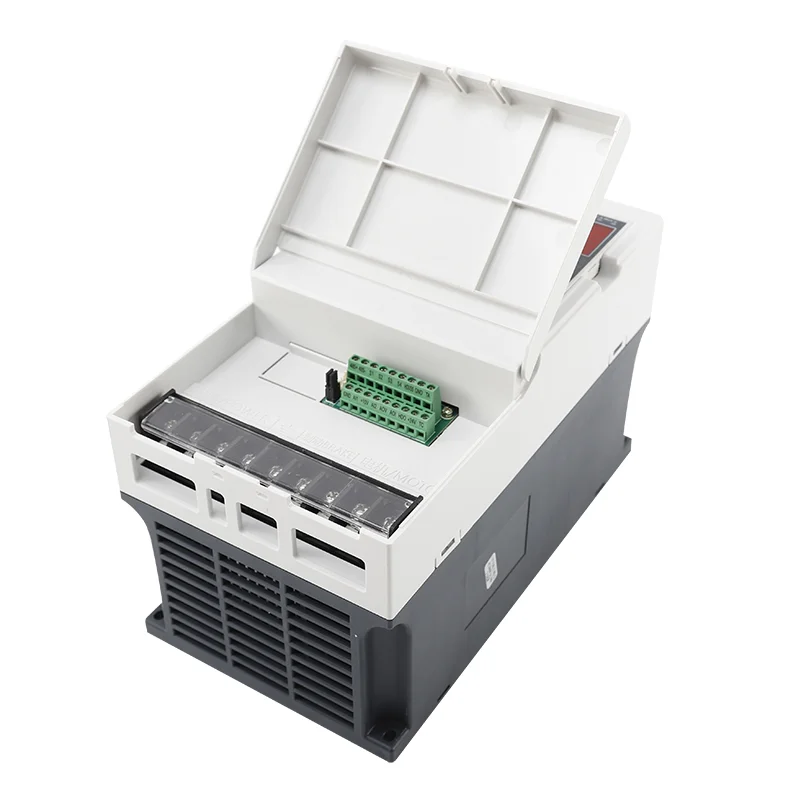

- Wire the motor (U, V, W) with correct phasing to avoid reverse rotation and integrate control signals (e.g., PLC, start/stop) via shielded cables for interference-free operation. Match cable specifications to the inverter’s rated current and application needs for secure linkage.
- Configure parameters via the LED panel by setting motor specs (power, current), control mode (vector/V/F), and frequency range (0–400Hz). Activate protective functions (overcurrent, overheating) and save settings. Conduct a brief no-load test to confirm stable operation and accurate display readings.
- Perform a loaded functional test while monitoring performance via the Smart Guardian diagnostics. Validate energy efficiency, safety protections, and compliance with operational requirements (e.g., constant pressure or speed regulation). Document readings to verify warranty terms and system reliability.
