Description

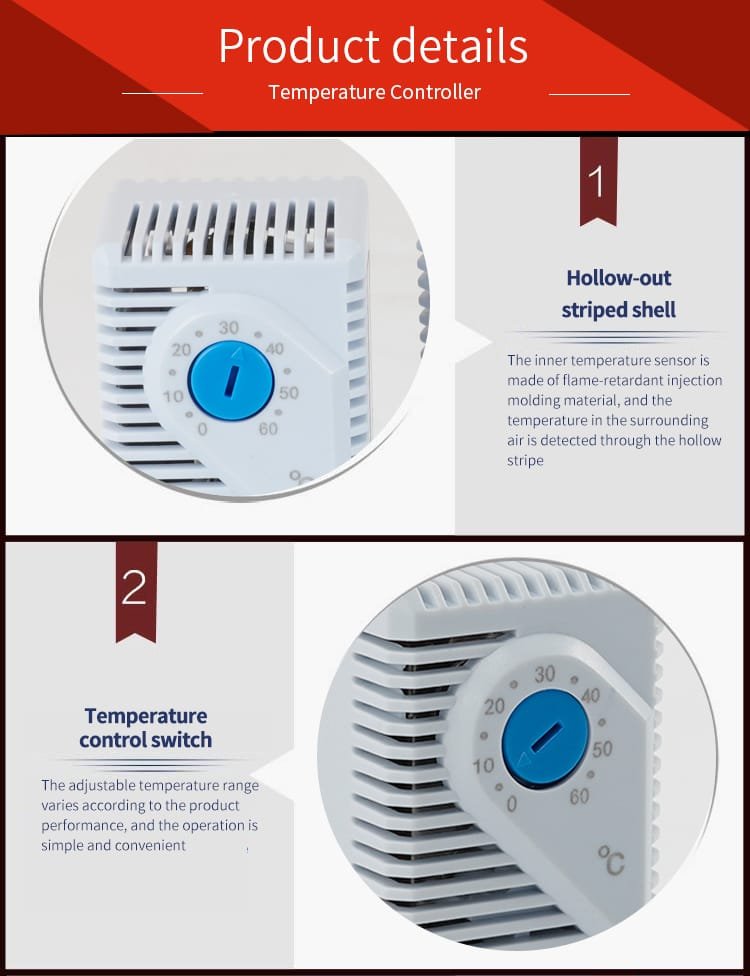

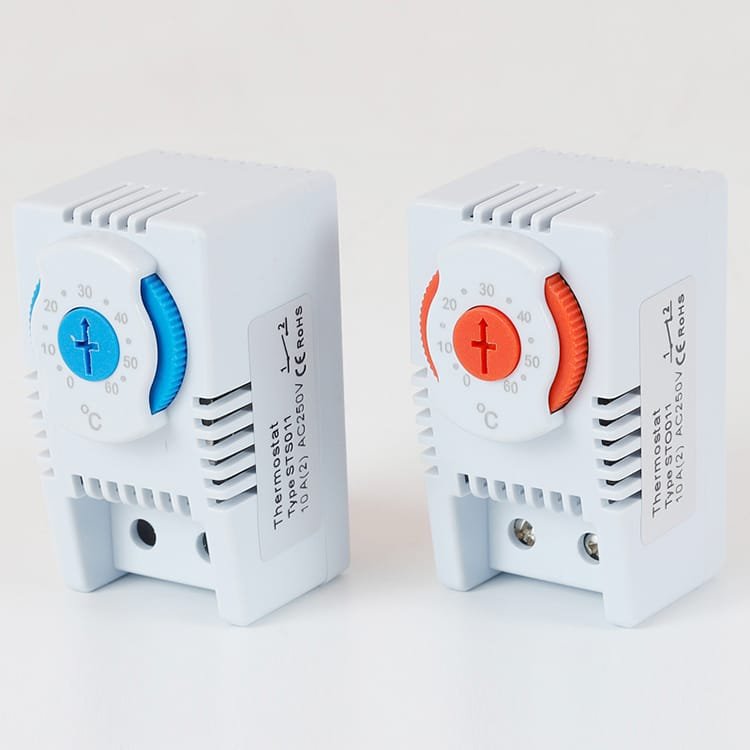

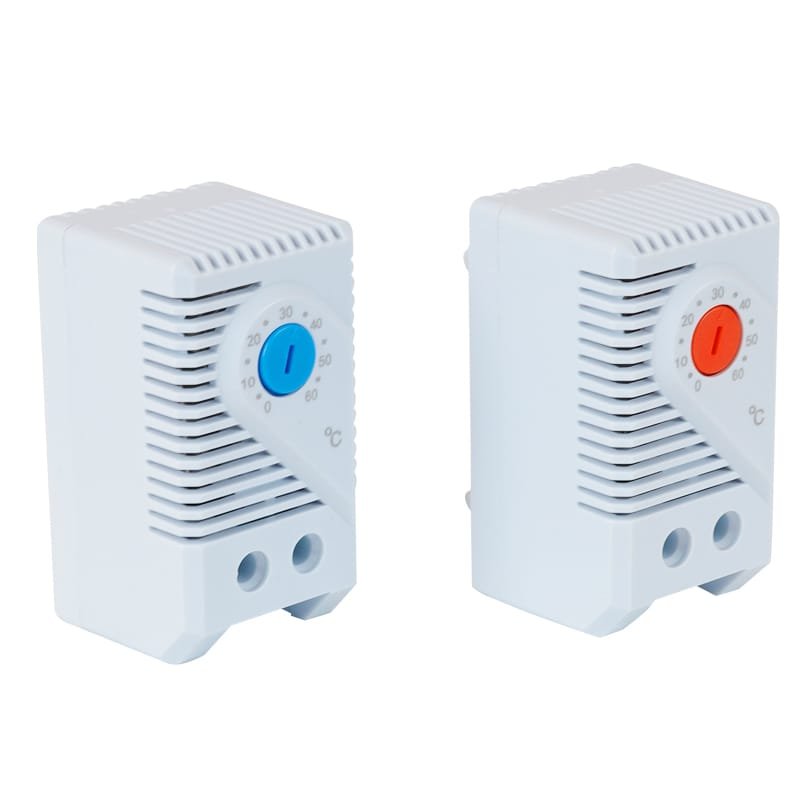

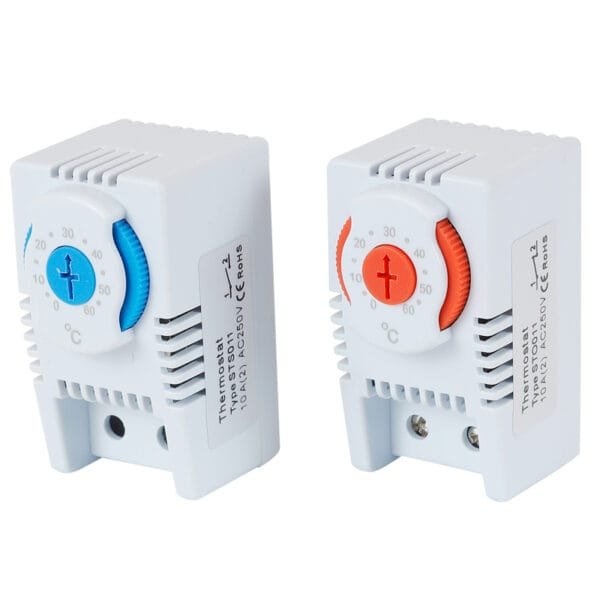

The Small, Compact Thermostat is a highly efficient and user-friendly device designed for precise temperature control. It features a hollow-out striped shell with a flame-retardant injection molding material for enhanced safety. The adjustable temperature range offers flexibility, while the bottom terminal ensures easy wiring. Its fixed foot frame provides stable installation. With voltage adjustment and reliable quality, it guarantees optimal performance.
Application range
The Small, Compact Thermostat is ideal for a variety of environments where precise temperature control is essential. It can be effectively used in electrical cabinets, HVAC systems, and small industrial machines. Its compact design allows for easy installation in tight spaces, while the insulation material ensures durability and safety. Suitable for both residential and commercial applications, it provides reliable and sensitive temperature management.
Product parameters

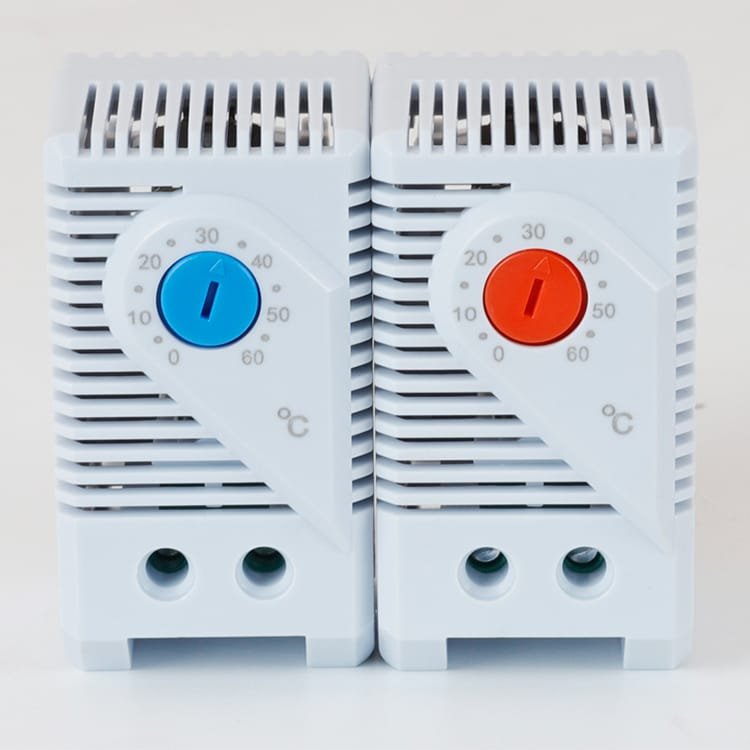

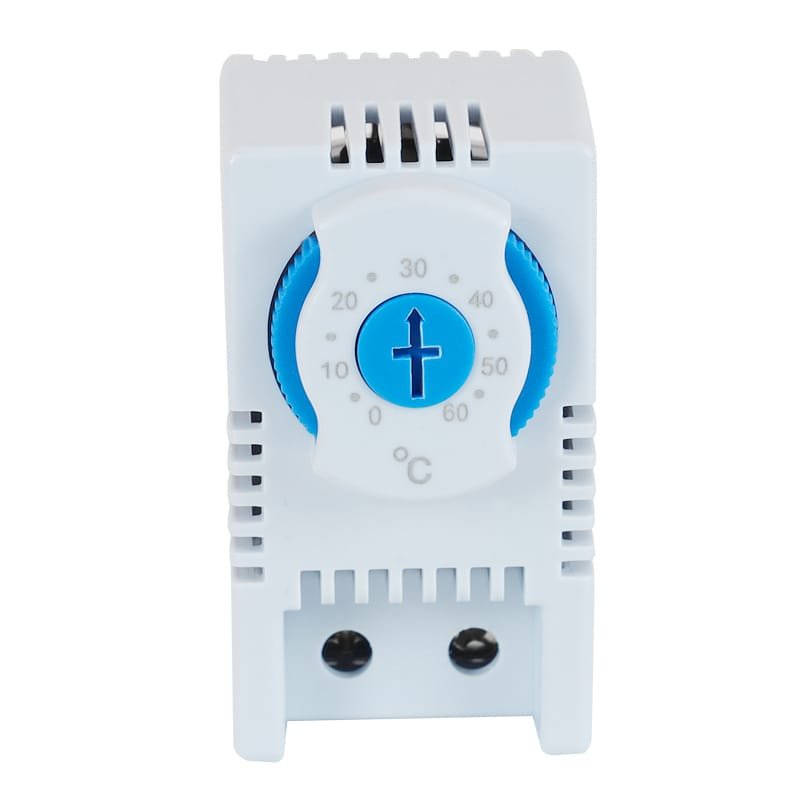

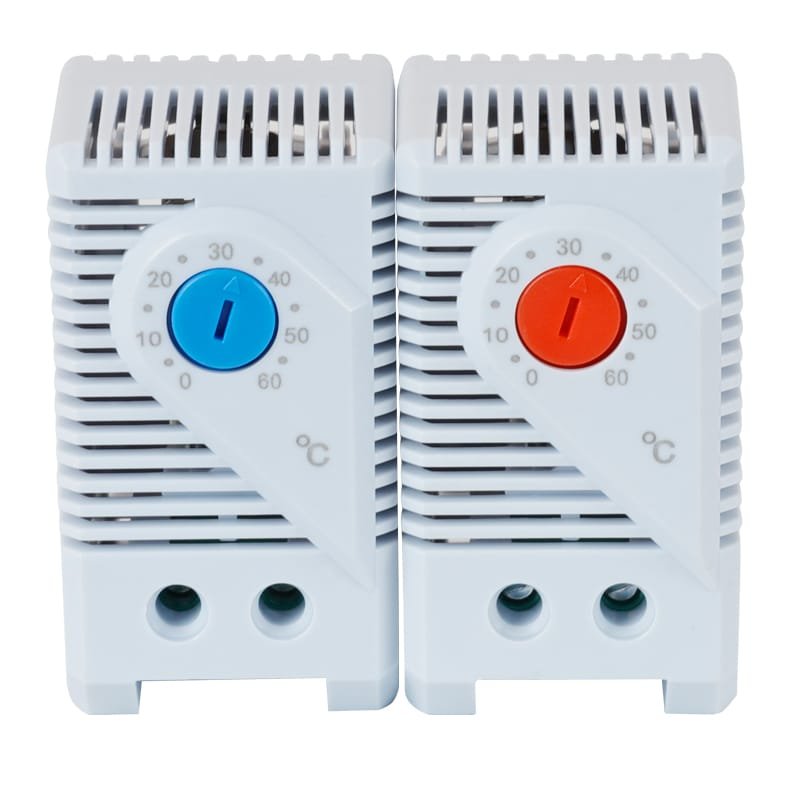

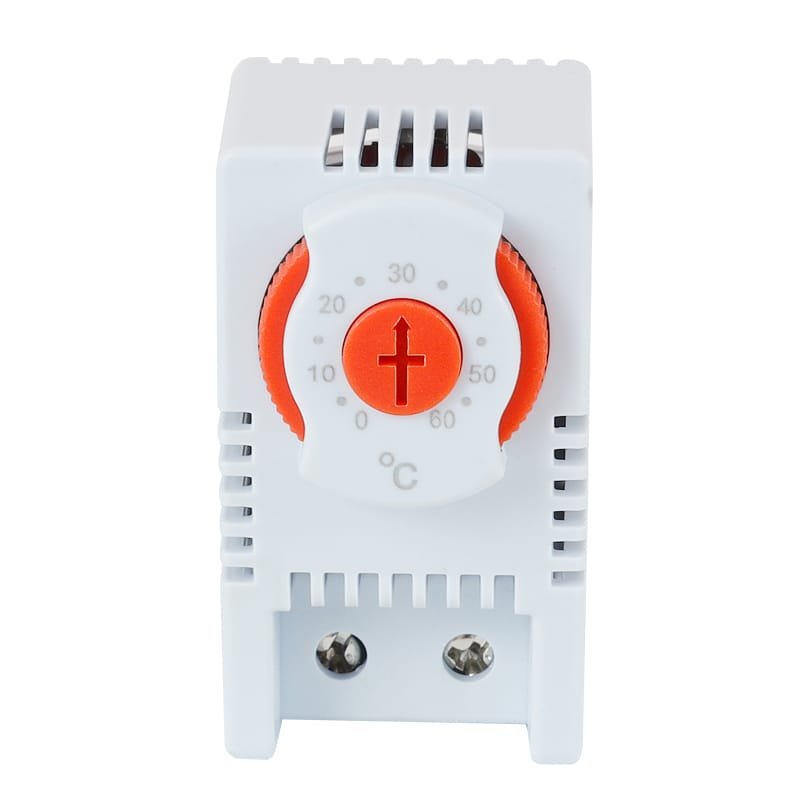

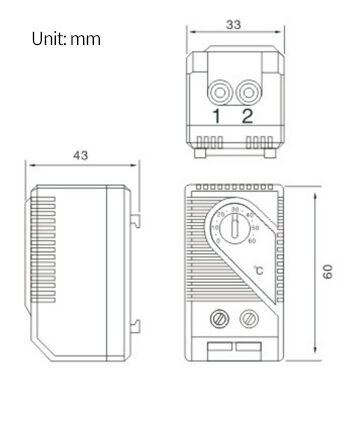

Small Compact Thermostat KTO 011,KTS 011,FKO 011,FKS 011 parameter table
| Switching temperature difference | Sensing element | Relay type | Contact resistance | Service life | Maximum switching load | EMC standards for Electromagnetic Compatibility | |
| 7K (±4K tolerance ) | Constant temperature bimetal strip | Instantaneous contact head | <10mΩ | > 100,000 cycles | 250VAC, 10(2)A 120VAC,15(2)A DC30W | Complies with EU EN 55014-1-2, EN 61000-3-2, EN 61000-3-3 standards | |
| Wiring | Installation Method | Casing | Dimensions weight | Installation Direction | Operating Storage | Temperature | Protection level |
| 2 terminal block, maximum clamping torque of 0.5 Nm; rigid wire 2.5mm², steel stranded wire(wire end iron casing) 1.5mm² | Slot suitable for DIN35 rail | Plastic, UL, light gray | 60×33×43mm | About 40 grams | Arbitrary | -20 to +80°C (-4 to +176°F)/-45 to +80°C (-49 to +176°F) | IP20 |

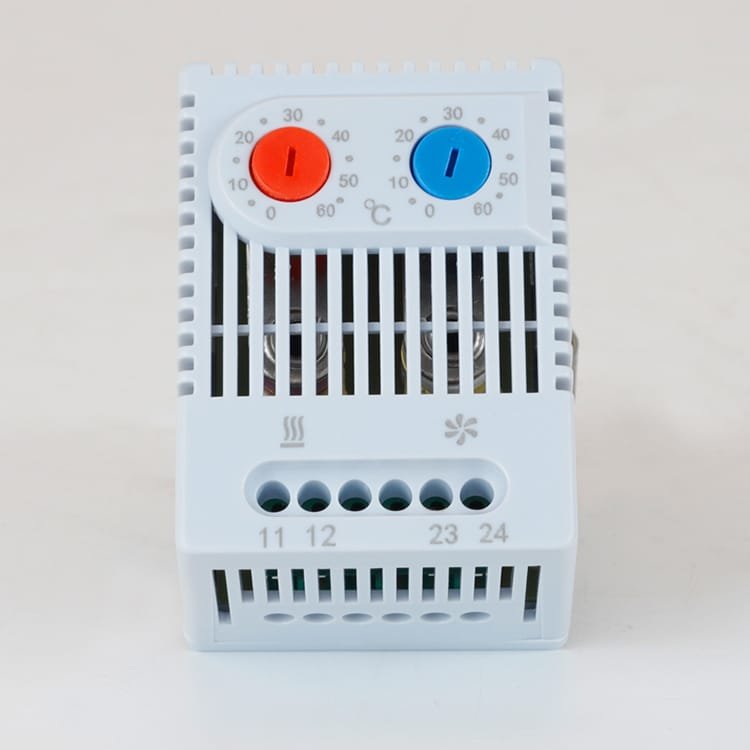

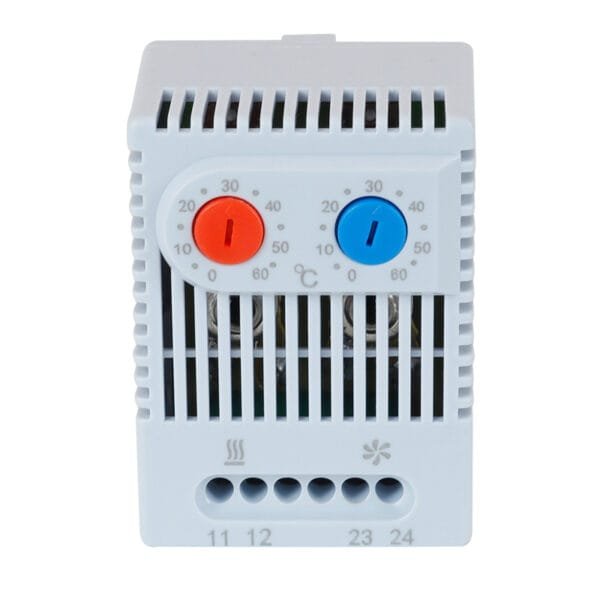

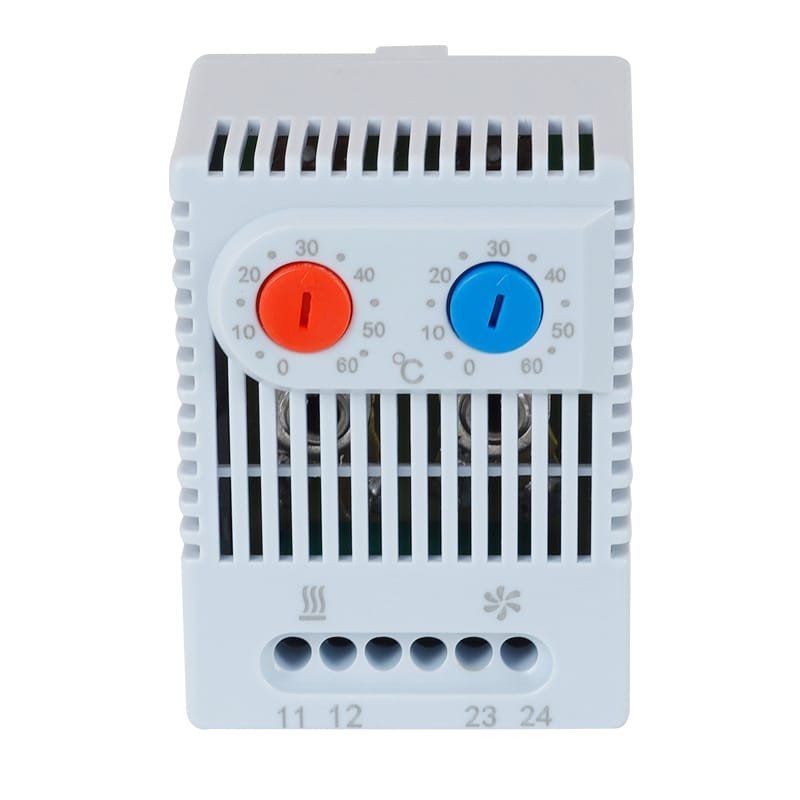

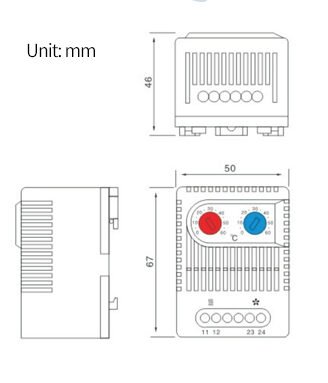

Dual Thermostat ZR 011 parameter table
| Switching temperature difference | Inductive element | Contact type | Contact resistance | life | EMC electromagnetic compatibility | Working storage temperature |
| 7K ±4K(with a tolerance ) | Thermostatic bimetal | Jumping contact head | <10mΩ | > 100,000 cycles | Complies with EU EN 55014-1-2, EN 61000-3-2, EN 61000-3-3 standard | -40 to +80°C (-49 to +176°F) |
| Wiring | Installation Mode | shell | outline dimension | weight | installation direction | protect grade |
| 4-pole terminal with maximum clamping torque of 0.5Nm | The clamping slot is suitable for DIN35 guide rail | Plastic, UL, light gray | 67*50*46mm | About 90 grams | Arbitrary | IP20 |

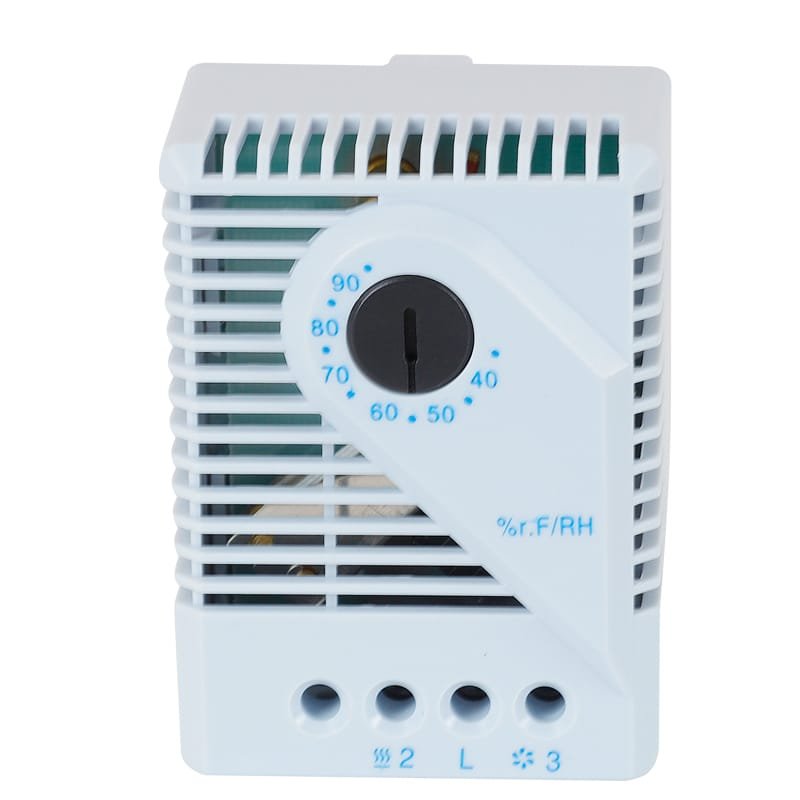

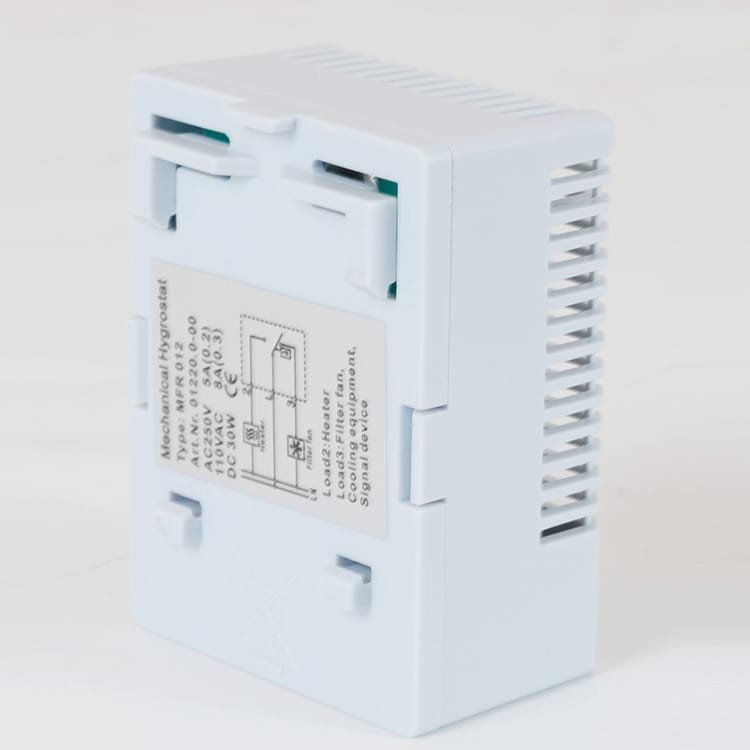

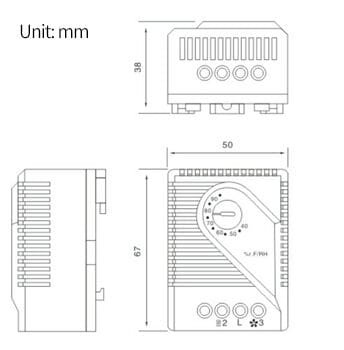

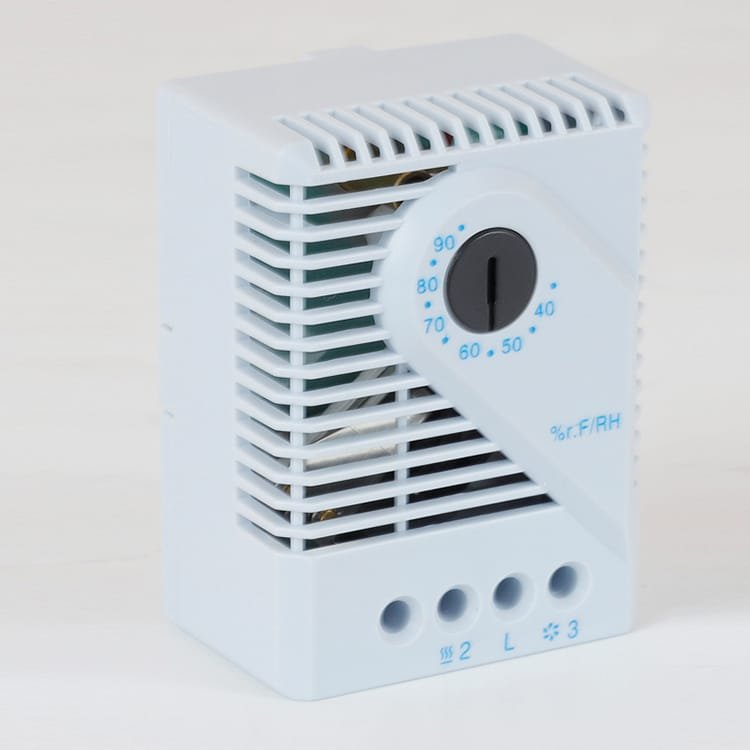

Mechanical Hygrostat MFR 012 parameter table
| Air Flow Rate | Contactor Type | Contact Resistance | Service Life | Minimum Switching Amount | Maximum Switching Amount | EMC standards for Electromag netic Compatibility |
| 15m/s | Transfer contact | <10mΩ | >100000 cycles | 20V AC/DC 100mA | 250VAC,5(1)A DC 20W | Comply with EU EN 55014-1-2, EN 61000-3-2,EN 61000-3-3 standard |
| Installation | Method The shell | Dimensions | Weight | Installation Direction | Operating Storage Temperature | Protection level |
| The clamping slot is suitable for DIN35 guide rail | Plastic, UL, light gray | 67×50×38mm | About 40 grams | Arbitrarily | -20 to +80°C (-4 to +176°F)/-45 to +80°C (-49 to +176°F) | IP20 |

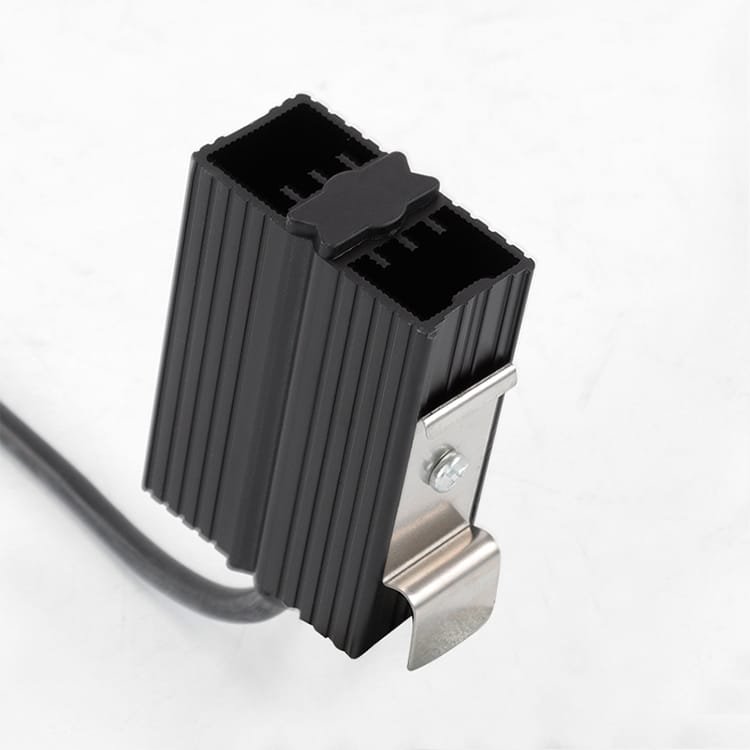

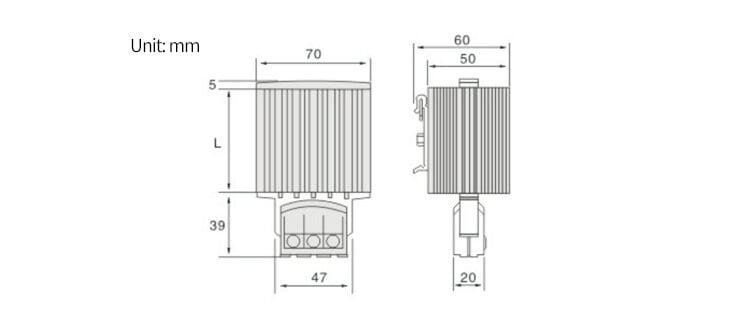

Semiconductor Heater MFR 012 parameter table
| Working voltage | Heating element | Heat sink | Connection method | |
| 120-240VAC/DC | PTC resistor, automatic regulation, temperature limiting | Extruded aluminum profile anodized | 3amping slots for standard wires 1.5-1.5mm (with wire end sleeves) and hard wires 0.5-2.5mm | |
| Connecting housing | Mounting method | Mount direction | Working/storage temperature | Protection level |
| Suitable for 94V-0 black plastic | 35mm DIN rail clamping (EN 50022) | Vertical | -45 to 70°C | IP20 grounding |

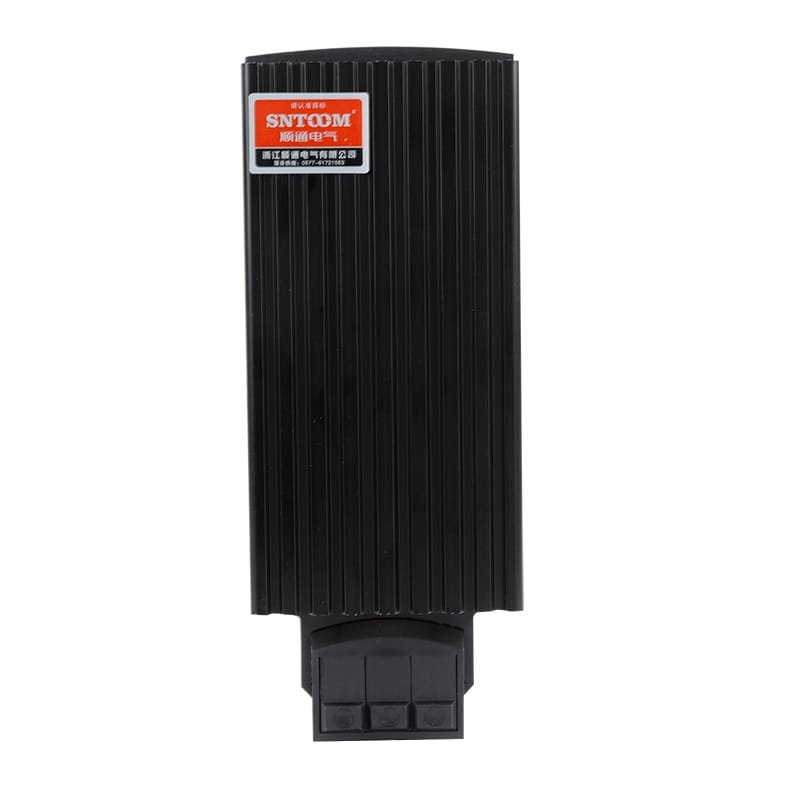

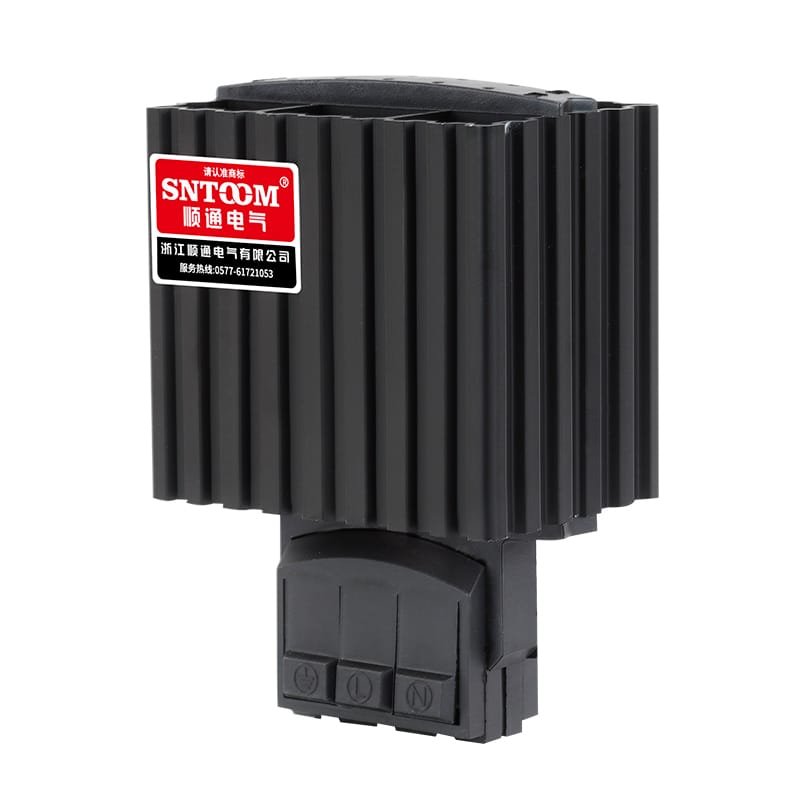

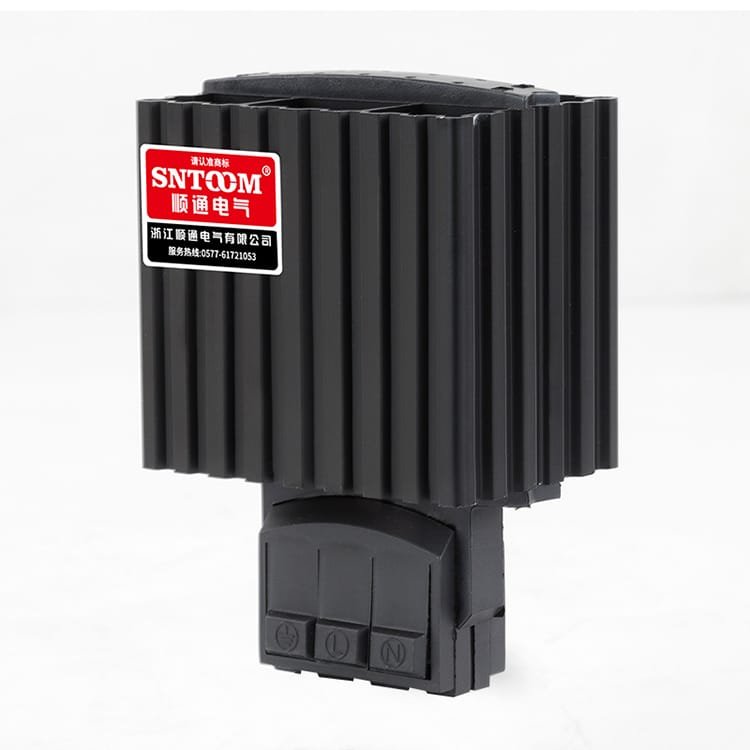

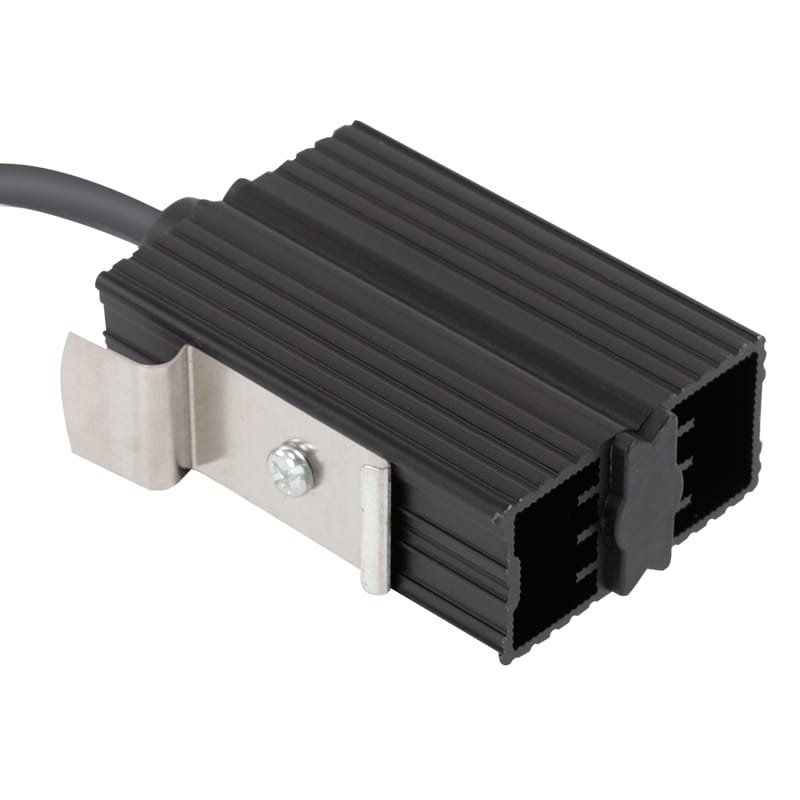

Small Semiconductor Heater HGK047 Series 10W-30W parameter table
| Heating element | Heating body | Method of installation | Installation direction | Working/storage temperature | Protection grade | Working |
| PTC resistance, automatic regulation and temperature control | Aluminum profile extruded anodically | 35 mm DIN track, EN 50022 | Vertical direction | -20 to 70°C | IP54 earthing | 120-240 V alternating current (minimum 10 V, maximum 265 V) |
Product Features
- This small, compact thermostat is designed for ease of installation in tight spaces. Its lightweight and portable build make it ideal for various applications without sacrificing functionality or performance.
Despite its small size, this thermostat offers high precision temperature control. It ensures your environment remains at the desired temperature with sensitive and accurate adjustments.
- The compact design of this thermostat contributes to energy efficiency. It optimizes heating and cooling cycles, reducing energy consumption while maintaining a comfortable atmosphere.
- Installation is a breeze with this compact thermostat. Its small size allows for flexible placement options, and it can be easily mounted or integrated into existing systems with minimal effort.
- Built with high-quality materials, this small thermostat is both sturdy and reliable. It withstands regular use and maintains performance over time, ensuring long-term satisfaction.
- The compact size of this thermostat makes it suitable for a wide range of applications, from residential heating systems to commercial cooling units. It adapts seamlessly to various environments.
Note:Ensure the Small, Compact Thermostat is installed on a flat, stable surface away from heat sources. Avoid moisture and extreme temperatures to ensure accurate operation and longevity.
- Gather all necessary tools and ensure the installation surface is clean and flat. Check the thermostat components for any damage.

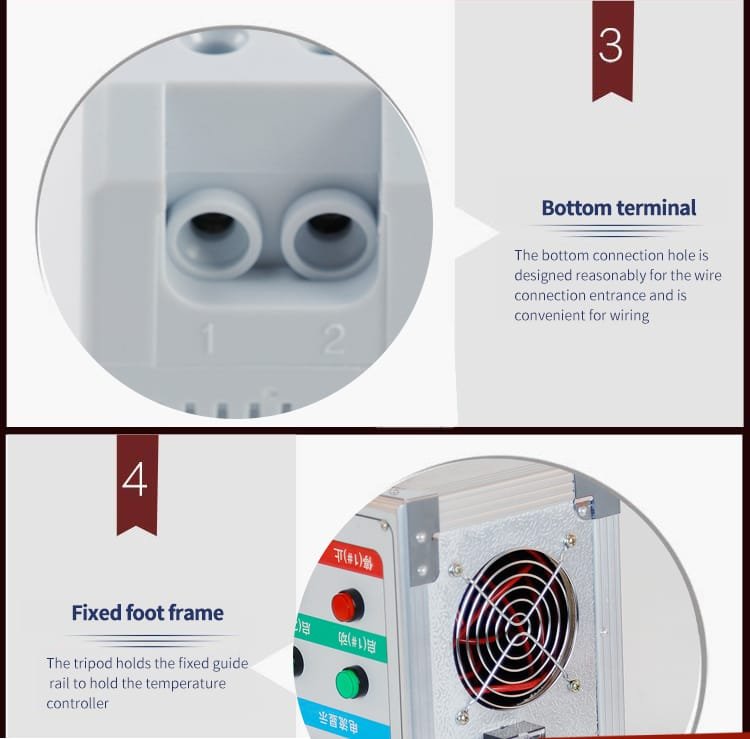

- Attach the fixed foot frame to the desired location using screws. Ensure it is securely fastened to support the thermostat.
- Connect the power wires to the bottom terminal of the thermostat. Follow the diagram for correct wiring, ensuring no loose connections.
- Carefully place the thermostat into the fixed foot frame, ensuring it fits snugly and securely without any gaps.
- Adjust the voltage settings as per your requirements using the voltage adjustment feature on the thermostat.
- Turn on the power and test the thermostat to ensure it operates correctly. Check the temperature control sensitivity and make any necessary adjustments.
