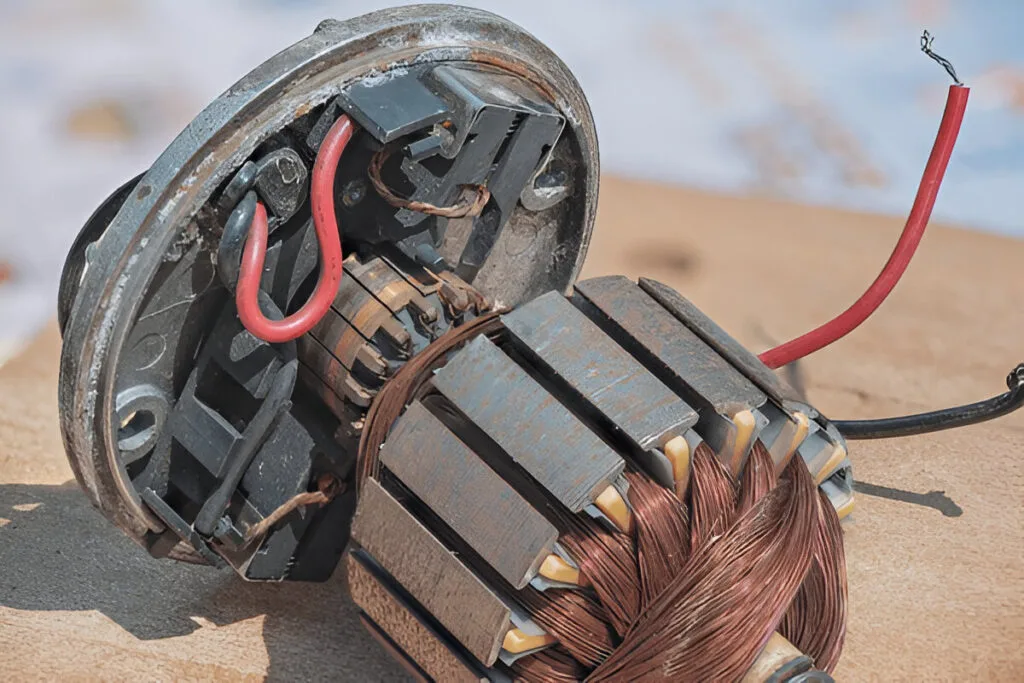

DC motors are widely used in various industrial applications due to their reliability and efficient power-to-size ratio. However, like any mechanical component, DC motor brushes are subject to wear and tear over time.
Brush wear can manifest in several ways, each with its own set of implications for motor operation. In this blog post, we will explore the various symptoms of brush wear, the underlying causes, and the steps that can be taken to mitigate their impact on DC motor performance.
Symptoms Indicating Brush Wear
As carbon brushes in DC motors wear down, several telltale signs can alert users to the need for maintenance or replacement. Recognizing these symptoms early on can help prevent irreversible damage to the motor and ensure optimal performance.
Performance issues
As brushes wear, their contact with the commutator becomes less efficient, leading to reduced torque output and inconsistent motor speed. Users may notice that the motor struggles to maintain its rated speed under load or that it fails to reach its specified horsepower.
Increased noise or vibration during operation
As the brushes lose their proper shape and contact with the commutator surface, they may bounce or chatter, creating audible noise and vibration.
Visible sparking or arcing at the commutator
While some sparking is normal during motor operation, pronounced or continuous sparking can indicate that the brushes are not making proper contact with the commutator bars. This can be caused by uneven wear, improper brush grade selection, or issues with brush spring tension.
Accumulation of carbon dust inside the motor
As carbon brushes wear down, they release fine carbon dust that can accumulate inside the motor housing. This dust is a natural byproduct of brush wear and can be an indicator of the brushes’ condition. Excessive dust accumulation may suggest accelerated brush wear or the need for more frequent maintenance. In severe cases, the dust may even interfere with proper motor ventilation and cooling.
Causes of Brush Wear
Brush wear is a common issue in DC motors, leading to reduced performance and potential damage if left unchecked. Several factors contribute to excessive brush wear, including mechanical issues, electrical factors, and environmental influences.
Mechanical issues
Proper alignment and pressure of the brushes against the commutator are crucial for optimal performance and longevity. Misalignment can cause uneven wear, leading to premature failure of the brushes. Brush holders must be correctly positioned to ensure consistent contact with the commutator surface.
Excessive brush pressure can accelerate wear, while insufficient pressure may result in poor electrical contact and increased sparking. The brush springs should maintain constant pressure throughout the life of the brushes. Incorrect spring tension can lead to rapid brush wear and damage to the commutator.
Commutator eccentricity, caused by a bent motor shaft or worn bearings, can also contribute to uneven brush wear. As the commutator rotates, the brushes may experience varying pressure against the copper bars, leading to accelerated wear in certain areas.
Electrical factors
Overloading a DC motor by exceeding its rated current can cause excessive brush wear. When the motor draws more current than specified, the increased current density at the brush-commutator interface leads to higher temperatures and accelerated wear. This is particularly problematic in applications with frequent starting and stopping, as the high inrush current during startup puts additional stress on the brushes.
Using an incorrect voltage supply can also contribute to brush wear. Operating a motor at a higher voltage than its rating can lead to increased current flow, resulting in overheating and rapid wear of the brushes. Conversely, running a motor at a lower voltage may cause the brushes to “stick” and not maintain proper contact with the commutator, leading to sparking and damage.
Improper commutation can also accelerate brush wear. If the brushes are not positioned at the neutral plane, where the armature coils are not generating an electromotive force (EMF), sparking and uneven wear may occur. Incorrect brush grade selection for the specific application can exacerbate this issue.
Environmental influences
High ambient temperatures can lead to increased brush temperature, accelerating wear rates. This is particularly problematic in applications where the motor is enclosed or operates in high-temperature environments, such as power tools and industrial machinery.
Humidity can also impact brush performance. In high-humidity environments, moisture can accumulate on the commutator surface, leading to increased electrical resistance and sparking. This can result in accelerated brush wear and damage to the commutator.
Dust and other airborne contaminants can contribute to brush wear by acting as abrasives between the brushes and commutator. Particles can become embedded in the brush material, leading to increased friction and wear. In extreme cases, dust accumulation can cause brush sticking and prevent proper contact with the commutator.
How to Maintain DC Motor Brushes
Regular Inspection and Cleaning
Check for signs of excessive wear, such as uneven wear patterns, chipping, or discoloration.
Remove any debris or dust accumulation from the brushes and commutator using compressed air or a soft brush.
Correct Brush Selection
Selecting the appropriate grade and type of brush is crucial for minimizing wear and maintaining efficient operation.
Consult the manufacturer’s guidelines or seek expert advice to determine the most suitable brush material, such as graphite, electrographite, or metal-graphite.
Proper Brush Installation
Ensure that brushes are properly seated in the brush holders and that the pigtails are securely connected.
Maintain appropriate brush spring tension to provide constant pressure against the commutator.
Commutator Maintenance
Regularly inspect the commutator surface for signs of wear, damage, or eccentricity. If necessary, have the commutator resurfaced or undercut to maintain a smooth, even surface for optimal brush contact.
Ensure that commutator bars are true and free from high spots or burrs.
Environmental Control
Implement appropriate environmental controls, such as proper ventilation, temperature regulation, and contaminant prevention measures, to minimize the impact on brush performance.
Monitoring and Troubleshooting
Regularly monitor brush performance and wear indicators to identify potential issues early. Keep records of brush replacements, wear rates, and any observed anomalies.
FAQs
Can a DC motor run without brushes?
No, a traditional brushed DC motor cannot run without brushes. The brushes are essential components that conduct electrical current from the stationary part of the motor to the rotating armature. However, there are brushless DC motors (BLDC) that use electronic commutation instead of brushes and can operate without them.

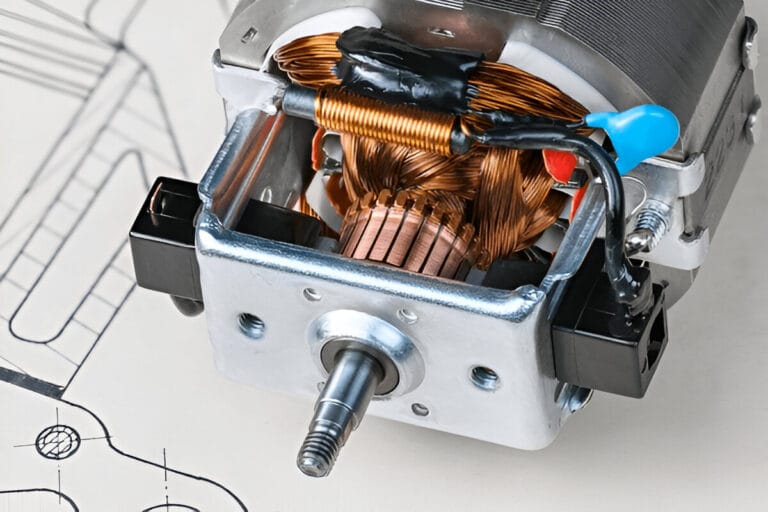

How long do DC motor brushes last?
On average, brushes can last between 2,000 to 10,000 hours of operation. Proper maintenance, such as keeping the commutator clean and ensuring adequate humidity, can help extend brush life.
