Description
Product Introduction
The 998 Series multifunctional current vector frequency converter stands as a universal solution, renowned for its stable operation and adaptability across diverse industrial applications, ensuring consistently efficient and reliable performance. As a cutting-edge single-phase-to-three-phase vector converter, it effectively bridges the gap between single-phase power supplies and three-phase motor-driven systems. This innovative device leverages advanced vector control technology to deliver precise motor regulation, optimizing energy efficiency and enhancing system responsiveness. Its robust design supports seamless integration into various industrial setups
Use
The 998 series isfrequency converter provides precise vector control for motors, ensuring efficient and stable operation in various industrial application scenarios
Product parameters
| Series | Model | A(mm) | B(mm) | H(mm) | W(mm) | D(mm) | Mounting hole (mm) |
| Installation size | Outer dimensions | ||||||
| 998 | 0.8KW-2.2KW | 60 | 161 | 170 | 78 | 125 | 4 |
| 3.0KW-5.5KW | 78 | 200 | 212 | 95 | 154 | 4 | |
| 7.5KW-11KW | 128 | 230 | 240 | 140 | 180 | 5 | |
| 15KW-30KW | 188 | 305 | 322 | 205 | 199 | 5 | |
| 30KW+ (iron shell) | 131 | 328 | 360 | 209 | 190 | 6 | |
| 37KW-45KW | 160 | 434 | 455 | 250 | 192 | 6 | |
| 55KW-75KW | 160 | 533 | 555 | 256 | 273 | 8 | |
| 90KW-132KW | 180 | 649 | 680 | 322 | 284 | 8 | |
| 160KW-185KW | 240 | 740 | 778 | 455 | 298 | 10 | |
| 200KW-315KW | 435 | 785 | 817 | 594 | 315 | 10 | |
| 355KW-560KW | 520 | 887 | 930 | 745 | 320 | 10 | |
| Brake resistor configuration table (optional for special equipment such as CNC machine tools) | ||||
| Voltage (V) | Inverter Power (KW) | Brake resistor | specifications | Braking torque |
| W | Ω | 10%ED | ||
| Single-phase 220 series | 0.4 | 80 | 200 | 125 |
| 0.75 | 80 | 150 | 125 | |
| 1.5 | 100 | 100 | 125 | |
| 2.2 | 100 | 70 | 125 | |
| 4.0 | 300 | 50 | 125 | |
| Three-phase 220 series | 0.75 | 150 | 110 | 125 |
| 1.5 | 250 | 100 | 125 | |
| 2.2 | 300 | 65 | 125 | |
| 4 | 400 | 45 | 125 | |
| 5.5 | 800 | 22 | 125 | |
| 7.5 | 1000 | 16 | 125 | |
| Three-phase 380 series | 0.75 | 100 | 750 | 125 |
| 1.5 | 300 | 400 | 125 | |
| 2.2 | 300 | 250 | 125 | |
| 4 | 400 | 150 | 125 | |
| 5.5 | 500 | 100 | 125 | |
| 7.5 | 1000 | 75 | 125 | |
| 11 | 3000 | 43 | 125 | |
| 15 | 3000 | 32 | 125 | |
| 18.5 | 3000 | 25 | 125 | |
| 22 | 4000 | 22 | 125 | |
| 30 | 5000 | 16 | 125 | |
| 37 | 6000 | 13 | 125 | |
| 45 | 6000 | 10 | 125 | |
| 55 | 6000 | 10 | 125 | |
| 75 | 7500 | 6.3 | 125 | |
| 93 | 9000 | 9.4/2 | 125 | |
| 110 | 11000 | 9.4/2 | 125 | |
| 132 | 13000 | 6.3/2 | 125 | |
| 160 | 16000 | 6.3/2 | 125 | |
| 200 | 20000 | 2.5 | 125 | |
| 220 | 22000 | 2.5 | 125 | |
| 250 | 25000 | 2.5/2 | 125 | |
| 280 | 28000 | 2.5/2 | 125 | |
| 315 | 32000 | 2.5/2 | 125 | |
| 355 | 34000 | 2.5/2 | 125 | |
| 400 | 42000 | 2.5/3 | 125 | |
| 450 | 45000 | 2.5/3 | 125 | |

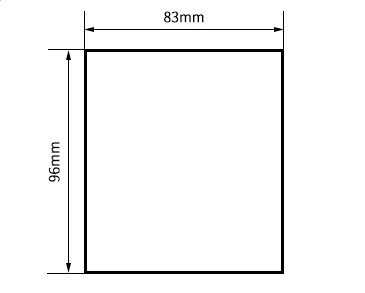

Dimension
Product Features

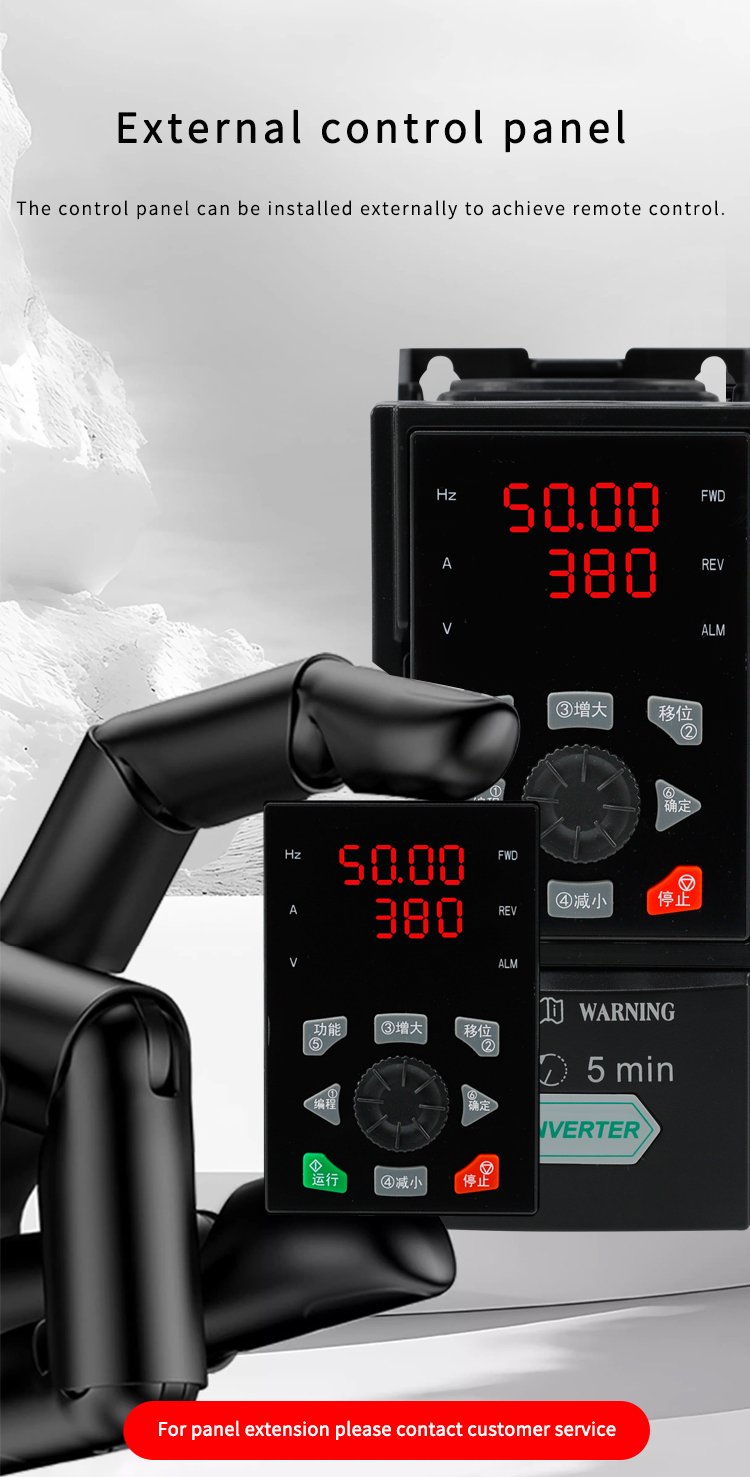

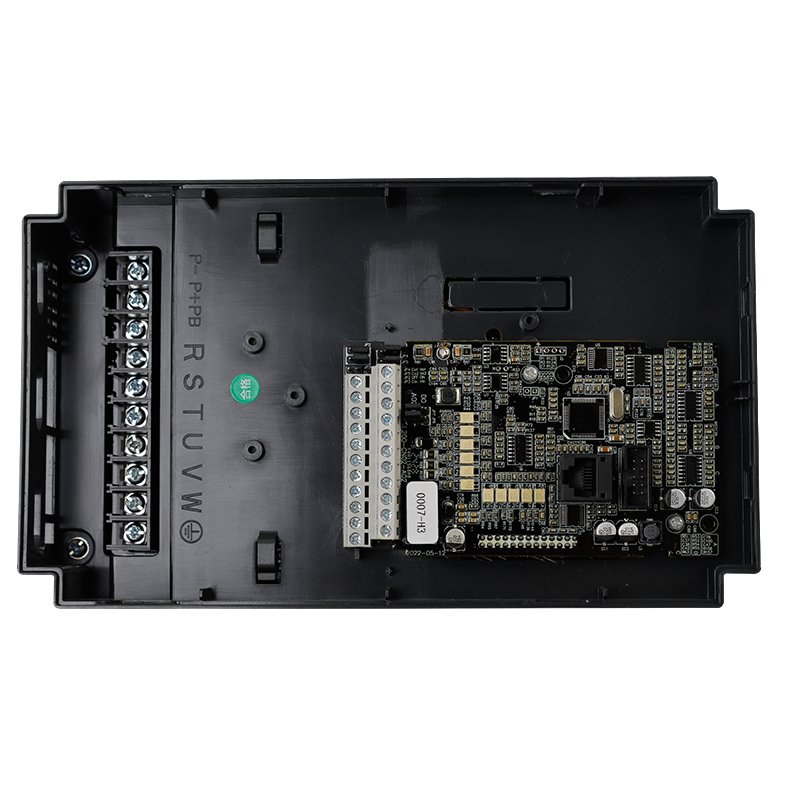

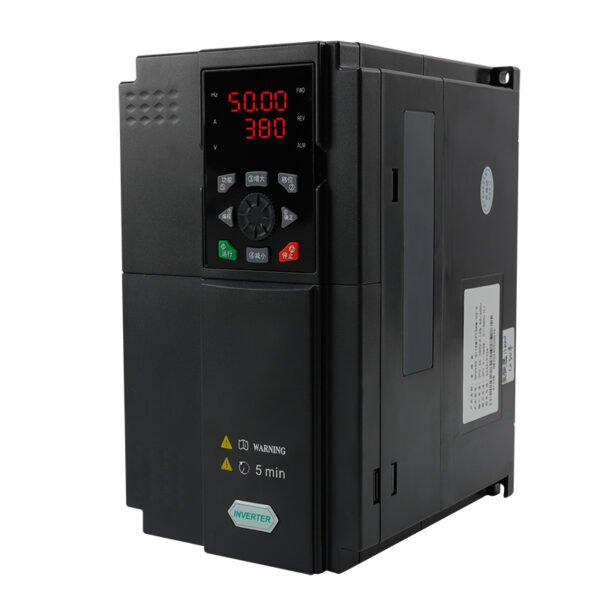

- External control panel
- Composite flameretardant plastic

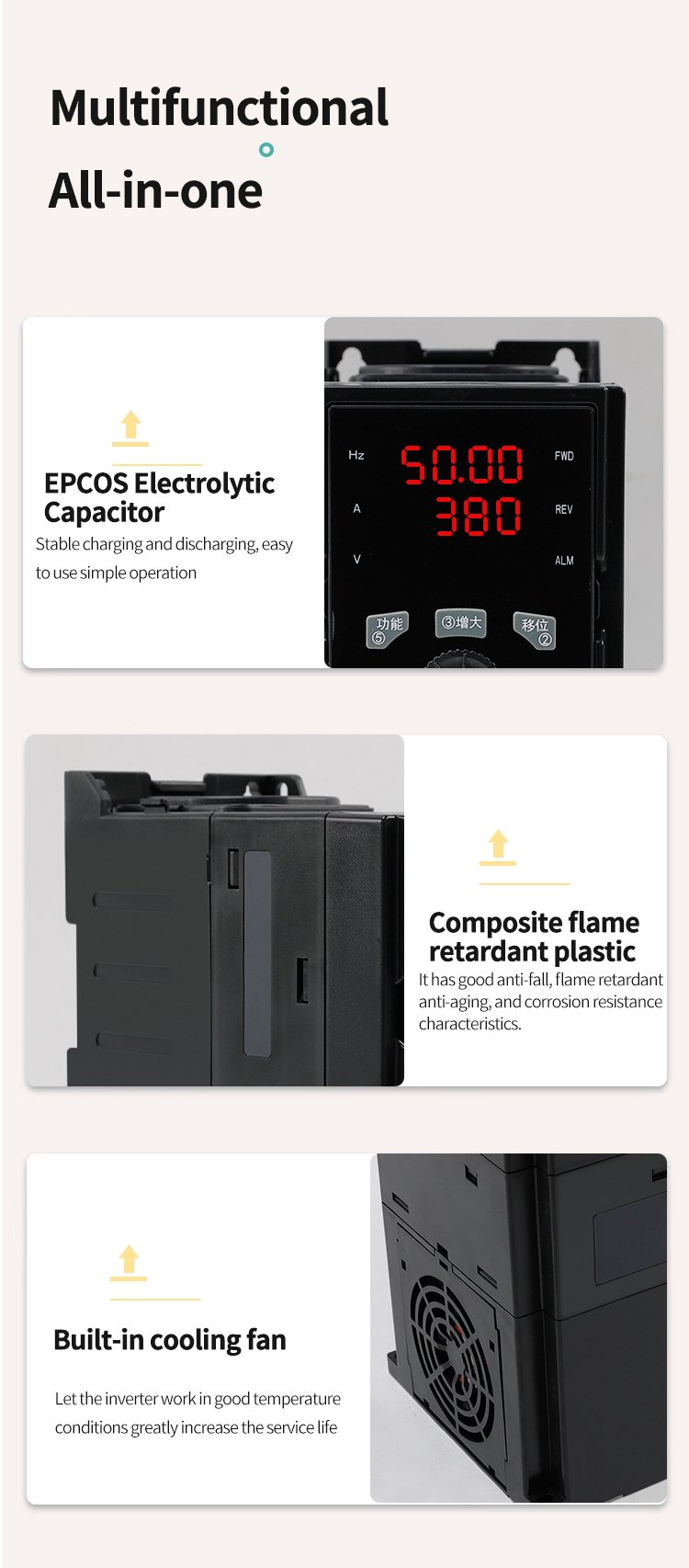

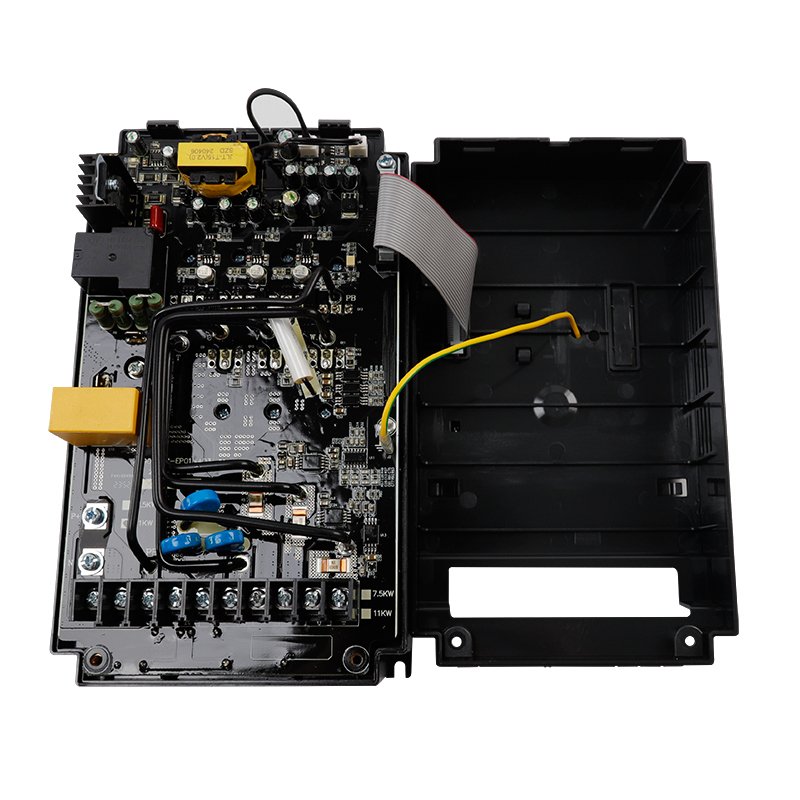

- EPCOS Electrolytic Capacitor

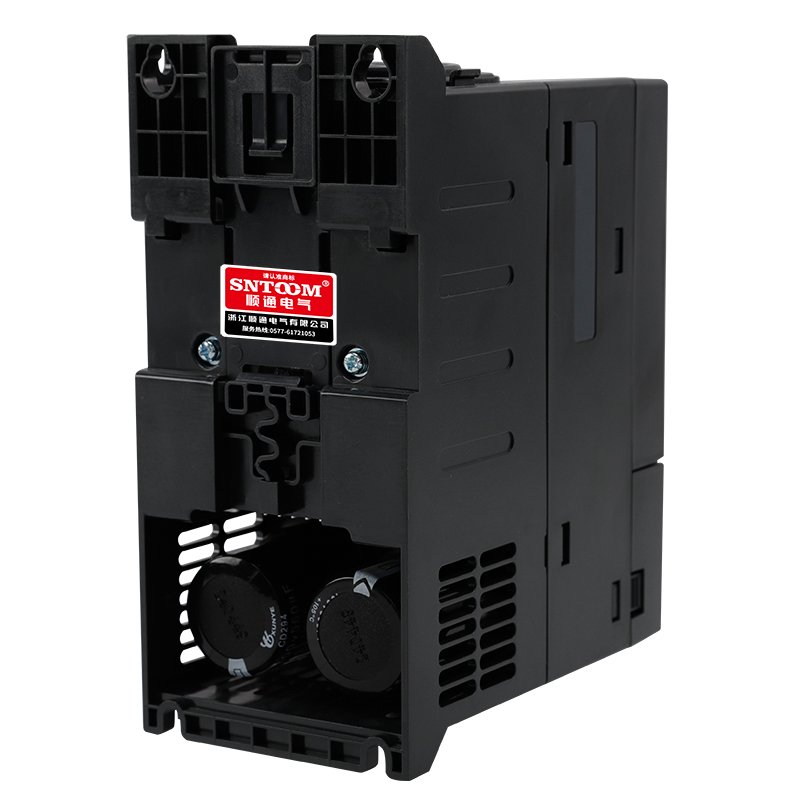

- Built-in cooling fan

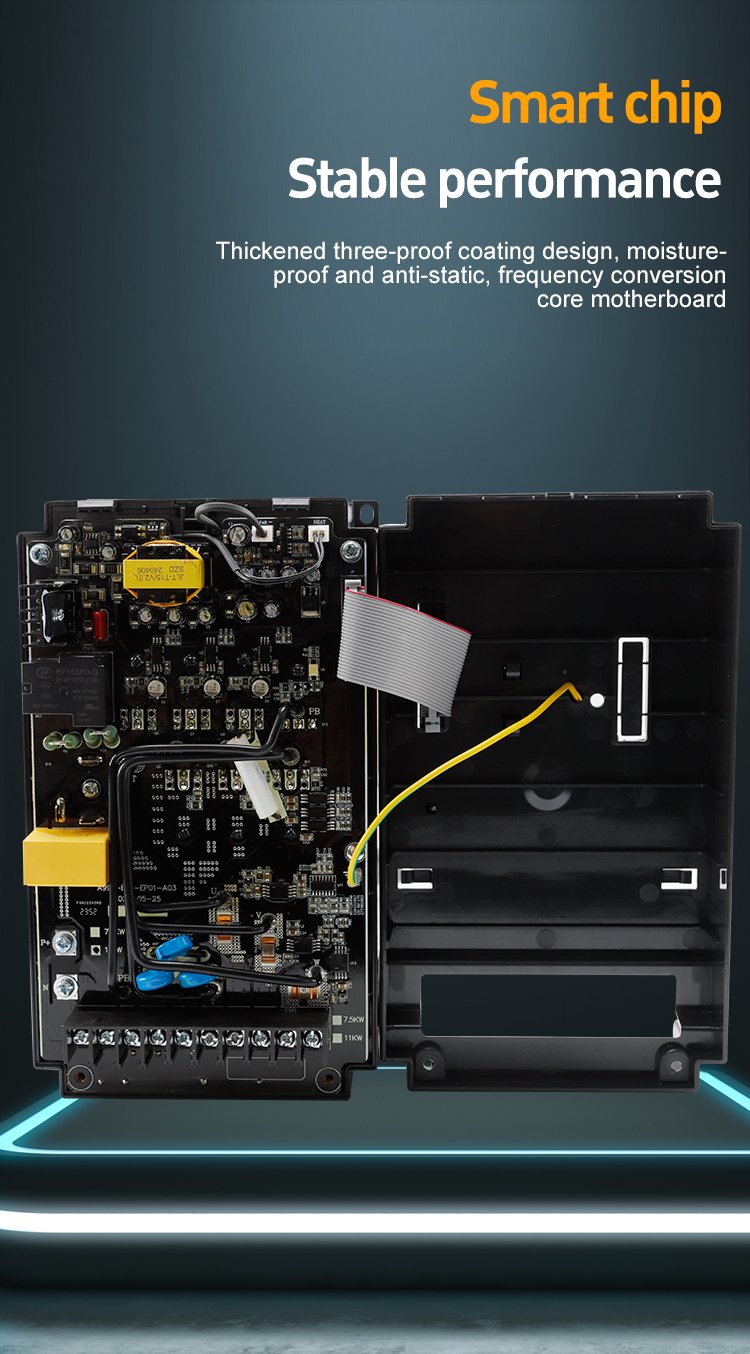

- Smart chipStable performance

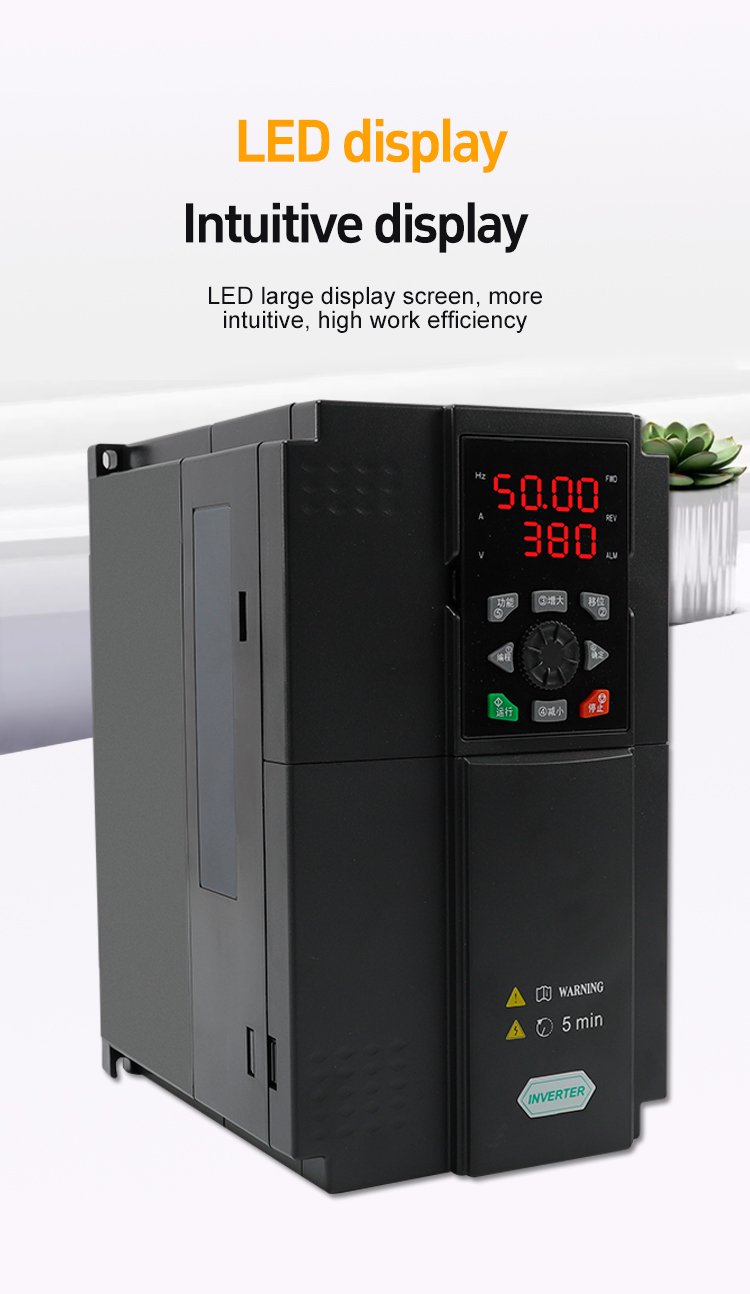

- LED displayIntuitive display

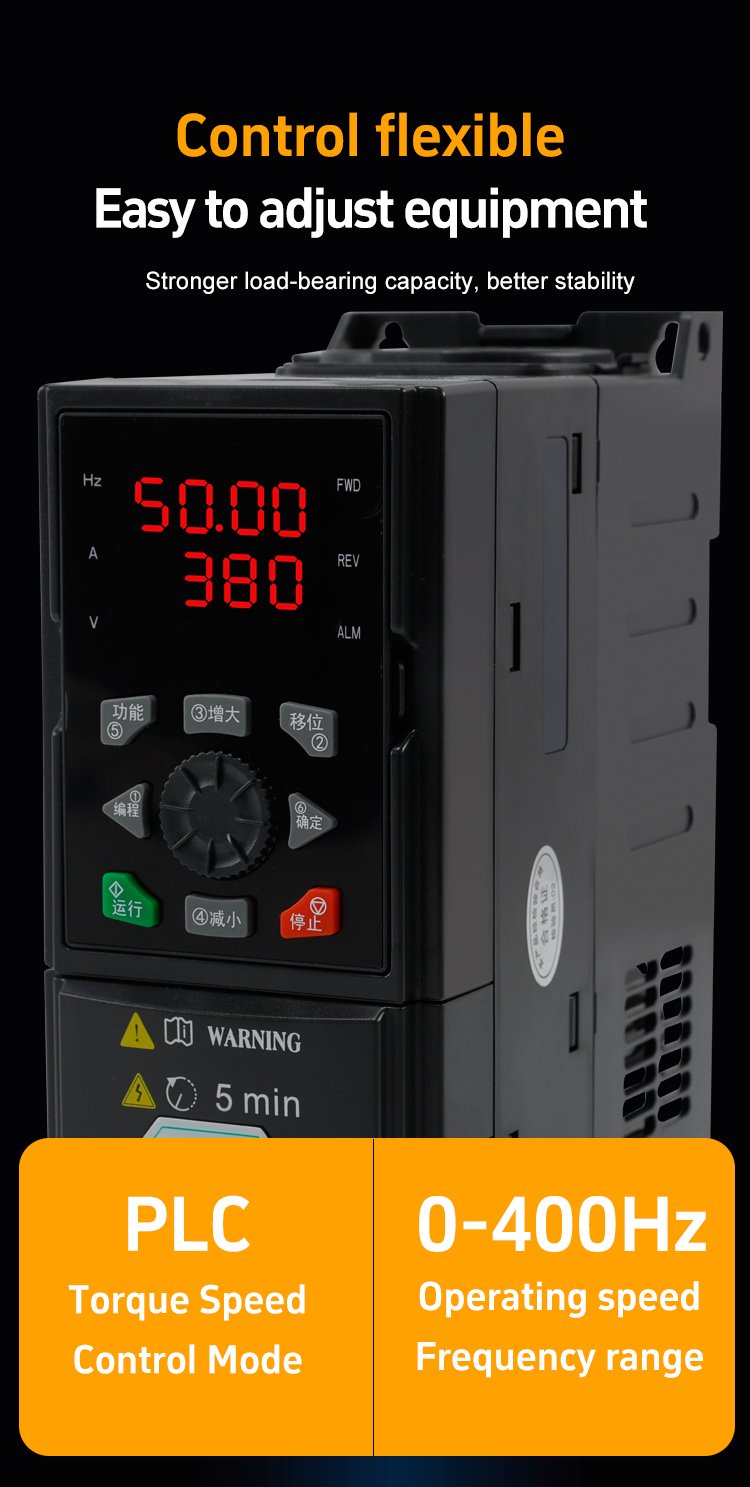

- Control flexibleEasy to adjust equipment
- Energy saving and electricity saving
- Constant pressure water supply
Note：The 998 series frequency converters should pay attention to maintaining good ventilation, avoiding overload and moisture, and using qualified accessories for operation
Product installation and instructions
The 998 series multifunctional current vector frequency converter is easy to install. It should be firmly installed in a ventilated area, correctly connected to the motor cable, and connected to the control terminal according to the schematic diagram to ensure correct power input and achieve reliable and efficient operation

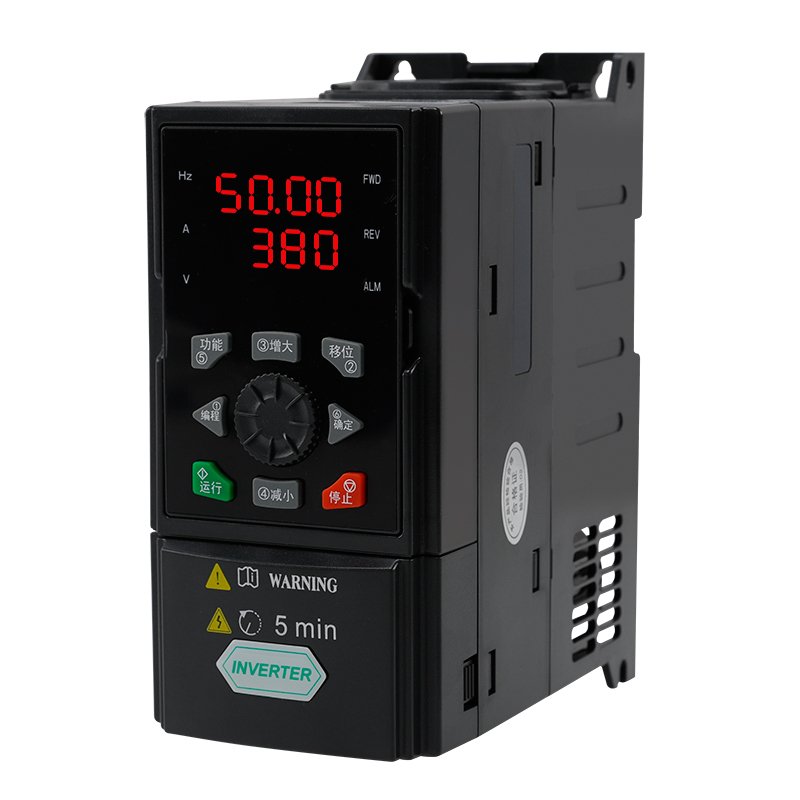

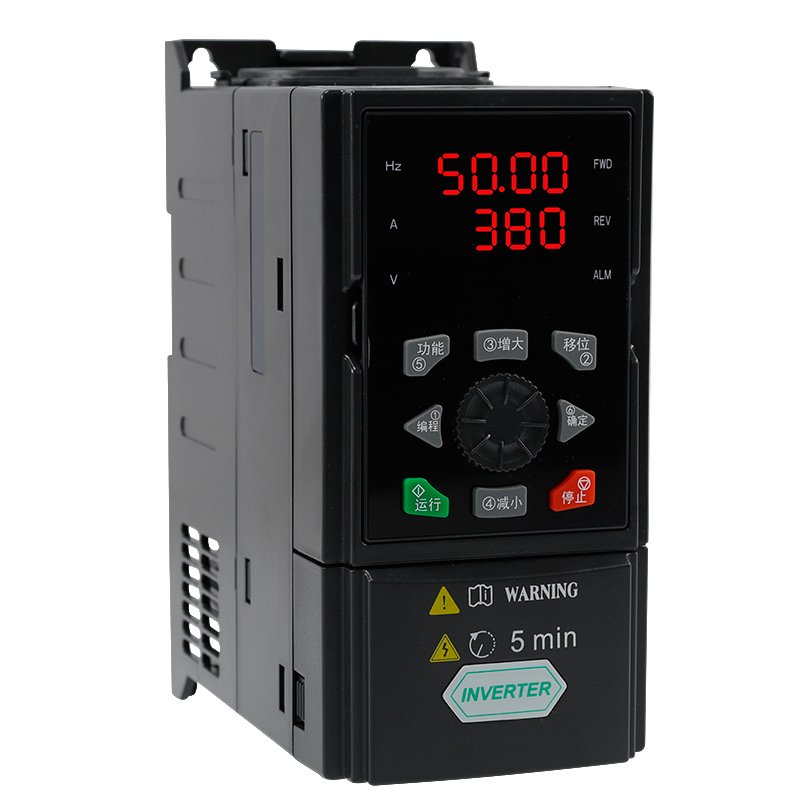

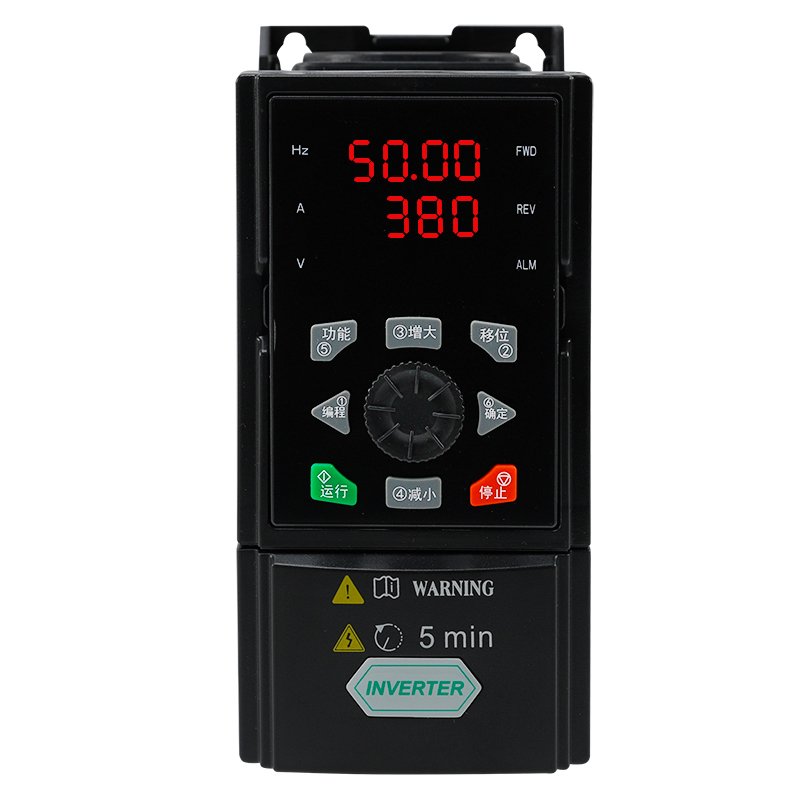

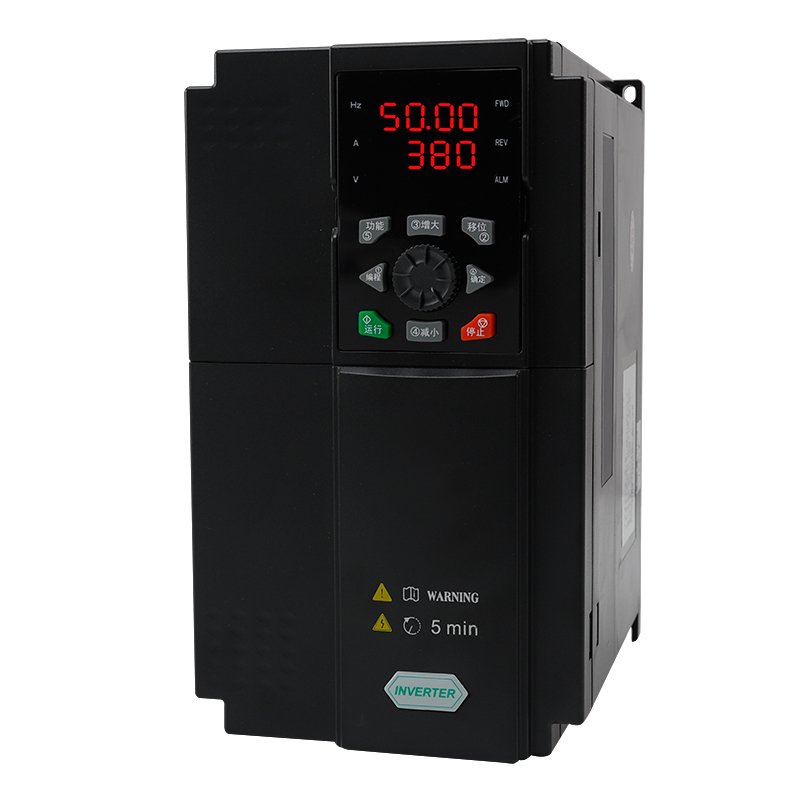

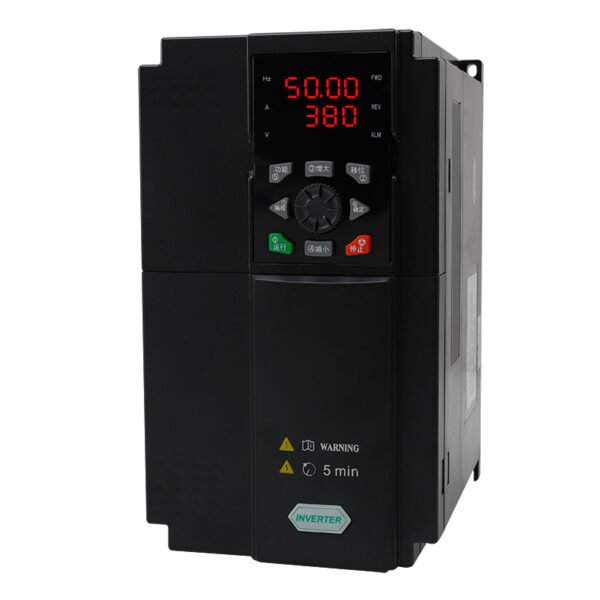

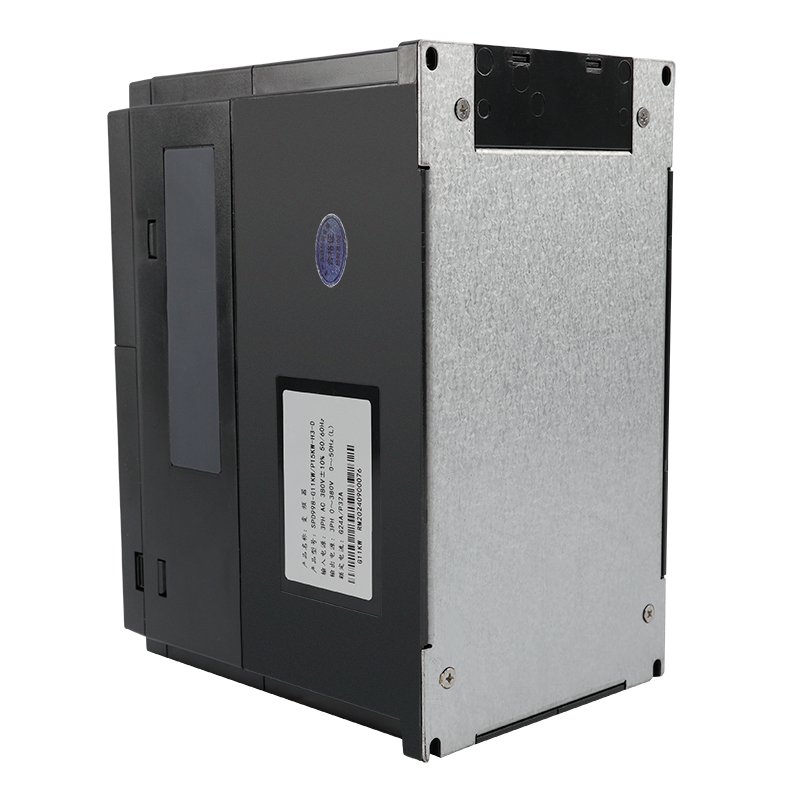

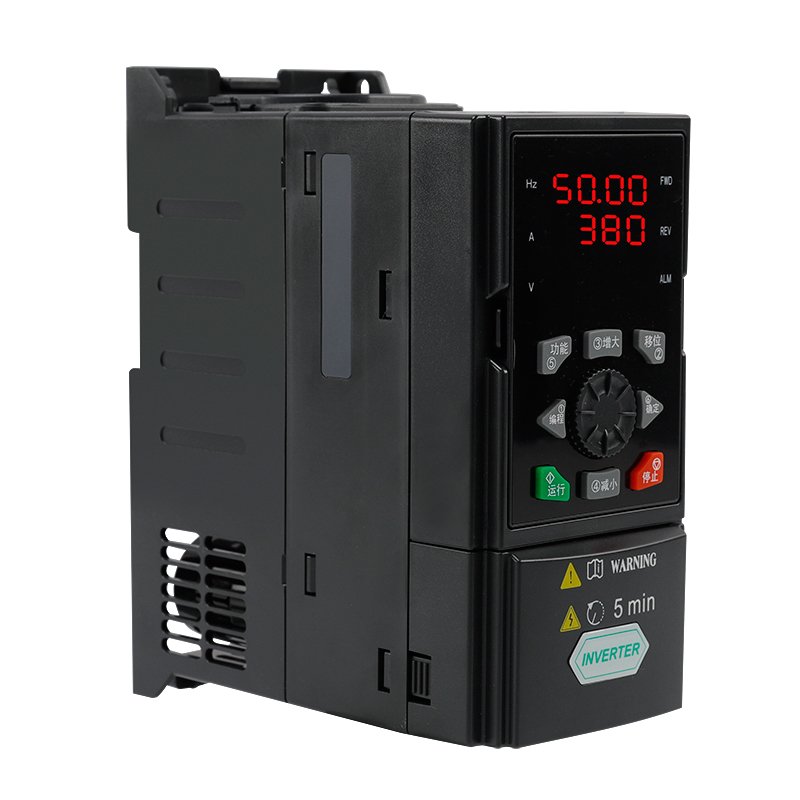

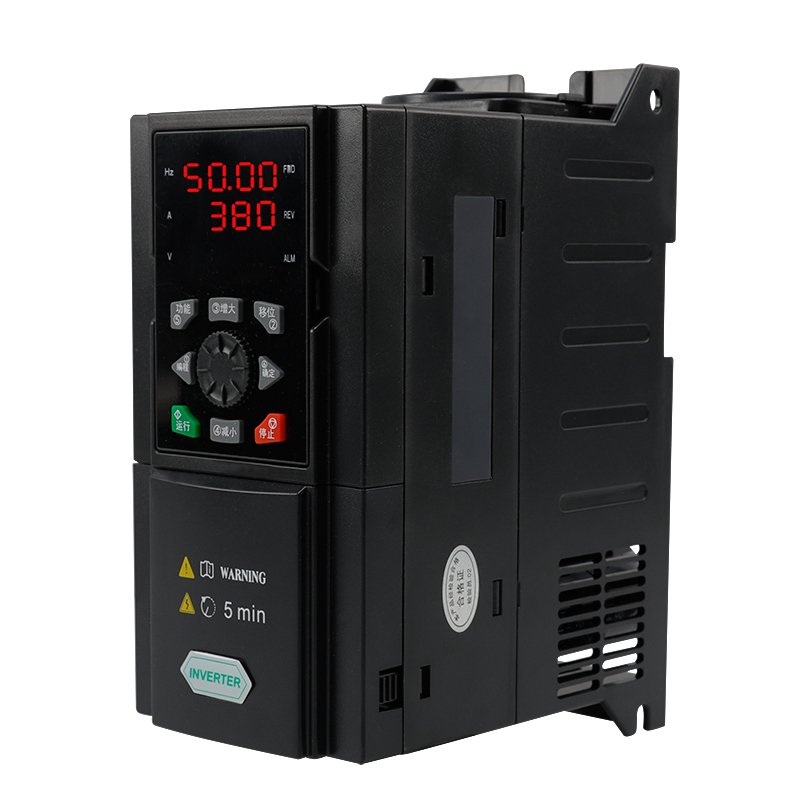

Product images
