Description
Product Introduction
AE200N series high-performance vector frequency converters represent cutting-edge solutions in industrial automation. Built on advanced vector control algorithms, they deliver dynamic performance comparable to DC drives. Featuring robust protection mechanisms and high environmental adaptability, these converters ensure stable operation in harsh conditions. Their compact design with independent air duct cooling optimizes space utilization while maintaining reliability across diverse industrial applications.
Use
The AE200N series high-performance vector frequency converters are designed for demanding industrial environments. They excel in applications with high humidity, dust, or corrosive gases, thanks to advanced EMC optimization and conformal coating. The robust design ensures stable operation in environments with vibration, temperature fluctuations, and electromagnetic interference, making it ideal for heavy machinery, textile equipment, and air compression systems.
Product parameters
| Voltage (V) | Motor power (KW) | Resistance value (Ω) | Resistance power(W) |
| 220 | 0.4 | 200 | 80 |
| 0.75 | 200 | 80 | |
| 1.5 | 100 | 250 | |
| 2.2 | 75 | 250 | |
| 3.7 | 40 | 400 | |
| 380 | 0.75 | 750 | 80 |
| 1.5 | 400 | 250 | |
| 2.2 | 250 | 250 | |
| 4.0 | 150 | 400 | |
| 5.5 | 100 | 500 | |
| 7.5 | 75 | 800 | |
| 11 | 50 | 1500 | |
| 15 | 40 | 1500 | |
| 18.5 | 30 | 4000 | |
| 22 | 30 | 4000 | |
| 30 | 20 | 6000 | |
| 37 | 16 | 9000 | |
| 45 | 13.6 | 9000 | |
| 55 | 10 | 12000 | |
| 75 | 6.8 | 18000 | |
| 90 | 6.8 | 18000 | |
| 110 | 6 | 18000 |
| Motor drive control mode | |||
| V/F control vector control | |||
| Input/output characteristics | |||
| Input voltage range | 380/220V±15% | Input frequency range | 40~65HZ |
| Output voltage range | 0~rated input voltage | Output frequency range | 0~600HZ |
| Input/output characteristics | |||
| Programmable analog input | 0~10V input, 0/4~20mA input | ||
| Relay output | 2 channel output (1 channel optional 2 channels for 5.5kw and below) | ||
| Analog quantity output | 0~10V/（0~10V/0~20mA 5.5kw below default 0~10V (optional 0~20ma ~20ma) | ||
| Technical performance characteristics | |||
| Overload capacity | 150% rated current 60s, 180% rated current 10s | ||
| Gear Ratio | 1:100 | Carrier frequency wave | 3~15.0kHZ |
| Functional characteristics | |||
| Frequency setting method | Digital setting, analog setting, 485 communication setting, multi-speed setting and simple PLC setting, PID setting, etc., can achieve the setting and switching of methods. | ||
| PID control; Terminal identification function | |||
| PID control function | Frequency control function | Length, time control function | |
| Simple PLC, multi-speed control function | 16-speed speed control | ||
| Automatic voltage adjustment function | Automatically maintain a constant output voltage when the grid voltage changes | ||

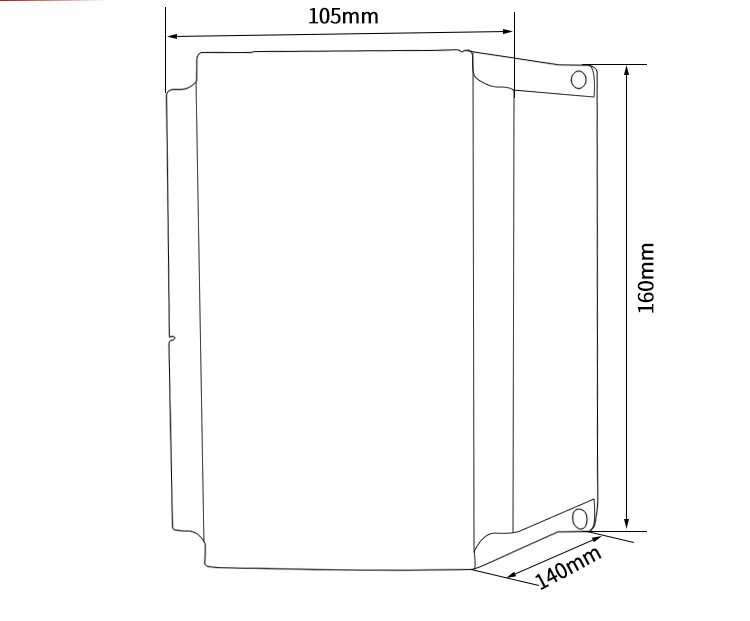

Dimension
Product Features
- It boasts effortless equipment adjustability, allowing operators to swiftly and precisely fine-tune settings according to specific application requirements, enhancing operational efficiency and flexibility.
- In terms of mechanical robustness, the series demonstrates a stronger load-bearing capacity, ensuring reliable performance even under heavy-duty conditions. This, combined with its superior stability, minimizes vibrations and fluctuations, guaranteeing smooth and consistent operation.

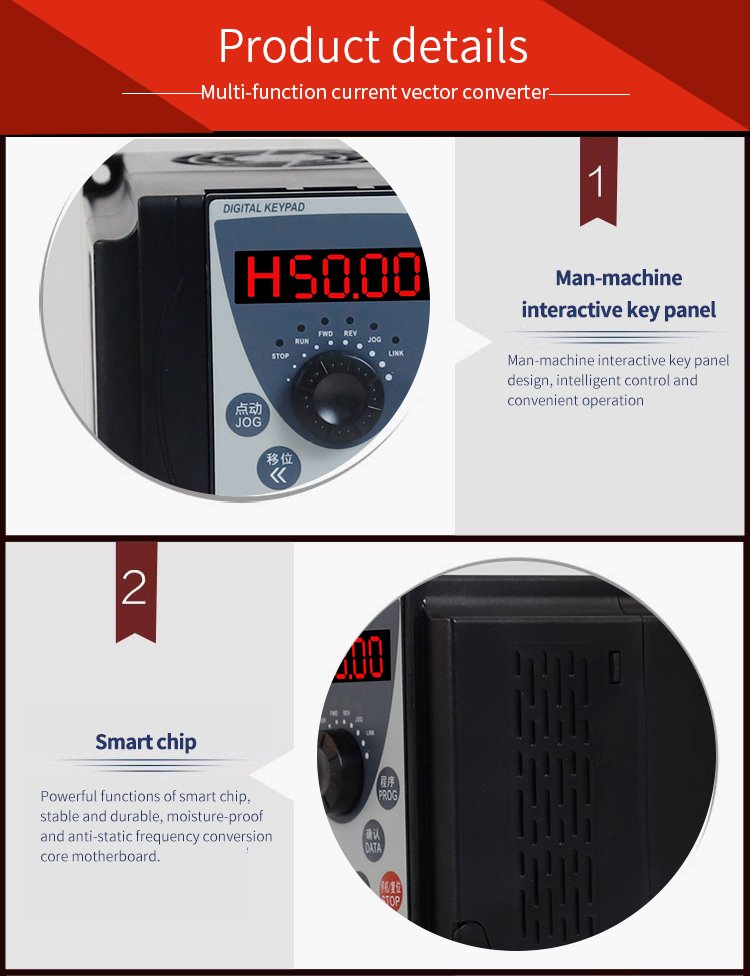

- The inclusion of an LED large display screen provides clear and intuitive visual feedback, enabling real-time monitoring of key parameters and simplifying troubleshooting processes.
- Powered by a smart chip, the AE200N series delivers stable and reliable performance, with advanced algorithms optimizing motor control for enhanced energy efficiency and precision.
- Powered by a smart chip, the AE200N series delivers stable and reliable performance, with advanced algorithms optimizing motor control for enhanced energy efficiency and precision.

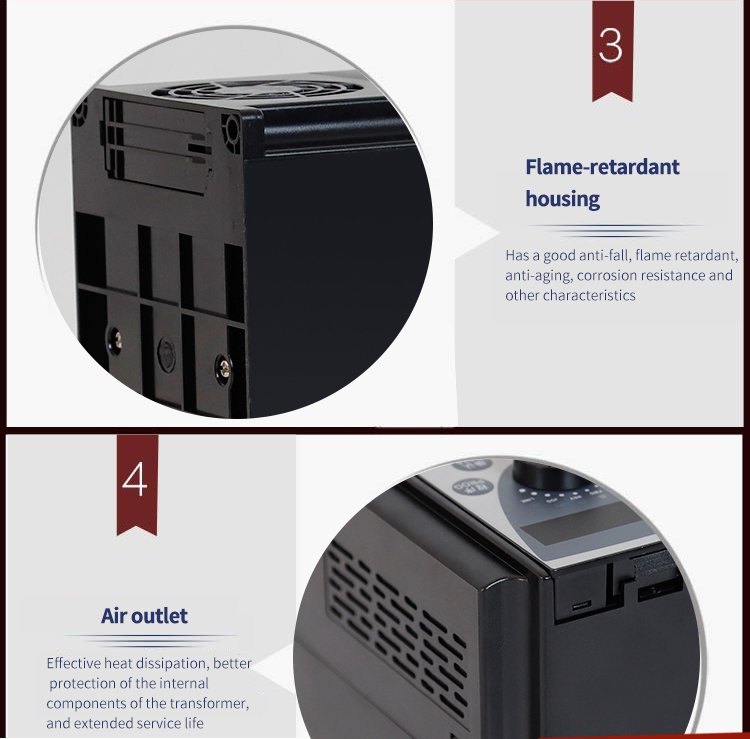

- The thickened three-proof coating design offers comprehensive protection against moisture, dust, and static electricity, ensuring reliable operation in harsh environments. Additionally, the use of retardant plastic enhances fire safety, providing an extra layer of security in industrial settings.
Note：The AE200N series high-performance vector frequency converters combine ease of use, robustness, and advanced technology to deliver unparalleled performance and reliability in a wide range of industrial applications.
Product installation and instructions
- Location Selection: Install in a well – ventilated, dry area away from heat sources and corrosive substances.
- Wiring: Connect power and motor cables as per the diagram, ensuring tight and secure connections.
- Startup: Power on and follow on – screen prompts for initial setup.
- Parameter Adjustment: Use the intuitive interface to tailor settings to your application.
- Maintenance: Regularly clean and inspect for any abnormalities.

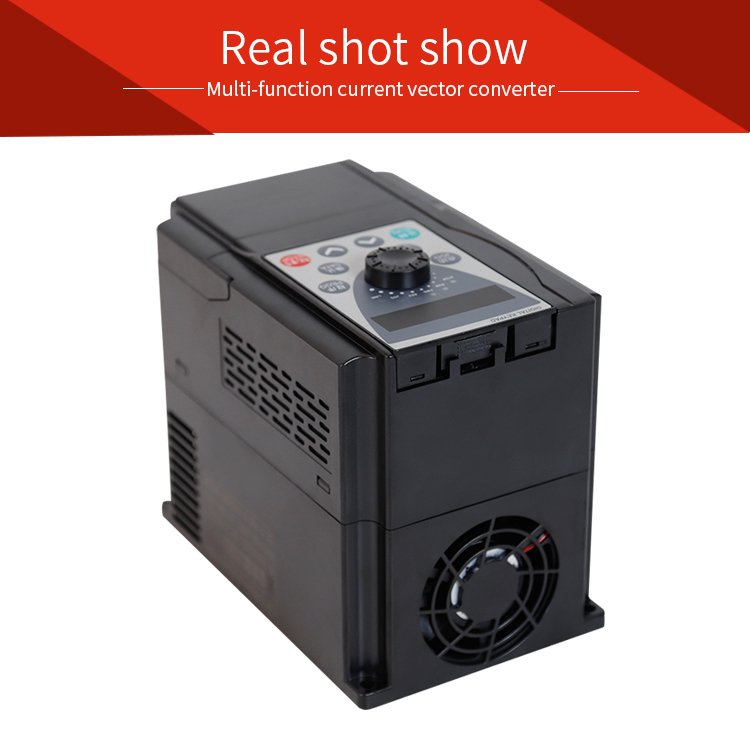

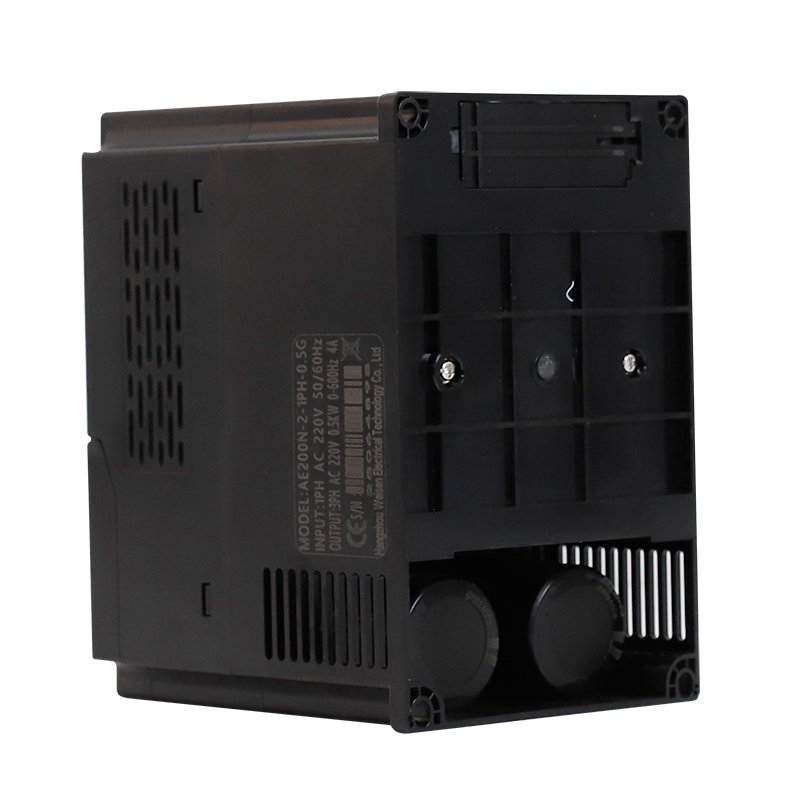

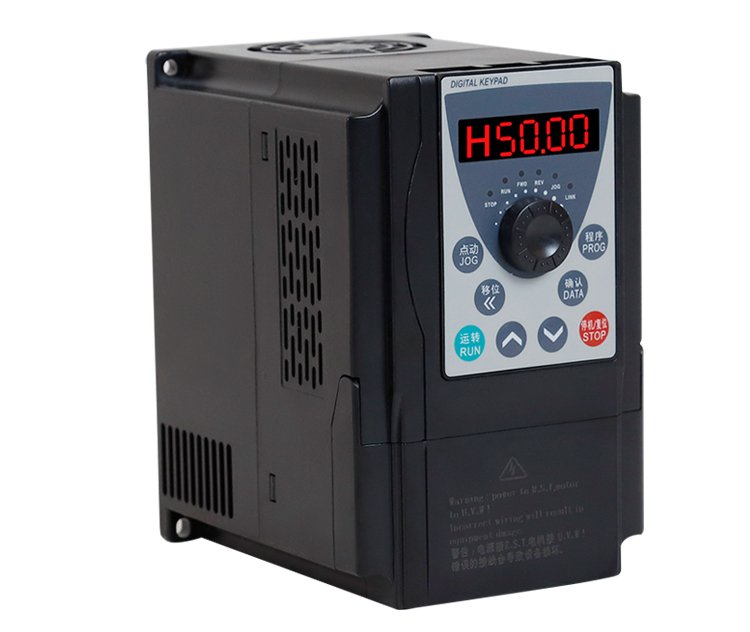

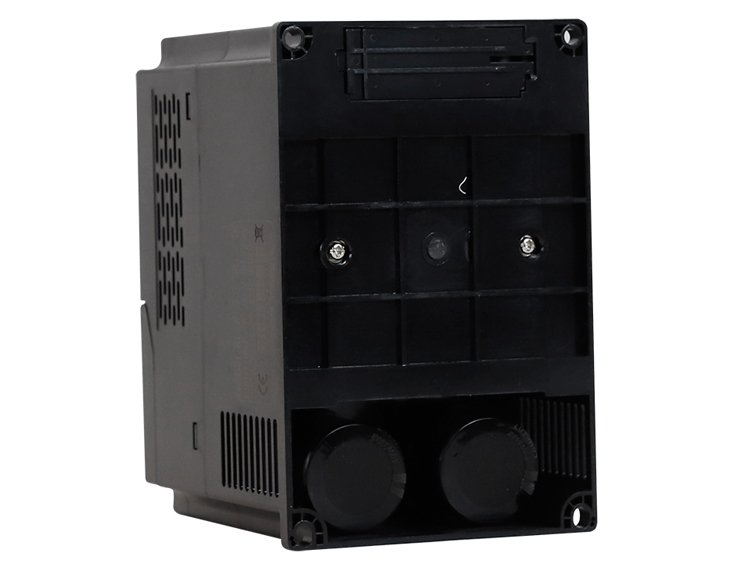

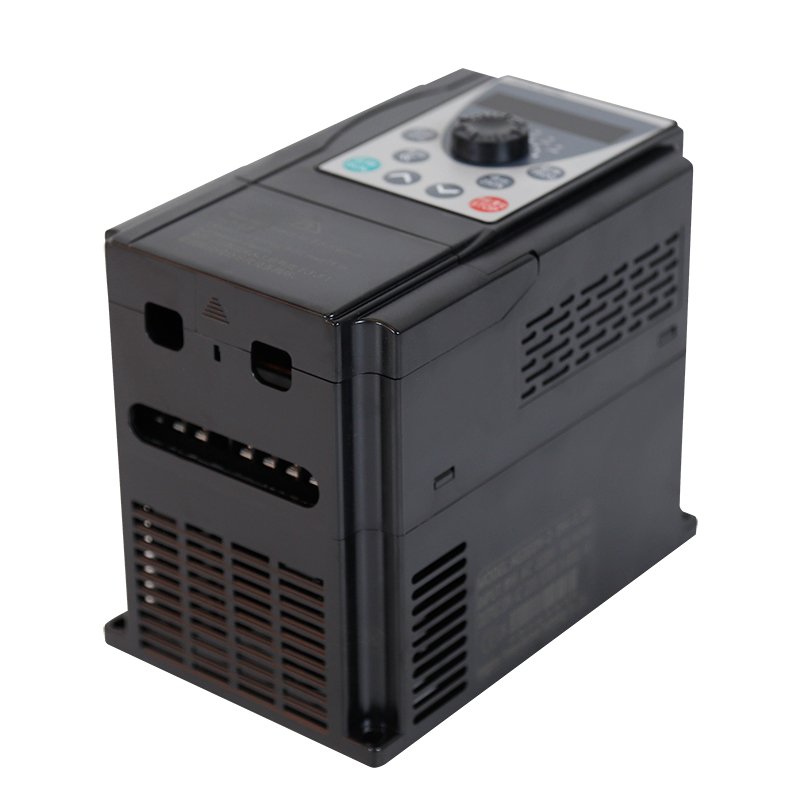

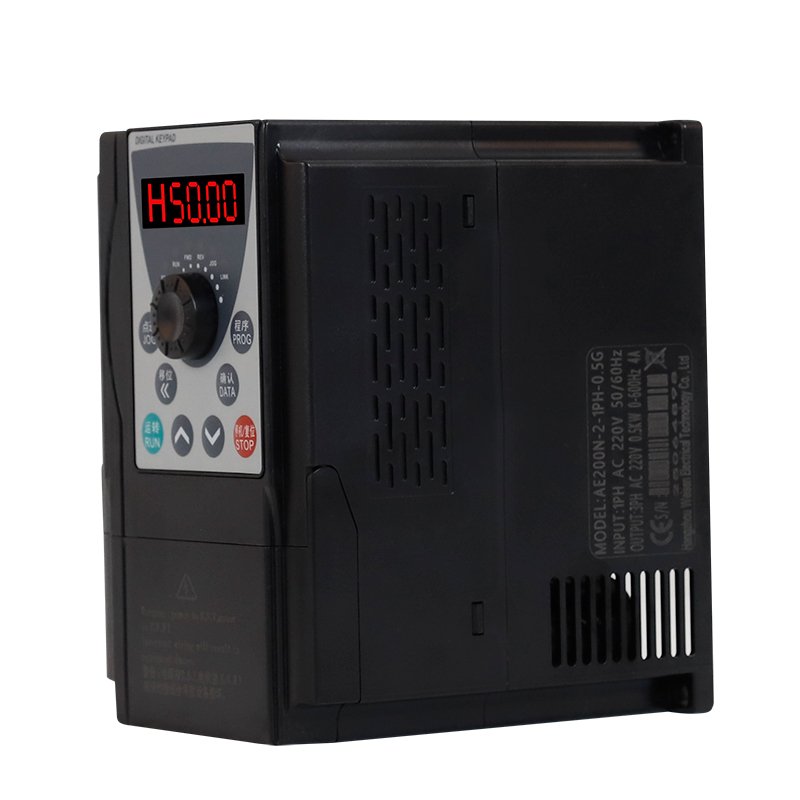

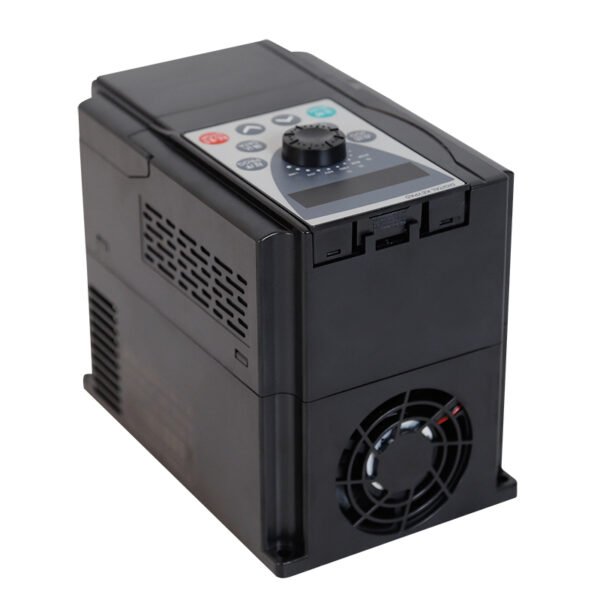

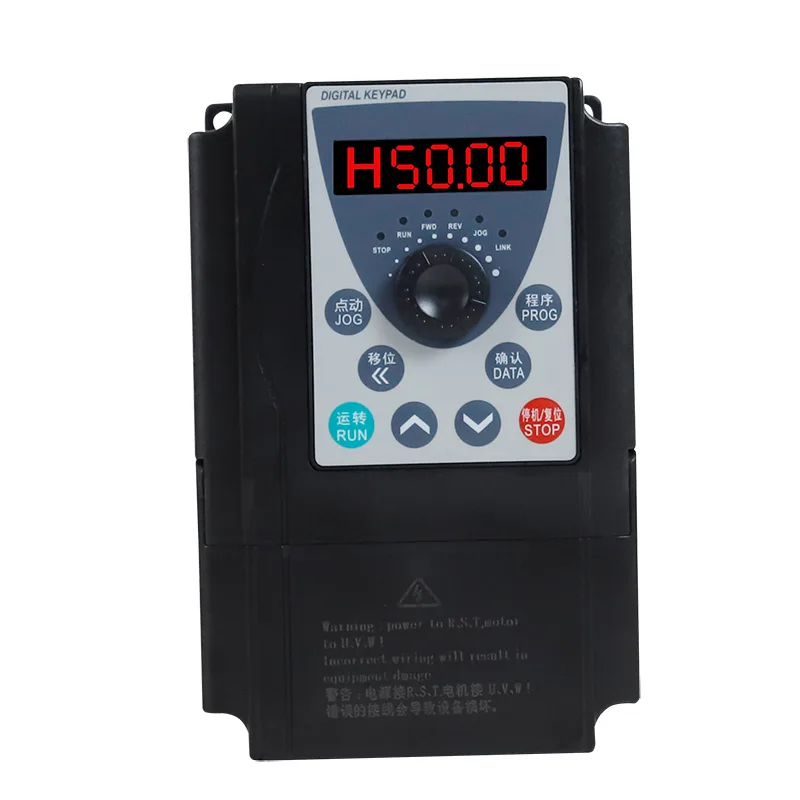

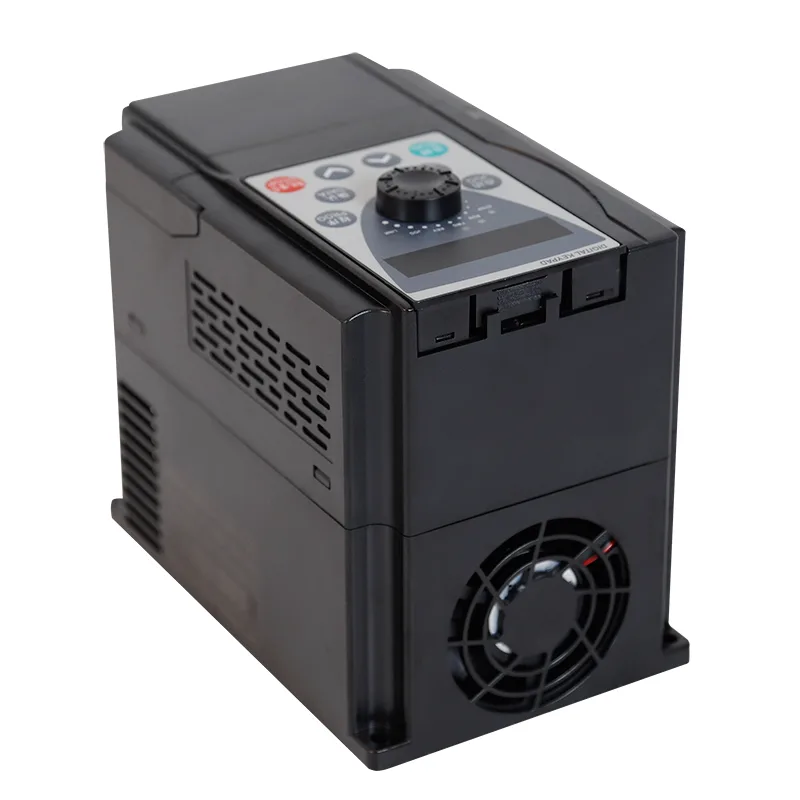

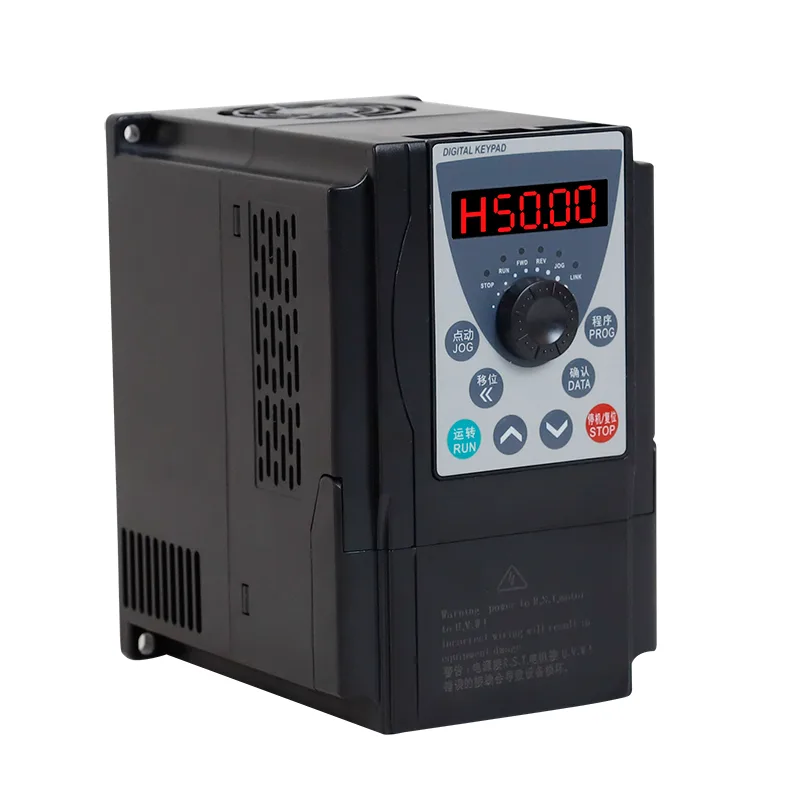

Product images
