Description
Fan overview

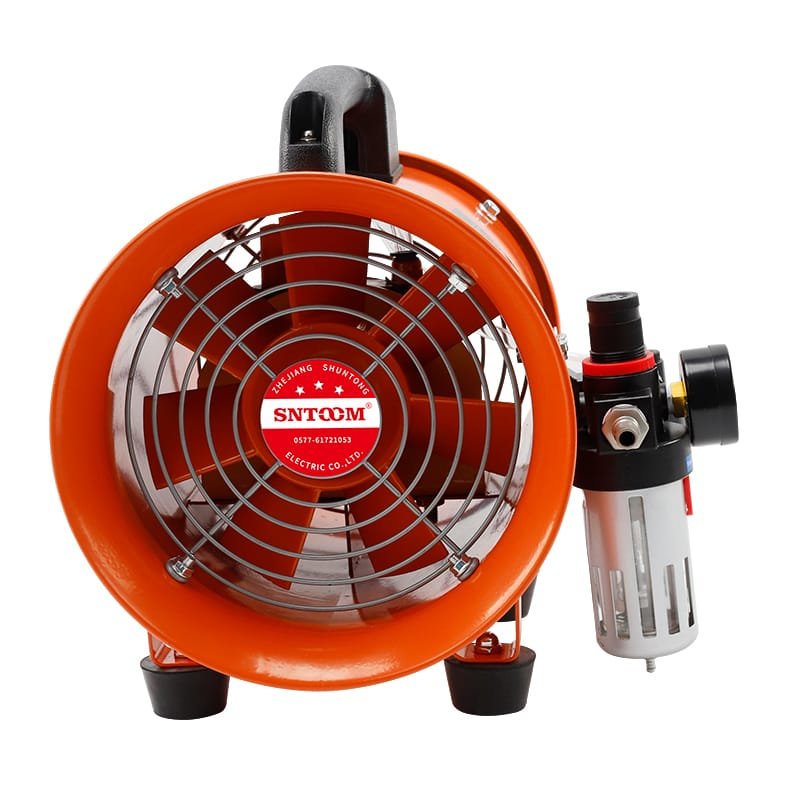

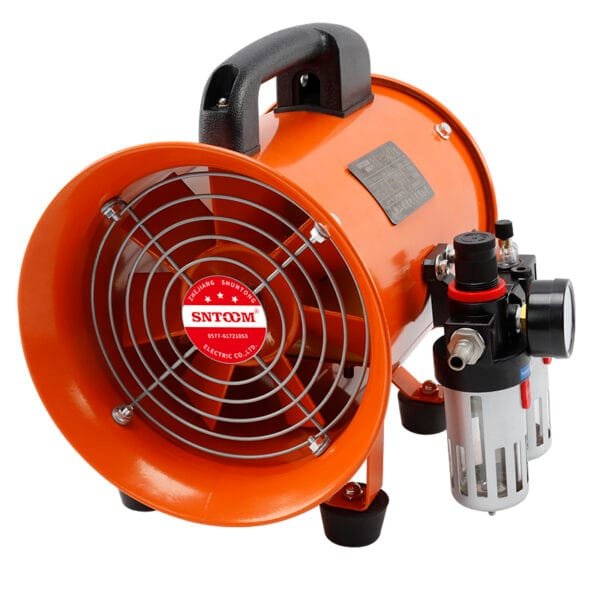

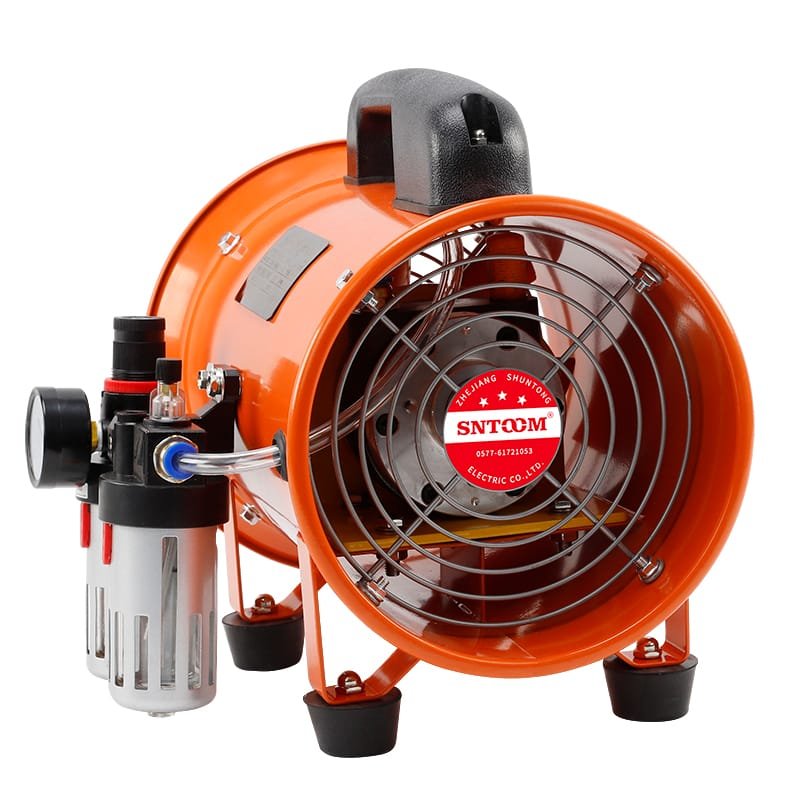

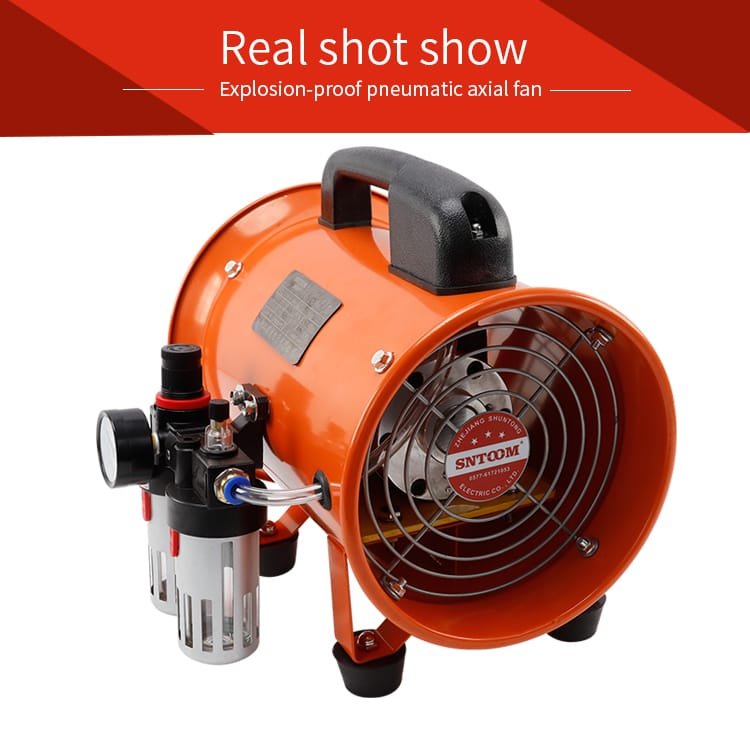

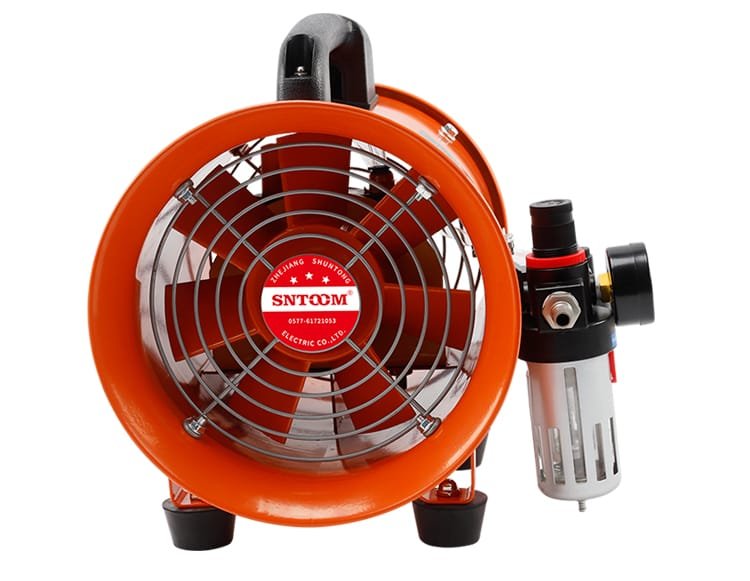

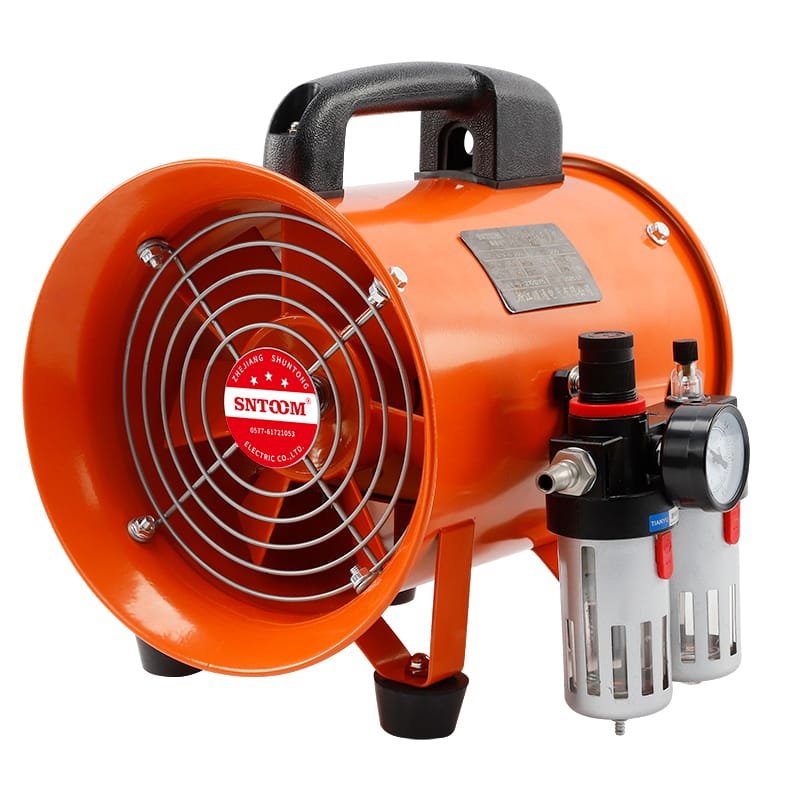

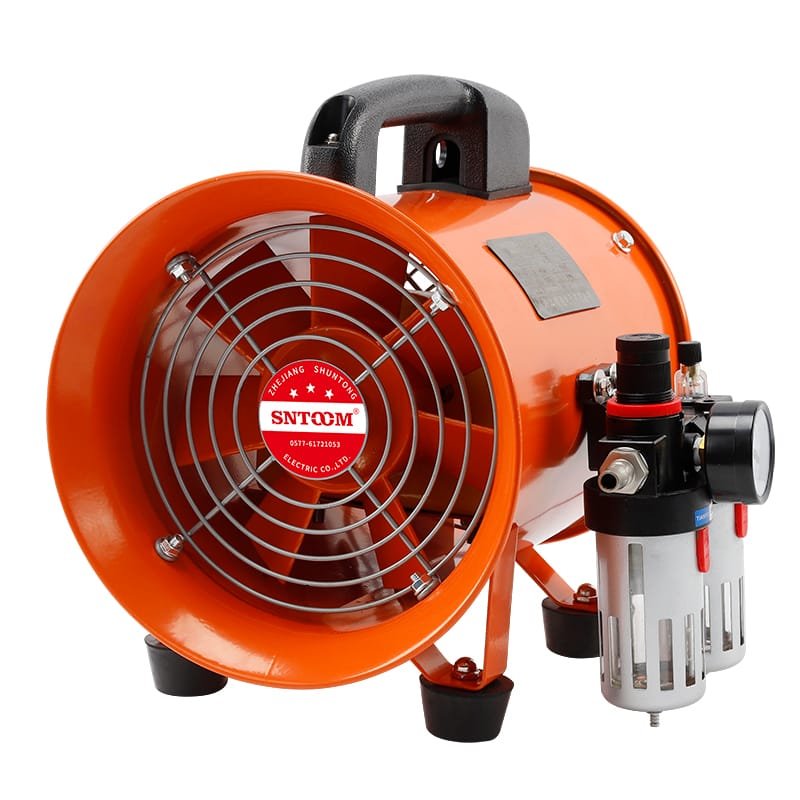

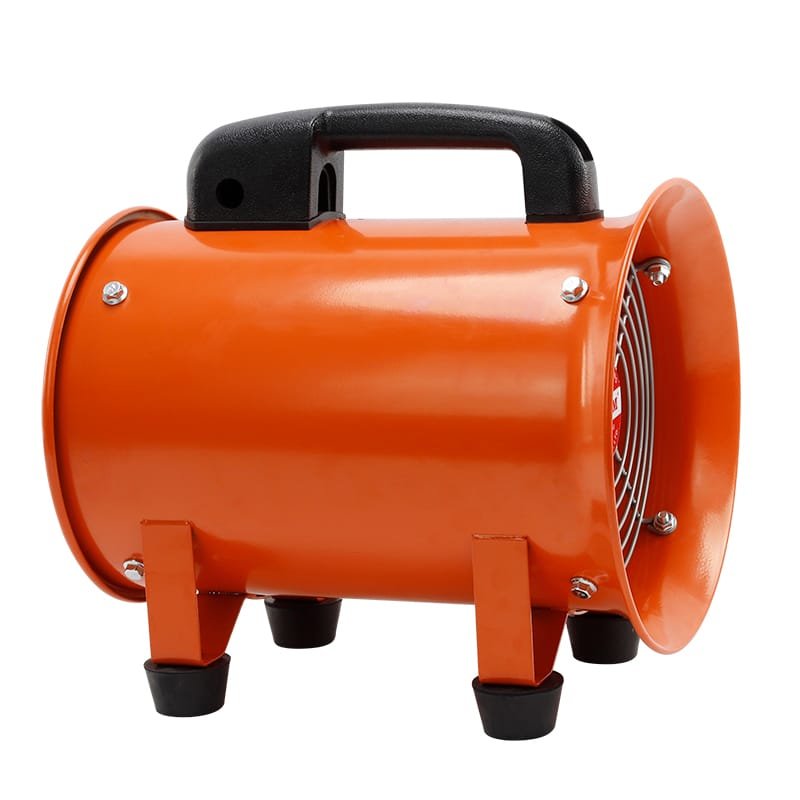

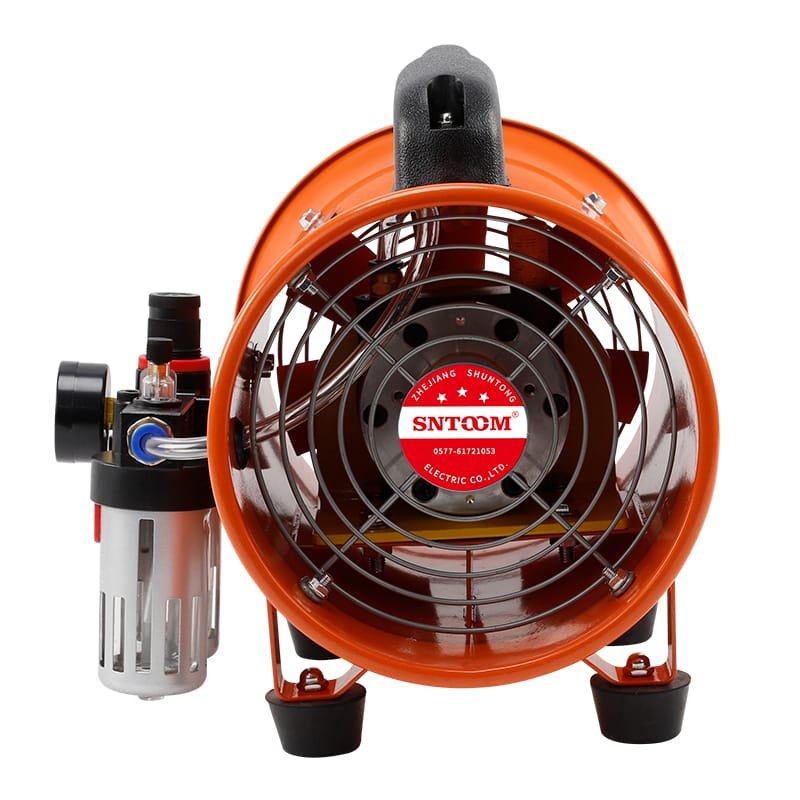

The BTF-II-200 explosion-proof pneumatic axial fan is a high-performance device, suitable for various environments such as factories, warehouses, offices, and residences. It is equipped with a protective net to ensure safety and achieves stepless speed regulation without the need for a transmission device. The fan has been optimized to exhibit excellent airflow efficiency. With its robust pneumatic motor and certified explosion-proof structure, the fan offers reliable performance and strong adaptability, making it an ideal choice for various industrial and commercial applications.
Use
Parameter
| Product Model | Wind pressure （Pa) | Diameter (mm) | Consumption of gas(m³/h) | Use pressure（Mpa） | Speed （r/min） | Air volume (m³/h) | Noise (dB/A） |
| BTF-II-200 | 296 | 200 | 0.75 | 0.4 | 4000 | 1600 | 60 |

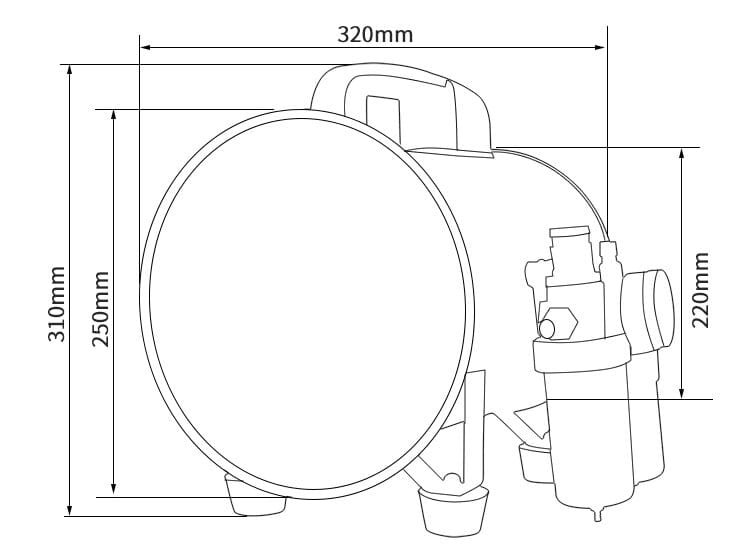

Dimension
Installation
The BTF-II-200 explosion-proof pneumatic fan features for efficient airflow. Its pneumatic motor ensures high adaptability in various environments. The fan is explosion-proof, making it safe for hazardous locations. With a protective net cover, it prevents accidents and damage.

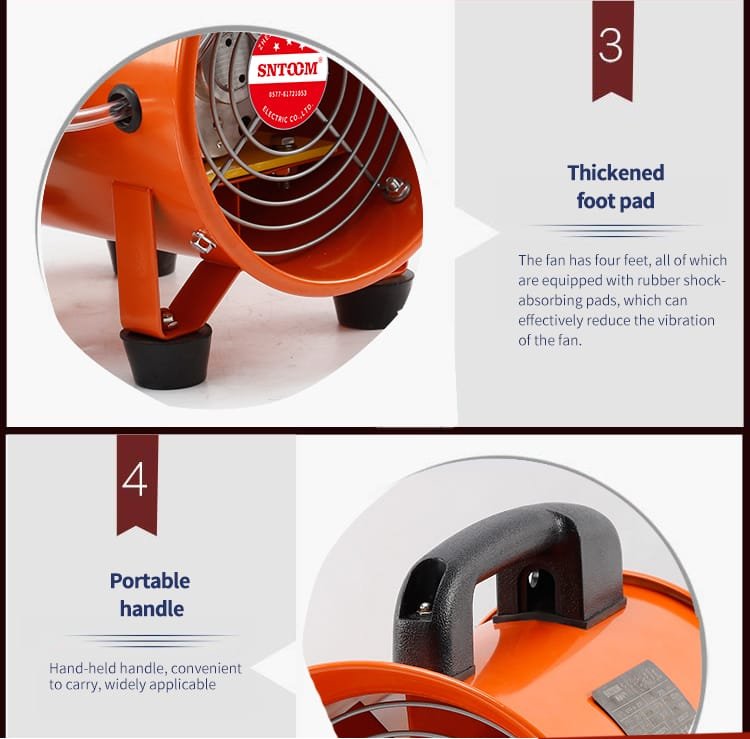

This explosion-proof pneumatic axial flow fan offers stable performance with high starting torque, allowing it to start under load. Its thickened leaf design reduces noise and resists rust. The thickened fuselage, made from real materials, enhances durability and resistance to deformation.

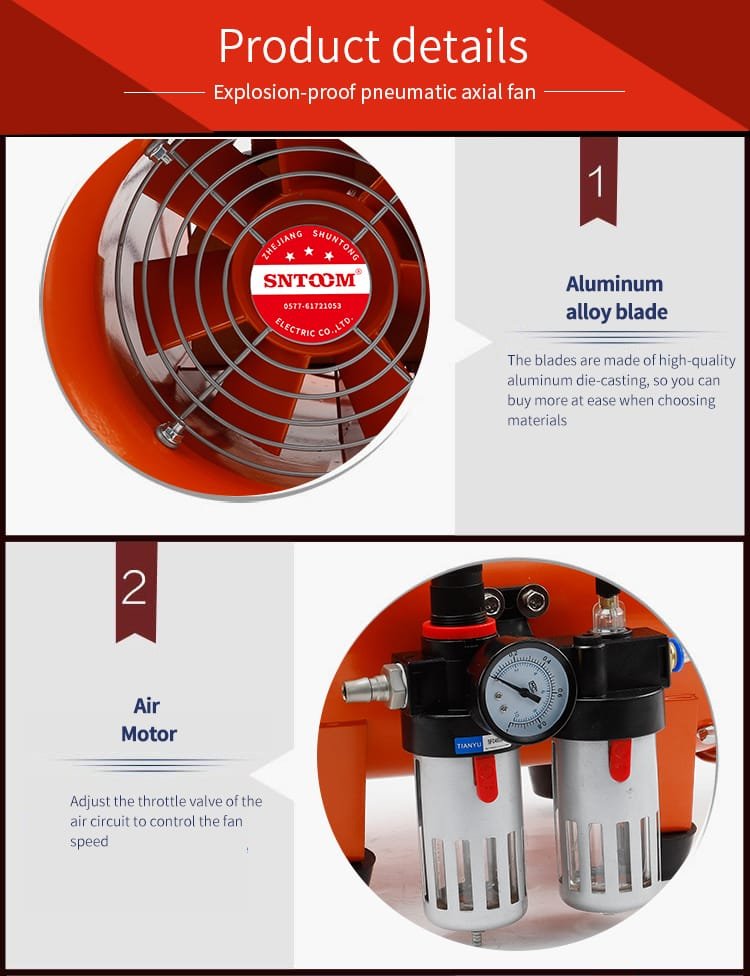

The BTF-II-200 fan is designed with aluminum fan blades for high efficiency. It allows strict control over blade angle and thickness at different positions, optimizing peripheral and axial speeds. This increases the fan’s working efficiency, making it ideal for demanding industrial applications.
Equipped with a protective net, the BTF-II-200 prevents hard objects from entering and damaging the motor, reducing the risk of operational injuries. Its speed can be infinitely adjusted without a gearshift, providing precise control over airflow by regulating the intake or exhaust valve.
The BTF-II-200 explosion-proof pneumatic fan is versatile, suitable for factories, warehouses, offices, and residential premises. Its robust construction and safety features ensure reliable performance in diverse settings, making it a top choice for efficient and secure ventilation solutions.
Note：When using the BTF-II-200 explosion-proof pneumatic fan, ensure proper installation according to guidelines. Regularly inspect for damage. Avoid blocking the protective net. Do not modify the fan. Use in well-ventilated areas. Keep away from flammable materials. Ensure the air source is clean to prevent impeller damage.
Positioning and Mounting: Choose a stable and level surface for installation. Ensure the BTF-II-200 is placed in a well-ventilated area, away from obstructions. Securely fasten the base using appropriate bolts or mounting hardware to prevent movement during operation.

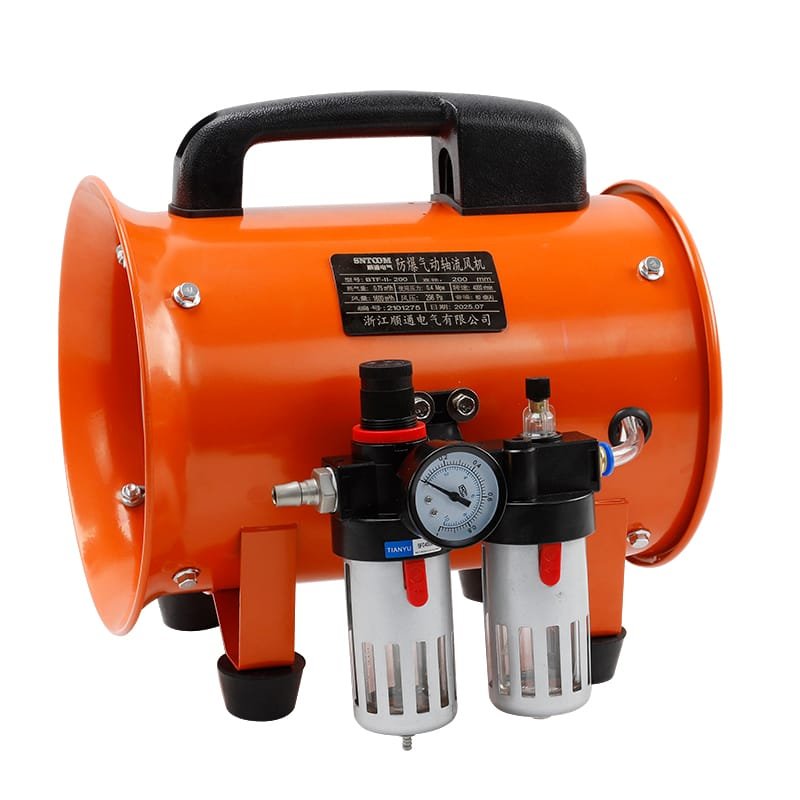

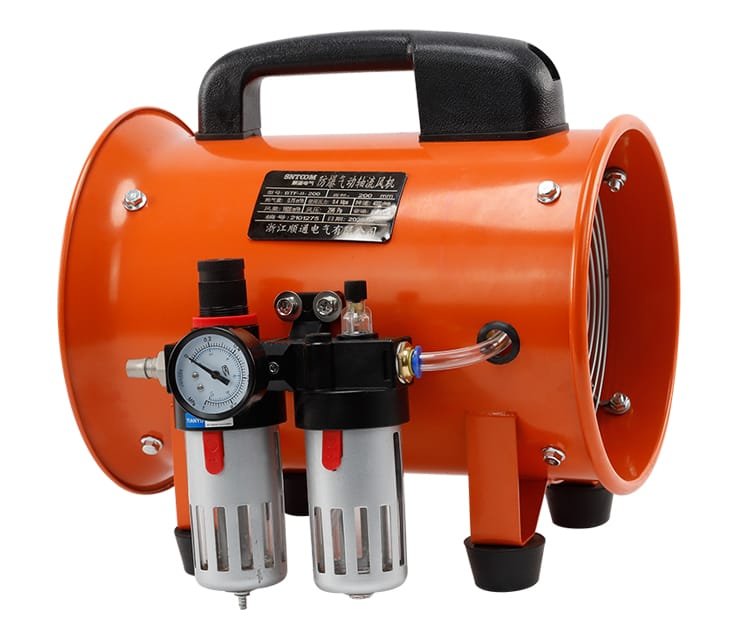

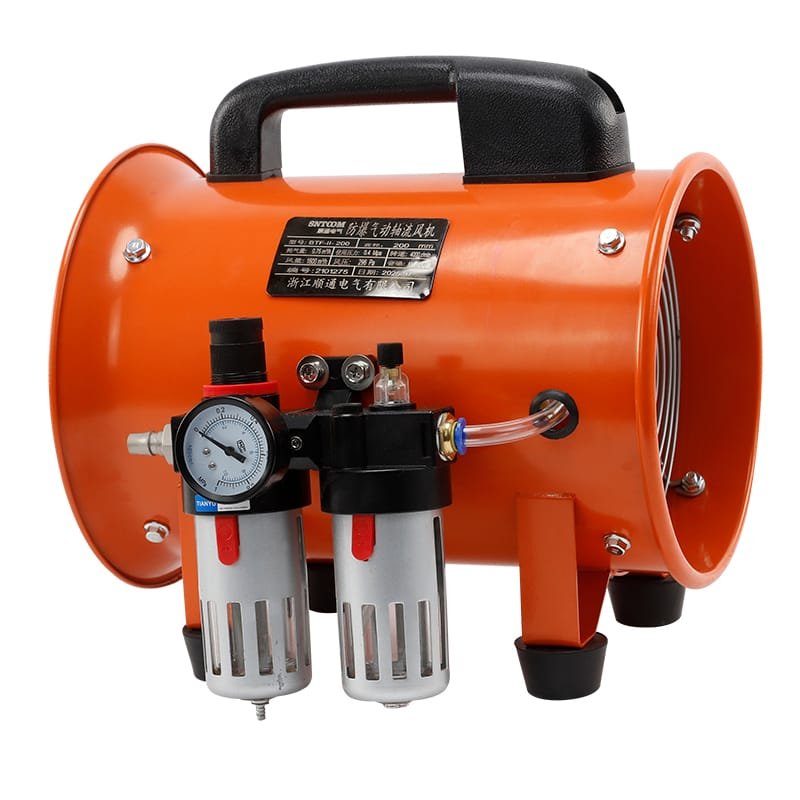

Pneumatic Connection: Connect the pneumatic motor to a reliable air source using high-quality hoses. Ensure all fittings are tight and secure to prevent air leaks. Adjust the intake or exhaust valve to regulate airflow and achieve the desired fan speed.
