ZW32 Vacuum Circuit Breaker: 12kV 630A Outdoor High Voltage Solution
ZW32 12kV 630A outdoor vacuum circuit breaker with high breaking capacity, ideal for overhead distribution lines and substation use.
- Rated Current: 630A
- Rated Frequency: 50Hz
- Insulation Material: Silicone Rubber
- Operation Temperature: -25°C to +40°C
Product Overview
This ZW32 vacuum circuit breaker is a reliable, pole-mounted high-voltage protection solution designed for overhead distribution lines, substations, and industrial power systems. Built with a 12kV rated voltage, 630A rated current, and 50Hz rated frequency, it delivers stable performance in harsh outdoor conditions. At its core, the high-quality vacuum interrupter ensures strong arc-extinguishing ability and long mechanical life, making this unit ideal for long-term, low-maintenance power distribution applications.
Application Environment
Engineered for diverse outdoor settings, the ZW32 vacuum circuit breaker operates reliably across daily average temperatures from -25°C to +40°C, adapting to both tropical and cold climates. Its silicone rubber insulation and thickened stainless steel housing offer excellent resistance to aging, corrosion, and ozone, allowing stable performance in high-humidity, dusty, or coastal areas. This versatility makes it a top choice for rural power grid renovation, urban distribution networks, and mining facility power protection projects.

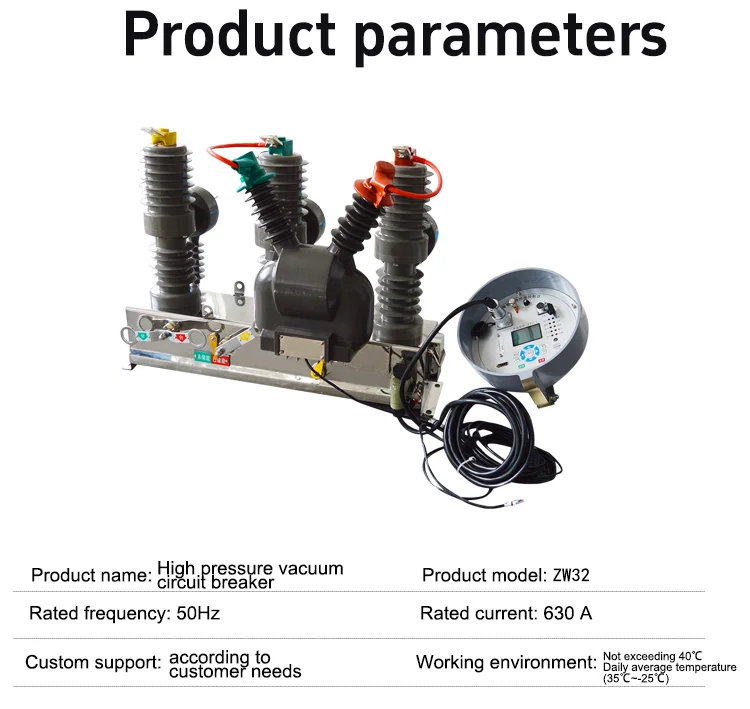

Product Parameters
The ZW32 vacuum circuit breaker comes with standardized, industry-compliant parameters to meet varied project needs:
- Model: ZW32
- Rated Voltage: 12kV
- Rated Current: 630A
- Rated Frequency: 50Hz
- Operation Temperature: -25°C to +40°C
- Insulation Material: High-grade silicone rubber
- Base Material: Thickened stainless steelCustom parameter adjustments are available to align with specific system specifications, ensuring a perfect fit for your unique requirements.
Product Features
This vacuum circuit breaker offers several key advantages over standard units:
Durable Construction:
Made with high-quality silicon steel sheets and heat-resistant coils, ensuring low-noise operation and stable voltage regulation.
High Breaking Capacity:
The vacuum interrupter provides a large interrupting capacity, withstanding repeated operations without performance degradation.
Modular Design:
Simplifies maintenance and reduces system downtime, keeping your power grid running smoothly.
Enhanced Safety:
The thickened housing offers robust protection, while its low energy consumption helps reduce long-term operational costs.
Smart Integration:
Supports optional controller integration for remote monitoring and automatic reclosure in smart grid applications.
Installation and Usage Instructions
Proper installation and maintenance are key to maximizing the lifespan of your ZW32 vacuum circuit breaker:
Mounting:
Install the unit on a standard outdoor pole or bracket, ensuring the base is level and securely fixed. Connect power lines to the corresponding terminals, verifying tight connections to prevent loose contacts.
Commissioning:
Before powering on, manually test the opening and closing actions to ensure smooth operation. If equipped, verify the remote controller functions properly.
Operation:
The breaker can be operated manually or via the integrated controller. Regularly inspect insulation surfaces and terminal connections to remove dust and debris.
Maintenance:
The design requires minimal upkeep. Inspect the vacuum interrupter and moving parts every 1-2 years, replacing any worn components as needed.
