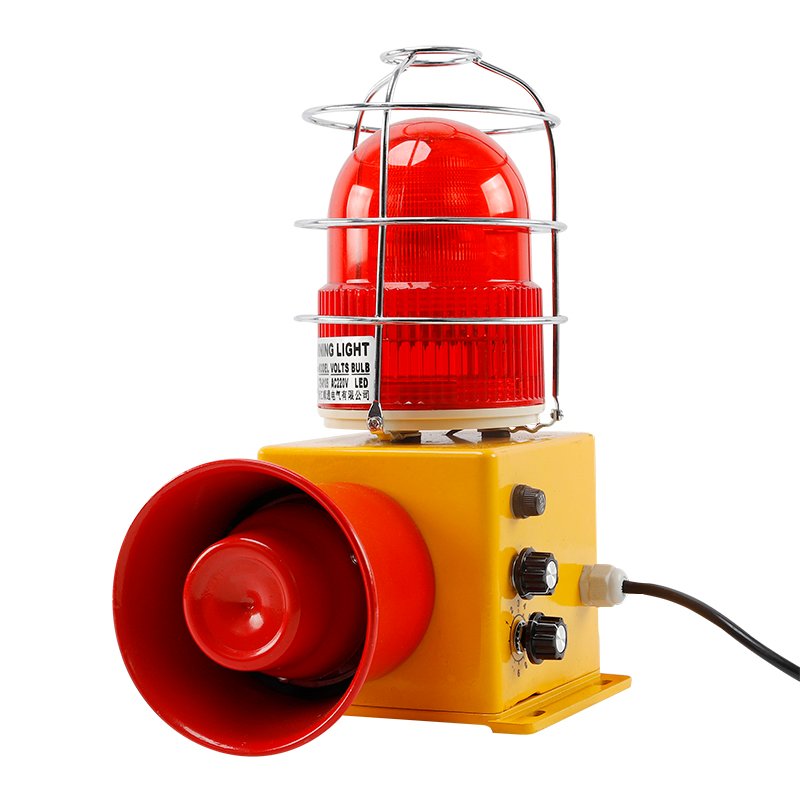

LED Flashing Alarm STSG-03

The LED Flashing Alarm STSG-03 is a reliable and high-performance alarm device that integrates bright LED flashing lights with sound alerts. It is designed to deliver effective warnings in various settings, ensuring safety and prompt attention.

Highlights

High-Visibility LED Lights: Features powerful LED flashing lights for clear visibility in low-light or emergency situations.
Loud Sound Alerts: Equipped with an audible alarm to ensure warnings are noticed quickly and effectively.
Durable and Versatile: Made with robust materials, suitable for industrial, commercial, and public safety applications across diverse environments.

Product Details

STSG–03 Integrated Audible Alarm Manual

The sound and light integrated alarm is a product developed by our factory based on the actual situation of large and medium-sized vehicles in the port machinery, mechanical and electrical industries, ships, docks, and belt conveyors.

The appearance of this product novel, warning lights are manufactured by using the most popular LED tube at present, which greatly increases the service life of the tube.

This series of products have high protection level, simple operation, small size, and safety .Easy installation and other advantages, with good waterproof, moisture- proof, shock resistance and strong earthquake resistance performance. After practical application, multiple tone alarm prompts have played an important role in coordinating work equipment alarms and protecting personal safety.

Model	STSG-03
Frequency	50/60Hz
Work humidity	-30℃~+70℃
Voltage	12V/24V DC,220V/380V AC
Current	125A
Protection grade	IP56
Net weight	2.3kg
Decibel	106-120dB
Color(Lamp)	Red Yellow Blue Green
Material	PC+: Aluminum alloy Lamp
Speaker	ABS
Dimension	187(L)×191(W)×310(H)mm
Application field	Suitable for large and ‘medium-sized cranes and ship terminal conveying equipment in port machinery and electromechanical industries.

Functions

Alarm function.
It is simple to use and can work continuously for a long time.
Dedicated integrated chip design, superior electromagnetic anti-interference performance.
The inner core of the flash is specially made by a single- chip microcomputer.
A variety of combined configuration methods, easy to use.
The shell is made of aluminum alloy die-casting, beautiful structure, can effectively resist the special structure design of salt spray corrosion, and has good waterproof, moisture-proof, and shock-resistant functions.

Installations & Instructions

Check whether the power supply and the rated voltage of the sound and light alarm are consistent.
The sound and light alarm is fixed to the mounting surface with 4 M6 screws. The mounting surface should be flat and have sufficient mechanical strength.
Connect the power and control wires from the stuffing box, and connect the power and control wires correctly according to the terminal definition on the label.
Check that the power cord and other control lines are connected correctly before turning on the power.
Turn the volume adjustment potentiometer to adjust the volume.
Note: Please install and use this product correctly as described in the manual.
