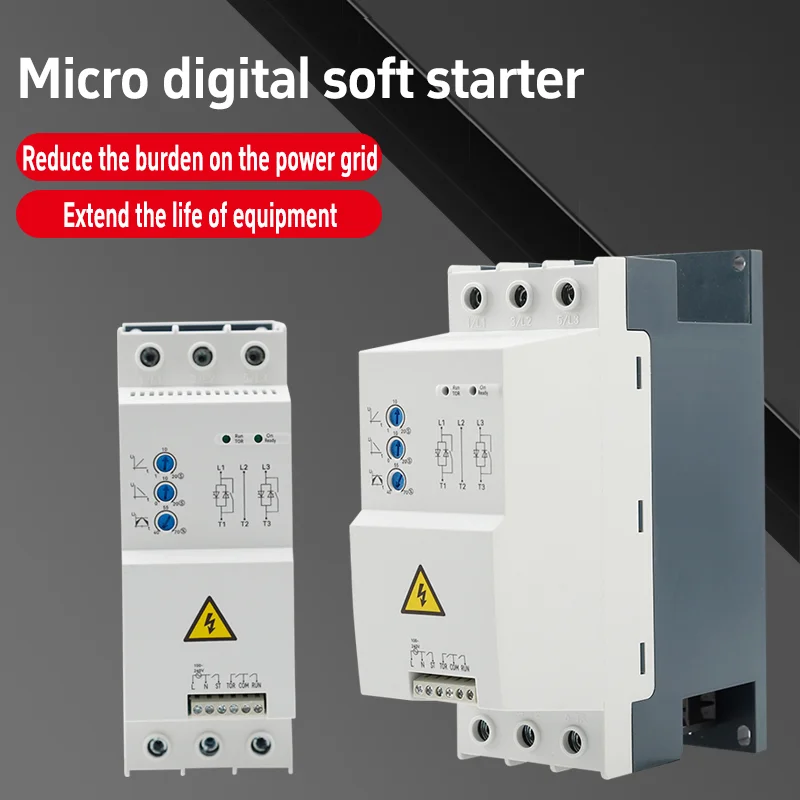

The SHR5E series micro digital soft starter offers an integrated design with a built-in bypass contactor to reduce energy loss and enhance durability. Its flame-retardant housing and cooling fan ensure safe, stable operation in high-temperature or demanding environments. Featuring microprocessor control, it supports multiple start modes and adjustable parameters for precise motor management. With user-friendly operation, compact integration, and comprehensive protections (overload, overvoltage, phase-loss), it boosts energy efficiency and extends equipment life across industrial applications.
Application environment
The SHR5E series soft starter is suitable for diverse industrial and commercial settings, including manufacturing plants, water treatment facilities, HVAC systems, and material handling systems. It excels in controlling motors for pumps, fans, compressors, conveyors, and other machinery requiring smooth startup and reliable protection. The device operates effectively in environments with fluctuating loads, high-temperature conditions, or demanding operational cycles, ensuring stable performance while minimizing electrical stress and mechanical wear on equipment.
Product parameters
| Motor Power (kW) | Motor current | Specification model | Machine type | |||||
| Three – phase 50/60Hz | ||||||||
| 200V | 400V | 600V | A | Model | Voltage | Current | Control voltage | |
| 0.75 | 1.5 | 3.0 | SHR5E | -XX- | 4.0 | -X | A | |
| 1.5 | 3 | 6.0 | 6.8 | 7.0 | ||||
| 2.2 | 4.0 | 8.0 | 9.0 | 9.0 | ||||
| 3.0 | 5.5 | 11 | 12 | SHR5E | -XX- | 12 | -X | |
| 4.0 | 7.5 | 15 | 16 | 16 | ||||
| 5.5 | 11 | 22 | 25 | SHR5E | -XX- | 25 | -X | |
| 7.5 | 15 | 30 | 30 | 30 | ||||
| 9.0 | 18.5 | 37 | 37 | SHR5E | -XX- | 37 | -X | B |
| 11 | 22 | 45 | 45 | 45 | ||||
| 15 | 30 | 55 | 60 | SHR5E | -XX- | 60 | -X | |
| 22 | 37 | 59 | 72 | 72 | ||||
| 25 | 45 | 75 | 85 | SHR5E | -XX- | 85 | -X | |
| 30 | 55 | 90 | 105 | 105 | ||||

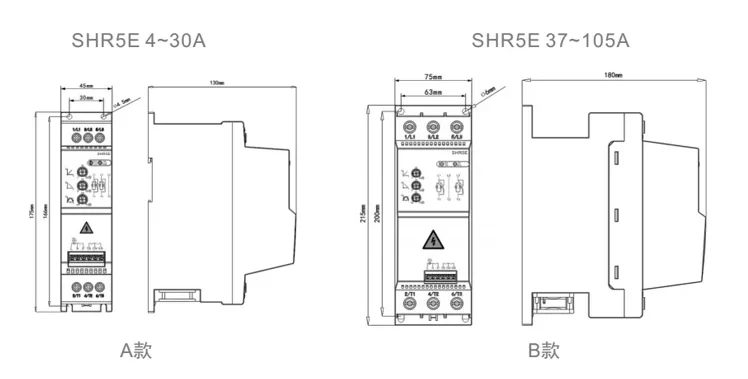

Dimension
Product Features
- The SHR5E series integrates multiple functions—including soft start/stop, energy saving, and motor protection—into a single device. This all-in-one design simplifies control systems, reduces component clutter, and enhances operational efficiency while extending equipment lifespan through intelligent management.
- Featuring adjustable soft start/stop times and multi-segment initial voltage selection, the SHR5E ensures smooth motor acceleration/deceleration. This minimizes mechanical stress and electrical surges, providing stable performance across diverse load conditions and reducing maintenance risks.
- With a concentrated knob-type interface and intuitive parameter adjustments, the SHR5E simplifies setup and daily operation. Clear indicator lights and diagrammatic labeling ensure quick troubleshooting, making it accessible for technicians with minimal training while boosting productivity.

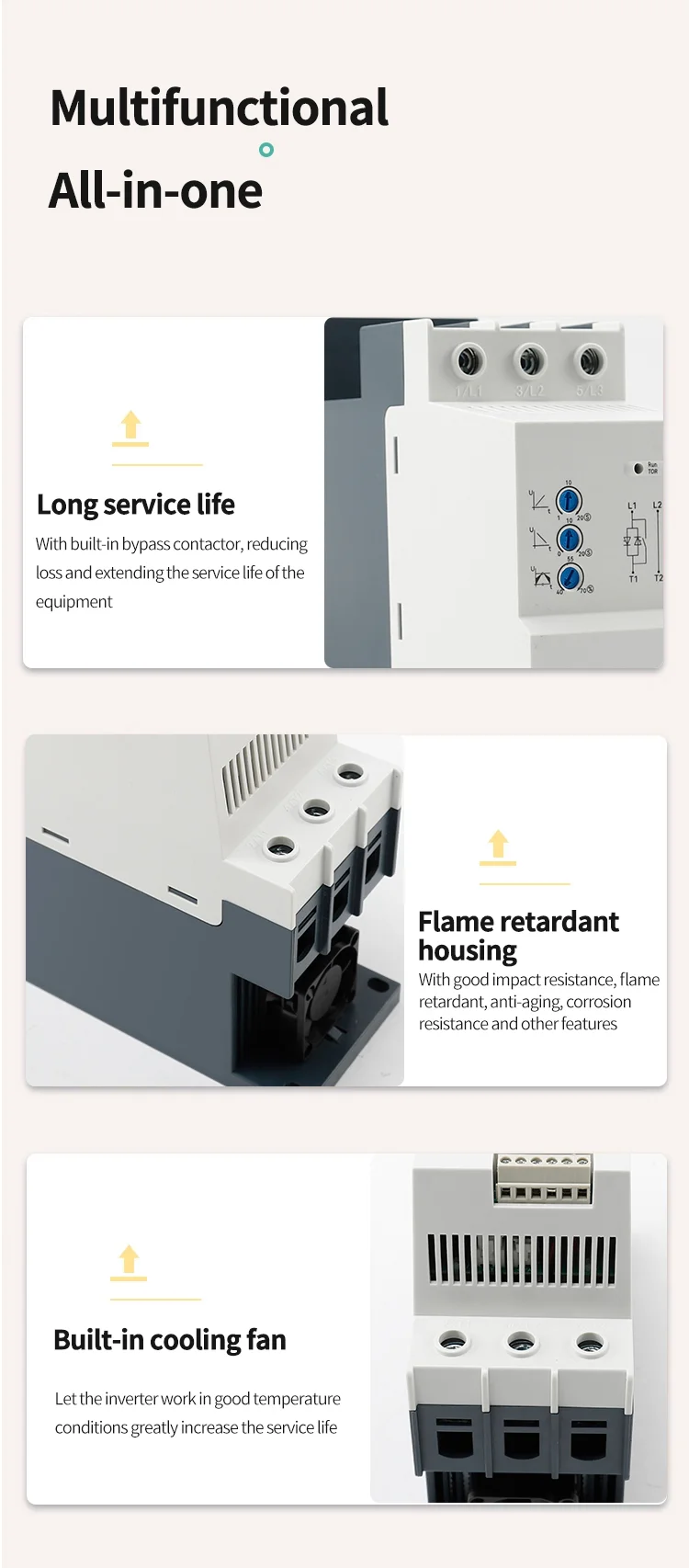

- Engineered with a compact, durable housing, the SHR5E withstands harsh industrial environments. Its flame-retardant, corrosion-resistant casing and built-in cooling fan ensure reliable heat dissipation, enabling long-term operation in high-temperature or dust-prone settings without performance degradation.
- By reducing inrush current and optimizing power consumption during motor startup, the SHR5E lowers energy costs and alleviates grid burden. The integrated bypass contactor further cuts power losses, enhancing overall efficiency and contributing to sustainable, low-carbon operations.
- Equipped with overcurrent, overvoltage, and phase-loss protection, the SHR5E safeguards motors from damage. Its built-in bypass contactor and thermal management extend component life, while the 1-year warranty and reliable construction ensure peace of mind for long-term industrial applications.
Product installation and instructions
- Preparation and Mounting: Begin by ensuring the power supply is disconnected. Securely mount the SHR5E soft starter on a stable surface using appropriate screws. Ensure the enclosure is flame-retardant and positioned away from heat sources for optimal safety and performance.
- Wiring Configuration: Connect the input power supply to terminals L1, L2, and L3. Link the motor wires to T1, T2, and T3, ensuring tight connections. Utilize the built-in bypass contactor terminals if required, and verify all wiring aligns with the system’s electrical standards.
- Parameter Setup: Access the concentrated knob-type adjustment panel. Configure start/stop times, initial voltage, and current limits based on load requirements. The intuitive interface simplifies setting multi-mode regulations, such as soft start or stepless speed control.
- Cooling and Ventilation Check: Confirm the built-in cooling fan operates smoothly before energizing the system. Ensure vents remain unobstructed to maintain stable operating temperatures, enhancing the device’s lifespan and preventing overheating during prolonged use.
- Testing and Commissioning: After installation, power on the system and monitor the display for normal operation indicators. Test multiple start modes under load conditions to validate performance stability. Regularly inspect connections and housing integrity to ensure long-term reliability.
Note： When using the SHR5E series soft starter, ensure proper installation in a well-ventilated, dry environment. Avoid damp or high-temperature areas. Follow electrical connection guidelines strictly. Adjust parameters per load requirements and avoid unauthorized modifications. Regularly inspect and clean the device, avoiding corrosive cleaners. Only qualified personnel should perform maintenance to ensure safety and compliance.

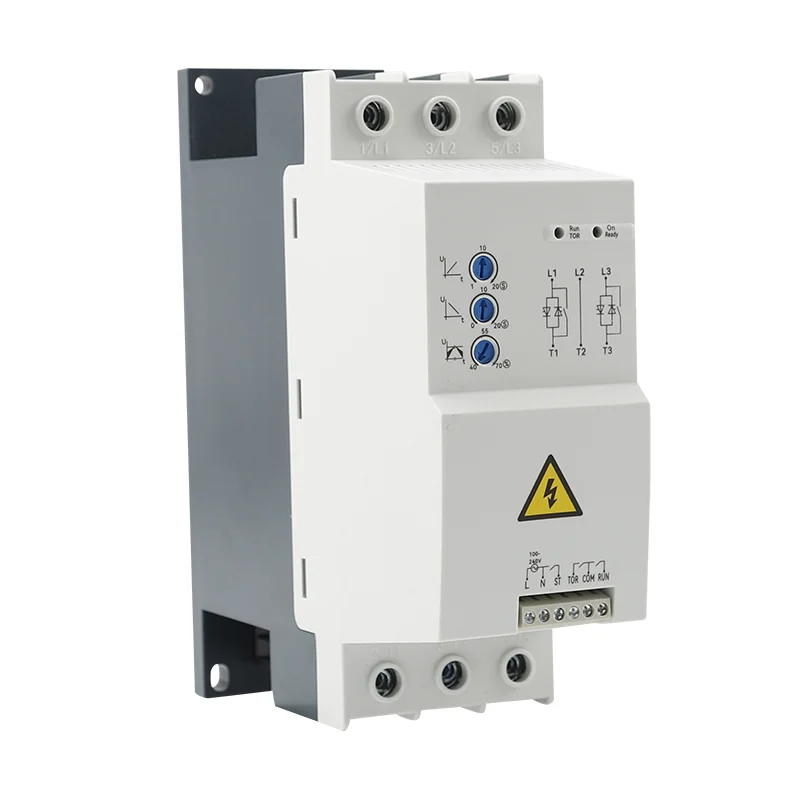

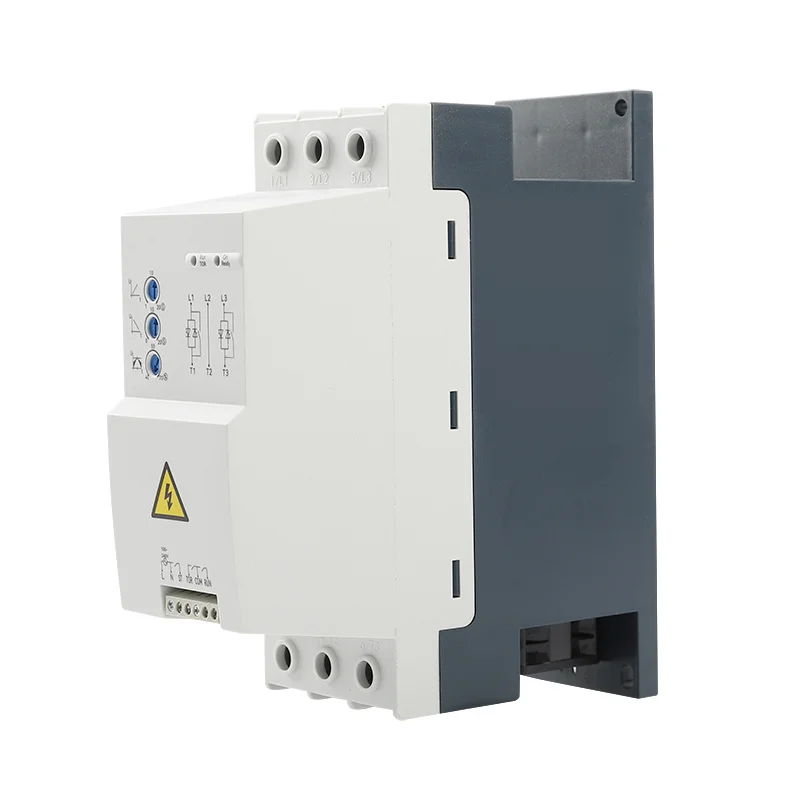

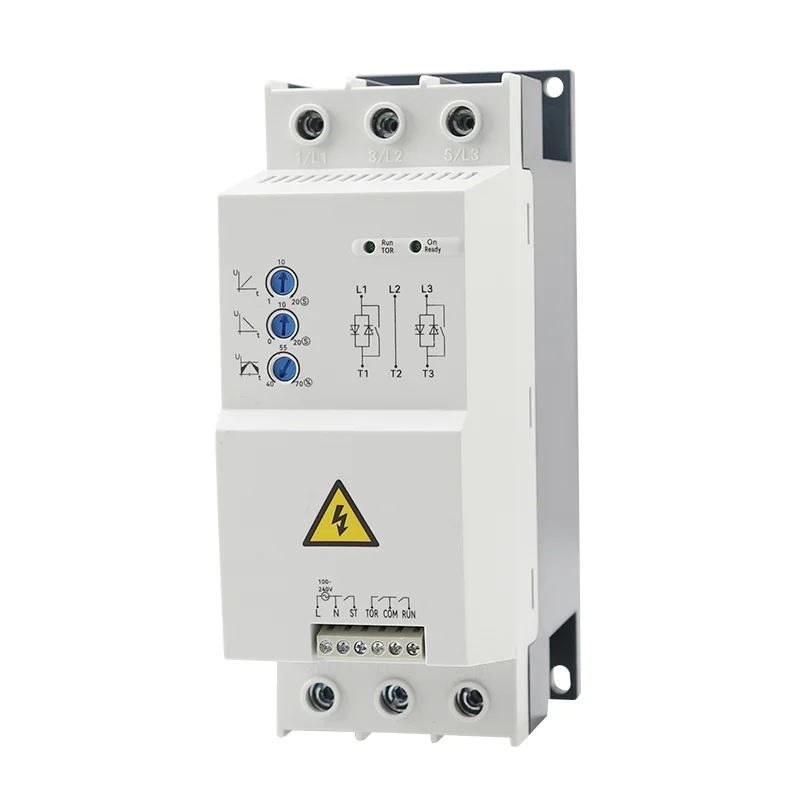

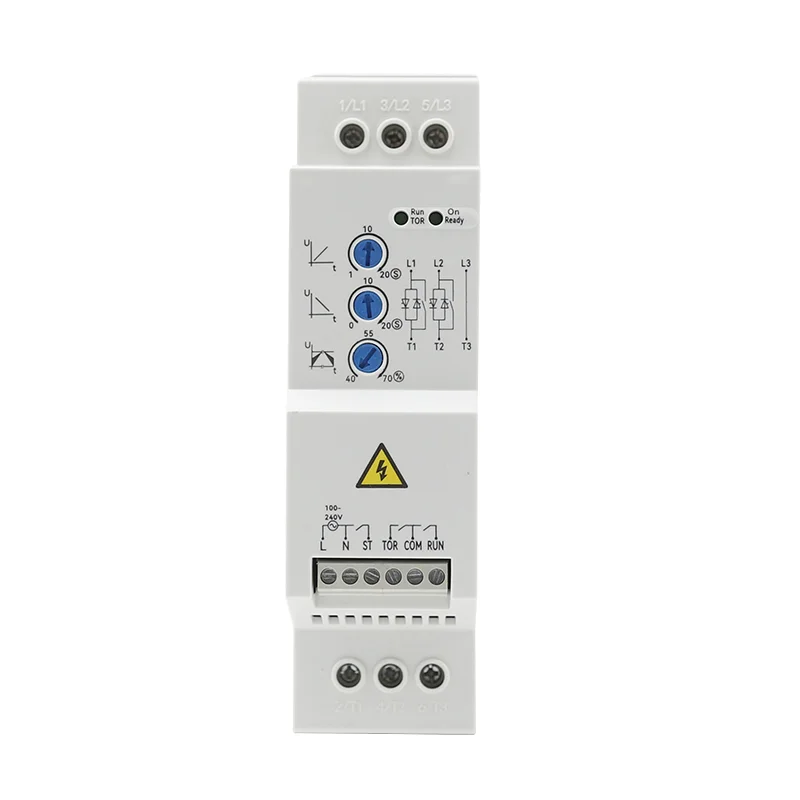

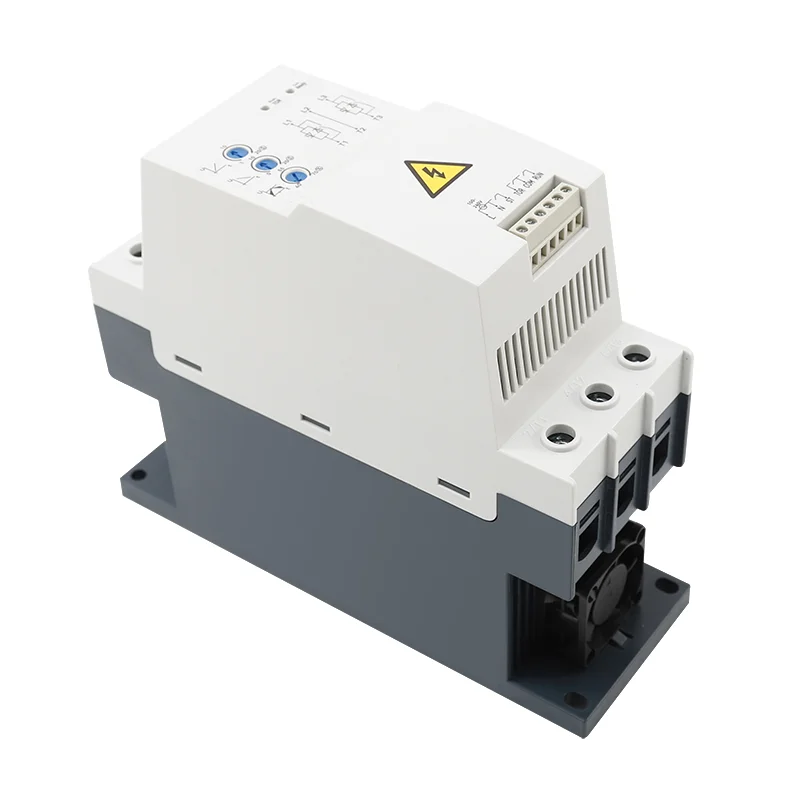

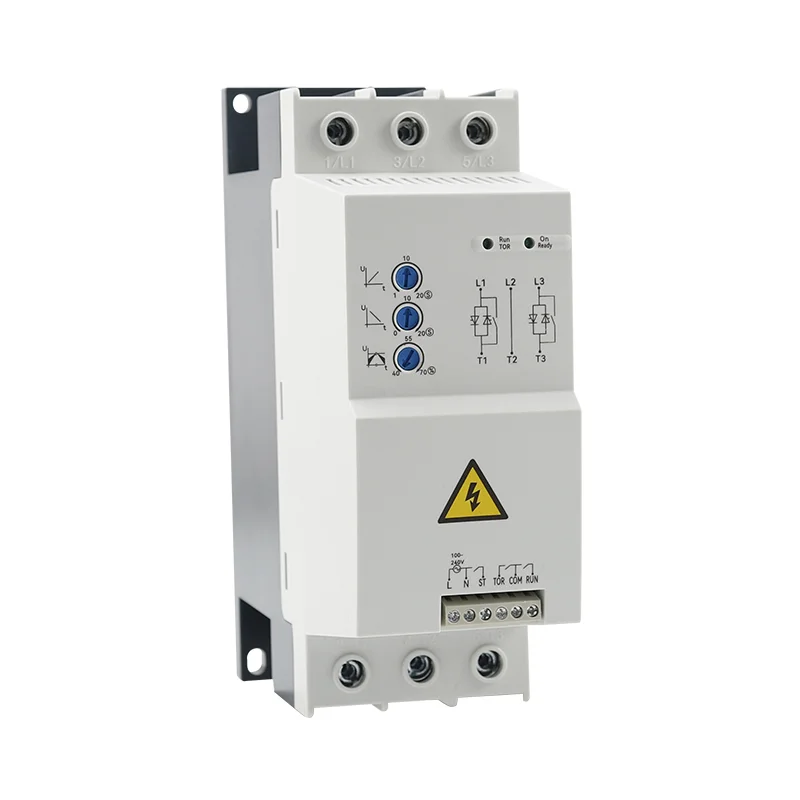

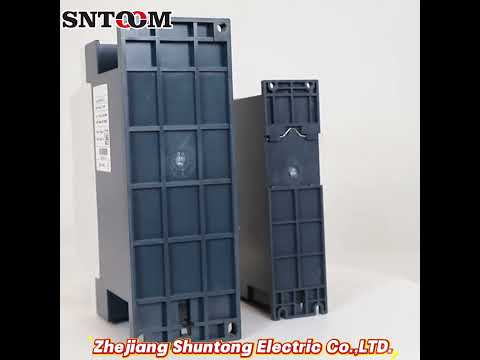

Product images
