Description
Product Introduction
TND single-phase high-precision fully automatic AC stabilizer is a power stabilization solution designed specifically for precision electronic devices. It adopts advanced digital control technology to achieve high precision and stability of voltage output, effectively resisting the impact of power grid fluctuations. The product has fully automated adjustment function, which ensures constant output voltage without manual intervention. Its compact structural design facilitates installation and maintenance, while providing multiple protection mechanisms to ensure electrical safety. TND voltage regulators are widely used in laboratories, medical equipment, precision instruments, and other fields, making them the ideal choice for you to pursue high-quality power supply guarantee.
Technical Parameters
| Input Voltage | Single-phase 140V ~250V, Three-phase 277V~430V | ||
| Output Voltage | ① 0.5KVA ~ 3KVA :Single-phase 220V & 110V, ② 5KVA ~ 30KVA : Single-phase 220V，Three-phase 380V | ||
| Stabilization Accuracy | 220V ±3% & 110V±6%， 380V±3% | ||
| Adjust Time | ≤1.5s (When the input voltage changes 10%) | ||
| Over-voltage Protection | 246±4V ,380V±4V | Load Power Factor | 0.8 |
| Ambient Temperature | -5℃ ~ +40℃ | Relative Humidity | ≤90% |
| Wave Distortion | No additional waveform distortion | Insulation Resistance | ≥2MΩ |
| Delay Time | 5s±2s，5min±2min | Electric strength | 1500/min |
| Working Frequency | 50 / 60Hz | Effectiveness | ＞90% |
Specification
| Model（KVA） | Product Size L×W×H（cm） | Packing L×W×H（cm） | Weight（KG） | Package (Set/carton） |
| SVC/TND-0.5 | 19×18×14.5 | 44×25×35 | 4.8 | 4 |
| SVC/TND-1 | 22.5×20.5×15.5 | 50×28×40 | 6.1 | 4 |
| SVC/TND-1.5 | 22.5×20.5×15.5 | 50×28×40 | 6.4 | 4 |
| SVC/TND-2 | 23.5×27×19.5 | 32×30×24 | 10.4 | 1 |
| SVC/TND-3 | 23.5×29.5×23 | 36×30×32 | 13 | 1 |
| SVC/TND-5 | 23.5×32.5×28 | 54×32×27 | 18.3 | 1 |
| SVC/TND-10 | 39×24×42 | 40×35×52 | 40 | 1 |
| SVC/TND-15 | 40×33×65 | 48×45×90 | 75 | 1 |
| SVC/TND-20 | 58×35×68 | 68×48×90 | 110 | 1 |
| SVC/TND-30 | 53×43×129 | 64×53×112 | 165 | 1 |
| SVC/TND-45 | 79×43×29 | 90×65×140 | 200 | 1 |
| SVC/TND-60 | 79×43×29 | 90×65×140 | 250 | 1 |
Product Features
- High precision voltage stabilization: Adopting advanced electronic control technology to ensure minimal output voltage fluctuations, meeting the stringent requirements of precision equipment for stable power supply.
- Fully automatic regulation: Built in intelligent monitoring system, real-time sensing of grid voltage changes, and automatic adjustment of output voltage, without manual intervention, achieving 24-hour stable power supply.
- Overload and short circuit protection: Equipped with multiple safety protection mechanisms, when the equipment encounters overload or short circuit situations, it can quickly cut off the power supply, effectively preventing equipment damage.
- Intelligent display and alarm: equipped with intuitive digital display screen, real-time display of output voltage and current information, and equipped with alarm function, making it easy for users to timely understand the equipment status.
- Energy saving and environmentally friendly design: adopting high-efficiency circuit design to reduce energy consumption and heat generation, in line with modern green and energy-saving concepts.
Product installation and instructions
TND single-phase high-precision fully automatic AC voltage regulator is easy to install, and users need to ensure that the installation environment is dry, ventilated, and away from heat sources and humidity. Fix the voltage regulator in a stable position and secure it with screws to ensure stability. Next, connect the power line and load line correctly according to the equipment requirements, pay attention to distinguishing between the phase line and neutral line, and ensure that the connection is firm. Before connecting the power, please check if all connection points are securely fastened to prevent short circuits or open circuits. After the power is turned on, the voltage regulator will automatically enter the working state without manual adjustment. Please follow the product manual to ensure safe use, and regularly check and maintain to ensure the long-term stable operation of the voltage regulator.

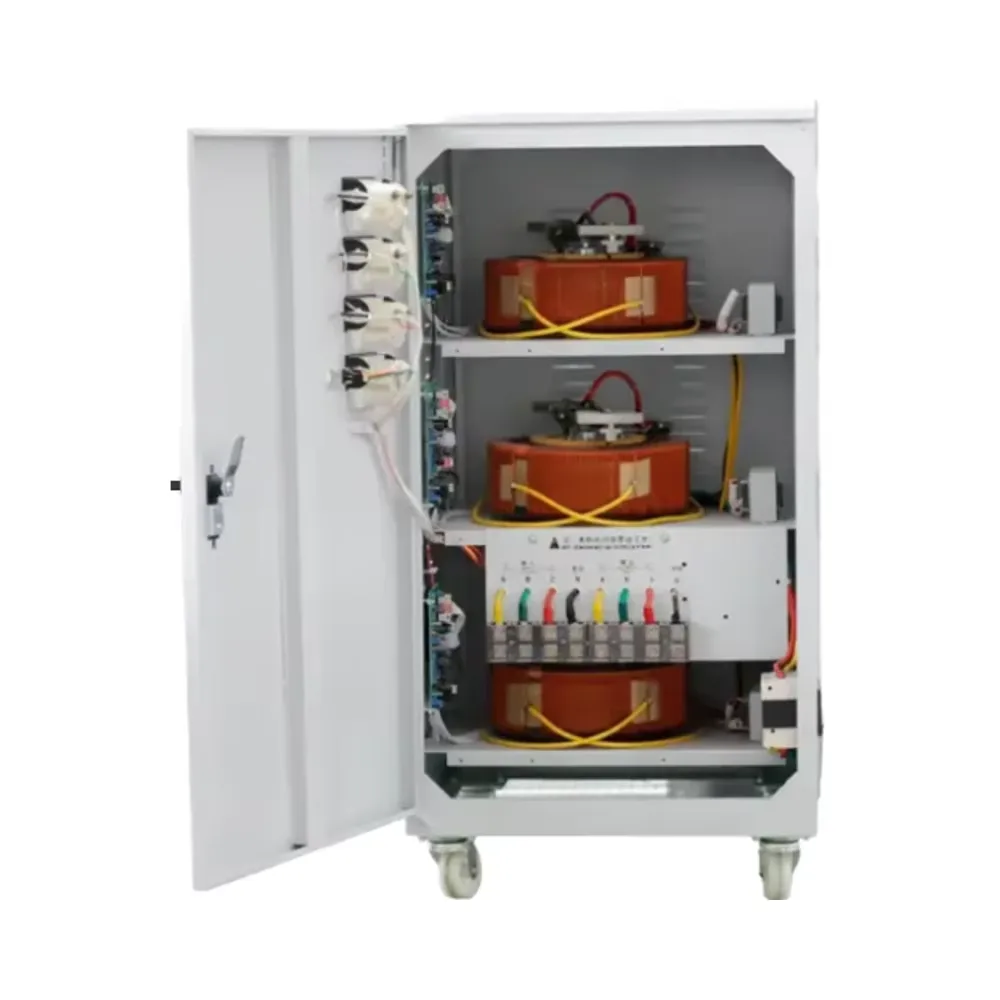

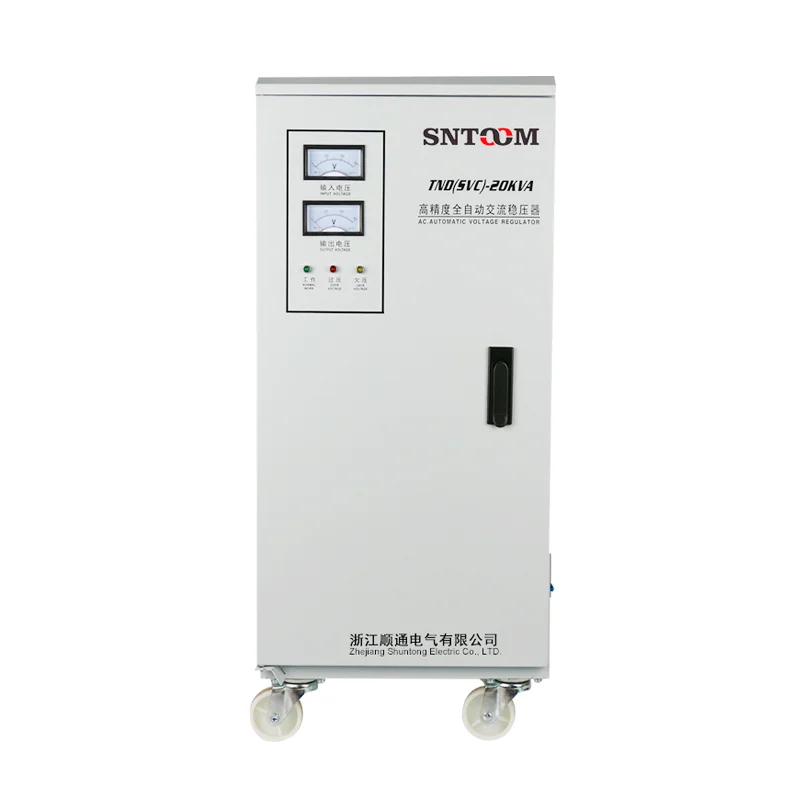

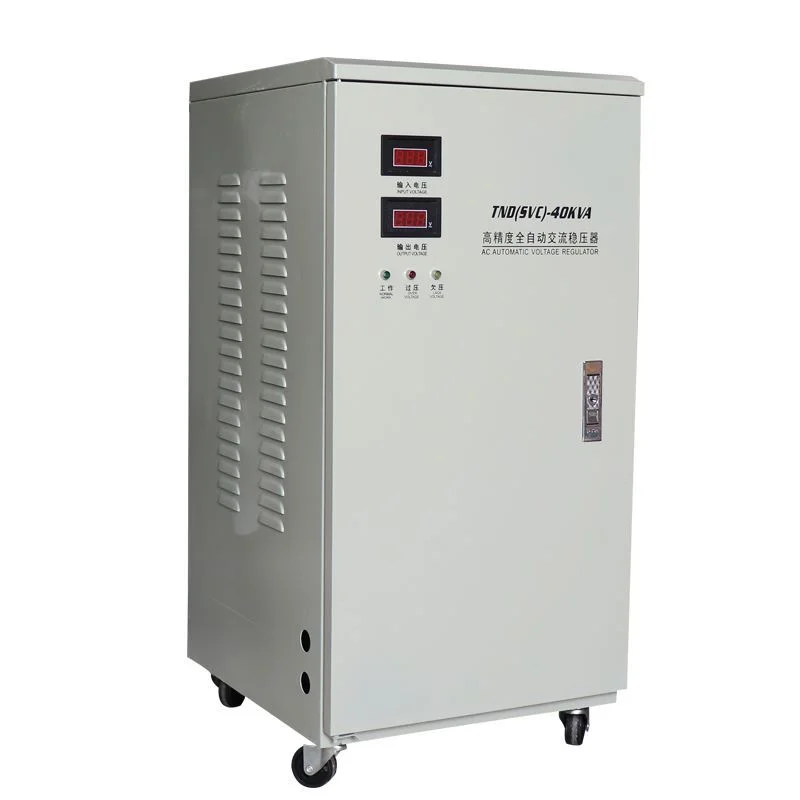

Product images
