Online Soft Starter

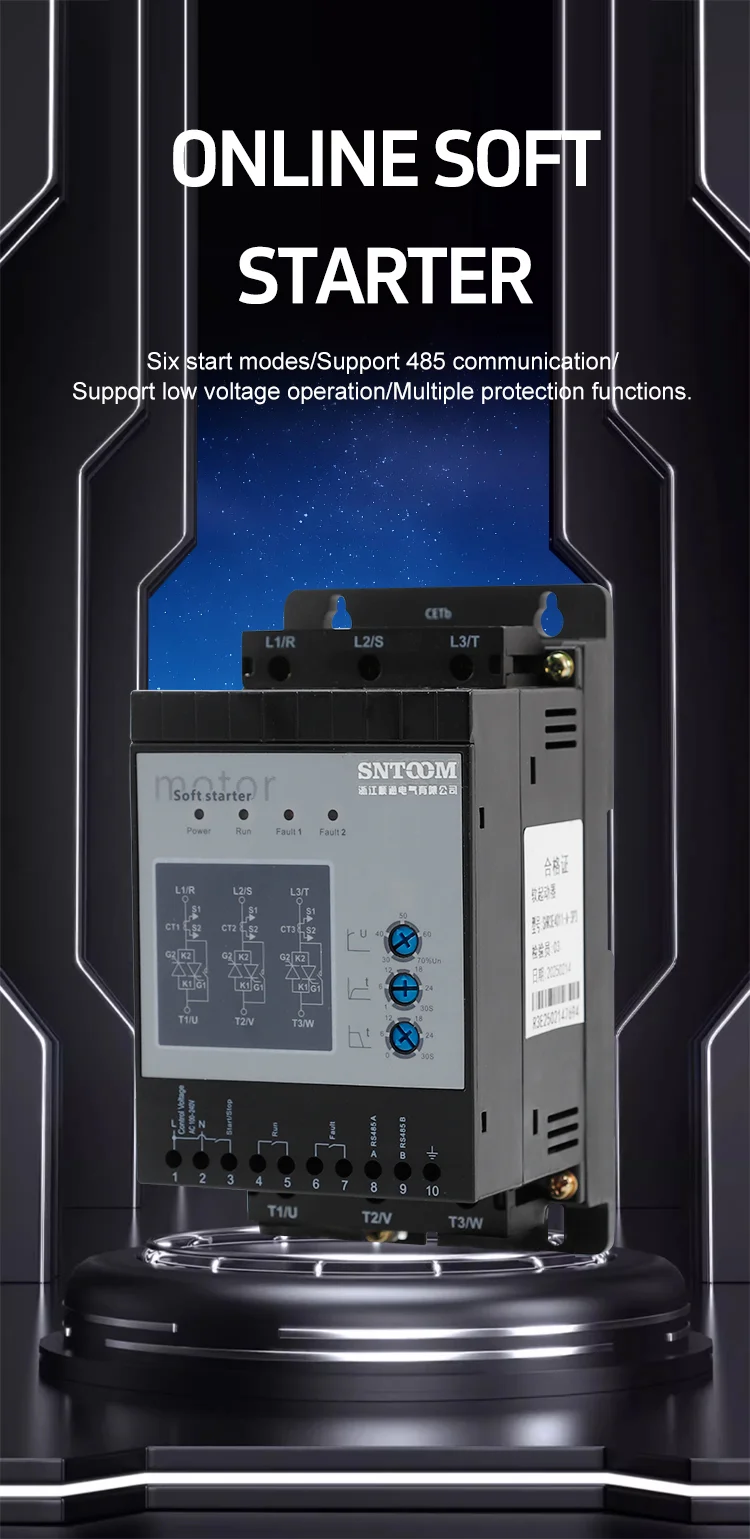

1. Product Overview

Online Soft Starter is a high-performance motor control device built for three-phase asynchronous motors. It enables smooth, shock-free startup and shutdown, protecting motors and mechanical equipment from current surges and mechanical impact. This soft starter supports multiple start modes, RS485 communication, and low-voltage operation, delivering stable performance across diverse industrial scenarios. It is widely used in pumps, fans, compressors, and other equipment to extend motor lifespan and cut maintenance costs.

2. Application Environment

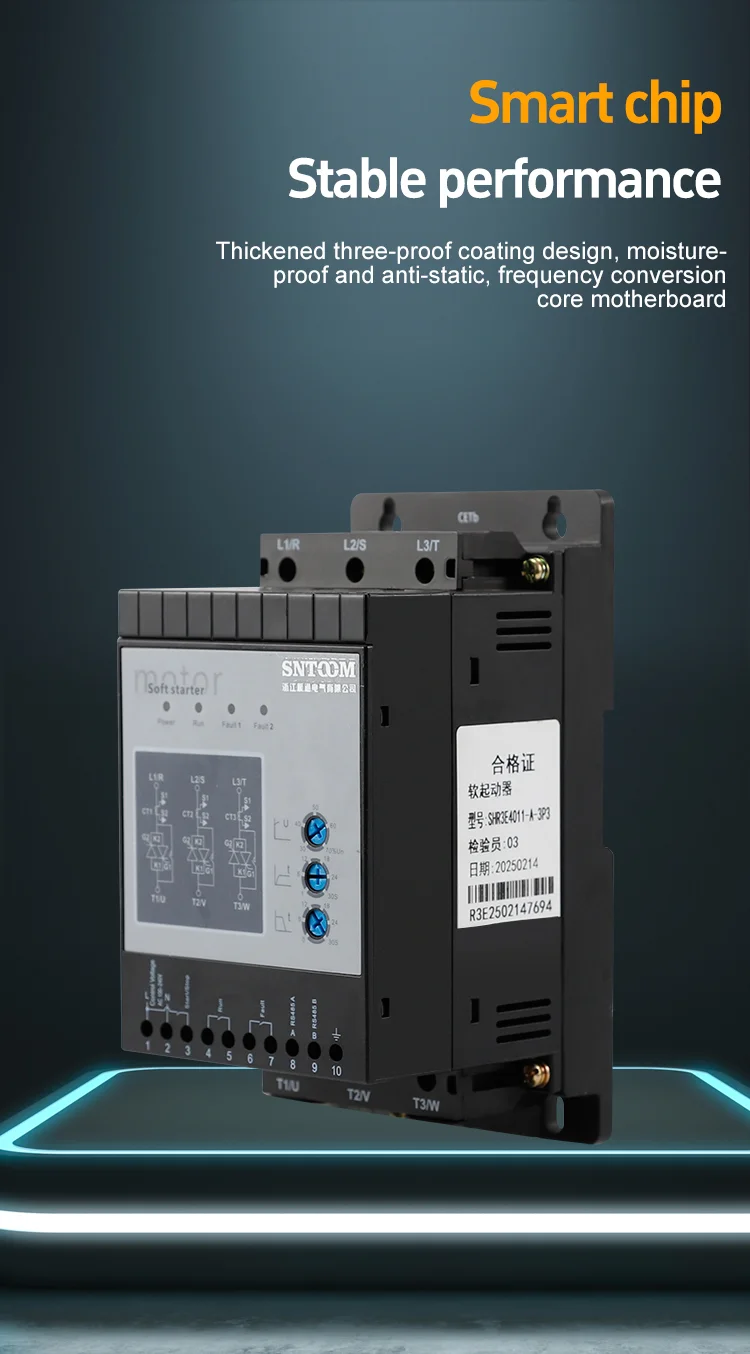

This soft starter works reliably in various industrial settings, including factories, water treatment plants, mining sites, and HVAC systems. It operates stably at ambient temperatures from -10℃ to +40℃, with a relative humidity below 90% (non-condensing). Its flame-retardant, anti-static housing and three-proof coated motherboard resist moisture, dust, and vibration, adapting well to harsh working conditions. It supports 220V, 400V, and 500V power supplies, with custom voltage options available for special applications.

3.Product Parameters

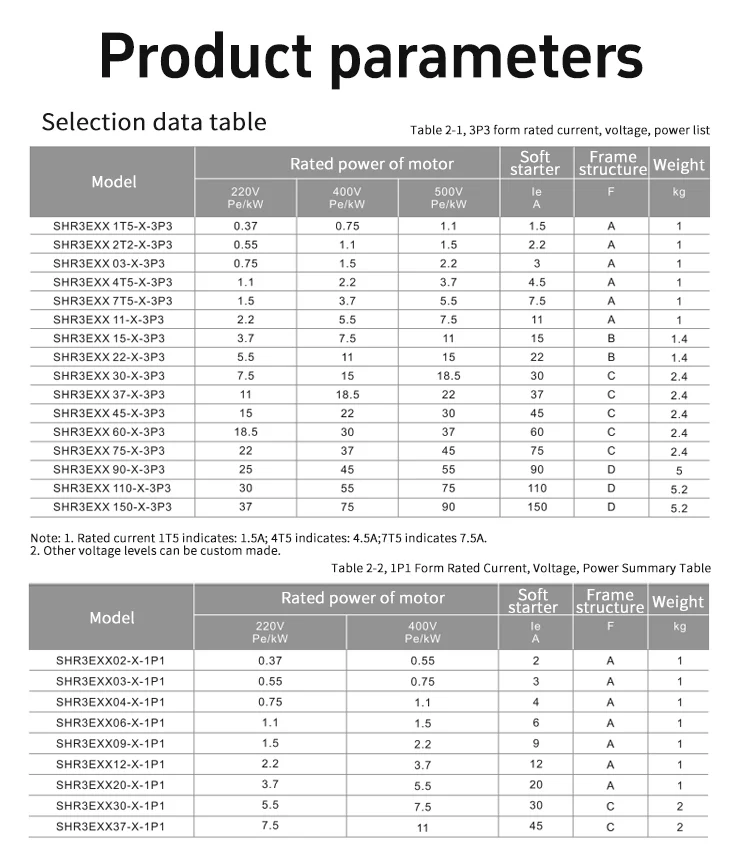

The Online Soft Starter covers motor power ratings from 0.37kW to 90kW, with corresponding rated currents ranging from 1.5A to 150A. It offers two main form factors: the 3P3 three-phase series (for three-phase motor use) and the 1P1 single-phase series (for small-power motor applications).

• Rated Power: 0.37kW–90kW (customizable)
• Rated Voltage: 220V/400V/500V (customizable)
• Rated Current: 1.5A–150A
• Control Power Supply: AC 100–240V
• Communication Interface: RS485
• Operating Temperature: -10℃ ~ +40℃

4. Dimensions & Structure

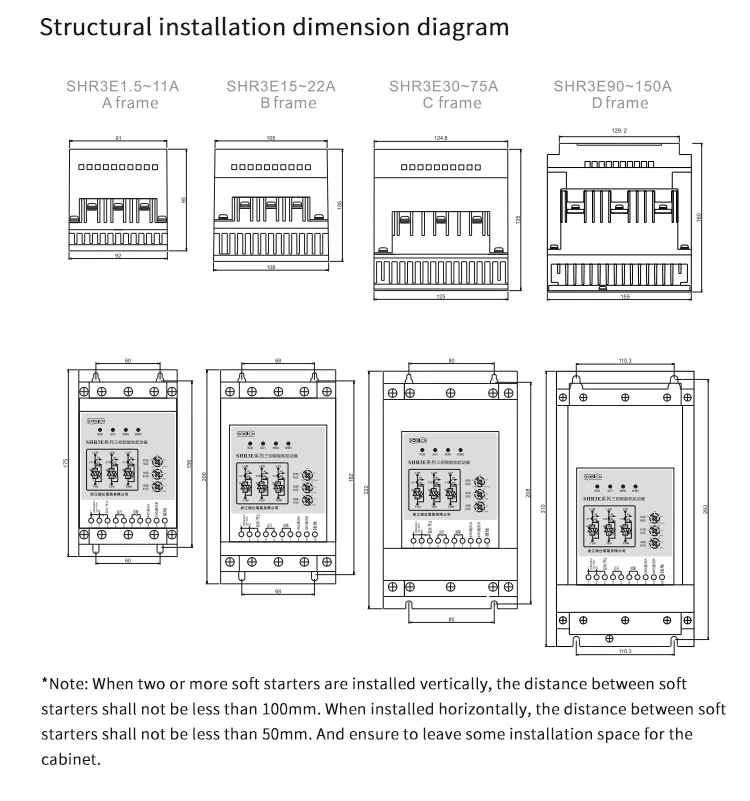

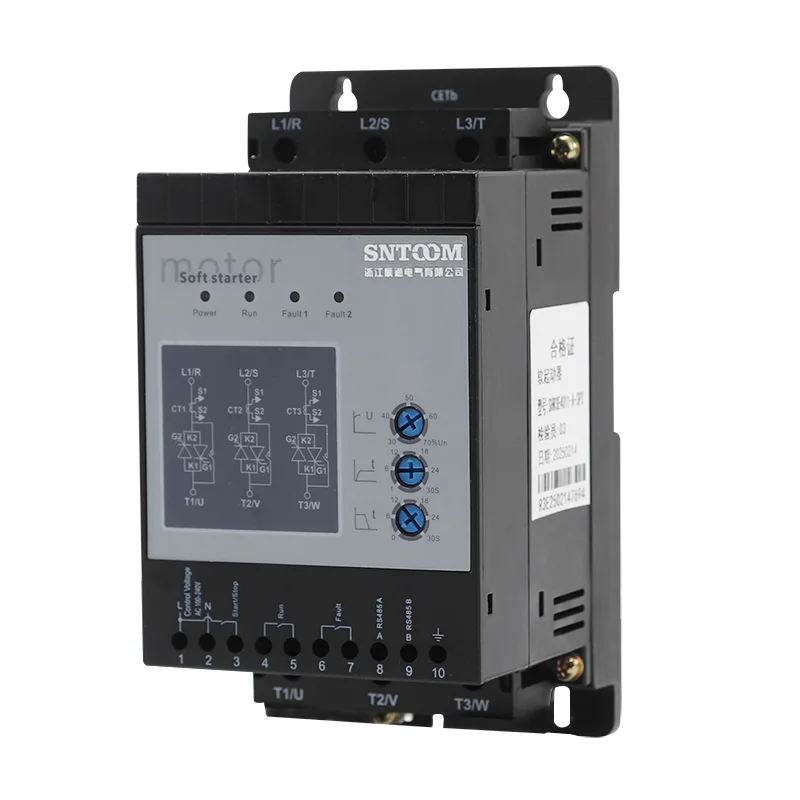

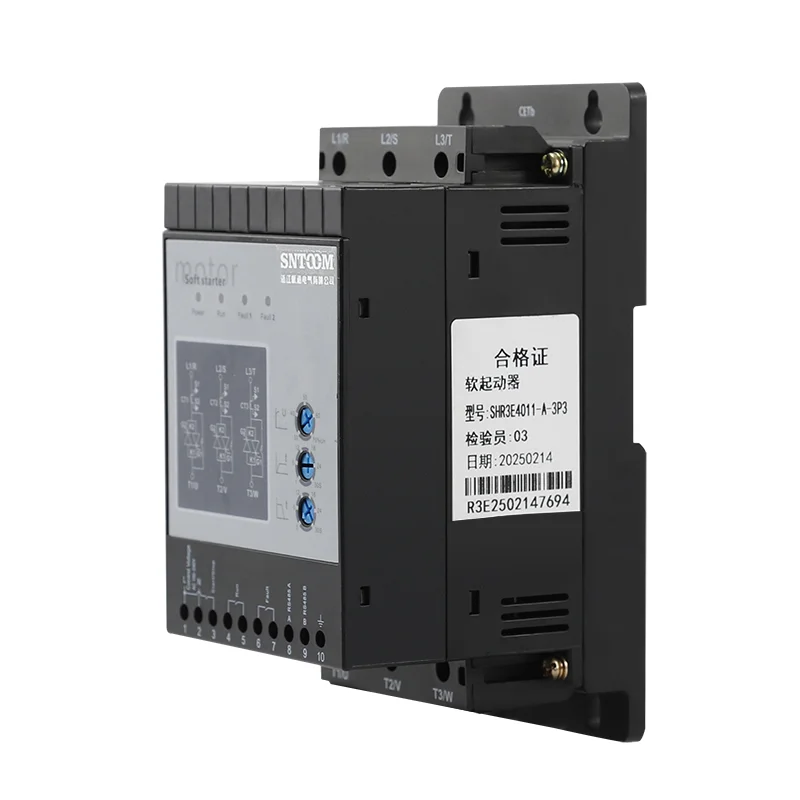

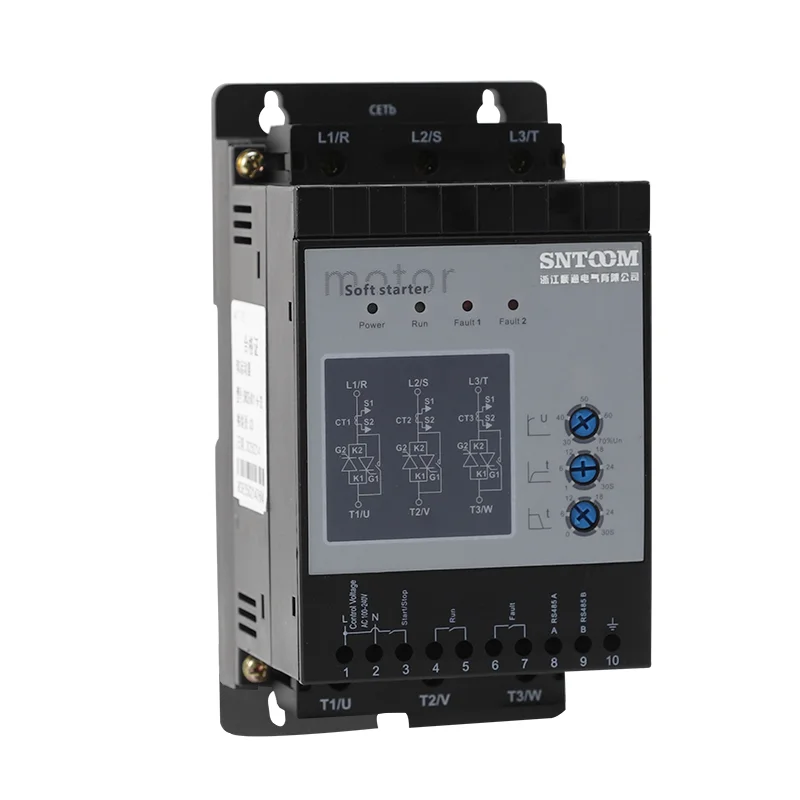

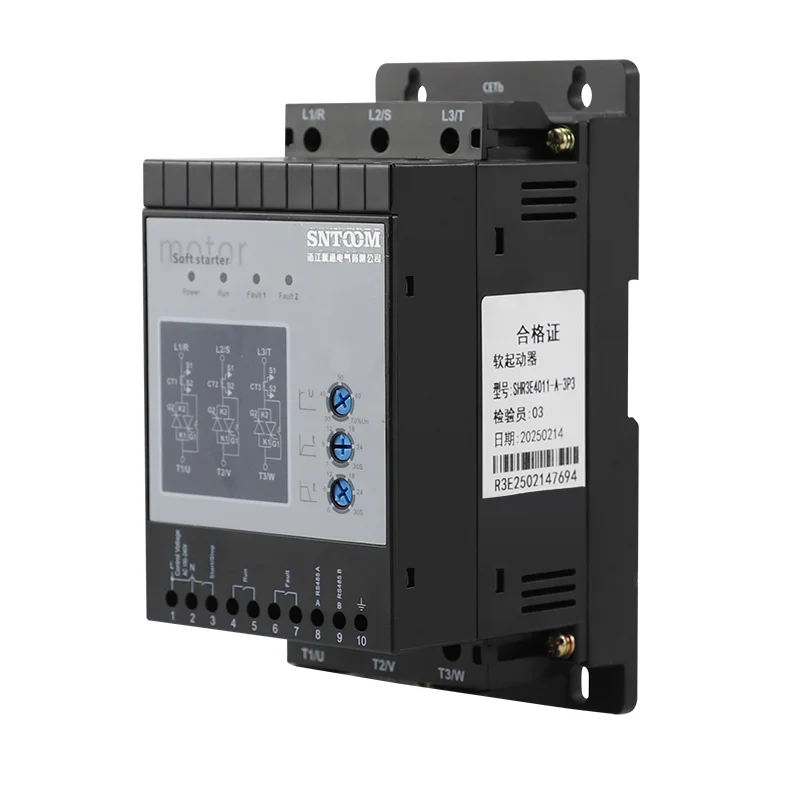

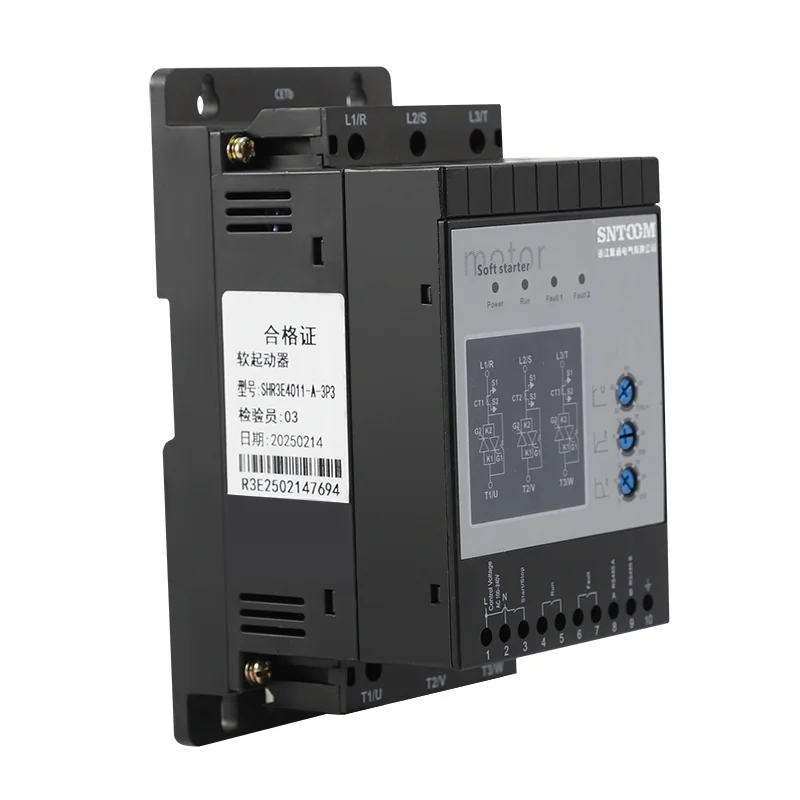

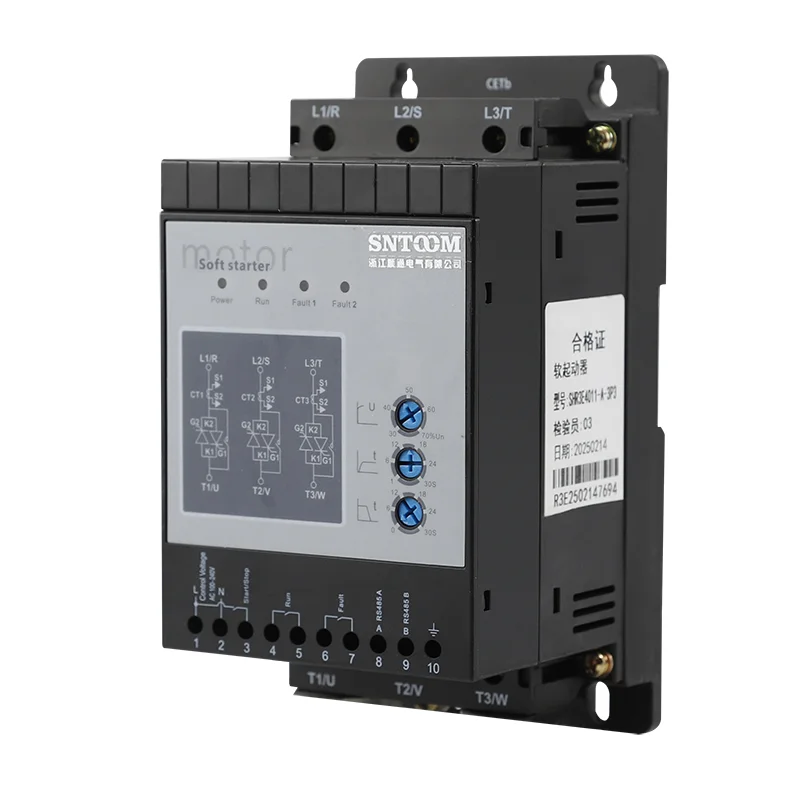

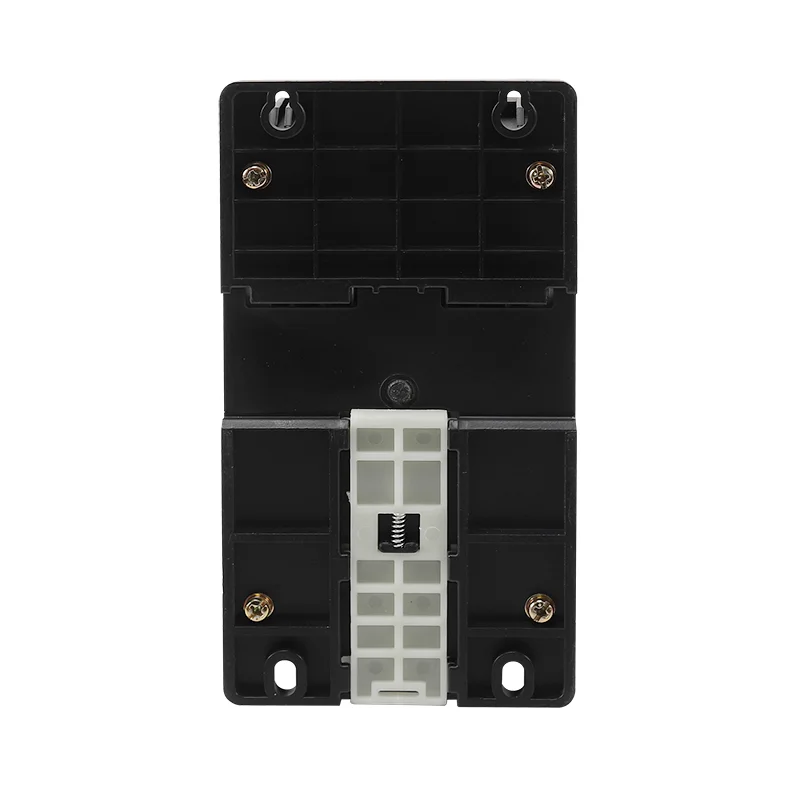

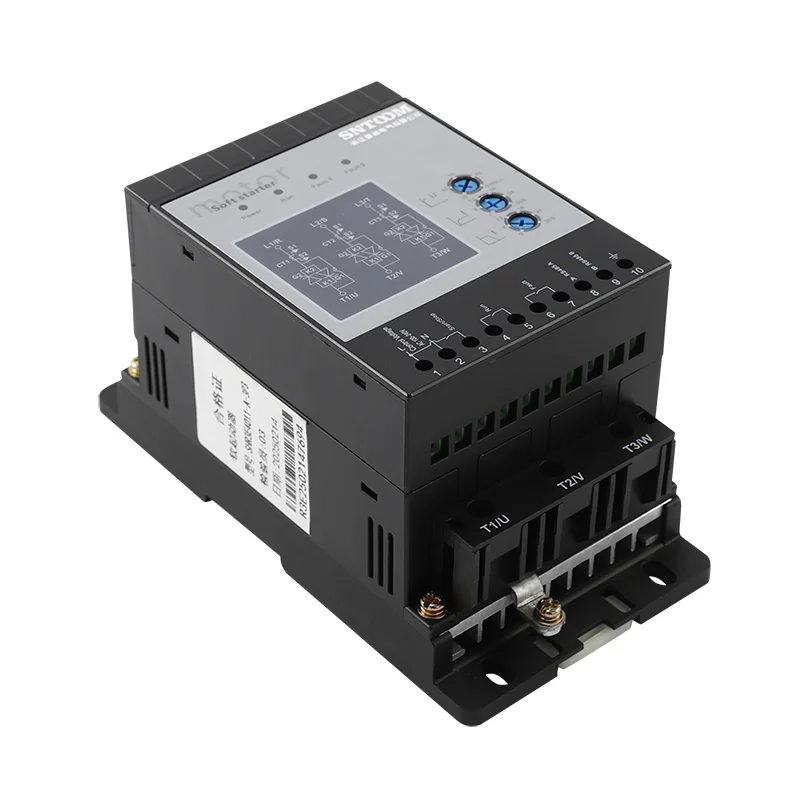

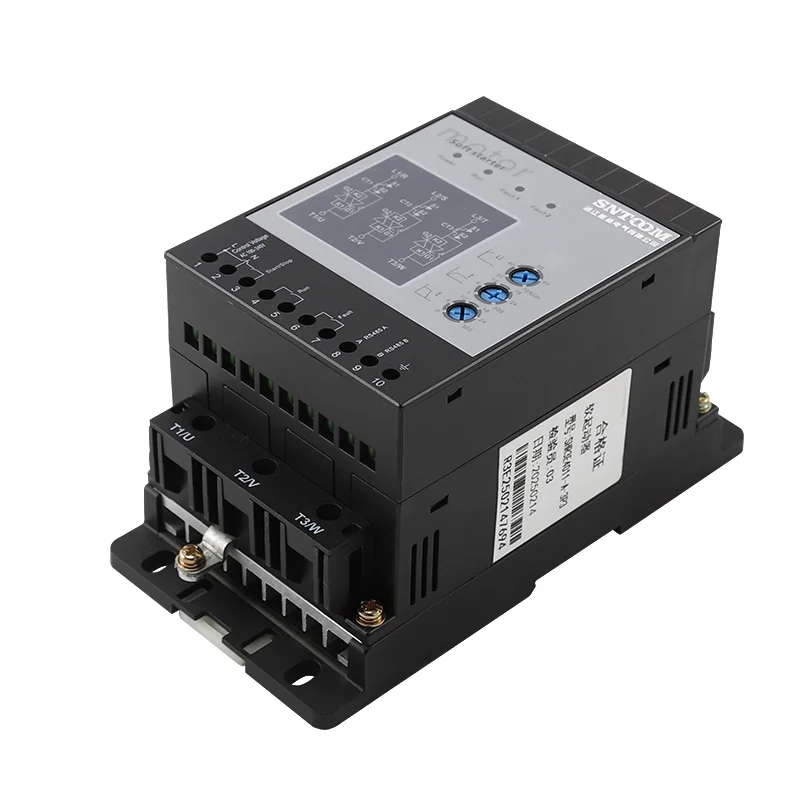

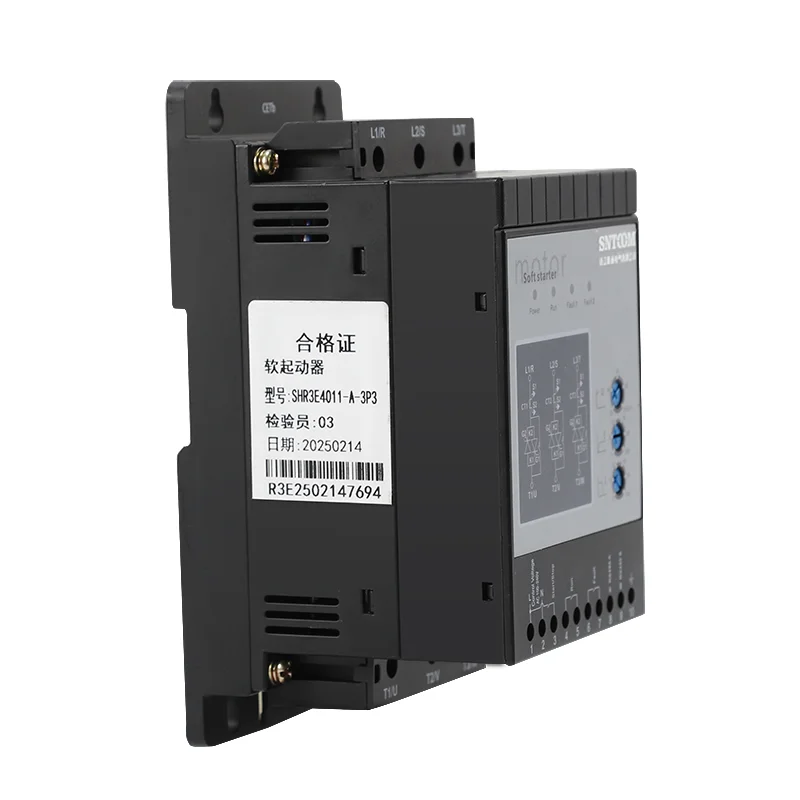

This soft starter comes in multiple frame structures (A/B/C/D) to match different power levels, with a compact, modular design for easy installation in control cabinets. The flame-retardant plastic housing features mounting holes for secure wall or DIN-rail installation. Clear terminal markings for power input, motor output, and control signals simplify wiring and maintenance. The smallest A-frame unit weighs just 1kg, making it ideal for space-limited applications.

5. Product Features

This Online Soft Starter offers core advantages for industrial use:

• Multi-mode startup: 6 adjustable start modes to adapt to different load types
• Full protection suite: Overcurrent, overload, phase loss, and overheating protection

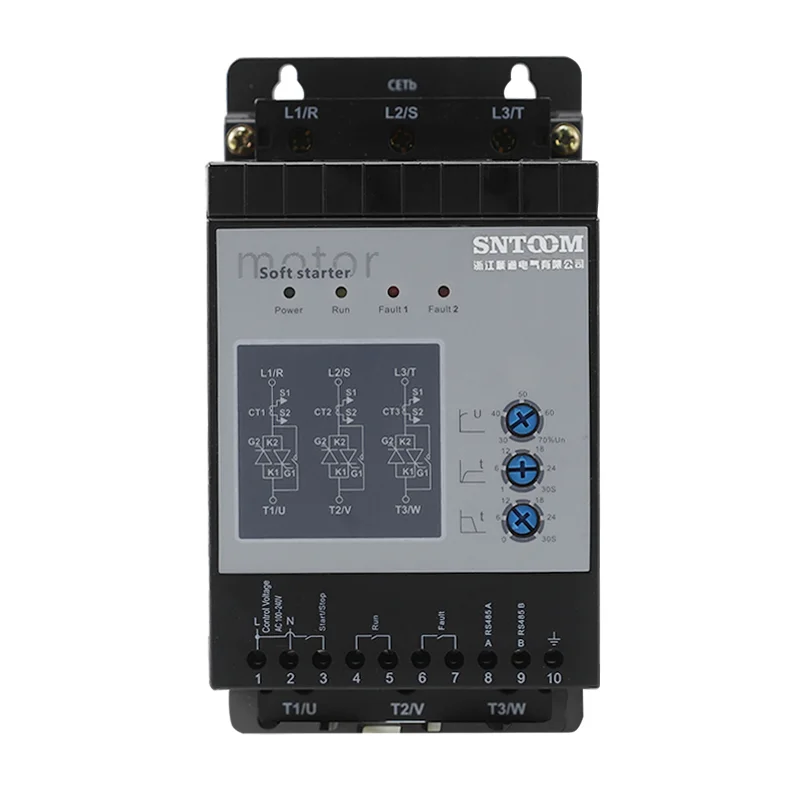

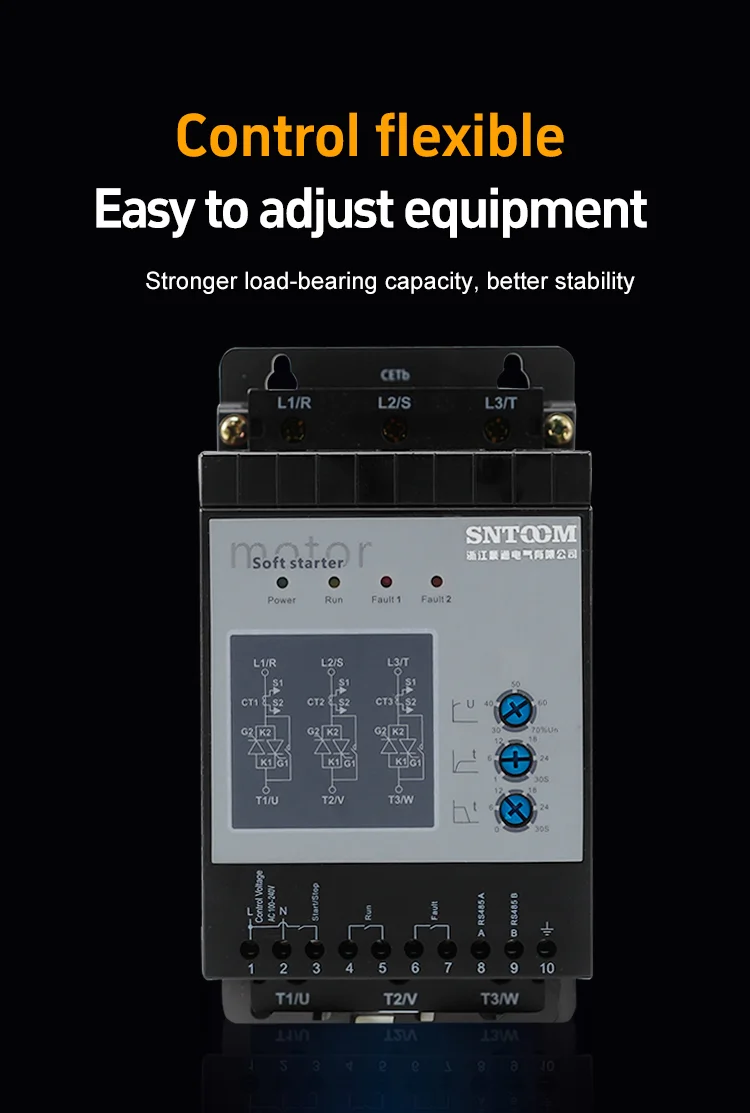

• Flexible control: Three knobs for setting start voltage, start time, and stop time

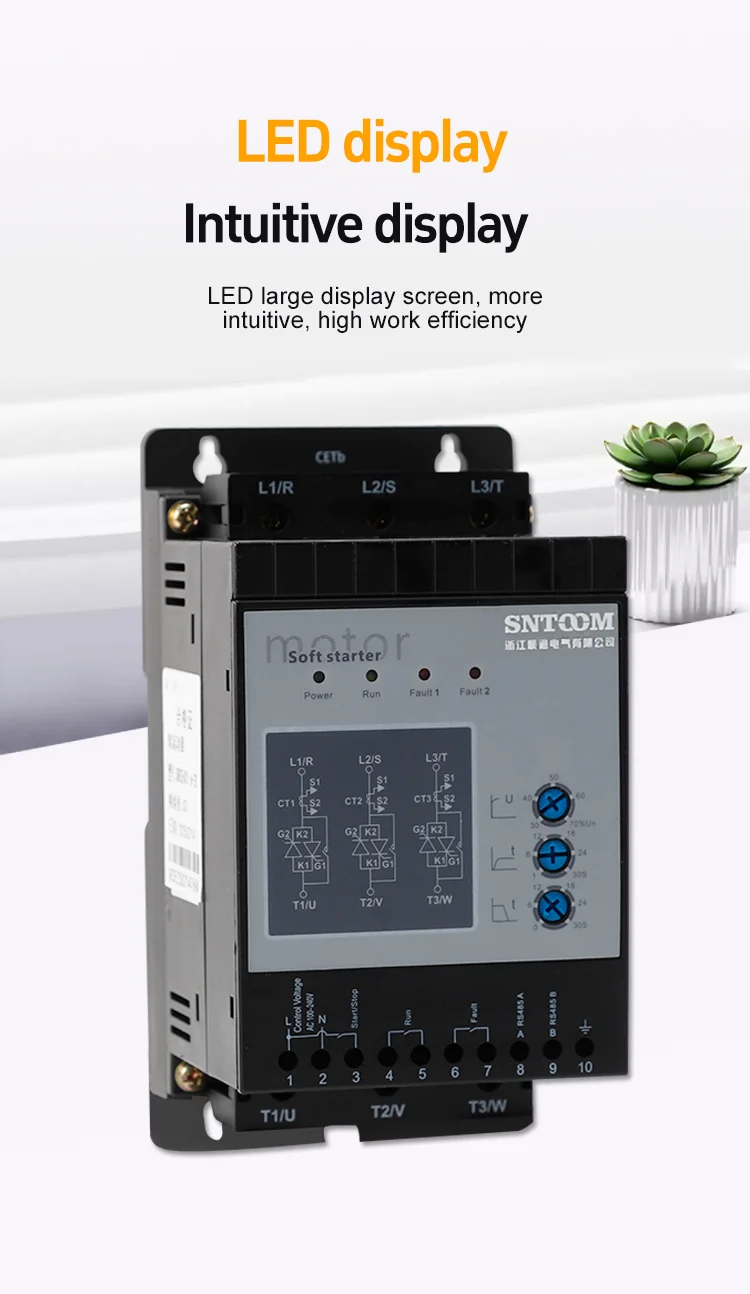

• LED status display: Intuitive indicators for power, run, and fault status

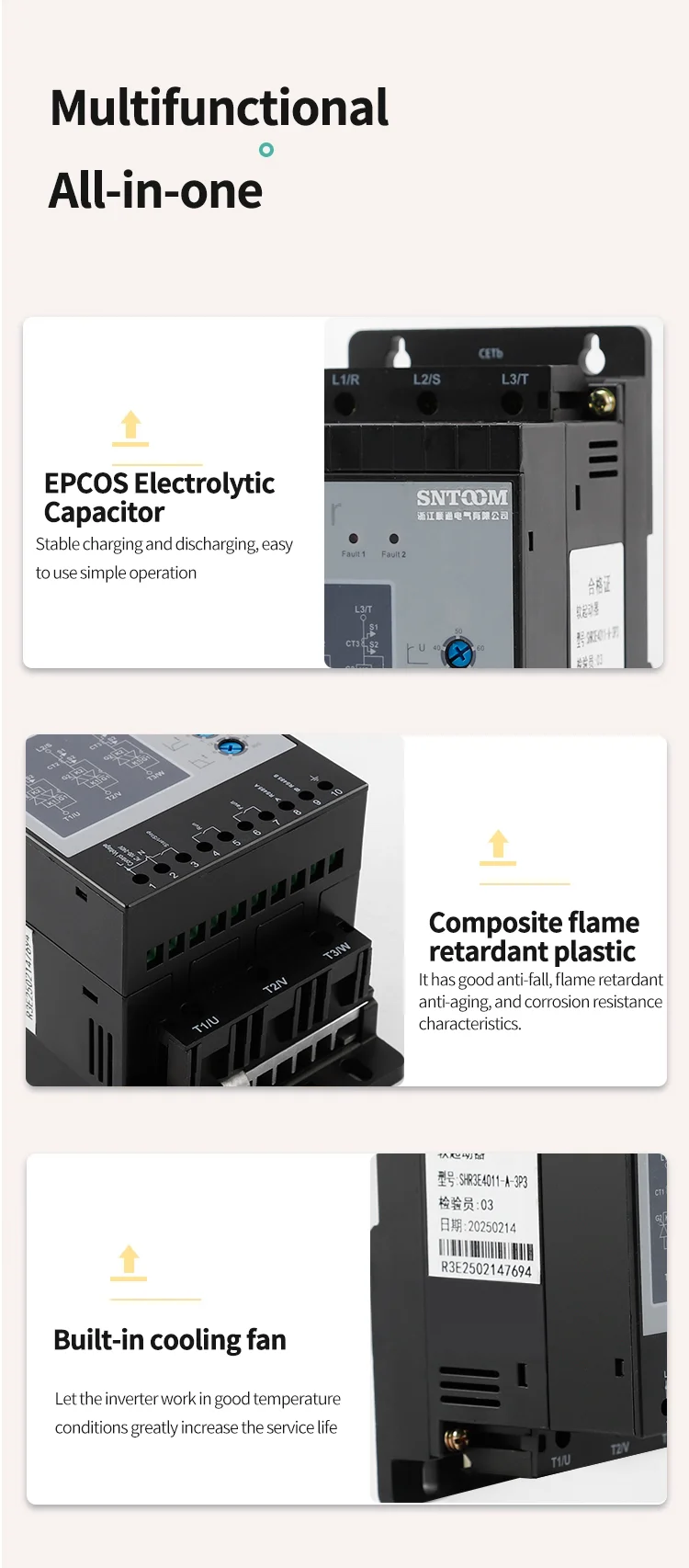

• Durable build: Built-in cooling fan and high-quality EPCOS electrolytic capacitors
• 2-year warranty: Reliable after-sales support for long-term use

6. Installation & Operation Guide

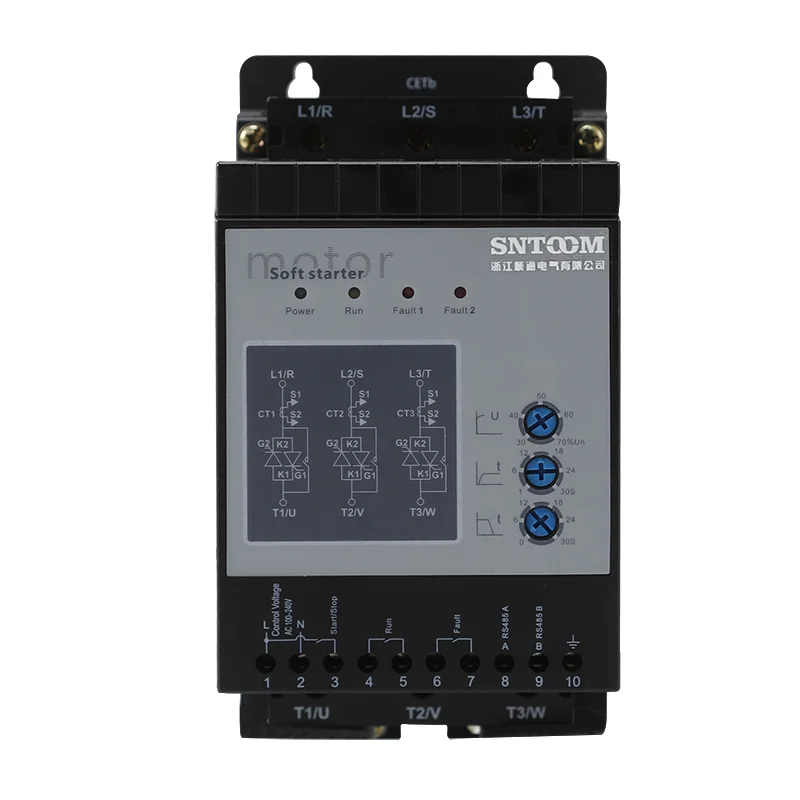

1. Installation: Mount the soft starter vertically in a well-ventilated control cabinet, leaving sufficient space for heat dissipation. Connect the power supply to L1/R, L2/S, L3/T terminals and the motor to T1/U, T2/V, T3/W terminals. Wire control signals and the RS485 communication interface as shown in the terminal diagram.
2. Commissioning: Adjust start voltage, start time, and stop time via the front panel knobs according to motor and load characteristics. Verify the power LED shows normal status before operation.
3. Maintenance: Regularly check wiring connections and remove dust from the device. Avoid use in high-temperature, humid, or corrosive environments. If a fault occurs, troubleshoot using the LED fault indicators.
