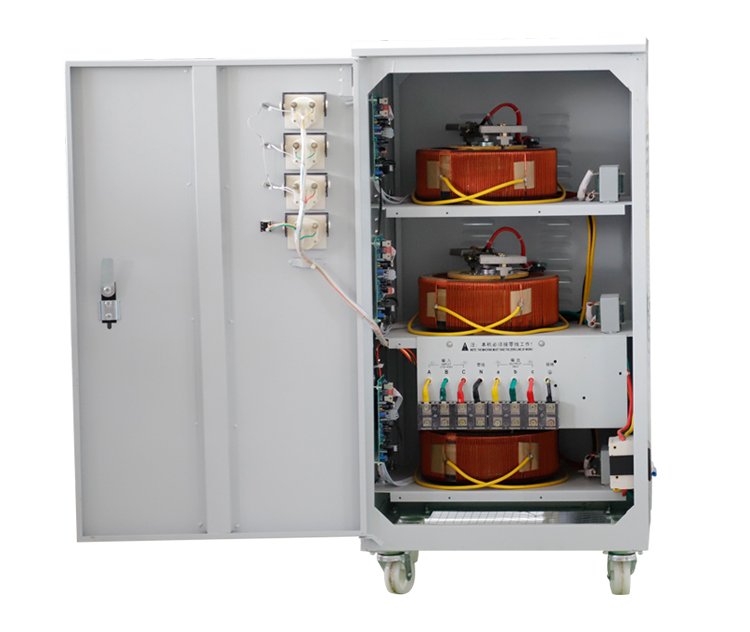

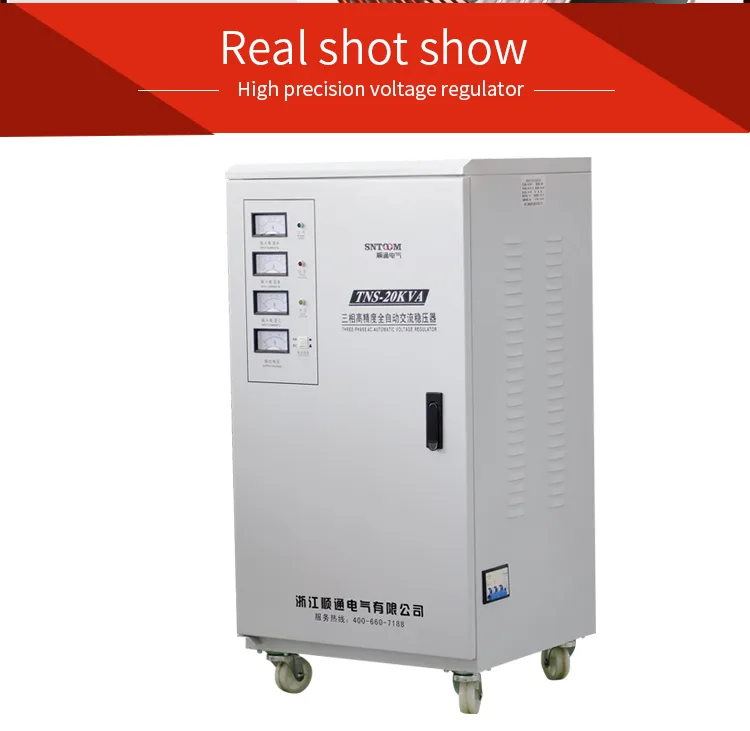

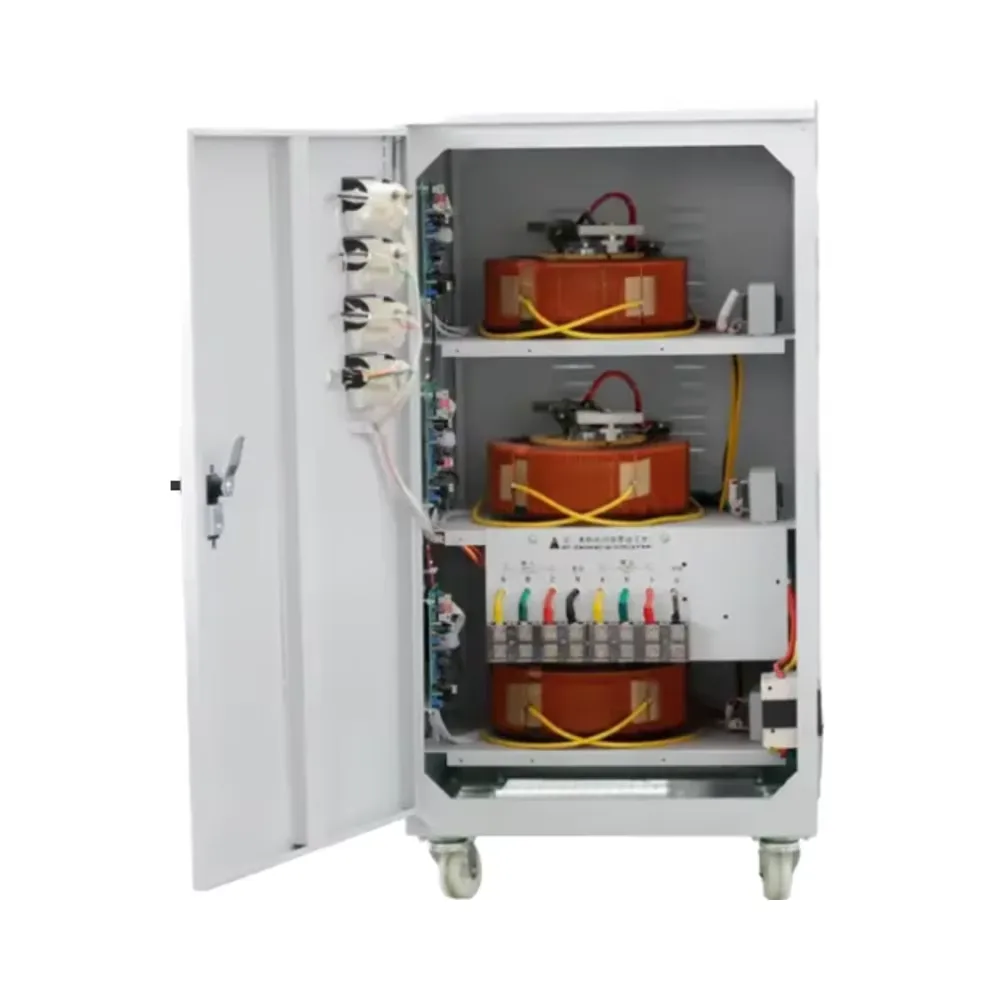

Three-Phase High-Precision Fully Automatic AC Stabilizer TNS

SVC/TNS series three-phase high-precision automatic AC voltage stabilizer is a combination of the performance of SVC series single-phase products. Its input phase system is three-phase four-wire system, output voltage is 220V phase voltage and 380V line voltage. Within the range of rated capacity, it can be used for electrical equipment with a single-phase 220V or three-phase 380V at the same time, without overvoltage protection.

Highlights

High-Precision Voltage Regulation for Consistent Performance
Fully Automatic Operation for Convenience and Reliability
Fast Response Time to Protect Sensitive Equipment

Product Details

Product Introduction

TNS three-phase high-precision fully automatic AC voltage regulator is a high-performance power regulation equipment designed specifically for large-scale industrial and commercial applications. It adopts advanced digital control technology, which can detect real-time voltage fluctuations in the power grid and automatically compensate accurately to ensure stable output voltage with minimal fluctuations. TNS voltage regulator has powerful overload protection and short circuit protection functions, effectively ensuring the safe operation of electrical equipment. Its three-phase balanced design improves power efficiency and reduces energy consumption. Widely used in data centers, precision manufacturing, medical equipment and other fields, TNS three-phase high-precision fully automatic AC voltage stabilizer is a reliable guarantee for your power supply.

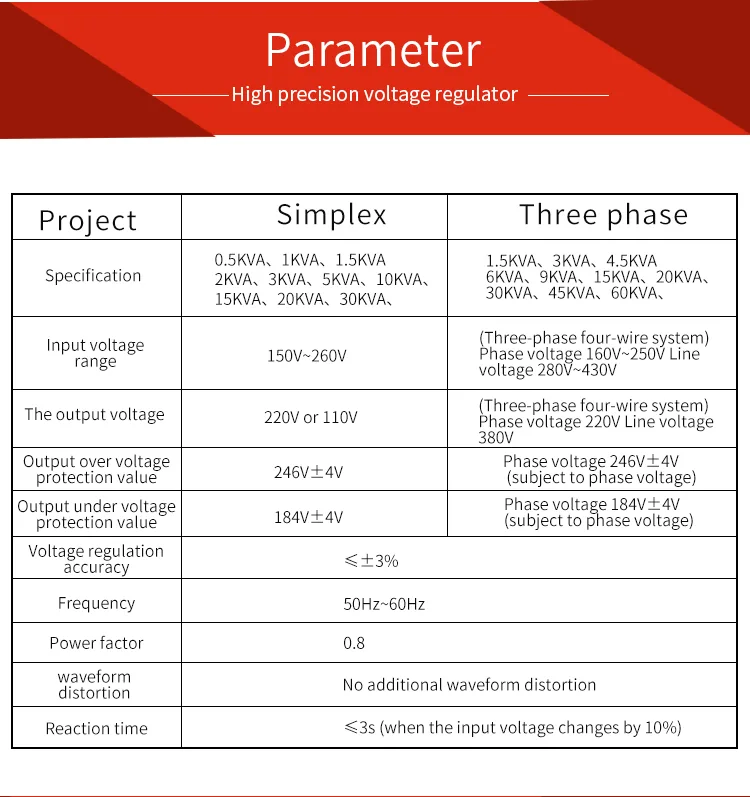

Technical Parameters

Products can be widely used in office equipment, testing equipment, medical equipment, industrial automation equipment, household appliances, lighting systems, communication systems and other places where electricity is used.

Input Voltage	Phase voltage 160V~250V Line voltage 277V~430V	Effectiveness	＞90%
Output voltage	Phase voltage 220V Line voltage 380V	Relative Humidity	≤90%
Stabilization accuracy	220V ±3% ， 380V±3%	Working Frequency	50 / 60Hz
Wave Distortion	No additional waveform distortion	Load Power Factor	0.8
Adjust Time	≤1s (When the input voltage changes 10%)	Electric Strength	1500/min
Ambient Temperature	-5℃ ~ +40℃	Insulation Resistance	≥2MΩ

Specification

Model（KVA）	Product Size L×W×H（cm）	Packing L×W×H（cm）	Weight（KG）	Package (Set/carton）
SVC/TNS-1.5	40×36×17	52×48×28	7	1
SVC/TNS-3	42×38×17	54×50×31	10	1
SVC/TNS-4.5	42×38×19	54×50×31	15	1
SVC/TNS-6	37×28×69	48×40×78	39	1
SVC/TNS-9	35×33×78	48×45×90	48	1
SVC/TNS-15	43×38×73	55×51×90	85	1
SVC/TNS-20	43×51×91	64×55×106	124	1
SVC/TNS-30	43×51×91	64×55×106	131	1
SVC/TNS-45	65×43×95	78×55×110	197	1
SVC/TNS-80	77×55×100	90×67×115	290	1
SVC/TNS-100	77×55×100	90×67×115	350	1

Product Features

High precision voltage regulation output: adopting advanced digital control technology, real-time monitoring of grid voltage fluctuations, and automatic adjustment of output voltage to ensure stable and minimal fluctuations in output voltage, meeting the strict requirements of precision equipment for stable power supply.
Three phase balance regulation: Through precise three-phase balance design, it ensures balanced voltage output of each phase, improves power efficiency, reduces energy consumption, and extends the service life of electrical equipment.
Intelligent overload and short circuit protection: Built in intelligent monitoring system, when the device encounters overload or short circuit, it can quickly cut off the power supply, effectively preventing equipment damage and ensuring electrical safety.
Fully automated operation: No manual intervention is required, the equipment automatically detects the grid voltage and adjusts the output voltage, achieving 24-hour uninterrupted stable power supply and improving work efficiency.
Remote monitoring and fault diagnosis: Supports remote monitoring function, allowing users to view the real-time operation status of equipment through mobile phones or computers. At the same time, the equipment has fault diagnosis function, making it easy to discover and solve problems in a timely manner.

Product installation and instructions

TNS three-phase high-precision fully automatic AC voltage regulator is easy to install, and users need to ensure that the installation environment is dry, ventilated, away from heat sources and humidity. Fix the voltage regulator in a stable position and secure it with screws to ensure safety. According to the equipment requirements, correctly connect the three-phase power line and load line, pay attention to distinguishing the phase sequence, and ensure a secure connection. Before connecting the power, please check if all connection points are securely fastened to prevent short circuits or open circuits. After connecting the power supply, the voltage regulator will automatically detect the grid voltage and enter a stable state. Please follow the product manual to ensure safe use, and regularly check and maintain to ensure the long-term stable operation of the voltage regulator.
