Analyzing the 5 Core Structure of Portable Evaporative Air Cooler

Have you ever found yourself desperately searching for an efficient and energy-saving cooling solution during the sweltering summer months? For factories, warehouses, offices, and other B2B spaces, traditional air conditioning systems are not only energy-intensive but also struggle to cover large areas effectively. Portable evaporative air cooler are energy-efficient and environmentally friendly, and are flexible and easy to move for a variety of application.

Today, let’s take a closer look at the main structure and core components of the portable Evaporative Air Cooler, helping you choose the best air cooling solution for your business needs.

How Does a Portable Evaporative Air Cooler Work?

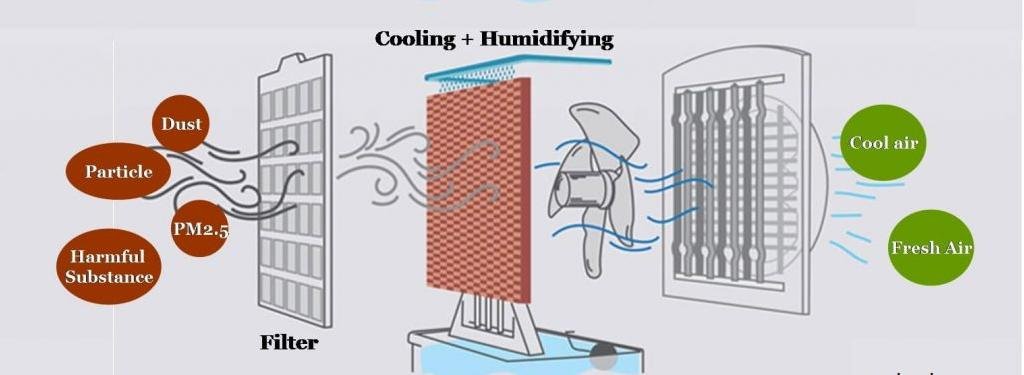

Let’s start with the basics. The magic behind a portable Evaporative Air Cooler lies in its “evaporative cooling” principle. Sounds intriguing, doesn’t it? The concept is actually quite simple: the fan draws in hot air, which passes through a moist cooling pad (also called a wet curtain). As the water evaporates, it absorbs heat from the air, and the cooled air is then blown out, lowering the temperature.

Compared to traditional air conditioning, evaporative air coolers don’t require refrigerants or compressors. This means much lower energy consumption and a greener, more sustainable solution. They are especially effective in dry, well-ventilated large spaces, providing rapid cooling and increasing humidity to improve the working environment.

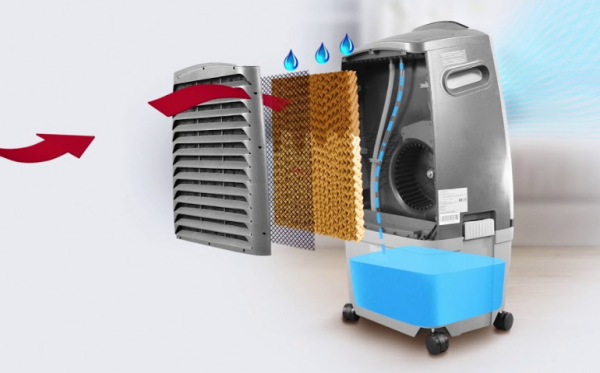

Main Structure and Core Components

1. Fan & Motor Assembly

The fan is the “heart” of a portable Evaporative Air Cooler, responsible for drawing in hot air and circulating cool air throughout the space. Common fan types include axial and centrifugal fans, each suited to different applications. A high-quality motor not only increases airflow but also reduces noise, making cooling quieter and more comfortable.

Key fan selection points:

• Adjustable airflow: Multiple speed settings to meet various cooling needs.
• Quiet operation: Quality motors and blade designs reduce operational noise.
• Durability: Industrial-grade motors are ideal for long-term use.

2. Water Pump

The water pump is the “unsung hero,” circulating water from the tank to keep the cooling pad moist. The pump’s stability directly affects cooling performance and the lifespan of the cooler. A good pump is efficient, quiet, and often features dry-run protection.

Pump maintenance tips:

• Regularly clean the pump filter to prevent blockages.
• Listen for abnormal sounds—replace the pump if necessary.
• Use clean water to reduce scale buildup.

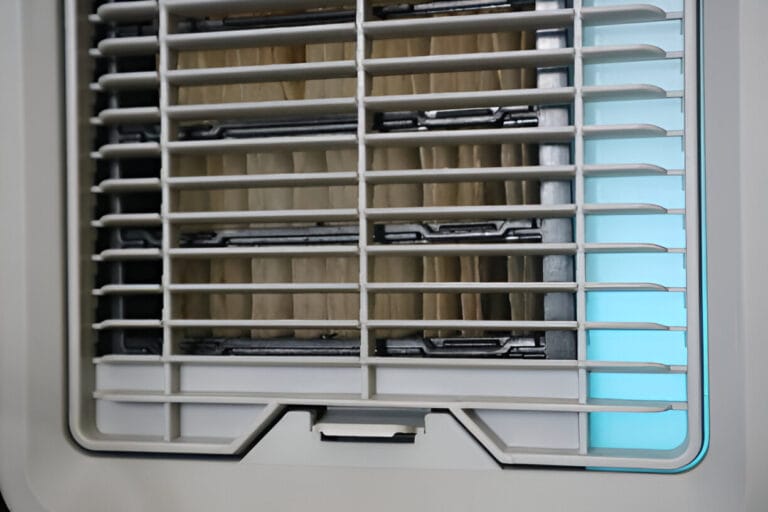

3. Cooling Pad/Media

Cooling pads are the “workhorse” for cooling down.Made with a honeycomb structure, it absorbs water efficiently and evaporates quickly. As hot air passes through the wet pad, the water evaporates and absorbs heat, cooling the air rapidly. Quality pads not only cool quickly but also filter out impurities, improving air quality.

Cooling pad maintenance tips:

• Clean or replace regularly to prevent mold and odors.
• Choose high-density, antibacterial materials for longer life.
• Keep the pump and tank clean to avoid scale clogging the pad.

4. Water Tank (Storage & Distribution System)

The water tank is the “energy source” of a portable Evaporative Air Cooler. A large-capacity tank ensures long operation times without frequent refills. Some advanced models feature water level monitoring, low-water alarms, and automatic refilling for extra convenience.

Water tank design highlights:

• Large capacity: Extends run time and reduces maintenance.
• Water level display: Easily check the water level at a glance.
• Overflow/low-water protection: Ensures safe operation.

5. Auxiliary Components & Smart Controls

Modern portable Evaporative Air Coolers are becoming increasingly smart. Common auxiliary components include filters, remote controls, and timers, all of which enhance user experience. Some models even offer WiFi remote control, air purification, and automatic cleaning, making cooling more convenient and intelligent.

Smart features examples:

• Multiple fan speed settings
• Oscillating airflow for wider coverage
• Timer for automatic shut-off
• Remote control for easy operation

Application Scenarios & Selection Tips

You might be wondering: where can these coolers be used? The answer is—almost anywhere that needs cooling in a large space! Whether it’s a factory, warehouse, office, or event venue, portable Evaporative Air Coolers are up to the task.

Common application scenarios:

• Factories and workshops
• Warehouses and logistics centers
• Office buildings and meeting rooms
• Exhibition halls and event venues
• Agricultural facilities and greenhouses
• Auto repair shops and gyms

Selection tips:

1. Choose airflow (CFM) based on area: Larger spaces require higher airflow models.
2. Consider water tank capacity: For large areas, select models with bigger tanks to reduce refill frequency.
3. Look for mobility: Casters make it easy to move the unit as needed.
4. Check energy consumption and noise: Energy-saving, low-noise models improve comfort.
5. Additional features: Remote control, timer, and air purification—choose according to your needs.

Maintenance & Care Tips

Want your portable Evaporative Air Cooler to stay in top shape? It’s easy with a few simple steps:

• Clean the water tank weekly: Wipe with a damp cloth and change the water regularly to prevent scale and odors.
• Regularly clean the cooling pad and filter: Rinse with warm water and use a soft brush if needed to keep airflow unobstructed.
• Check the pump and fan: Listen for unusual noises or performance drops and maintain or replace as needed.
• Dry thoroughly after use: This prevents bacterial growth.
• Lubricate fan bearings: Reduces wear and extends lifespan.

Common troubleshooting:

• Reduced airflow: Check if the cooling pad or filter is clogged.
• No airflow or loud noise: Inspect the fan motor and pump.
• Pump not working: Check the water level or power connection.

With their simple structure, efficient core components, energy-saving performance, and easy maintenance, portable Evaporative Air Coolers are the ideal air cooling solution for B2B customers. Whether you run a factory, manage a warehouse, or handle office procurement, choosing the right portable Evaporative Cooler can revitalize your workspace, boost employee comfort, and improve productivity.

So, what are you waiting for? Contact us today for a customized solution or a quote, and let your business enjoy a cool summer! Feel free to leave a message, send an inquiry, or place an order directly. Our professional team is ready to provide you with a one-stop air cooling solution!
