Axial fans and radial fans differ primarily in their airflow patterns and applications. Axial fans push air parallel to their shaft, ideal for high-volume, low-pressure needs. Radial fans draw air into the center and expel it outward, making them suitable for high-pressure, lower-volume tasks.
What Are Axial Fans

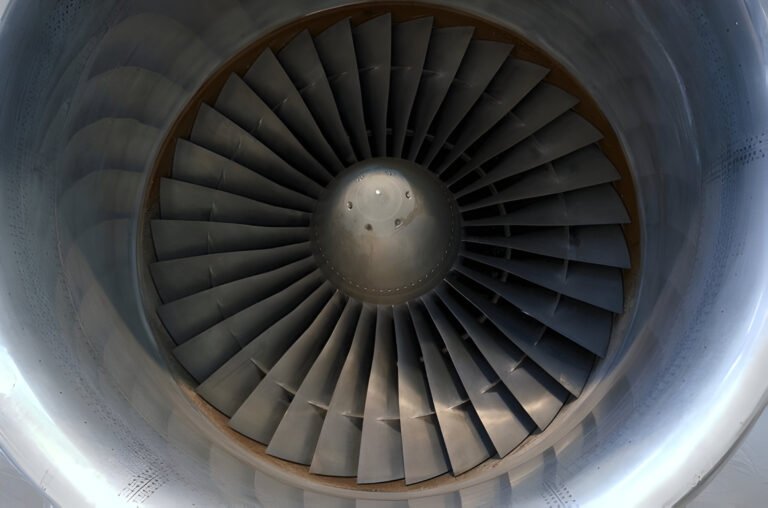

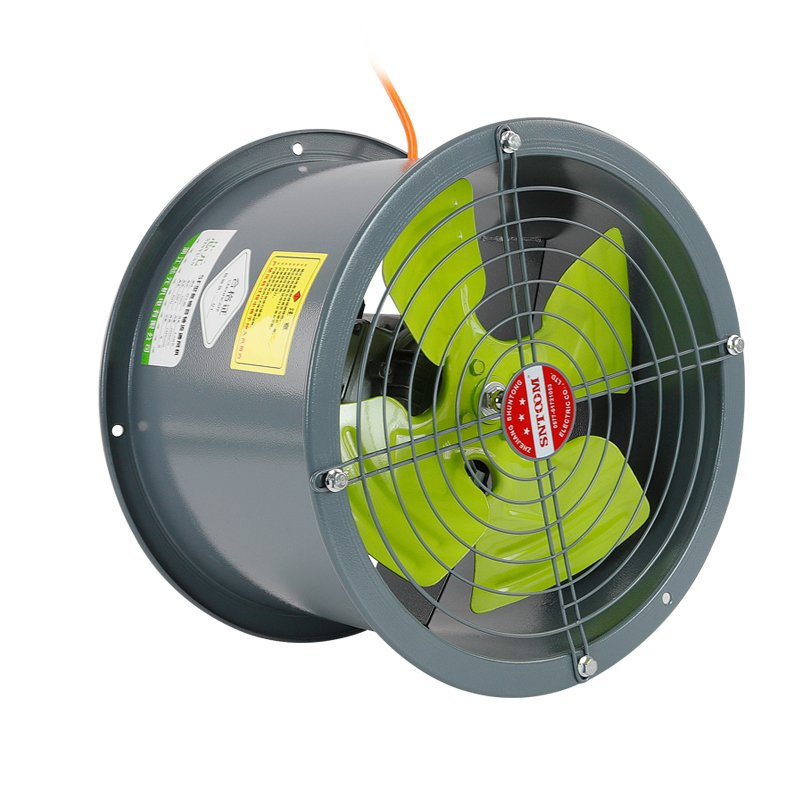

Axial fans move air parallel to their rotation axis. These mechanical devices feature in computer cooling systems, household appliances, and industrial ventilation.
The design comprises a central hub with radiating blades, resembling a propeller. Rotation creates a pressure difference, propelling air in a straight line through the fan. This configuration enables high airflow rates but produces lower pressure compared to other fan types.
Axial fans excel in moving large air volumes with minimal resistance. Their compact and lightweight nature suits space-constrained applications. However, they perform less effectively in high-pressure scenarios or complex duct systems.
How Axial Fans Work
Axial fans operate on a pressure differential principle. Rotating blades create a pressure difference between the inlet and outlet sides, causing air to flow parallel to the rotation axis.
The fan’s motor spins an impeller with multiple blades attached to a central hub. These blades generate high and low-pressure areas as they rotate, inducing airflow from high to low-pressure regions.
Advantages of Axial Fans
Lightweight Design
Axial fans offer high efficiency in large-volume air movement, excelling in low-pressure environments with minimal resistance. Their compact, lightweight design facilitates installation in confined spaces.
Quiet Operation and Energy Efficiency
These fans operate quietly compared to radial counterparts, suiting noise-sensitive settings. They consume less power while delivering high airflow rates, reducing operating costs and energy consumption.
Cost-Effectiveness in Long-Term Operation
The energy efficiency of axial fans stems from their ability to move large volumes of air with minimal power input. This characteristic makes them a cost-effective choice for long-term operation in both commercial and residential settings.
Disadvantages of Axial Fans
Efficiency and Pressure Generation
One significant drawback is that axial fans are less efficient at generating pressure compared to centrifugal fans. This means that axial fans may struggle to overcome resistance in systems with high static pressure, such as those with long ductwork or multiple bends. Additionally, axial fans are more susceptible to reduced performance due to airflow obstructions, as they rely on the air moving parallel to the fan’s axis of rotation.
Noise and Vibration
Another disadvantage of axial fans is that they can be noisier than centrifugal fans, particularly at high speeds. The noise generated by axial fans is often characterized by a high-pitched whine. Furthermore, axial fans are more prone to vibration, especially when operating at high speeds or when the fan blades are not perfectly balanced.
Airflow Pattern and Durability
Unlike centrifugal fans, which can create a more uniform airflow pattern, axial fans tend to produce a swirling or turbulent airflow.
Axial fans are generally less durable than centrifugal fans, as they have fewer blades and are more exposed to the airstream. This can result in a shorter lifespan and increased maintenance requirements, particularly in harsh environments or demanding applications.
Applications of Axial Fans
General Ventilation, Cooling, And Air Circulation
Axial fans are prevalent in everyday environments. Ceiling fans, desk fans, and portable cooling devices commonly utilize axial fan technology. HVAC systems, computer cooling mechanisms, and automotive radiator fans also incorporate these devices. Axial fans move large air volumes at low pressure, making them efficient for general ventilation and air circulation.
Hvac Systems, Cooling Towers, Exhaust Fans
Axial fans efficiently distribute air in air conditioning units, heat pumps, and air handlers. Cooling towers utilize axial fans to dissipate heat from industrial processes. In exhaust systems, axial fans move large volumes of air rapidly, making them ideal for kitchen hoods, bathroom vents, and industrial exhaust setups.
What Are Radial Fans
Radial fans, also known as centrifugal fans, move air or gases using rotating impellers. These devices draw air through the impeller’s center and expel it radially outward. The spinning impeller generates centrifugal force, pushing air towards the fan housing’s outer edges.
Applications for radial fans include HVAC systems, industrial processes, and some household appliances. They excel at moving air against high pressures, making them suitable for overcoming significant airflow resistance.
Radial fans handle particles and debris more effectively than axial fans, making them ideal for dusty environments or applications involving air with suspended particles. Industrial settings often employ radial fans for ventilation, material handling, and cooling systems.
How Radial Fans Work
Radial fans operate through a rotating impeller with curved or straight blades attached to a central hub. The spinning impeller draws air through the center inlet and accelerates it outward using centrifugal force.
Air enters the fan housing parallel to the impeller’s rotation axis. It changes direction by 90 degrees as it’s flung outward, creating a pressure difference that propels air through the outlet.
Advantages of Radial Fans
High Pressure Generation
Radial fans generate high pressure, making them ideal for systems with significant airflow resistance. They move air against greater static pressure.
Effective Handling of Particulate-Laden Air
These fans handle particulate-laden air more effectively than axial fans, suitable for environments with dust, debris, or other contaminants. Their self-cleaning properties maintain performance over time.
Efficient Operation Across Wide Speed Range
Radial fans operate efficiently across a wide range of speeds, allowing better control of airflow and pressure. This adaptability meets varying system demands.
Simplified Construction for Easy Maintenance
Simpler construction of radial fans facilitates easier maintenance. Fewer moving parts reduce mechanical failures and extend lifespan compared to axial counterparts.
Disadvantages of Radial Fans
Limited airflow
Radial fans are not as efficient as axial fans in terms of airflow. They are designed to generate high pressure rather than high volume airflow. This means that for applications requiring a large volume of air movement, a radial fan may not be the best choice.
Size and weight
Radial fans are generally larger and heavier than axial fans of comparable capacity. This can make them more difficult to install and mount, especially in space-constrained applications. The larger size also means that they require more material to manufacture, which can increase costs.
Maintenance
The design of radial fans makes them more susceptible to dust and debris accumulation. The centrifugal force can cause particles to collect on the blades and housing, leading to reduced performance and increased wear.
Applications Radial Fans
Applications with High Resistance or Particulate-Laden Air
Radial fans excel in applications with high resistance or particulate-laden air. These fans are commonly used in industrial processes like dust collection, material handling, and fume extraction. Their design allows them to overcome high system pressures and efficiently move air containing suspended particles.
Industrial Ventilation, Dust Collection, Material Handling
Radial fans excel in industrial ventilation, dust collection, and material handling applications. Industries employ these fans in factories, warehouses, and processing plants to move air through complex ductwork systems. Their design enables effective extraction of dust, fumes, and particulates, creating cleaner air and safer work environments.
The Difference Between Axial and Radial Fans
Airflow Characteristics
Axial fans move air parallel to their axis, creating a straight airflow path. This design enables high air volume displacement, making them suitable for cooling towers, ventilation systems, and computer cooling. Axial fans excel in applications requiring large air movement with low pressure.
Radial fans draw air parallel to their axis but expel it perpendicular, creating a 90-degree turn in airflow. This configuration generates higher pressure but reduces overall air volume. Radial fans perform well in applications needing concentrated airflow or overcoming resistance, such as HVAC systems and industrial processes.
Pressure
Axial and radial fans differ in pressure generation capabilities. Axial fans produce lower pressure but higher airflow rates, suitable for moving large air volumes against minimal resistance.
Radial fans generate high pressure, overcoming significant air resistance. They excel in systems with complex ductwork or where air passes through filters or obstacles.
Volume
Axial fans move large air volumes quickly. They push air parallel to the fan’s axis, enabling high airflow rates. These fans suit applications requiring substantial air movement with low pressure, such as computer cooling systems and HVAC units.
Radial fans typically move smaller air volumes at higher pressures. They draw air parallel to the fan’s axis and expel it perpendicular. This design allows radial fans to overcome greater resistance, making them suitable for applications involving air movement through ducts or filters.
Energy
Axial fans consume less energy than radial fans at equivalent airflow rates. This efficiency results from their design, which moves air parallel to the fan axis. Axial fans excel in high-flow, low-pressure applications.
Radial fans use more energy due to their complex air movement. They intake air axially and expel it radially, requiring more power. This design enables radial fans to generate higher pressures, making them suitable for high-resistance applications.
Efficiency
Axial fans offer higher efficiency at lower pressures and higher flow rates. They excel in applications requiring large air volumes with minimal resistance, such as cooling electronics or ventilating open spaces. These fans achieve peak efficiency at their design point but performance decreases as conditions deviate.
Radial fans perform better in high-pressure, low-flow situations. They maintain efficiency when dealing with significant air resistance or concentrated airflow requirements. Applications like dust collection and pneumatic conveying systems benefit from radial fans’ superior performance. These fans often maintain efficient operation across varying pressures and flow rates.
Noise
Axial fans produce more noise than radial fans, especially at higher speeds. Their blade design and airflow pattern create turbulence, increasing sound levels. Radial fans operate more quietly due to their centrifugal design, which allows smoother airflow and less turbulence.
Maintenance
Axial fan maintenance requires less frequent attention due to simpler design.
Radial fans demand more maintenance. Check for material buildup often, especially in dusty environments. Belt drive systems need regular tensioning and replacement.
Size
Axial fans have larger diameters but thinner depths, with sizes ranging from inches to several feet.
Radial fans feature more compact diameters and greater depths, fitting into tighter spaces with limited lateral room.
Space Requirements
Axial fans need less installation space. Their slim profile fits narrower areas, making them suitable for compact electronics, computer systems, and tight industrial settings. These fans move air parallel to their axis, eliminating the need for extra air redirection space.
Radial fans require more installation space. They draw air in axially and expel it radially, necessitating additional room around the fan’s perimeter.
Choosing Between an Axial and Radial Fan
Consider Airflow Requirements, Pressure Needs, Space Constraints, Durability, Noise, And Energy Efficiency
Axial fans move large air volumes at low pressure. Radial fans suit high-pressure, low-flow applications.
Axial fans fit compact areas. Radial fans need more room.
Radial fans withstand harsh conditions better than axial fans.
Axial fans operate louder, especially at high speeds. Radial fans run quieter.
Axial fans excel in low-pressure scenarios. Radial fans perform better in high-pressure environments.
Assess the Specific Application and System Resistance
Specific application and system resistance determine the optimal choice between axial and radial fans. Consider the entire system, including ductwork, filters, and other airflow-resistant components.
Axial fans suit low to moderate resistance systems:
- Ventilation systems
- Cooling towers
- Air-cooled condensers
These fans move large air volumes against low pressure drops. They perform best in systems with minimal obstructions and straight airflow paths.
Radial fans excel in high-resistance systems:
- Industrial processes
- Dust collection
- Material handling
FAQs
Can Axial and Radial Fans Be Used in the Same Application?
Axial and radial fans can be utilized in the same application. This combination is common in HVAC systems, industrial processes, and cooling solutions.
Which Type of Fan Is More Energy-Efficient?
Axial fans typically offer superior energy efficiency compared to radial fans, moving larger air volumes with less power.
