BSFT series explosion-proof portable axial flow fan 5 Sizes 0.15 0.75KW Safe Powerful Industrial Ventilation
Portable explosion-proof axial fan with copper motor, dIIBT4 certified. High airflow 1500-10000m³/h, low noise, multi-voltage options for industrial hazardous area ventilation.
- Type: Portable Explosion-Proof Axial Flow Fan
- Blade Diameter: 200/250/300/400/500mm (8/10/12/16/20 inch)
- Motor Power: 0.15/0.35/0.55/0.75 KW
- Rotation Speed: 1450/2900 RPM

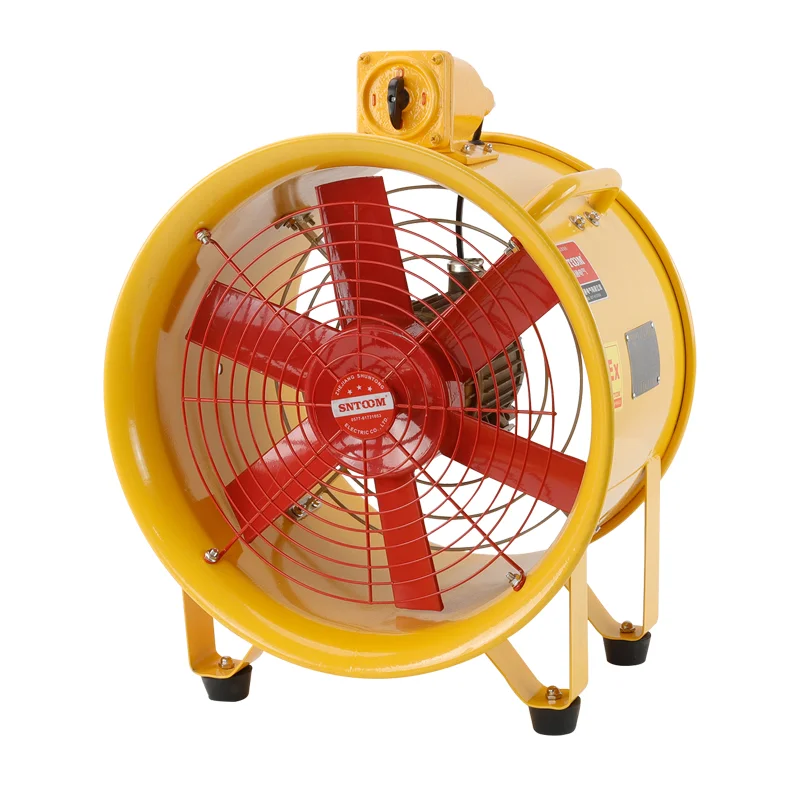

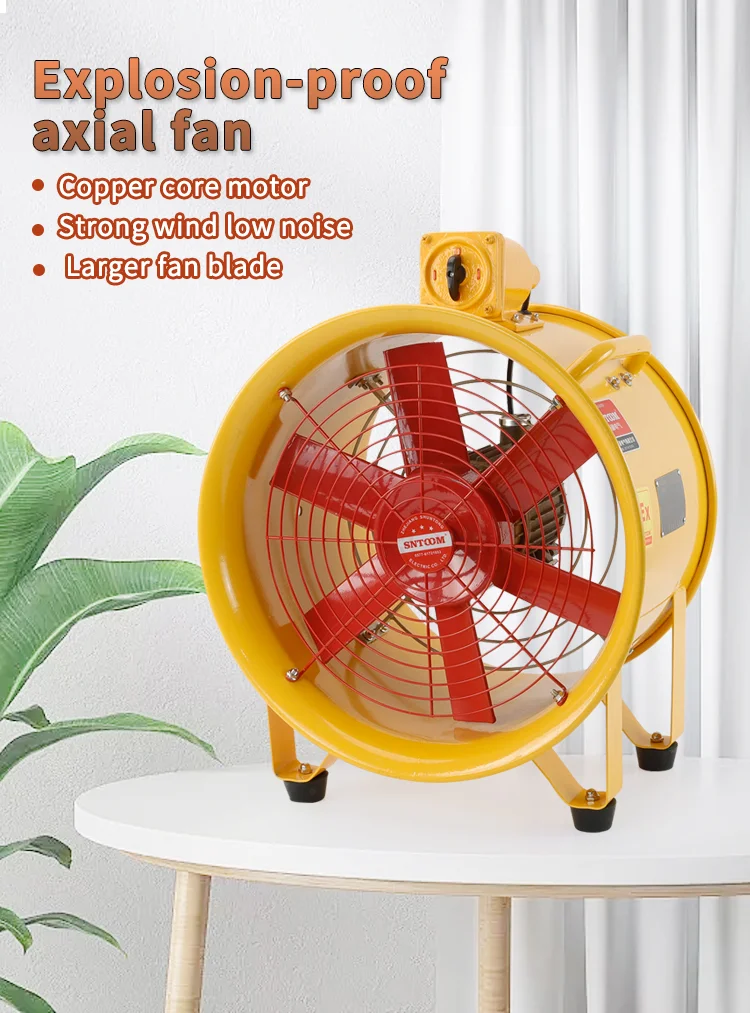

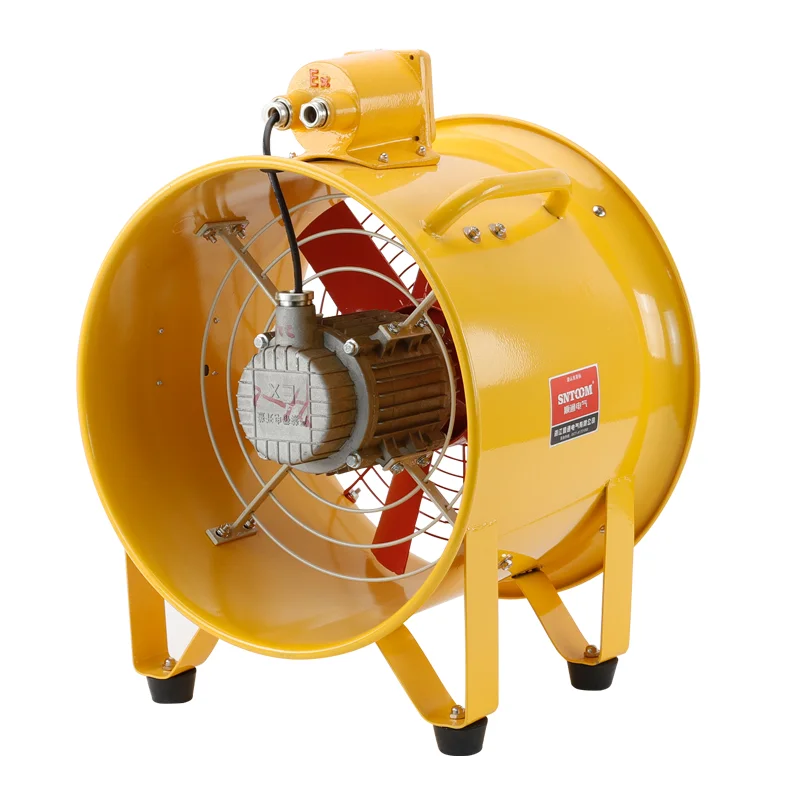

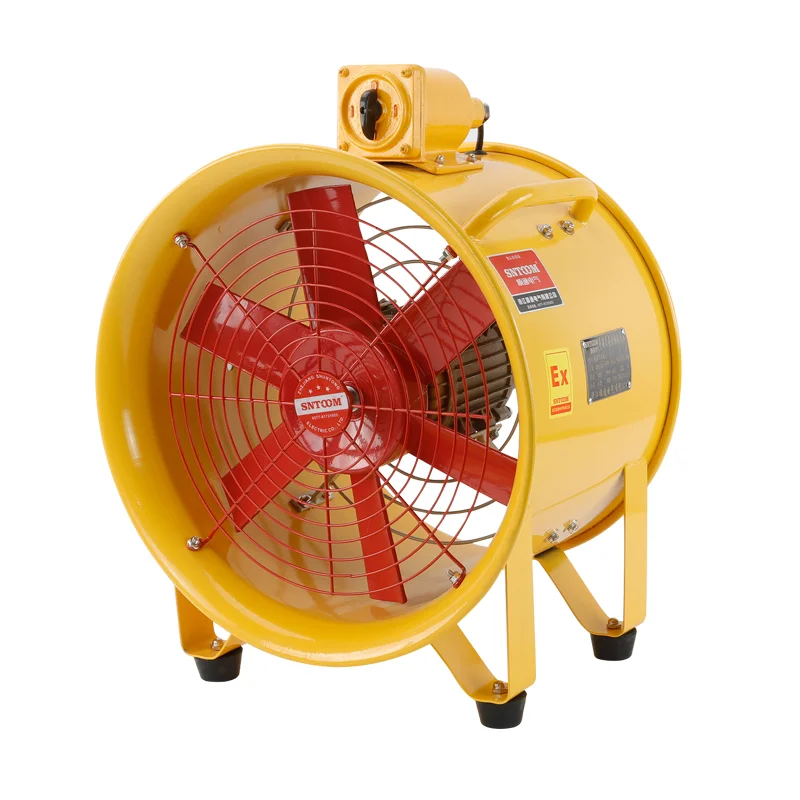

BSFT Series Explosion-Proof Portable Axial Flow Fan
Product Overview
The BSFT series explosion-proof portable axial flow fan is a robust, reliable ventilation solution engineered for high-risk industrial environments. Built with a durable carbon steel housing and pure copper motor, this axial flow fan delivers consistent performance even in high-temperature, high-pressure, and noisy workspaces. Certified with dIIBT4 explosion-proof grade, the fan prevents ignition risks from electrical sparks, making it a safe choice for facilities handling combustible gases and vapors. The compact, portable design of the axial flow fan ensures easy movement and installation across different work zones.
Application Environments
The BSFT series axial flow fan is designed for use in a wide range of hazardous and non-hazardous settings. The explosion-proof portable axial flow fan excels in factories, warehouses, chemical plants, oil refineries, and confined spaces where flammable gas mixtures may be present. This BSFT series axial flow fan is also ideal for construction sites, shipyards, and mining operations, where reliable ventilation is critical for worker safety and air quality. The multi-voltage compatibility of the fan ensures adaptability to different regional power standards, making the unit suitable for global industrial applications.

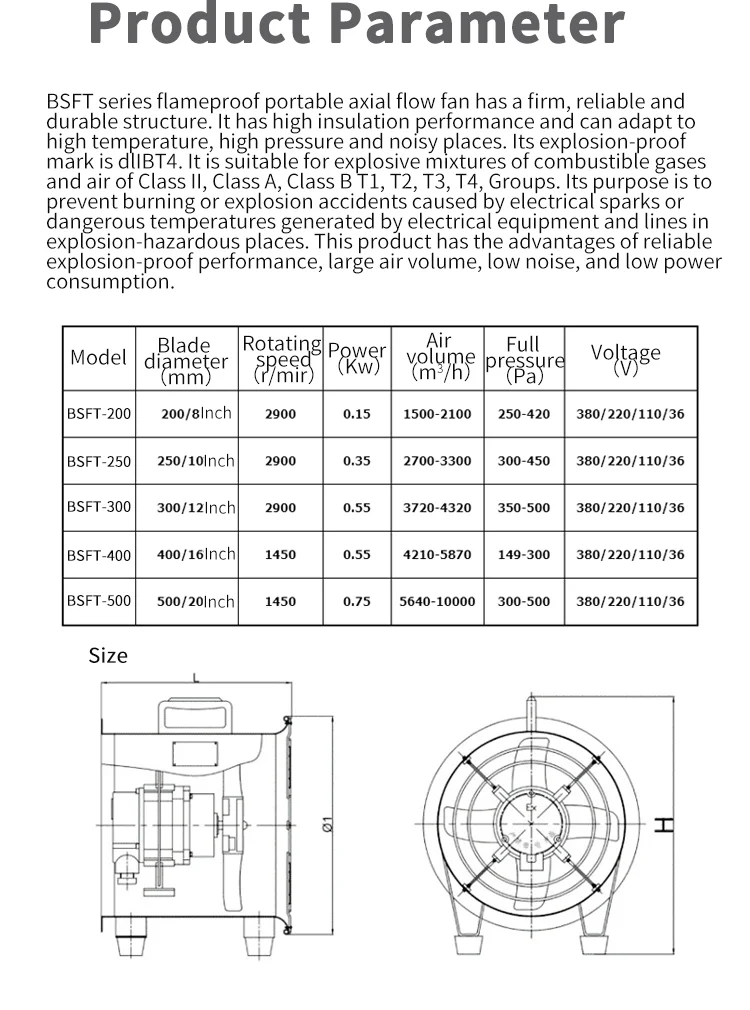

Product Parameters
| Model | Blade Diameter | Rotating Speed | Power | Air Volume | Full Pressure | Voltage |
|---|---|---|---|---|---|---|
| BSFT-200 | 200mm (8 inch) | 2900 RPM | 0.15 KW | 1500-2100 m³/h | 250-420 Pa | 380/220/110/36V |
| BSFT-250 | 250mm (10 inch) | 2900 RPM | 0.35 KW | 2700-3300 m³/h | 300-450 Pa | 380/220/110/36V |
| BSFT-300 | 300mm (12 inch) | 2900 RPM | 0.55 KW | 3720-4320 m³/h | 350-500 Pa | 380/220/110/36V |
| BSFT-400 | 400mm (16 inch) | 1450 RPM | 0.55 KW | 4210-5870 m³/h | 149-300 Pa | 380/220/110/36V |
| BSFT-500 | 500mm (20 inch) | 1450 RPM | 0.75 KW | 5640-10000 m³/h | 300-500 Pa | 380/220/110/36V |
The full pressure ratings of the BSFT series explosion-proof portable axial flow fan ensure effective air movement even in long ducting setups, supporting flexible ventilation configurations.
External Dimensions

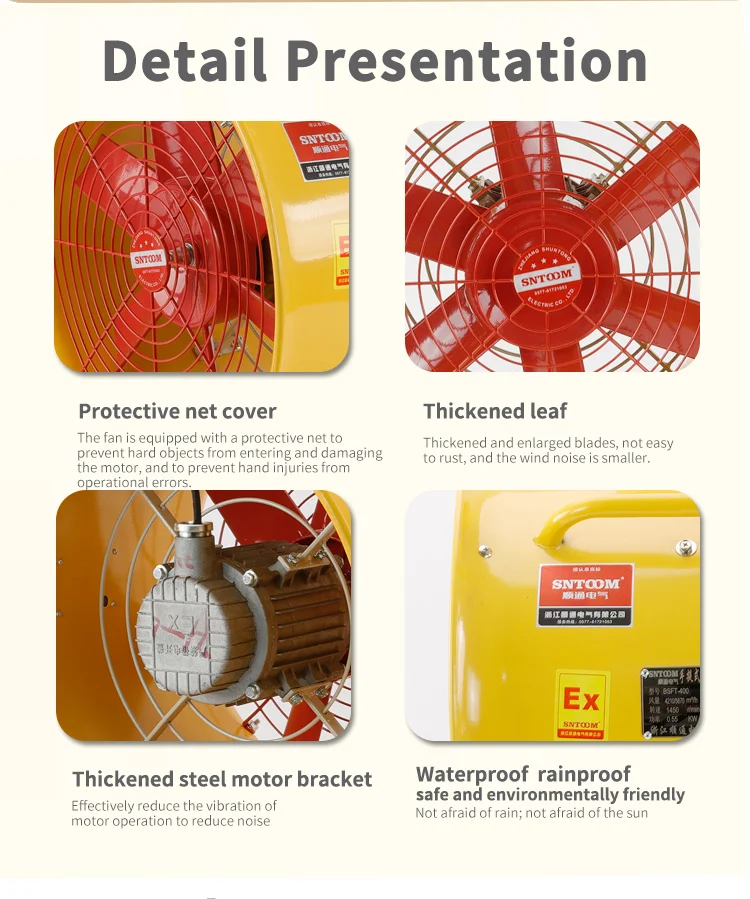

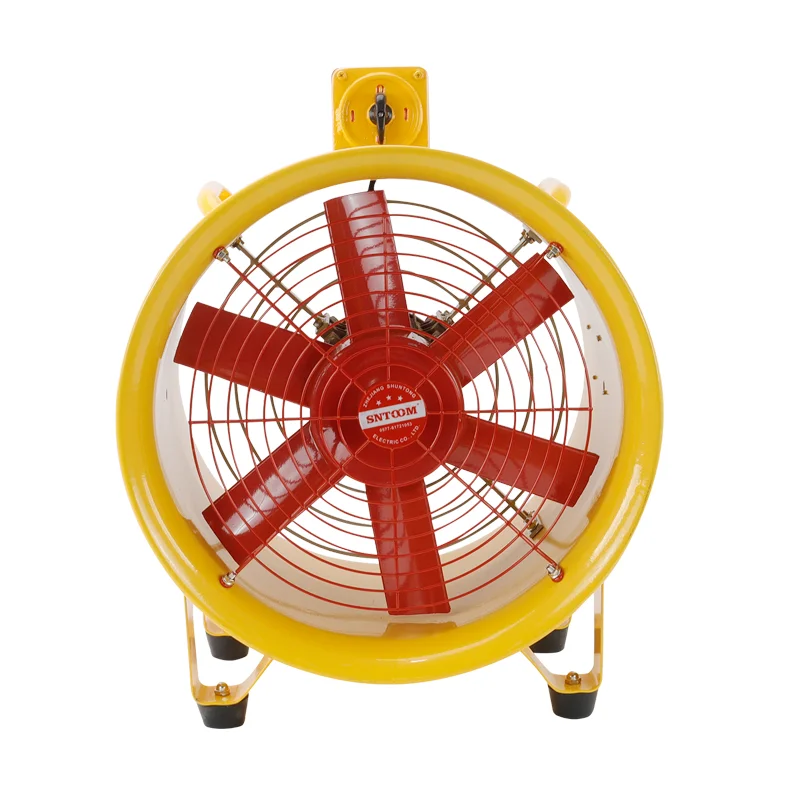

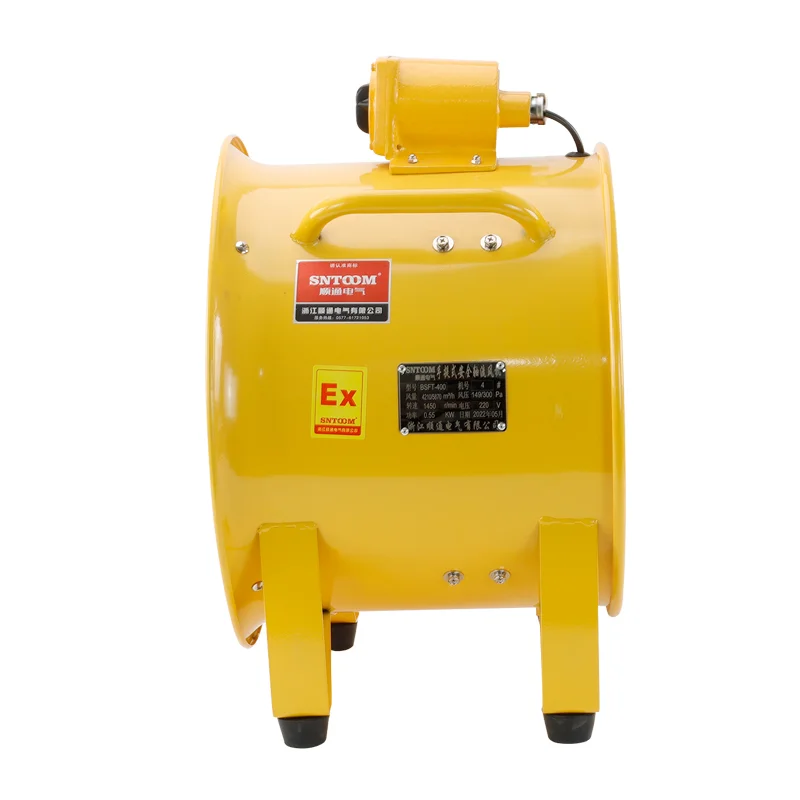

The explosion-proof portable axial flow fan features a compact, ergonomic design with a protective carrying handle and stable support legs. The cylindrical housing of the fan minimizes space requirements, allowing placement in tight corners and narrow passageways. The front safety grille of the BSFT series explosion-proof portable axial flow fan prevents accidental contact with moving parts while maintaining maximum airflow efficiency. The standardized mounting dimensions of the explosion-proof portable axial flow fan ensure compatibility with optional flexible air ducts, extending the unit’s ventilation reach for confined space applications.
Product Features
Explosion-Proof Safety Design
The BSFT series explosion-proof portable axial flow fan meets dIIBT4 explosion-proof standards, with fully enclosed electrical components to eliminate spark risks. The explosion-proof portable axial flow fan uses high-insulation materials and sealed motor housings, preventing the ignition of combustible gases in the surrounding environment.

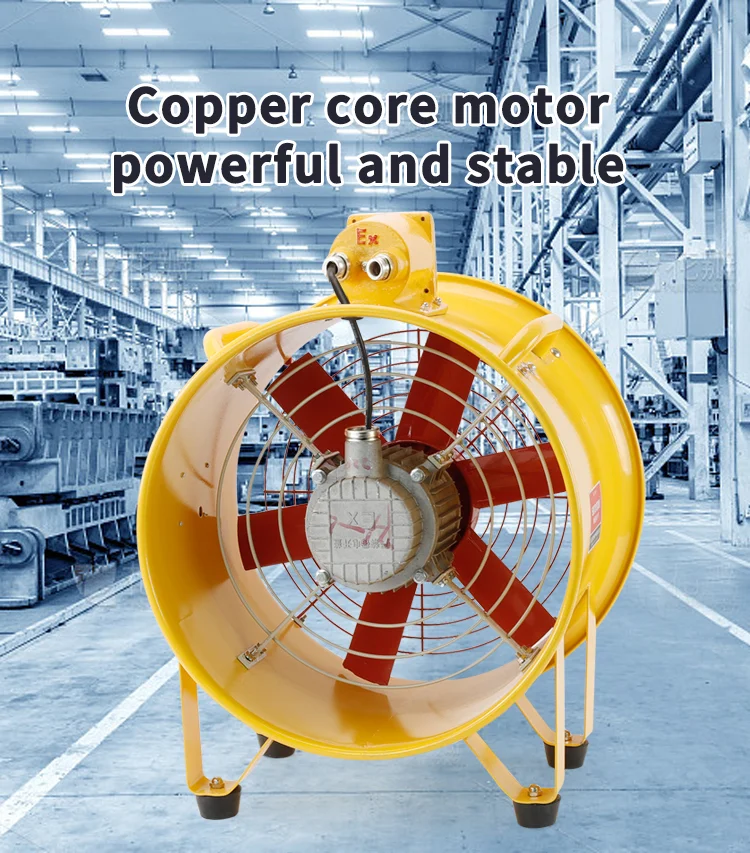

High-Efficiency Copper Motor
Each BSFT series explosion-proof portable axial flow fan is equipped with a pure copper core motor that delivers stable power output with low energy consumption. The motor of the explosion-proof portable axial flow fan runs quietly and reliably, reducing noise pollution in workspaces.
Durable Construction

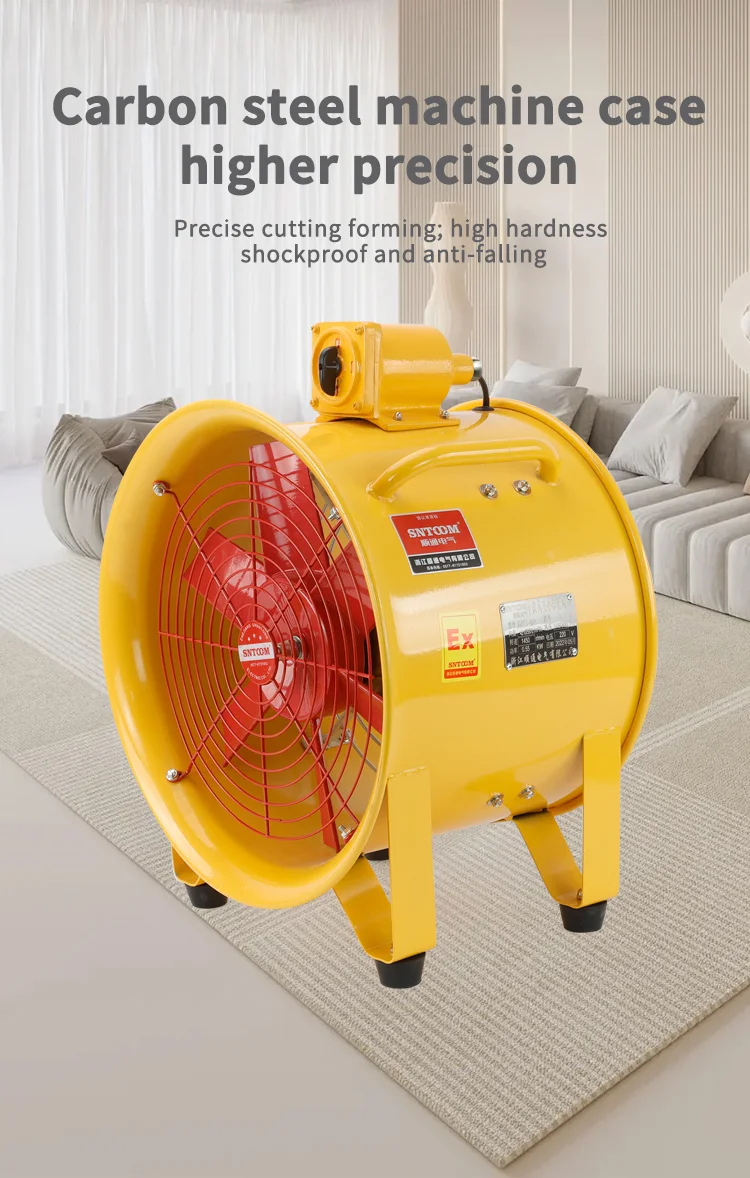

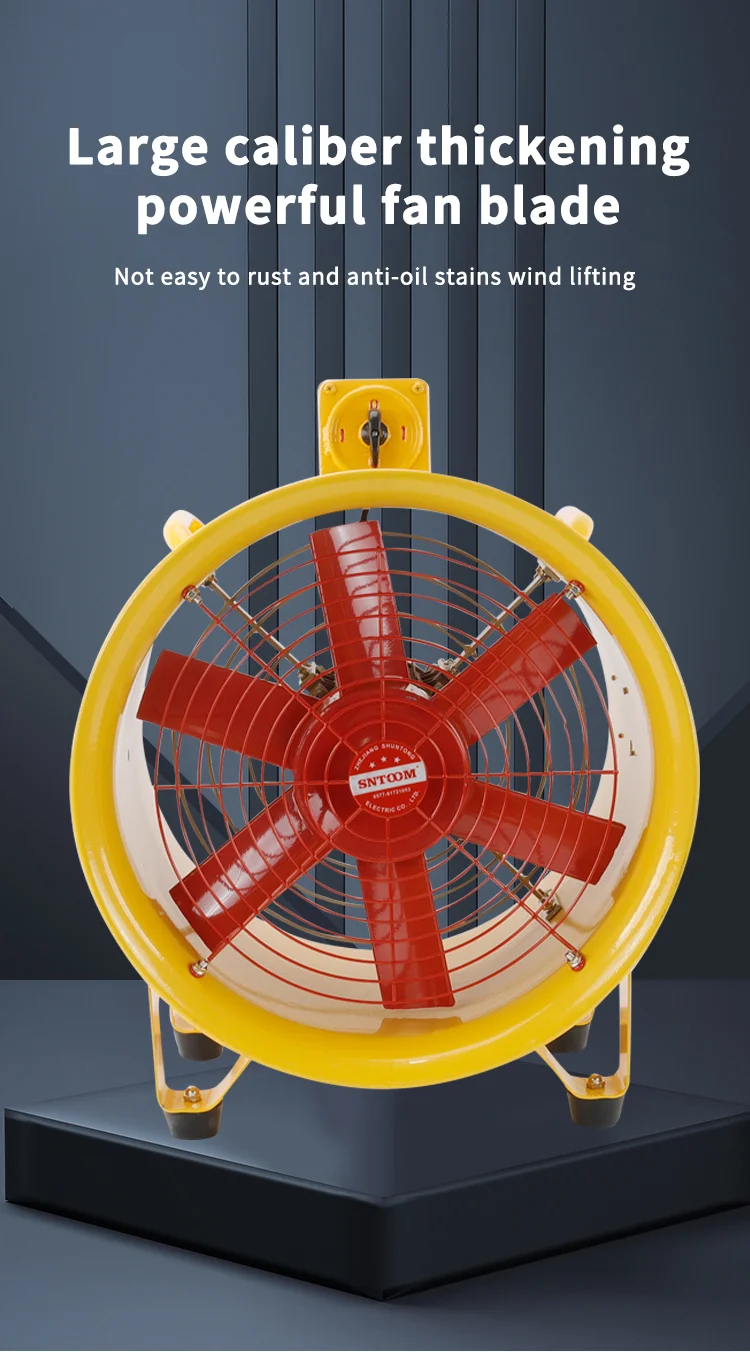

The BSFT series explosion-proof portable axial flow fan features thickened carbon steel housing and anti-corrosive paint, making the unit resistant to rust, impact, and chemical exposure. The red-coated fan blades of the explosion-proof portable axial flow fan are reinforced for long-term use, maintaining airflow efficiency even under heavy-duty operation.
Flexible Configuration

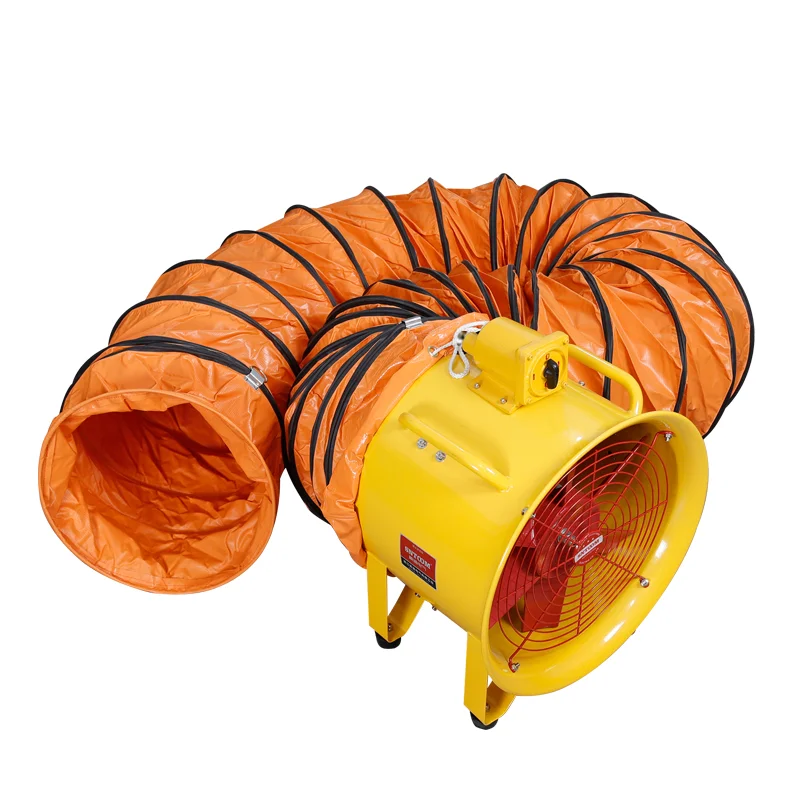

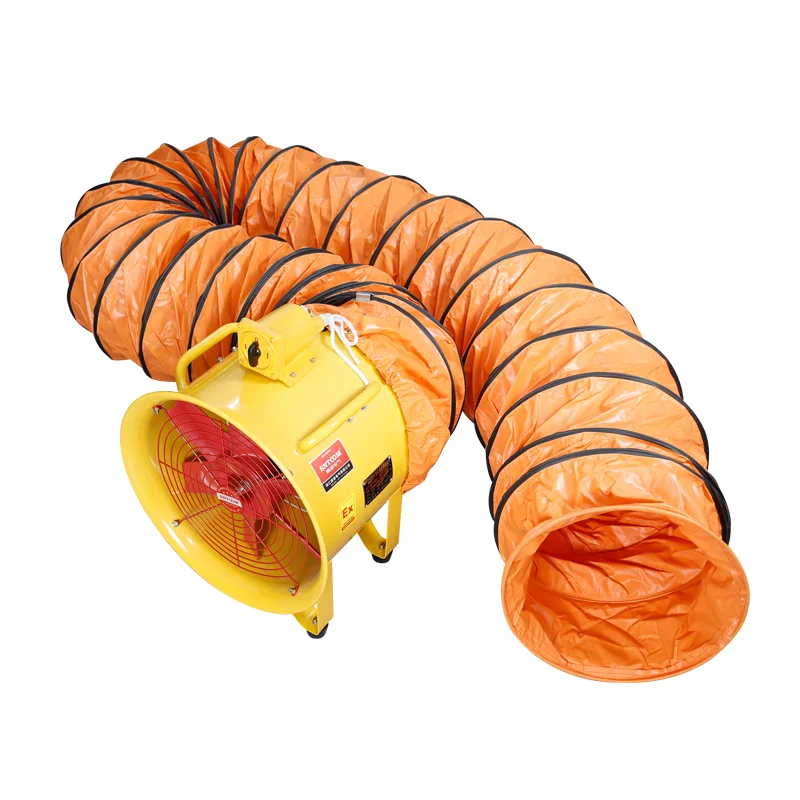

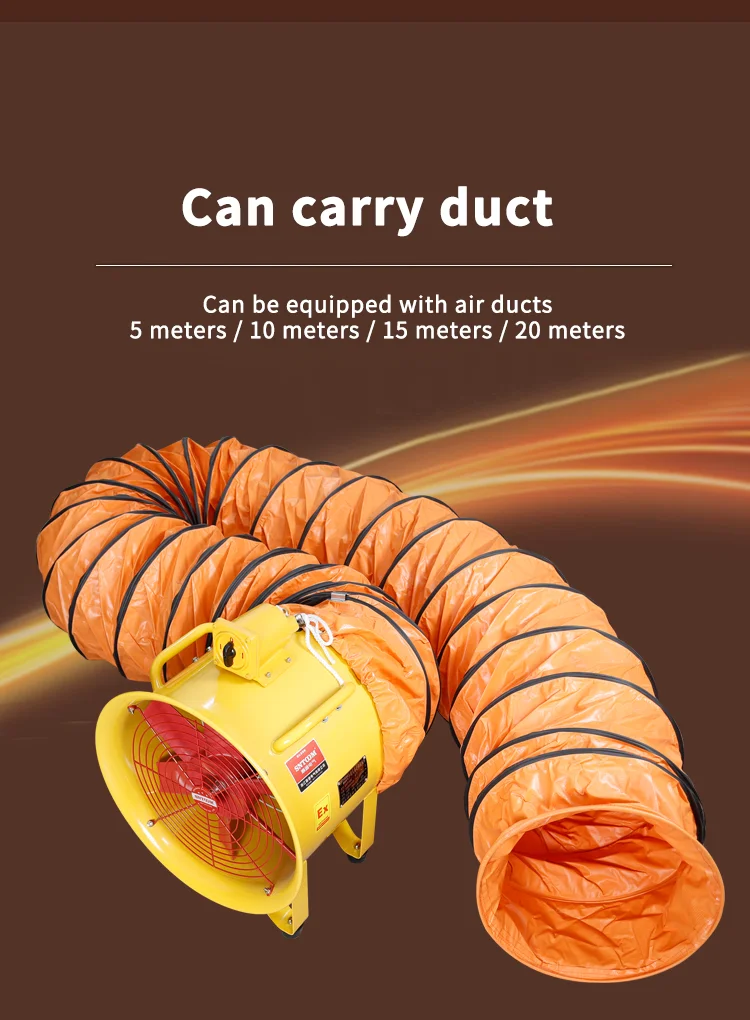

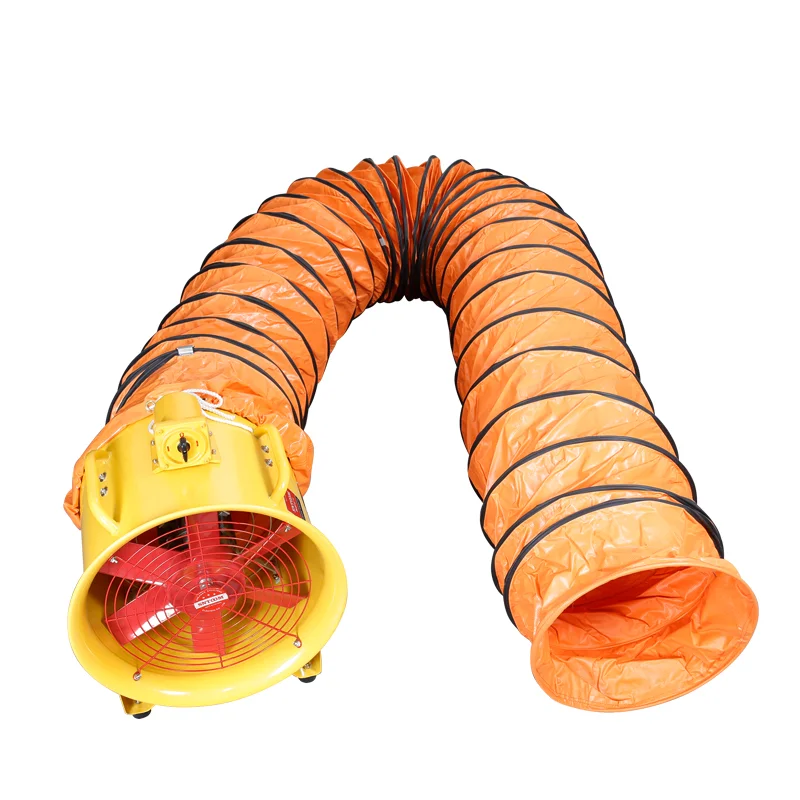

The BSFT series explosion-proof portable axial flow fan supports multiple voltage options and can be paired with 5m to 20m flexible air ducts for customized ventilation setups. The portable design of the explosion-proof portable axial flow fan allows quick relocation between work zones, enhancing operational flexibility.
Installation and Usage Instructions
Before operating the BSFT series explosion-proof portable axial flow fan, inspect the unit for any visible damage to the housing, grille, or power cord. Place the explosion-proof portable axial flow fan on a flat, stable surface, ensuring the support legs are fully secured. Connect the BSFT series explosion-proof portable axial flow fan to a compatible power supply, verifying the voltage matches the unit’s specifications. When using the explosion-proof portable axial flow fan with air ducts, ensure the duct is securely attached to the fan’s outlet to prevent air leakage. Operate the BSFT series explosion-proof portable axial flow fan only in well-ventilated areas, and avoid blocking the intake or exhaust grilles during use. After use, turn off the power and disconnect the unit before cleaning or moving the explosion-proof portable axial flow fan.
