Description
Fan overview
The FT35 series fiberglass-reinforced plastic axial fan boasts a thickened, spray-painted outer shell treated with an advanced painting process, ensuring exceptional wear resistance, shock absorption, and drop protection. Its optimized structure features a cylindrical hub to minimize flow loss, coupled with high-strength blade roots. Performance is significantly enhanced, achieving over 80% total pressure efficiency while reducing noise (A-weighted) by 3.6 dB(A), delivering reliable and efficient ventilation.
Use
The FT35 series fiberglass reinforced plastic (FRP) axial fans are highly versatile and well – suited for a wide range of environments. In factories, they effectively remove stale air and harmful fumes, ensuring a healthy workspace. For warehouses, they enhance ventilation to prevent moisture buildup and maintain proper storage conditions. In offices and residential settings, these fans facilitate air circulation for comfortable living and working environments, while also being useful for boosting heating and heat dissipation.
Parameter
| Product number | Diameter of impeller (mm) | input power (kw) | Rotating speed (r/min) | Air volume (m³/h) | wind pressure (Pa) | Voltage (v) |
| FT35-11-2.8 | 280 | 0.15 | 1450 | 2000 | 60 | 220/380 |
| FT35-11-2.8 | 280 | 0.37 | 2900 | 3000 | 215 | 220/380 |
| FT35-11-3.15 | 315 | 0.55 | 2900 | 4200 | 230 | 220/380 |
| FT35-11-3.15 | 315 | 0.18 | 2900 | 2200 | 70 | 220/380 |
| FT35-11-3.55 | 355 | 0.37 | 1450 | 4000 | 120 | 220/380 |
| FT35-11-3.55 | 355 | 0.75 | 2900 | 6500 | 320 | 380 |
| FT35-11-4 | 400 | 0.55 | 1450 | 5900 | 149 | 220/380 |
| FT35-11-4 | 400 | 1.5 | 2900 | 8500 | 450 | 220/380 |
| FT35-11-4.5 | 450 | 0.75 | 1450 | 8800 | 180 | 220/380 |
| FT35-11-5 | 500 | 0.75 | 1450 | 10000 | 200 | 220/380 |
| FT35-11-5 | 500 | 1.1 | 1450 | 11800 | 260 | 380 |
| FT35-11-5.6 | 560 | 1.5 | 1450 | 13900 | 280 | |
| FT35-11-6.3 | 600 | 2.2 | 1450 | 19500 | 320 | |
| FT35-11-7.1 | 700 | 3.0 | 1450 | 26000 | 350 | |
| FT35-11-8 | 800 | 4.0 | 1450 | 33000 | 380 | |
| FT35-11-8 | 800 | 5.5 | 1450 | 35000 | 420 | |
| FT35-11-10 | 1000 | 5.5 | 960 | 46500 | 300 |
Installation
- The FT35 series delivers powerful airflow with minimal noise. Its optimized blade design ensures efficient ventilation, making it perfect for settings where quiet operation is crucial.

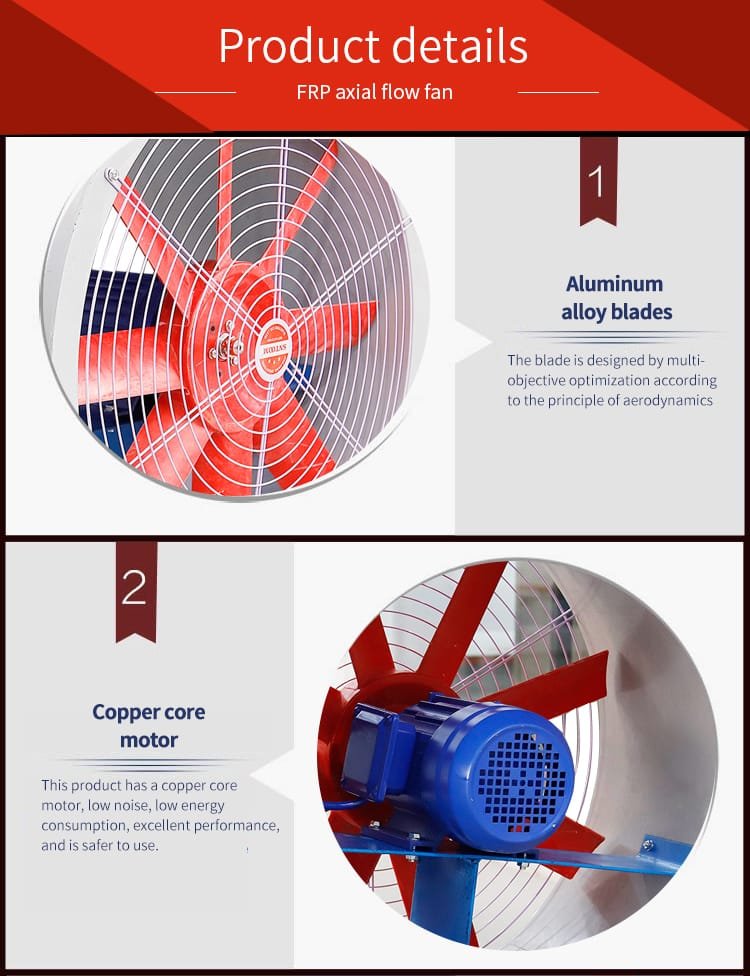

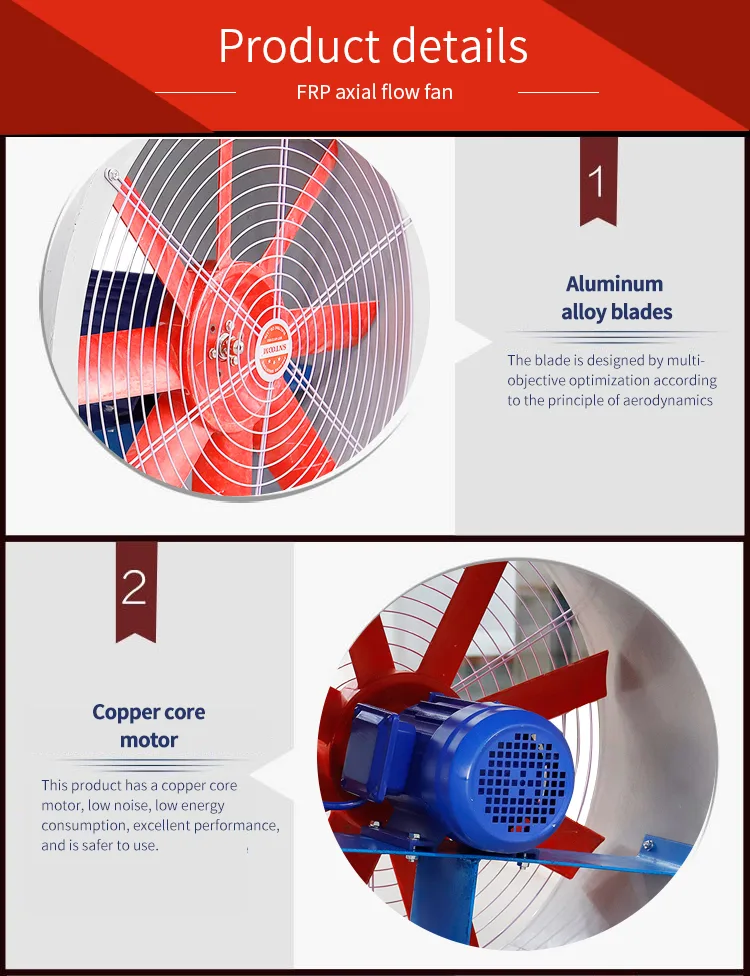

- Durable and lightweight aluminum alloy blades ensure long-lasting performance. They withstand tough conditions, providing consistent airflow and contributing to the fan’s efficiency.
- Made from premium materials, the FT35 series is both lightweight and robust. Its fiberglass housing resists corrosion, ensuring longevity in harsh environments.

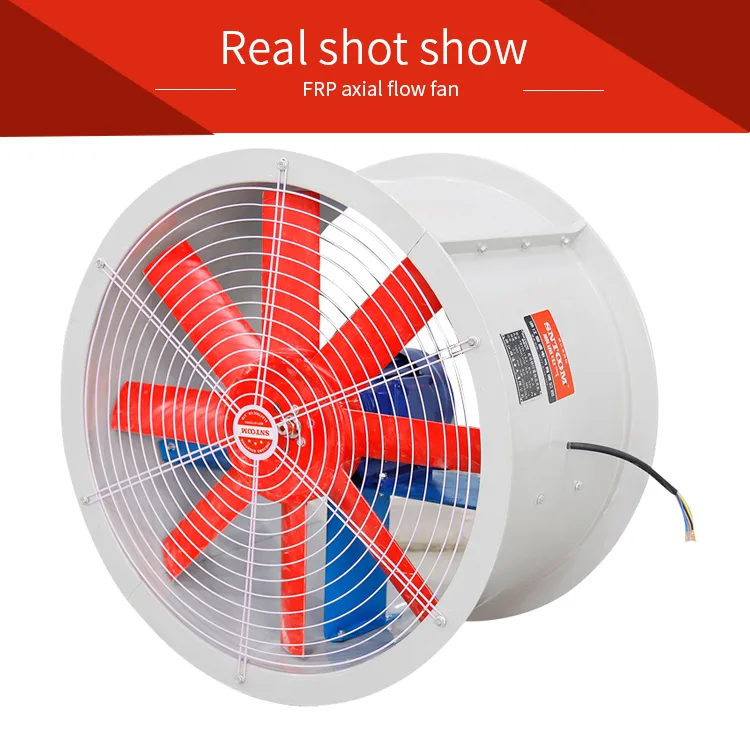

- Enjoy smooth and quiet operation with high efficiency. The FT35 series minimizes vibrations and noise while maximizing airflow, ideal for noise-sensitive areas.
- Suitable for factories, warehouses, offices, and homes, the FT35 series enhances ventilation, heating, and cooling systems with efficient airflow.

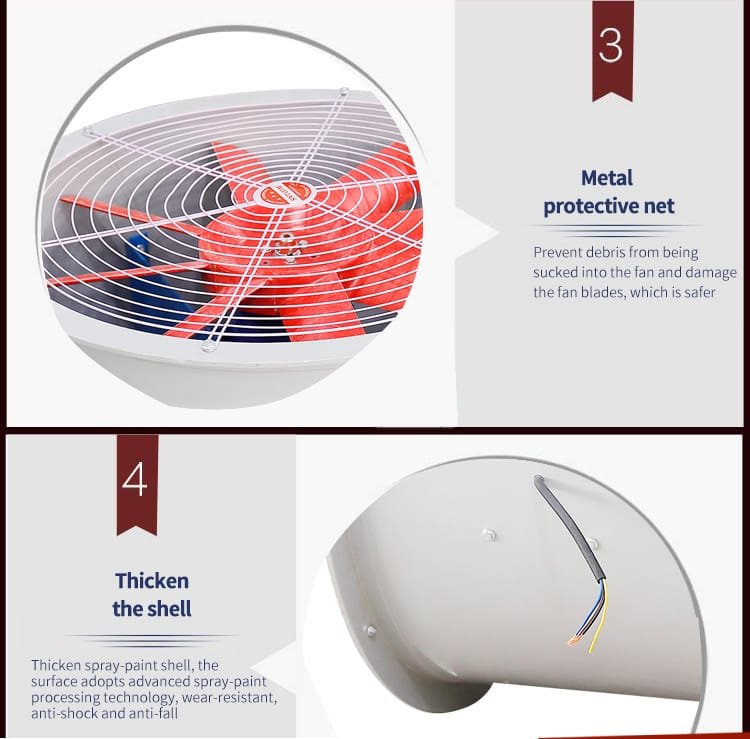

- The thickened, painted casing withstands wear, shocks, and drops. It maintains the fan’s appearance and functionality in demanding environments.
- Featuring a cylindrical hub and strong blade roots, the FT35 series reduces flow loss and enhances durability, ensuring reliable performance.
- The FT35 series offers high total pressure efficiency (over 80%) and low noise levels (reduced by 3.6dB). It’s an efficient, quiet choice for ventilation.
Note： Before installation and use of the FT35 series fiberglass axial fan, ensure proper ventilation space. Avoid blocking airflow. Regularly inspect electrical connections and protective net covers for damage. Follow voltage specifications strictly.
- Choose a stable and level surface for installing the FT35 series fiberglass axial fan. Ensure the location allows for adequate airflow and easy access for maintenance. Use appropriate fasteners to securely mount the fan, following the provided installation template or guidelines. Avoid over-tightening to prevent damage to the fan housing.
- Before connecting the fan to the power supply, ensure the voltage matches the fan’s specifications. Connect the wires according to the wiring diagram provided, ensuring all connections are tight and secure. After installation, perform a safety check to confirm the fan operates smoothly and without abnormal noise. Regularly inspect the protective net cover for any blockages or damage.

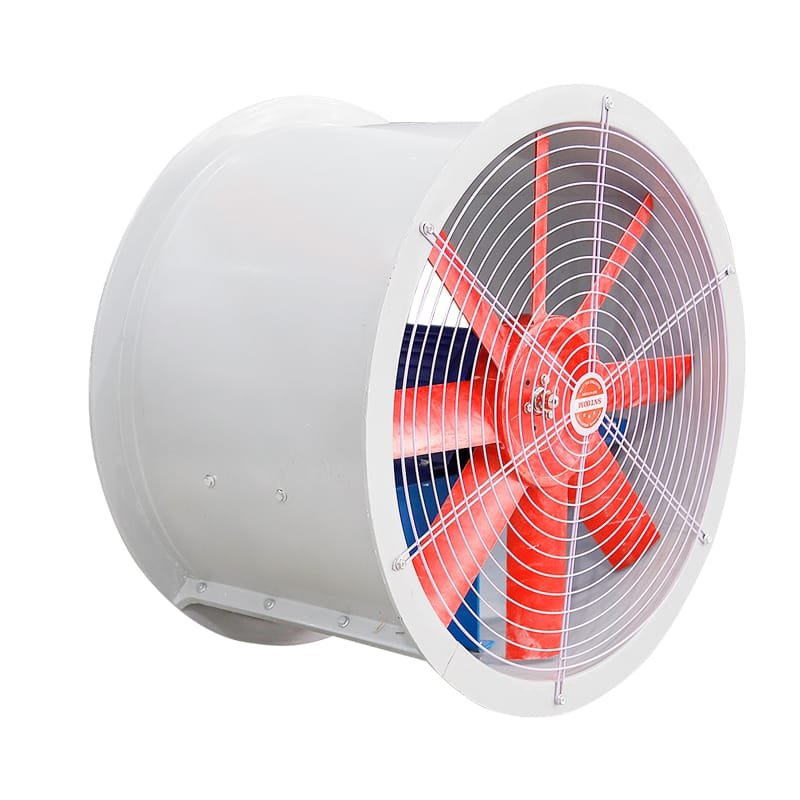

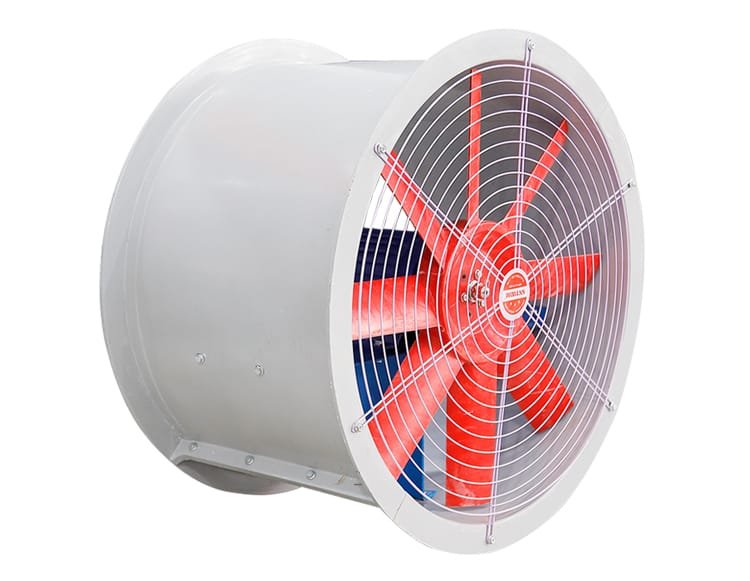

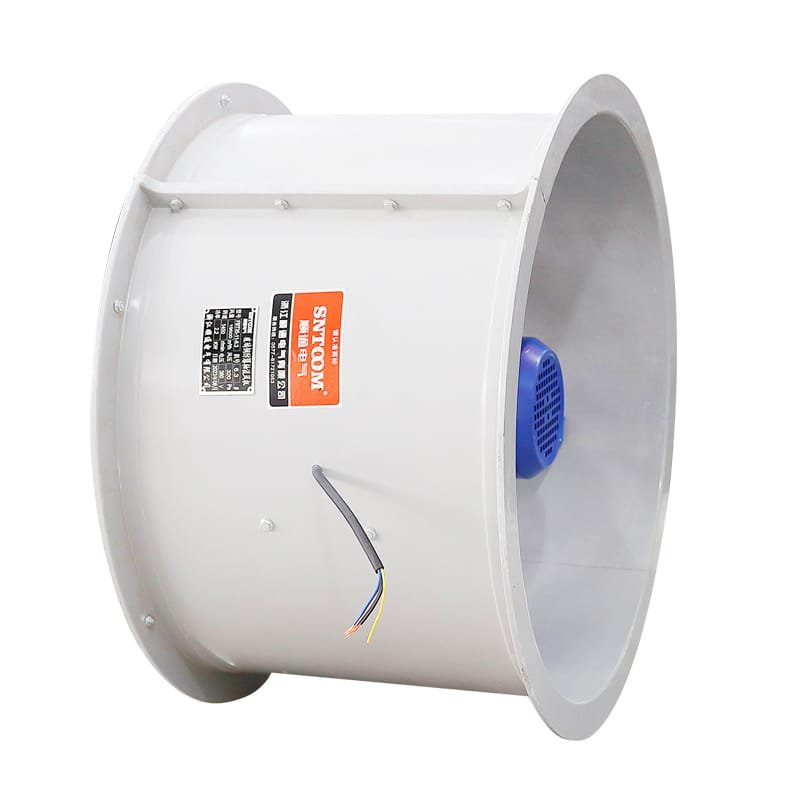

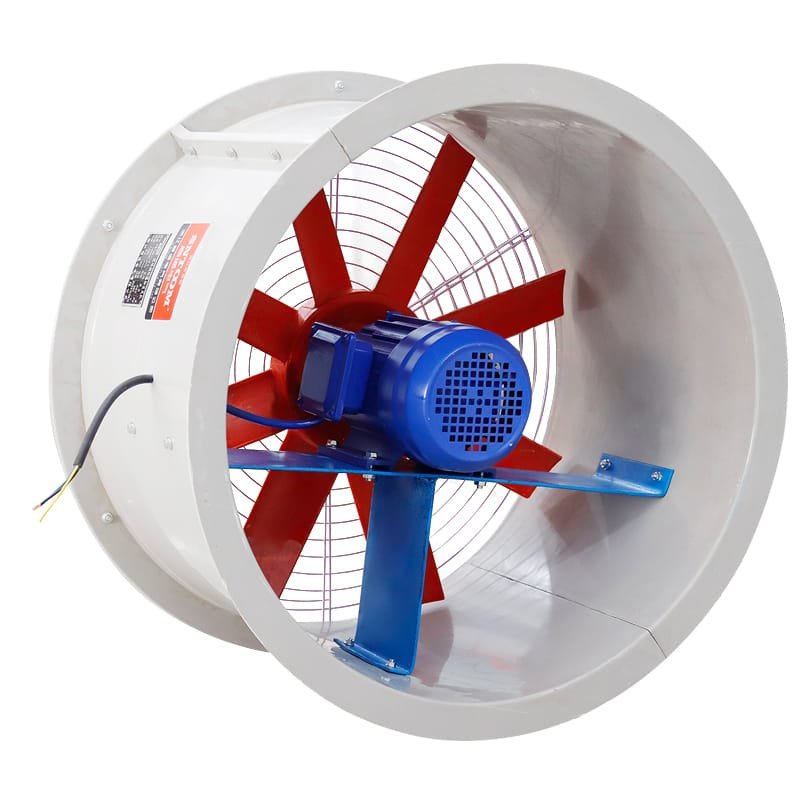

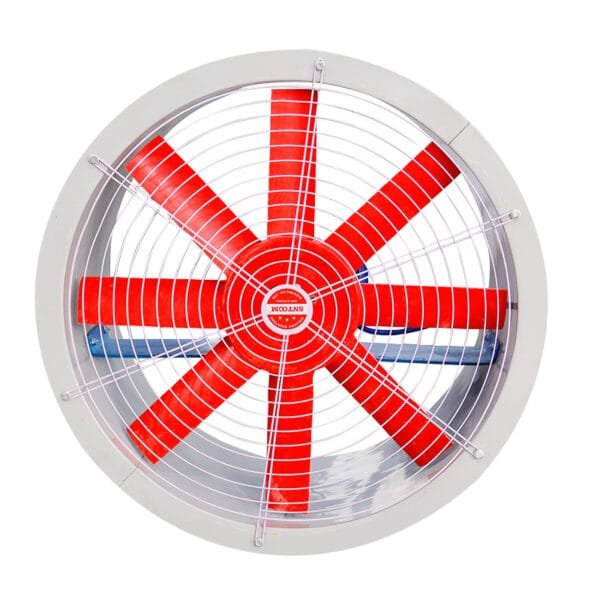

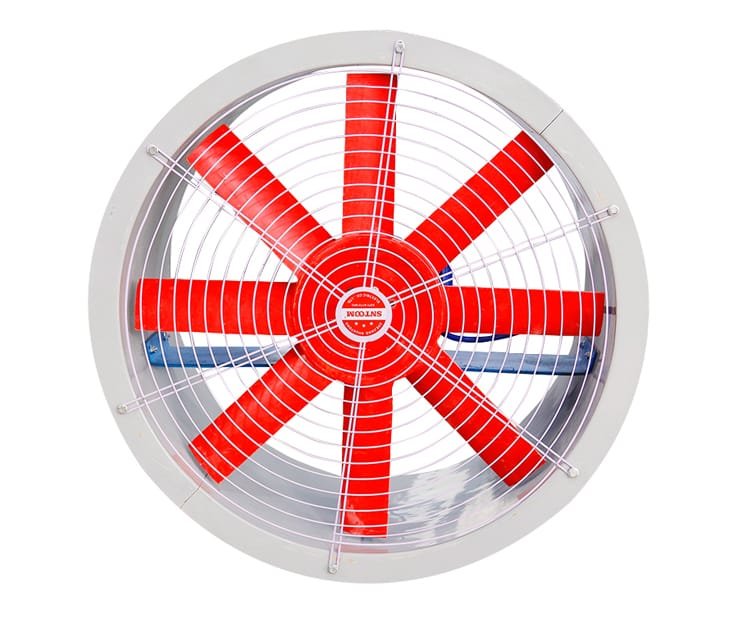

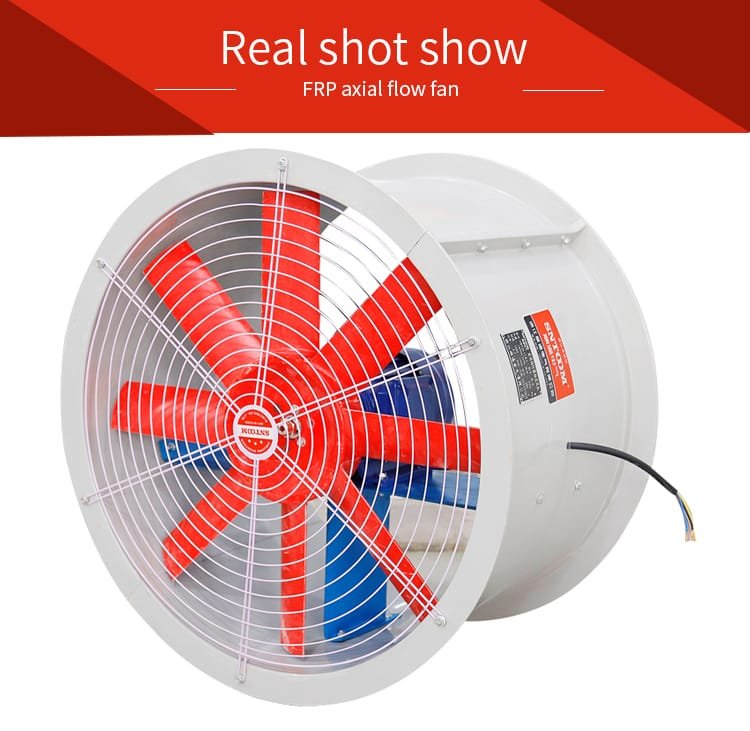

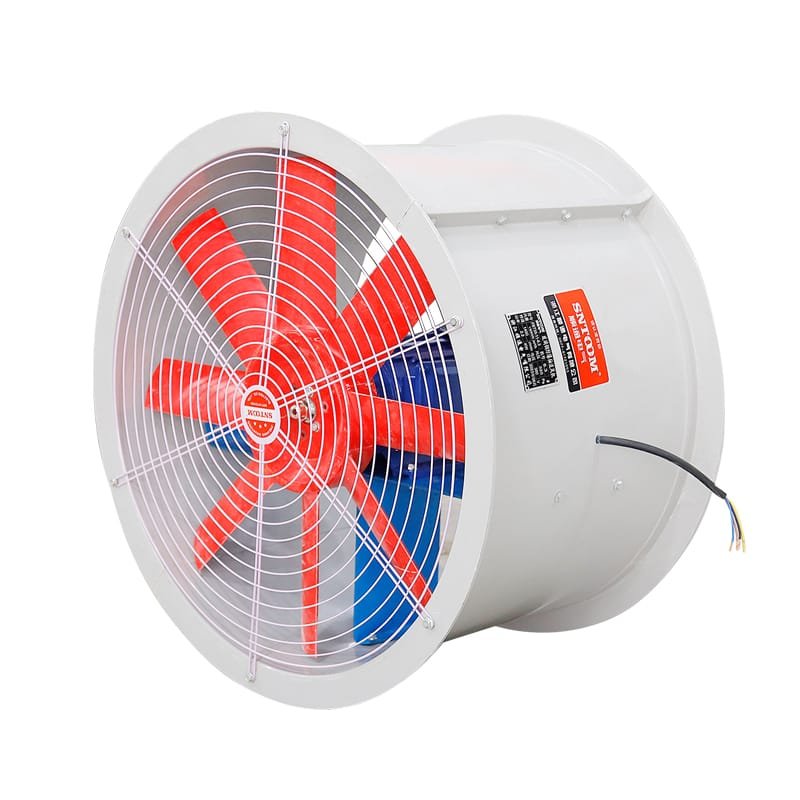

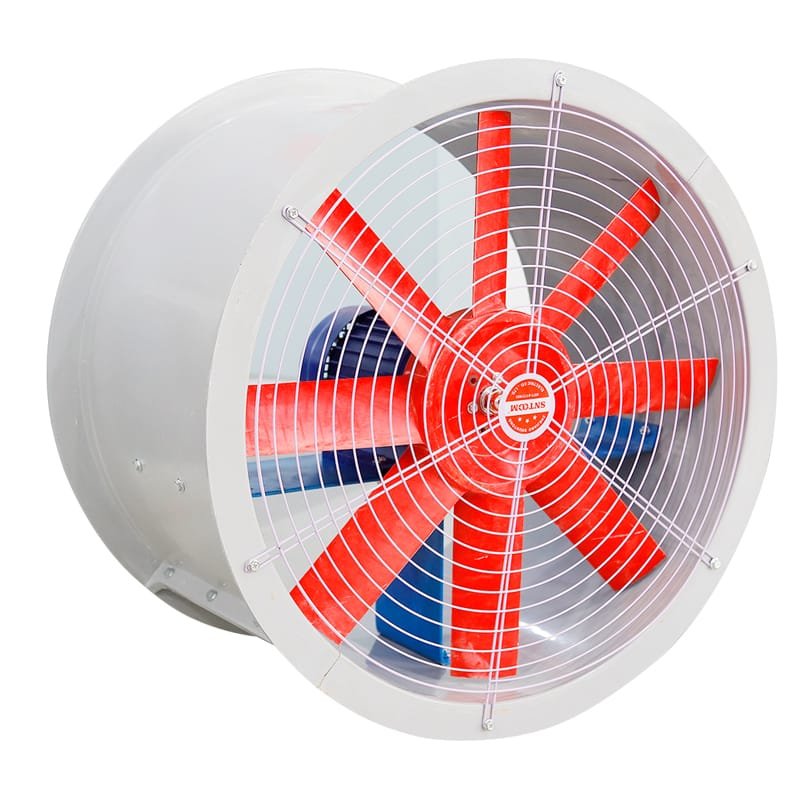

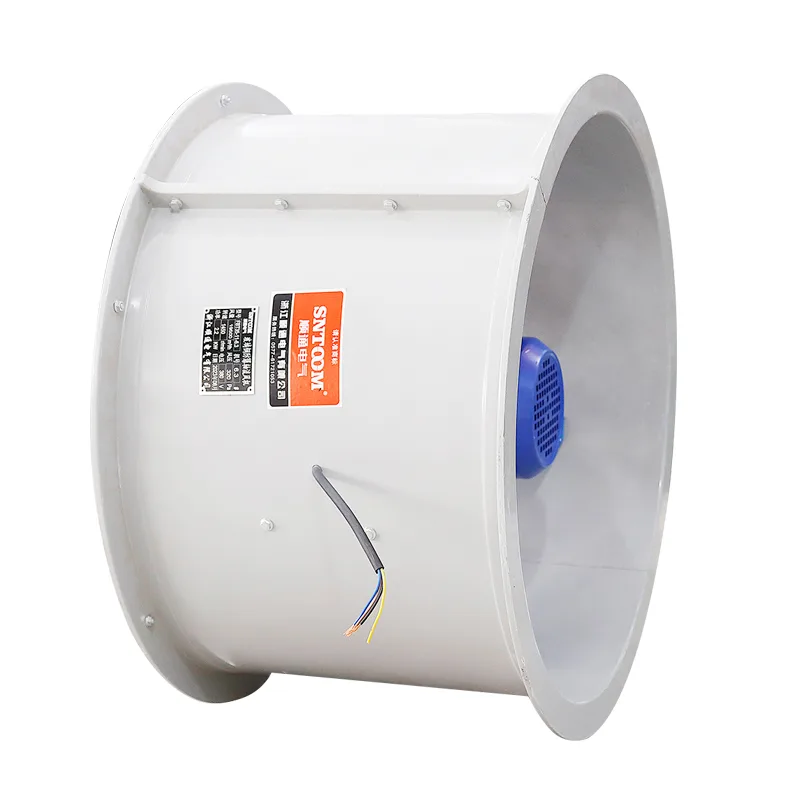

Product images
