SNTOOM Industrial Axial Floor Fan: Multi-Size High-Airflow Ventilation Solution for All Scenarios
In industrial workshops, warehouses, outdoor work sites, and other spaces, a high-efficiency, stable, and durable ventilation device is the key to ensuring a comfortable and safe working environment. The High airflow industrial floor fan launched by SNTOOM Shuntong Electrical covers 16/18/20-inch full-size specifications. With its copper core motor, thickened blades, and multi-protection design, it combines strong airflow, low noise, multi-speed adjustment, and other features, making it an ideal choice for ventilation in various scenarios.
1. Product Overview

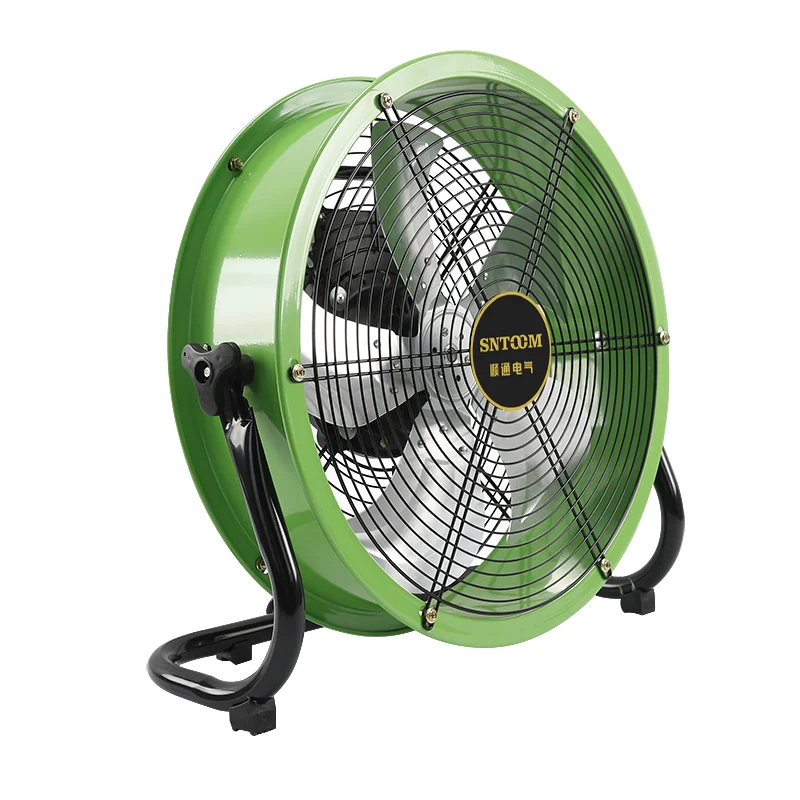

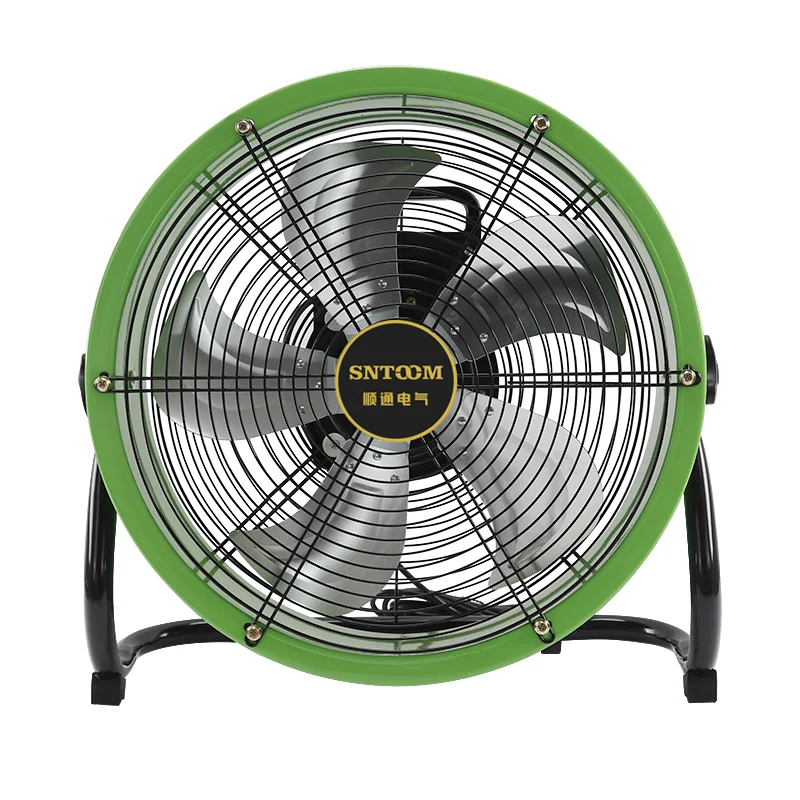

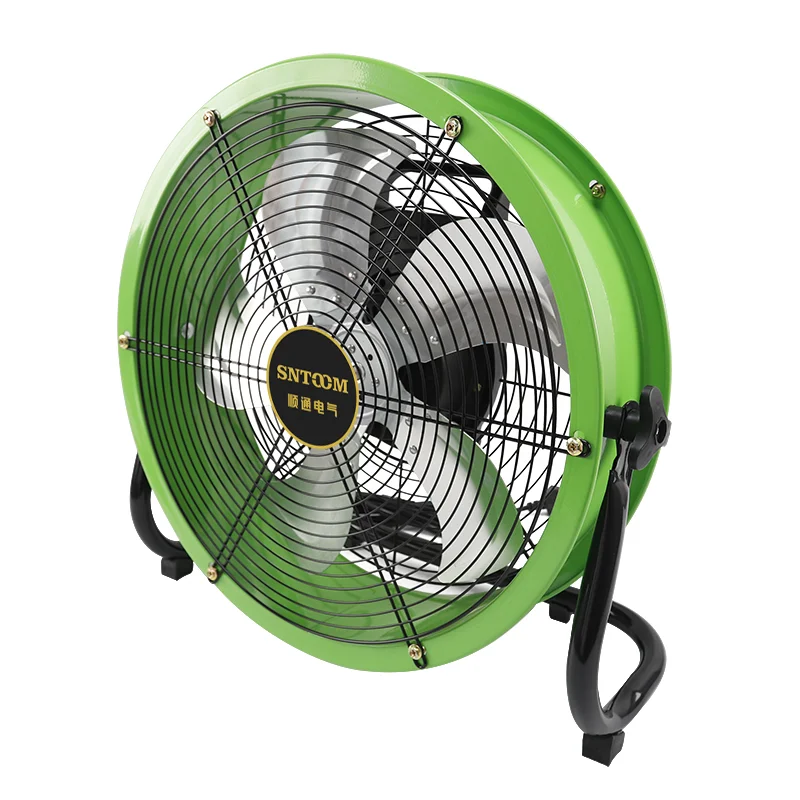

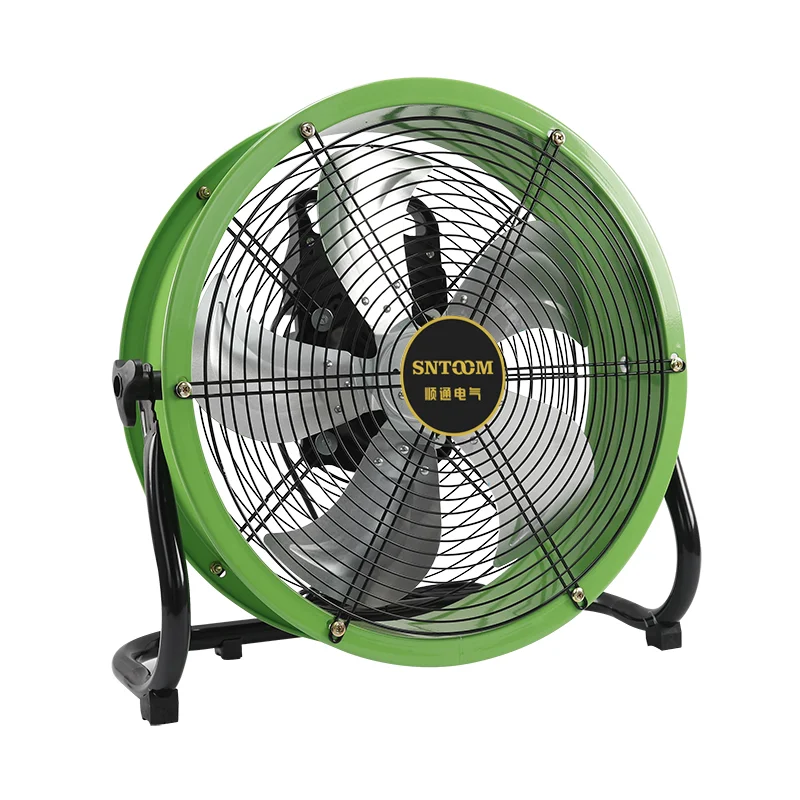

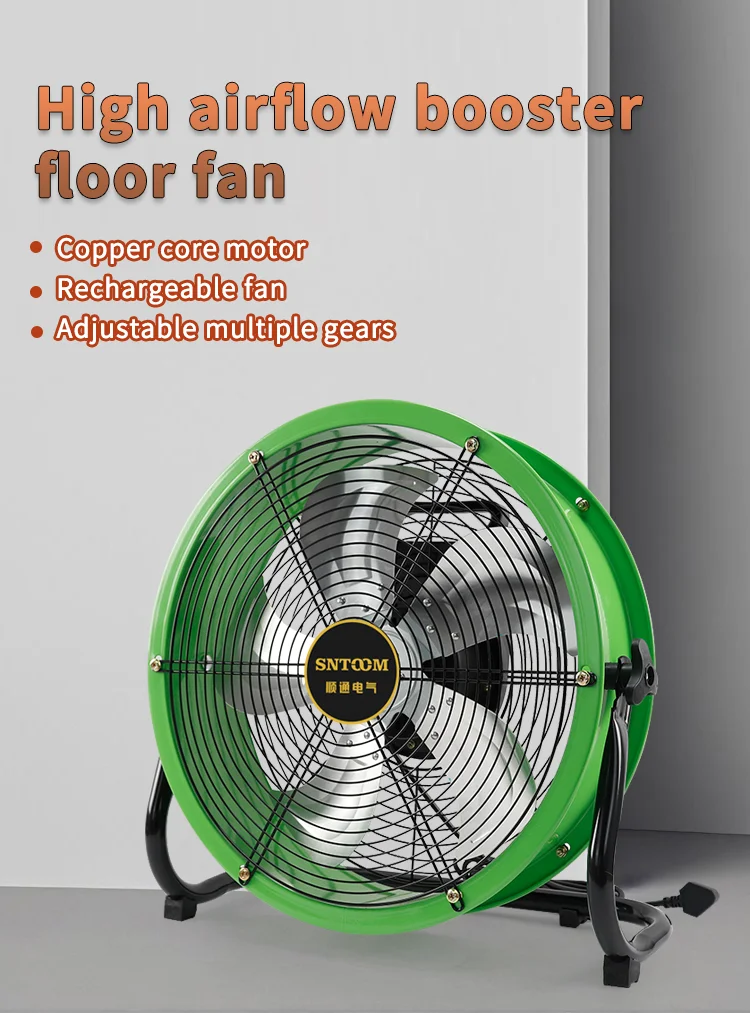

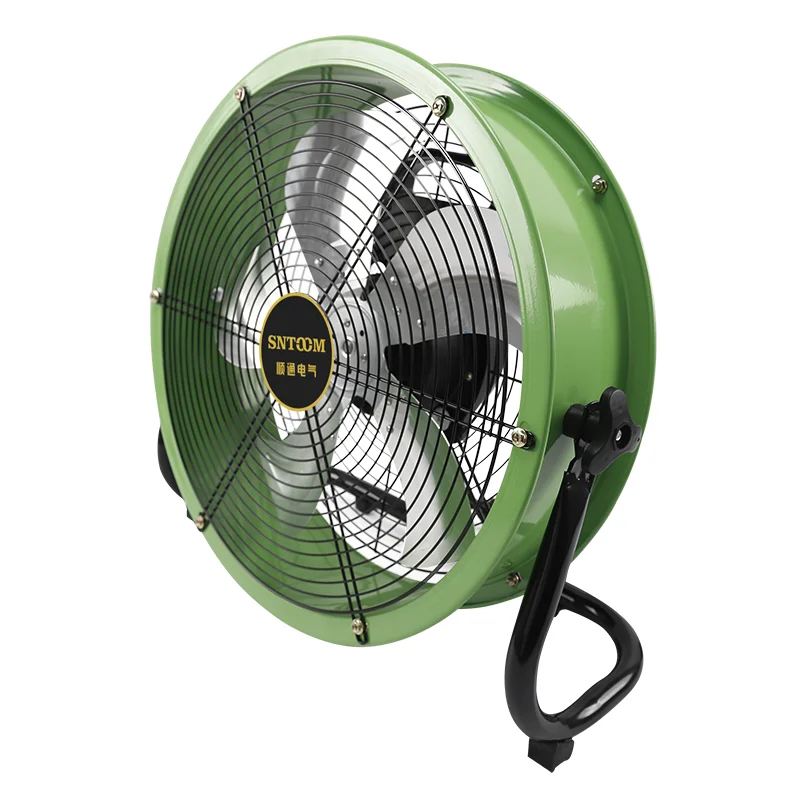

This High airflow industrial floor fan is a high-performance device developed by Shuntong Electrical for industrial and commercial ventilation needs. floor fan adopts an axial air supply structure, equipped with a pure copper core motor, thickened rust-proof blades, and an all-metal protective grille, with the core advantages of strong power, efficient air supply, low-noise operation, and sturdiness and durability. The High airflow industrial floor is divided into three series by size: 16/18/20 inches, corresponding to different power and airflow levels, which can meet the differentiated ventilation and cooling needs from small and medium-sized workshops to large factories, and is suitable for industrial, commercial, outdoor, and other scenarios.
2. Application Scenarios
The multi-size design of this fan achieves full coverage of scenarios:
- Industrial Scenarios: The 16-inch model floor fan is suitable for ventilation in small workshops and assembly line stations; the 18-inch model is suitable for cooling in medium-sized warehouses and processing workshops; the 20-inch model can meet the large-scale air circulation needs of large factories and logistics centers, improving stuffy and dusty environments.
- Commercial Scenarios: The 16-inch model floor fan is ideal for commercial kitchens and small supermarkets; the 18-inch model is suitable for exhibition sites and local areas of stadiums; the 20-inch model can be used for rapid cooling in large shopping malls and outdoor temporary event venues.
- Outdoor and Special Scenarios: All series floor fan can be used for ventilation and heat dissipation in construction sites, breeding greenhouses, and equipment rooms. Among them, the 16-inch model is lightweight and easy to carry, making it more suitable for temporary ventilation needs in outdoor work sites.

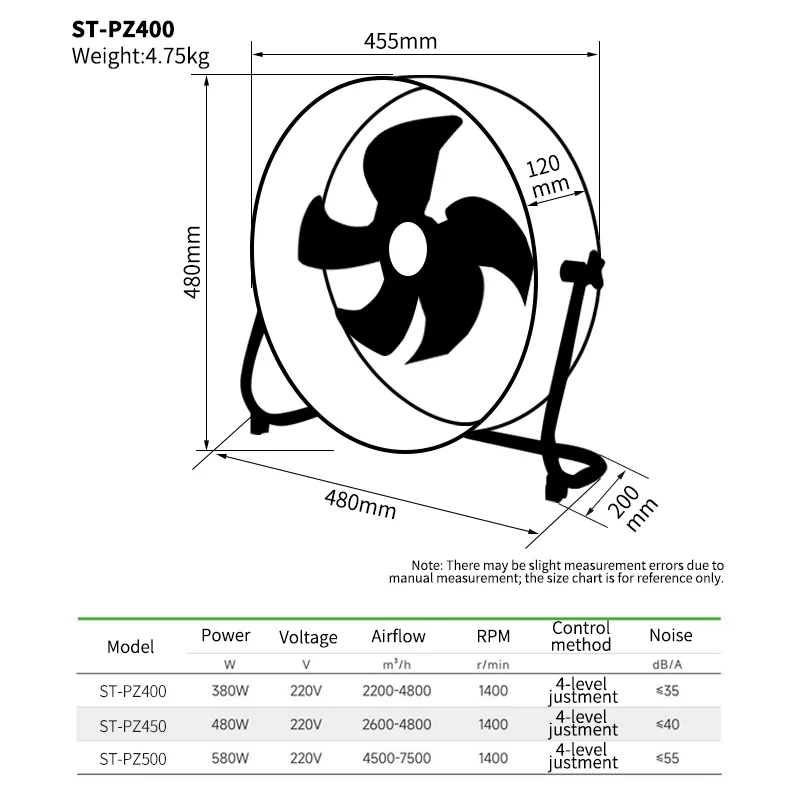

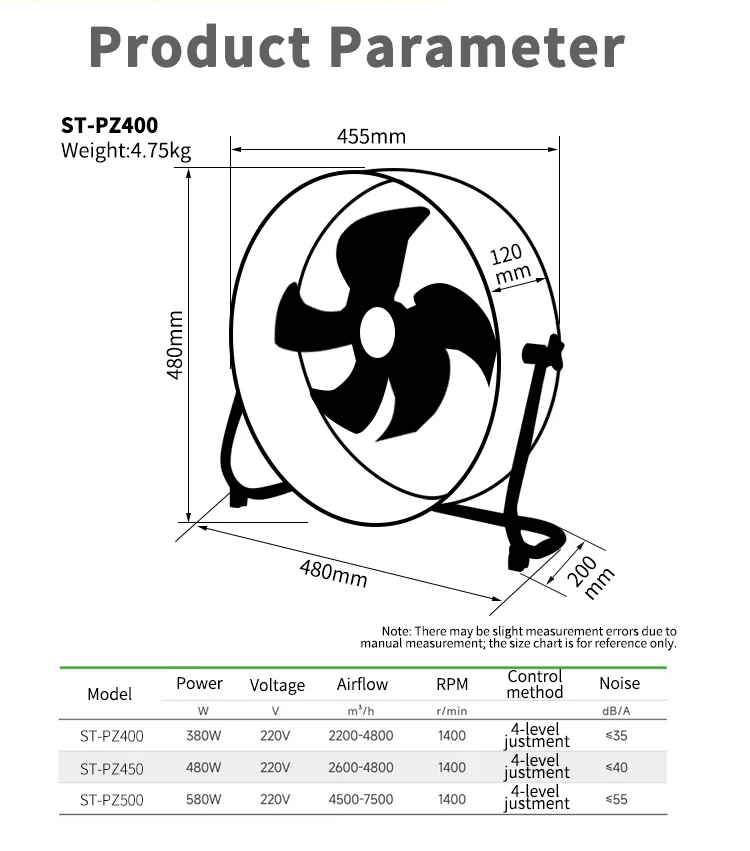

| Model (Corresponding Size) | Power | Voltage | Airflow Range | RPM | Speed Levels | Noise | Weight | Diameter Size |
|---|---|---|---|---|---|---|---|---|
| ST-PZ400 (16 inch) | 380W | 220V | 2200-4800m³/h | 1400r/min | 4-speed | ≤35dB/A | 4.75kg | 400mm |
| ST-PZ450 (18 inch) | 480W | 220V | 2600-4800m³/h | 1400r/min | 4-speed | ≤40dB/A | – | 450mm |
| ST-PZ500 (20 inch) | 580W | 220V | 4500-7500m³/h | 1400r/min | 4-speed | ≤55dB/A | – | 500mm |
4. Product Features

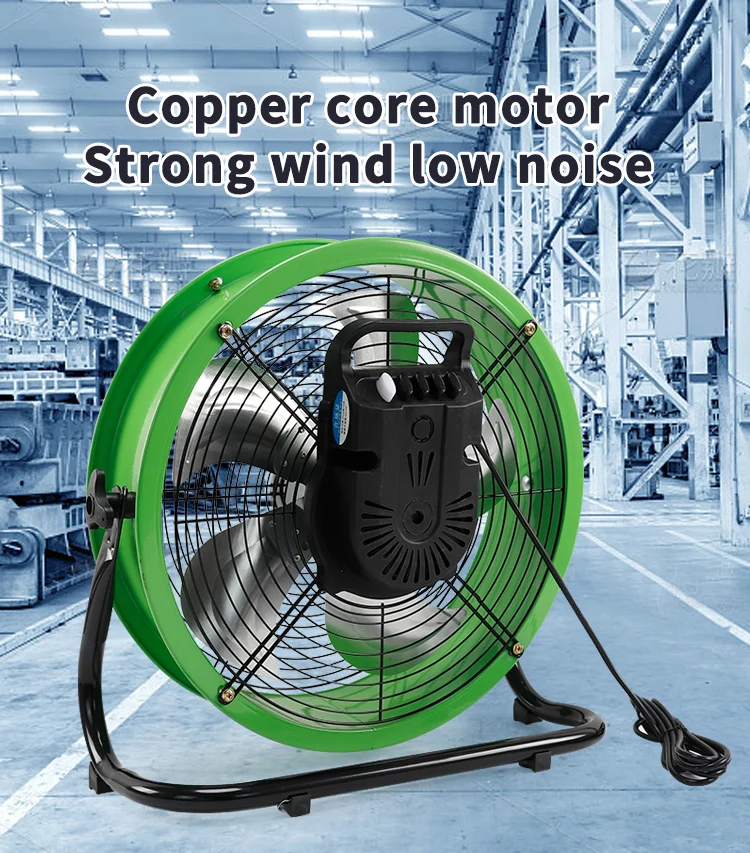

Pure Copper Core Motor, Strong and Low-Noise Operation
All series are equipped with pure copper coil motors, which have excellent electrical conductivity, stable and strong power output, high starting torque, can start with load, low temperature rise and low loss during operation, and longer service life. At the same time, it achieves a balance between large airflow and low noise. The 16-inch model has a running noise as low as 35dB/A, which does not affect the working environment.

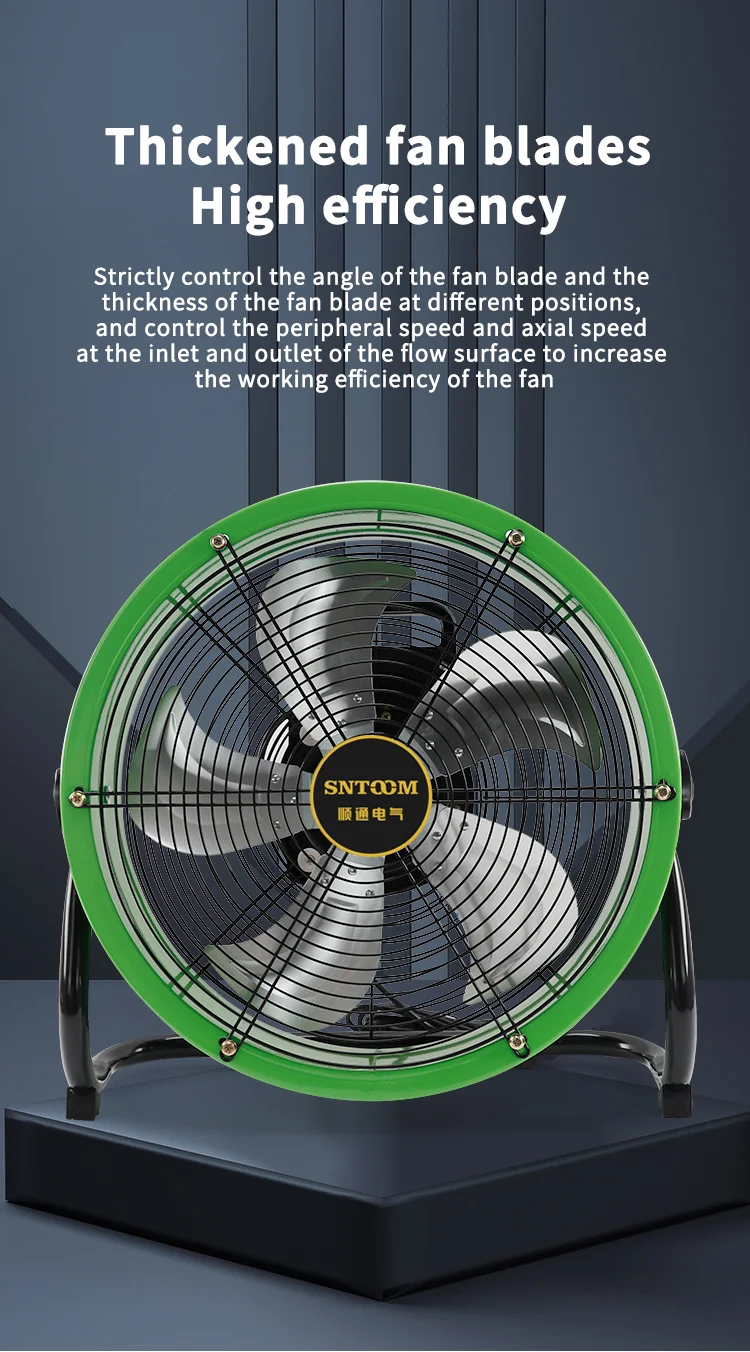

Thickened Rust-Proof Blades, Efficient Air Supply
The blades are thickened and enlarged, with anti-rust treatment on the surface, not easy to deform and corrosion-resistant. The product strictly controls the angle and thickness of the blades, optimizes the circumferential speed and axial speed at the inlet and outlet of the air surface, and greatly improves the working efficiency of the fan. Among them, the 20-inch model has an airflow of up to 7500m³/h, with a longer air supply distance and a wider air coverage range.
Three Sizes + 4-Speed Adjustment, Flexible Adaptation
Covers 16/18/20-inch full sizes, you can freely choose according to the space size and airflow demand of the scenario; all series are equipped with 4-speed adjustment, taking into account energy saving and air supply effect. With an adjustable U-shaped bracket, you can easily adjust the air supply direction to meet the ventilation needs of different spaces.
Full Protection Design, Safe and Durable
The front and rear are equipped with high-density metal protective grilles, which can prevent foreign objects from entering the motor and damaging the equipment, and effectively avoid accidental contact injuries. The fuselage is made of thickened material, not easy to deform, and has strong impact resistance, suitable for the complex use environment of industrial scenarios.
Balance Between Portability and Stability
The 16-inch model is lightweight and easy to carry, with an integrated handle for easy movement and handling; all series are equipped with non-slip foot pads on the bottom bracket, which are stable when placed and not easy to shake during operation, making use safer.
5. Product Installation and Instructions
Installation Steps
Unboxing Inspection: Confirm that the High airflow industrial floor fan body, bracket, power cord and other accessories are complete and free of transportation damage.
Bracket Assembly: Connect the U-shaped bracket to the fan body through fixing screws, and tighten the nuts to ensure the bracket is stable.
Placement and Debugging: Place the fan on a flat ground, adjust the bracket angle to ensure the fuselage is horizontal and stable.
Power-On Test: Connect to 220V power supply, turn on the High airflow industrial floor fan to test the operation status of each gear, check whether the air supply is normal and there is no abnormal noise.
Usage Instructions
- The device only supports 220V AC power supply, and overvoltage use is prohibited.
- Keep foreign objects away from the protective grille during operation, and do not touch the blades with your hands.
- Regularly clean the dust on the protective grille and blades to avoid blockage affecting the air supply efficiency.
- When not in use for a long time, disconnect the power supply and store it in a dry and ventilated place.
