Marine Axial Flow Fan: Durable 380V/660V Explosion-Proof Fan for Ship & Workshop
JBT series portable marine axial flow fan with 380/660V, explosion-proof carbon steel casing, high airflow 40-425m³/min, ideal for ship cabin & industrial ventilation.
- Power Range: 1.1kW - 30kW
- Voltage: 380V / 380/660V
- Product Series: JBT
- Mounting Type: Portable / Wheeled

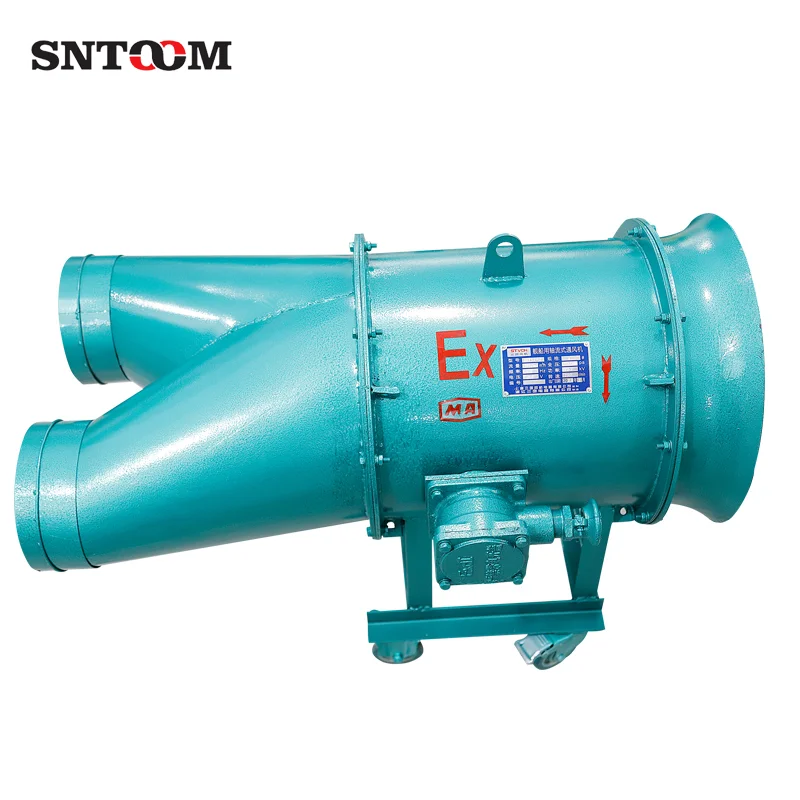

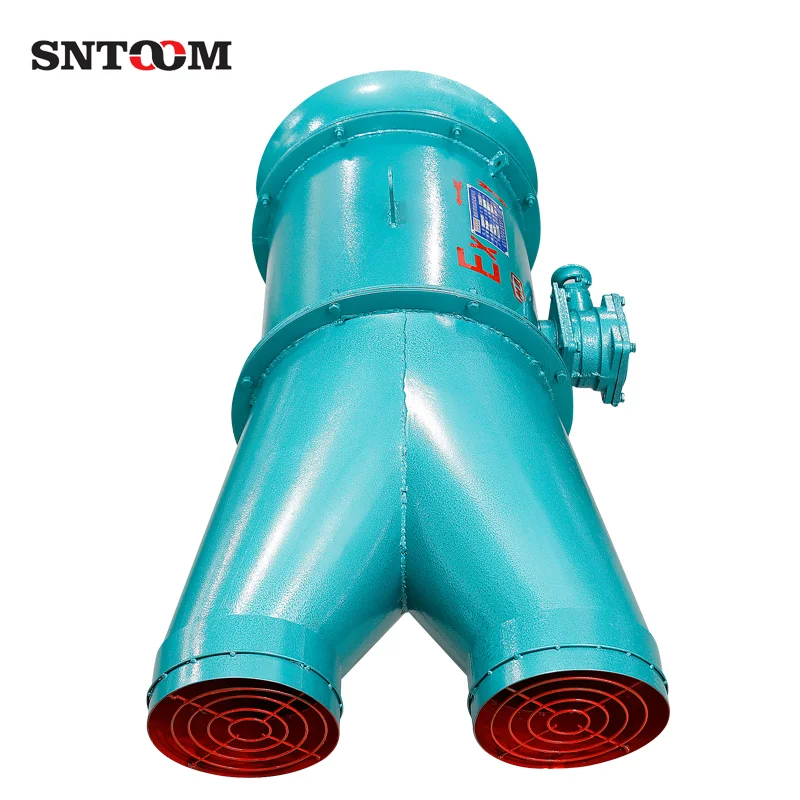

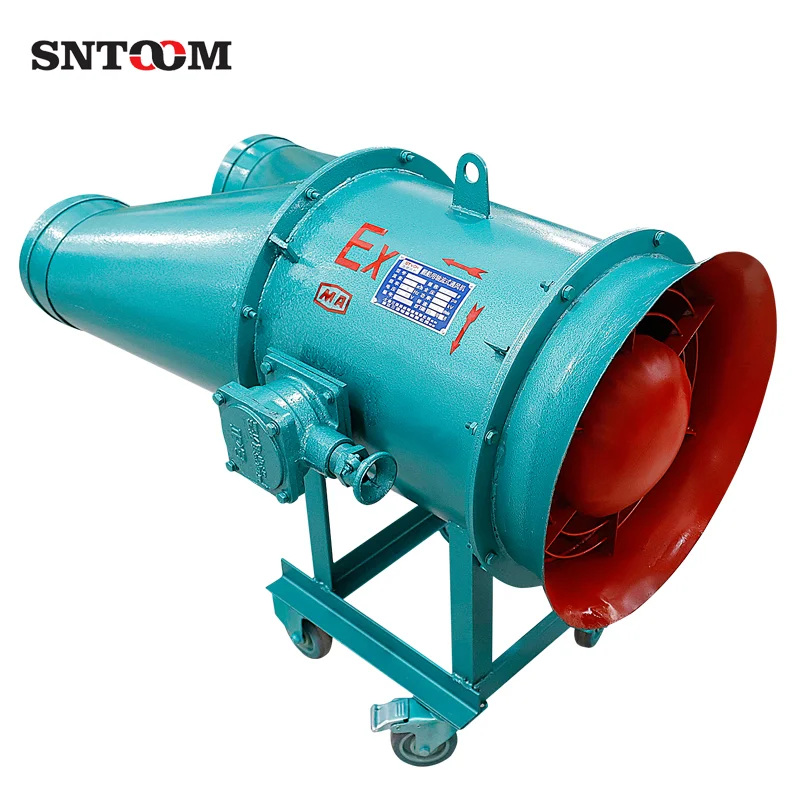

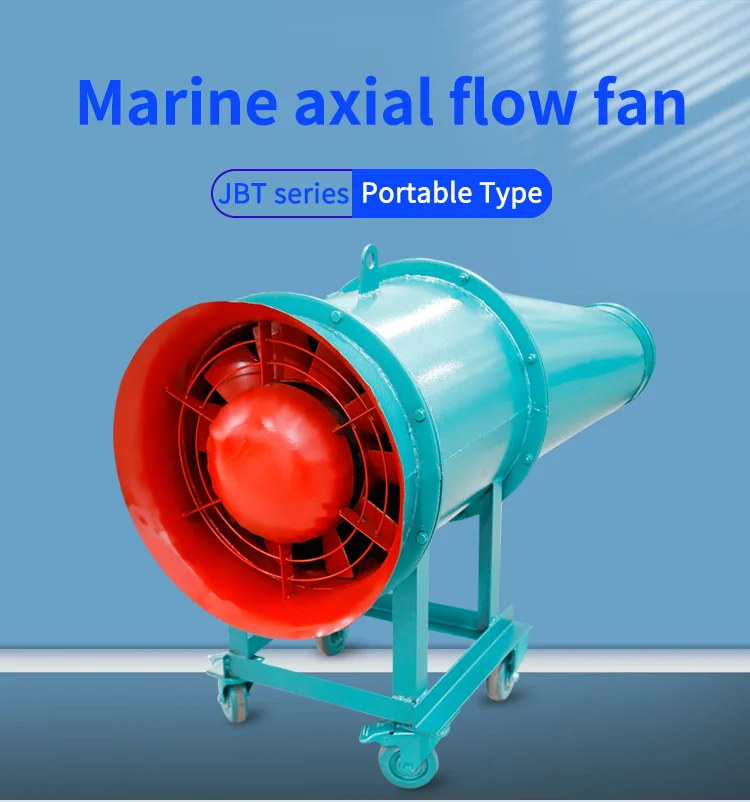

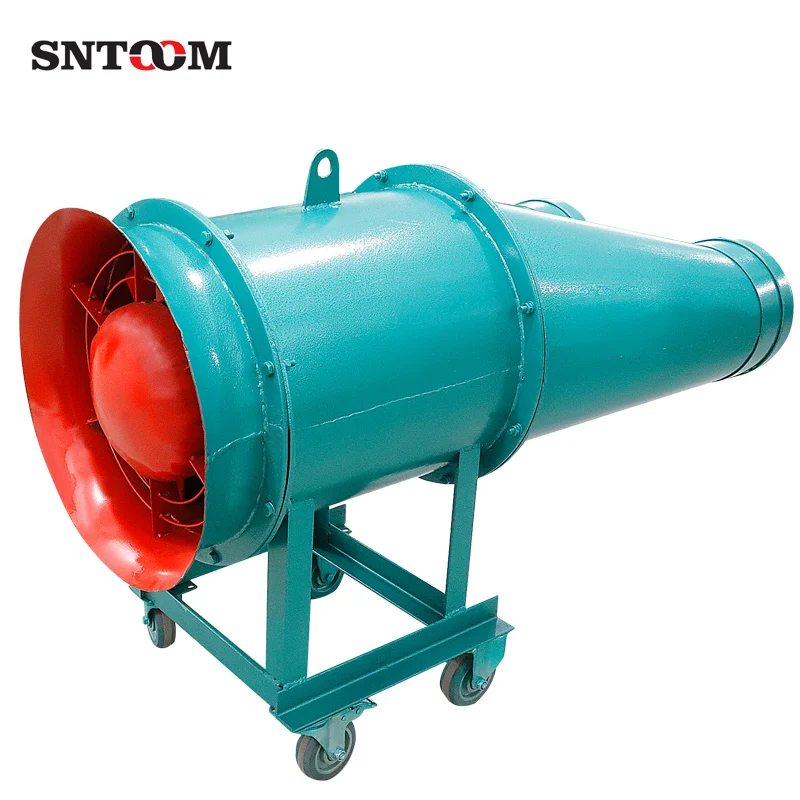

JBT Series Portable Marine Axial Flow Fan
1. Product Overview
The axial flow fan is designed for reliable ventilation in ship cabins and industrial spaces. This portable axial flow fan supports both air intake and exhaust, handling salt-laden and mildly acidic air up to 50°C. Built for continuous use, the marine axial flow fan ensures stable performance even in harsh marine environments.
2. Application Scenarios
The marine axial flow fan is widely used across diverse settings. In marine vessels, the axial flow fan ventilates engine rooms, cargo holds, and living quarters. In land-based industries, the axial flow fan works well in workshops, warehouses, kitchens, and restaurants, delivering consistent airflow where standard fans may fail.

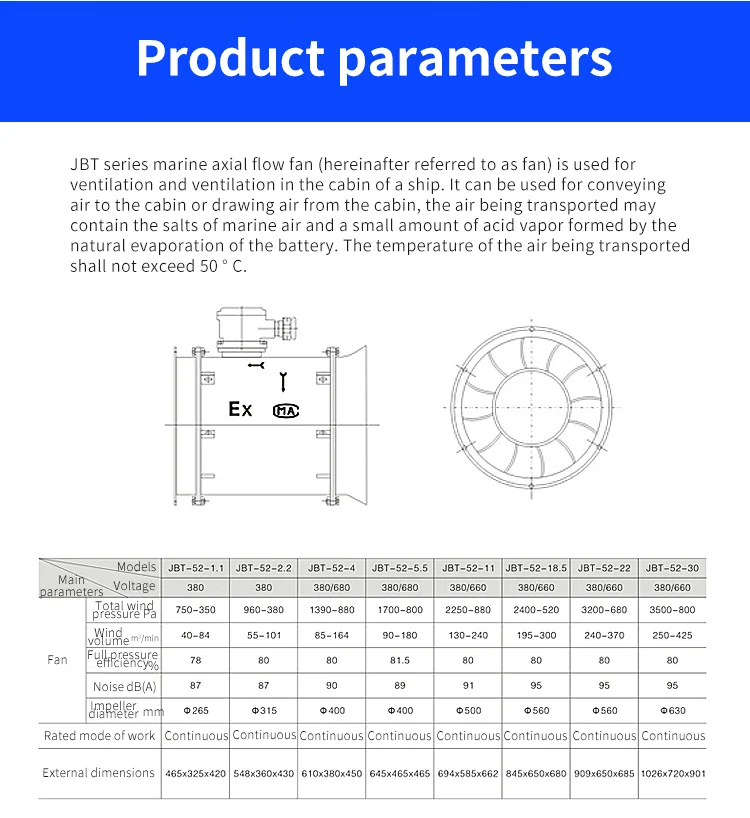

3. Product Parameters
| Item | Specification |
|---|---|
| Series | JBT Portable Marine Axial Flow Fan |
| Voltage | 380V / 380/660V |
| Power Range | 1.1kW to 30kW |
| Air Volume | 40–425 m³/min |
| Total Pressure | 350–3500 Pa |
| Noise Level | 87–95 dB(A) |
| Continuous Operation | Supported |
4. External Dimensions

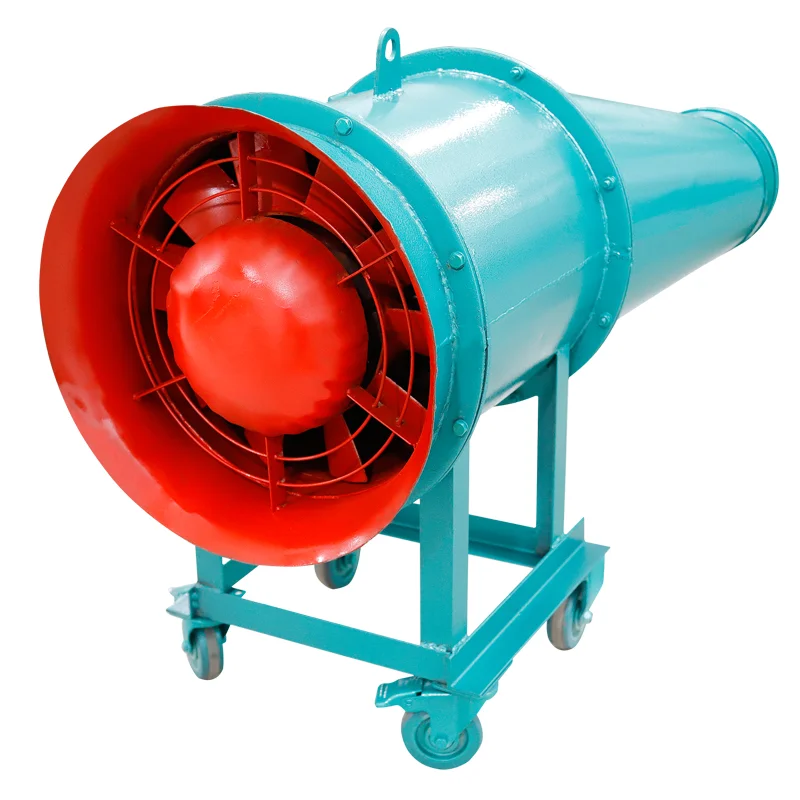

The marine axial flow fan comes in multiple sizes to match different power levels. The smallest unit measures 465×325×420 mm, while the largest reaches 1026×720×901 mm. Each axial flow fan is mounted on a wheeled base, allowing easy movement between work areas without permanent installation.
5. Key Features

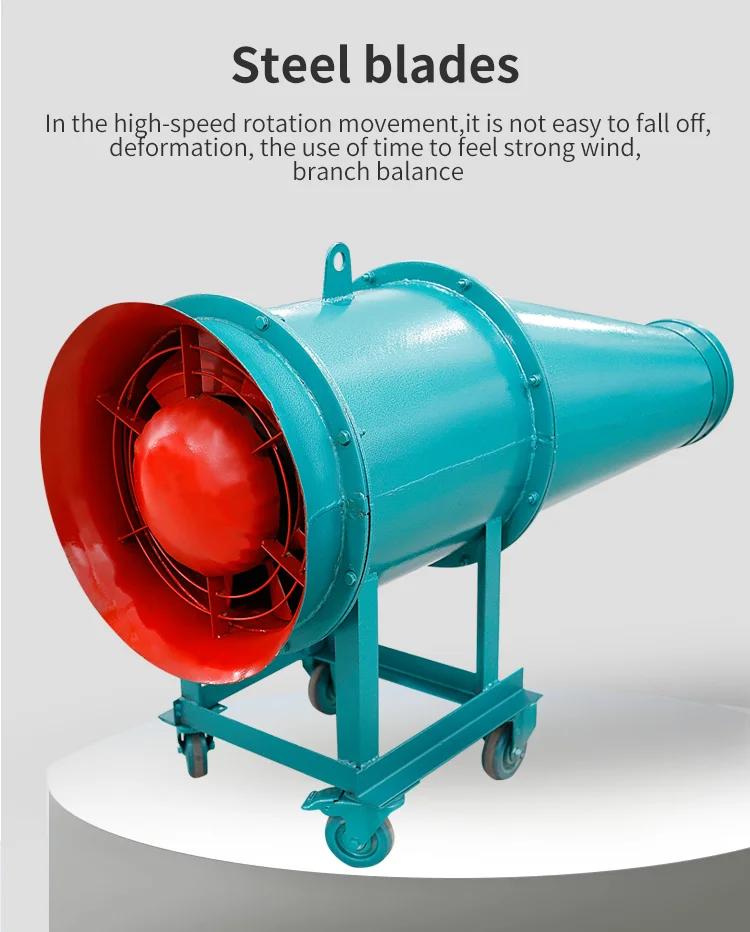

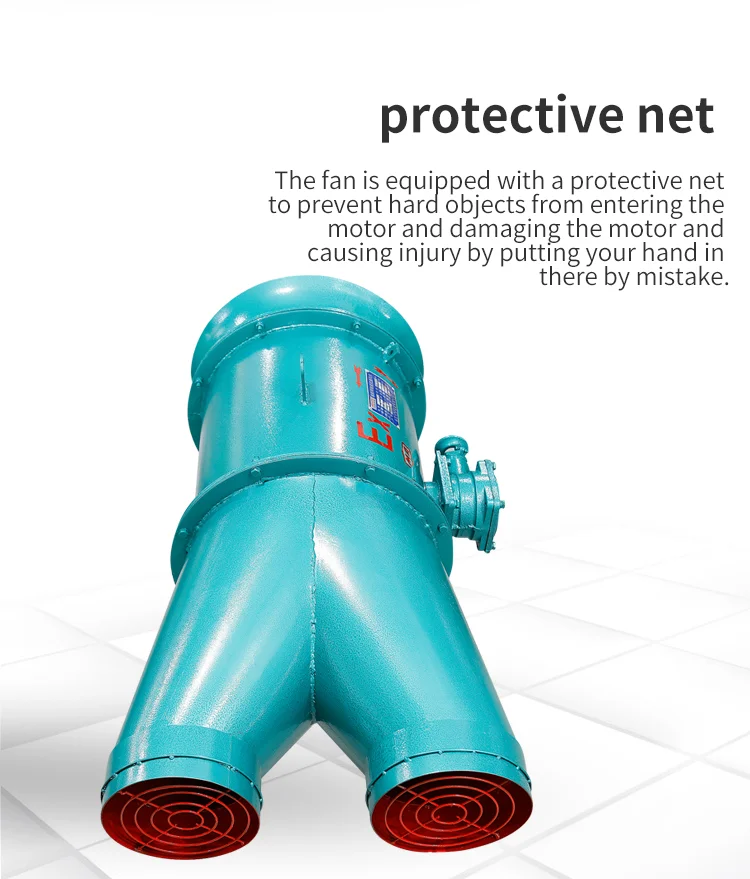

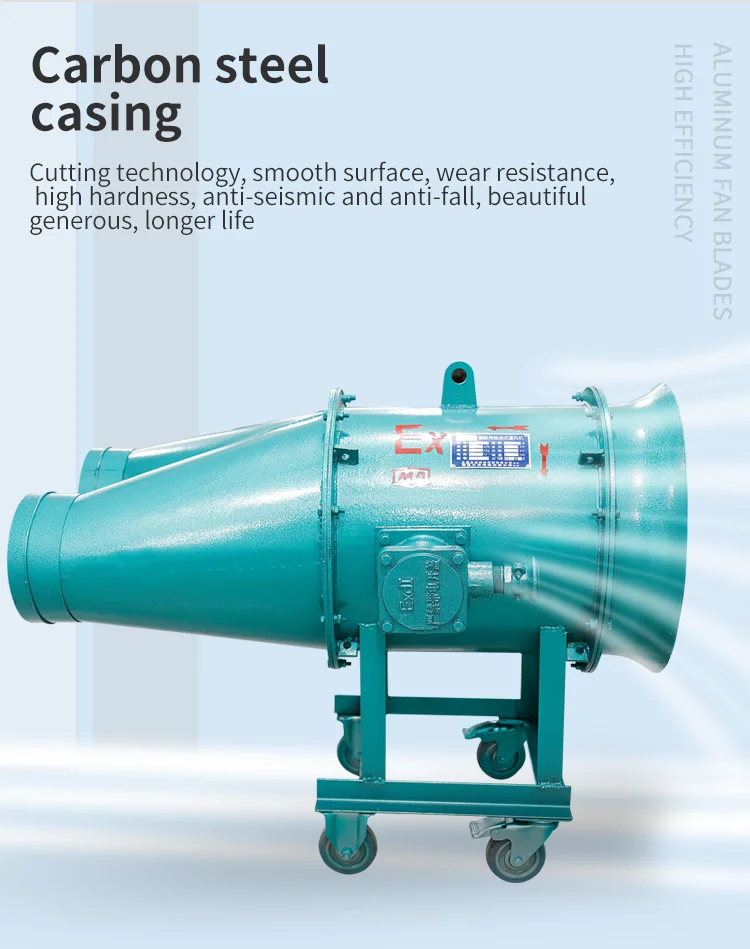

The marine axial flow fan features a carbon steel casing for durability, with smooth, wear-resistant surfaces. Steel blades resist deformation and detachment during high-speed rotation. A built-in protective net prevents foreign objects from entering the axial flow fan, improving both safety and service life. The portable design lets you position the marine axial flow fan wherever ventilation is needed most.
6. Installation & Operation Guide
Before use, inspect the axial flow fan for any damage during transport. Place the wheeled axial flow fan on a flat, stable surface and lock the brakes to prevent movement. Connect the power supply according to the rated voltage, and ensure the motor is properly grounded. Keep the intake and exhaust clear of obstructions. The axial flow fan can operate continuously under rated conditions; regular cleaning of the protective net and blades will maintain airflow efficiency.
