This MGQ series industrial heaters is a high-performance device designed for efficient heating in various environments. With multiple models offering power ranges from 5-50kW, it provides flexible heating solutions. Key features include overheat protection, gear adjustment, a thickened anti-scald outer shell, and automatic constant temperature control. Its high-power copper wire motor ensures stable and durable operation, while the wide-angle stereo headshake function allows for extensive area coverage, keeping large spaces warm and comfortable.
Application environment
This MGQ series industrial heaters is ideal for a wide range of environments. It can be used in both cold and hot settings, making it perfect for construction sites, workshops, warehouses, and garages. Its anti-scald body and waterproof and dustproof features ensure safe and reliable operation in harsh conditions. Whether you need to heat a large area quickly or maintain a constant temperature, this heater is up to the task.
Product parameters
| Models | MGQ-10T | MGQ-15T | MGQ-30T | MGQ-10 | MGQ-15 | MGQ-30 | MGQF-30 | MGQF-50 |
| Rated power(kW) | 5-10kW | 9-15kW | 15-30kW | 10kW | 15kW | 30kW | 30kW | 50kW |
| Voltage and frequency | 220-240V/50HZ | |||||||
| Output Current(A) | 0.29A | 0.47A | ||||||
| Motor output power | 70W | 80W | ||||||
| Built-in protection function | Overheat protection/tilt protection/thermocouple protection | Overheat Protection/tilt protection/flame-out protection/temperature control function | ||||||
| Gas type | 13B/P | |||||||
| Working air pressure mbar | 700mbar | 1.5bar | ||||||
| Gas consumption kg/h | 0.5-0.8kg/h | 0.7-1.0kg/h | 1.0-2.0kg/h | 0.8kg/h | 1.0kg/h | 2.0kg/h | 2.0kg/h | 3.5kg/h |
| Air Volume m³/h | 450 | 500 | 600 | 450 | 500 | 600 | 1200 | 1500 |
| Heating area m³ | 200 | 300 | 600 | 200 | 300 | 600 | 800 | 1000 |
| Large/kcal kcal/h | 8600 | 12900 | 25800 | 8600 | 12900 | 25800 | 25800 | 43000 |
| Heat value of combustion btu/h | 34120 | 51180 | 102000 | 34120 | 51180 | 102000 | 102000 | 17000 |
| Wind speed m/s | 4.5 | 4.6 | 4.8 | 4.5 | 4.6 | 4.8 | 5.5 | 6.0 |
| Ignition mode | Pulse ignition | Press ignition | Automatic ignition control | |||||
| Product dimensions mm | 335*235*340 | 385*235*340 | 475*235*340 | 335*235*340 | 385*235*340 | 475*235*340 | 528*340*490 | 578*340*490 |
| NET weight kg | 5 | 5.5 | 6.4 | 5 | 5.5 | 6.4 | 10.6 | 11 |
| Gross weight kg | 6.4 | 7.0 | 7.5 | 6.4 | 7.0 | 7.5 | 13.5 | 14.4 |
| Packing size mm | 360*255*345 | 410*255*345 | 495*255*345 | 360*255*345 | 410*255*345 | 495*255*345 | 540*360*460 | 590*360*460 |

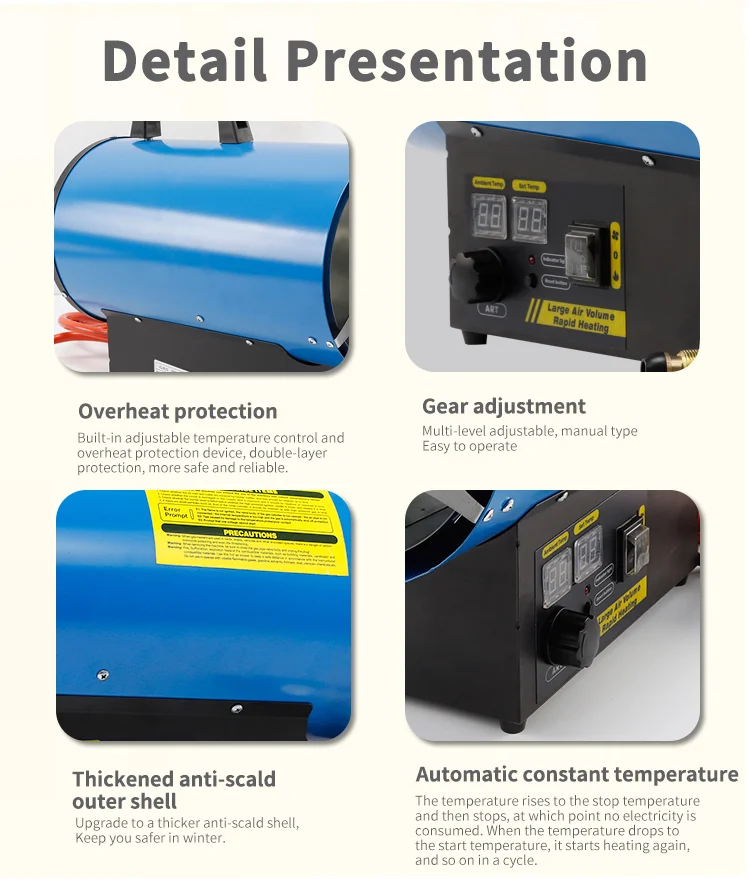

Product Features
- The MGQ series industrial heaters are designed for versatility, offering both cold and hot dual-use capabilities. With an adjustable temperature control and overheat protection, these heaters ensure safety and reliability. The thickened anti-scald shell provides additional safety, making them ideal for various industrial environments.
- Featuring a high-power copper wire motor, the MGQ series ensures higher quality and increased durability. The motor operates smoothly and efficiently, providing stable performance output and a long service life. This makes the heaters suitable for continuous operation in demanding industrial settings.
- The MGQ series heaters come with multi-level adjustable gear settings, allowing for precise heat management according to specific needs. The automatic constant temperature function ensures consistent heating, cycling on and off to maintain the desired temperature without constant monitoring.
- With a wide-angle stereo headshake and height adjustable design, the MGQ series provides comprehensive heating coverage. The curtain loop heating mechanism ensures even distribution of heat, keeping large areas warm and comfortable. This feature is particularly useful in spacious industrial or commercial environments.
- Equipped with an all-copper gas interface, the MGQ series heaters offer full contact and high sealing performance, ensuring efficient gas utilization. The gas proportional valve allows for automatic adjustment of intake volume, providing intelligent temperature control. These features make the heaters suitable for use with various gases, including propane, butane, and liquefied petroleum gas.
Note:For the safe and efficient use of MGQ series industrial heaters, avoid overheating by not covering the heater, ensure proper ventilation, use the correct gas type, regularly inspect for damage, and keep it away from flammable materials.
Installation and Instructions
- Site Selection: Choose a stable, level surface near a gas supply and power outlet. Ensure adequate ventilation to prevent gas buildup.
- Gas Connection: Connect the heater’s gas inlet to the gas source using a suitable hose. Check for leaks by applying soapy water to joints and observing for bubbles.
- Power Setup: Plug the heater into a grounded electrical outlet matching the specified voltage and frequency. Avoid extension cords if possible.
- Initial Test: Turn on the gas supply and power. Set the desired temperature using the control knobs. Verify that the heater ignites and heats properly.
- Final Checks: Secure all connections, ensure the heater is stable, and position it away from flammable materials. Monitor operation for the first few cycles.

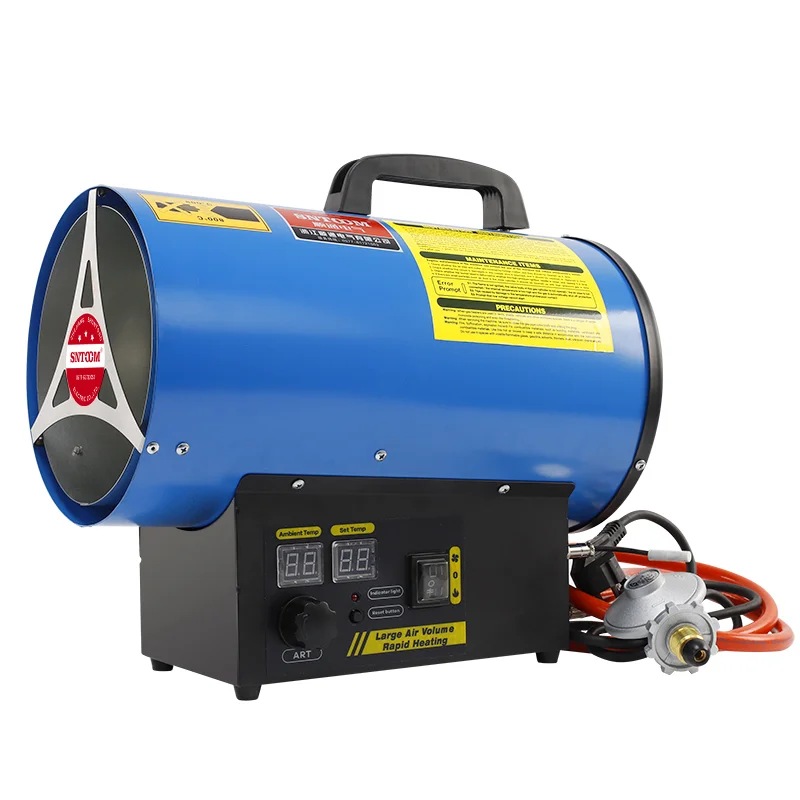

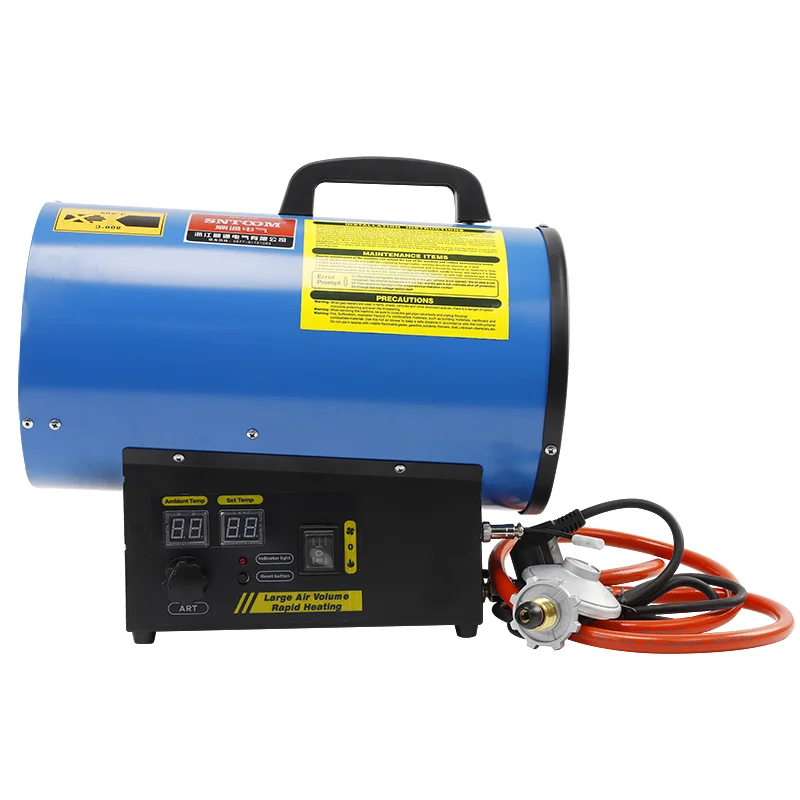

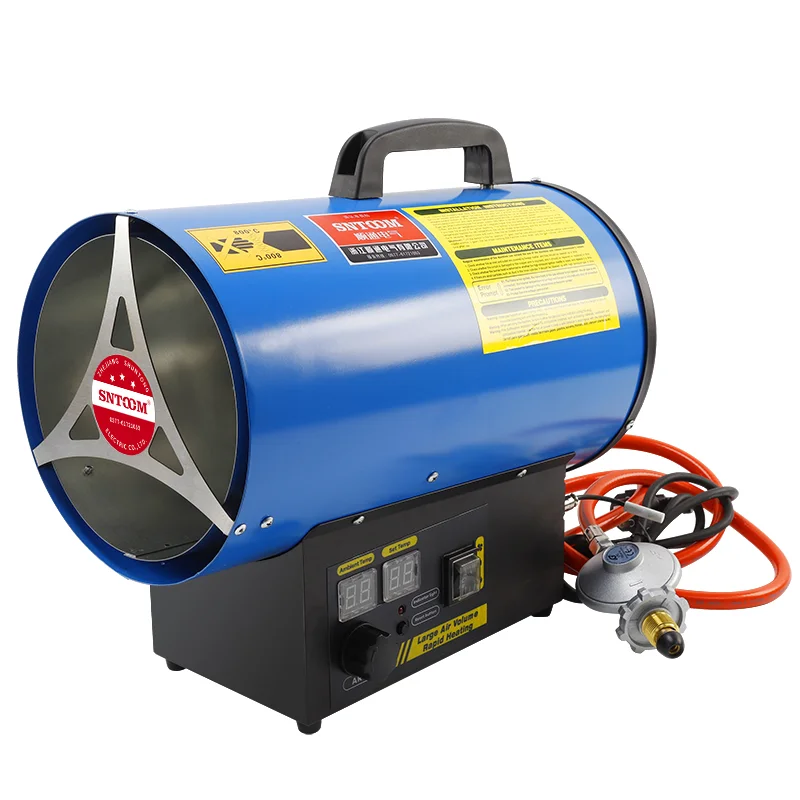

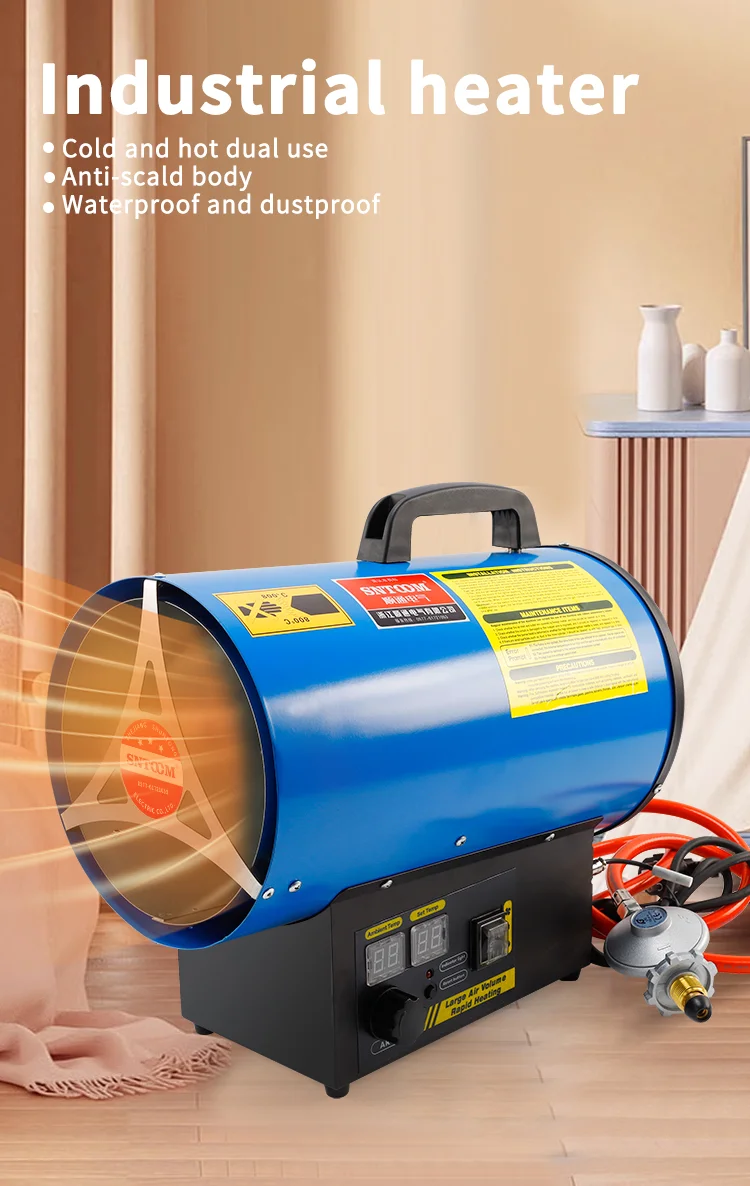

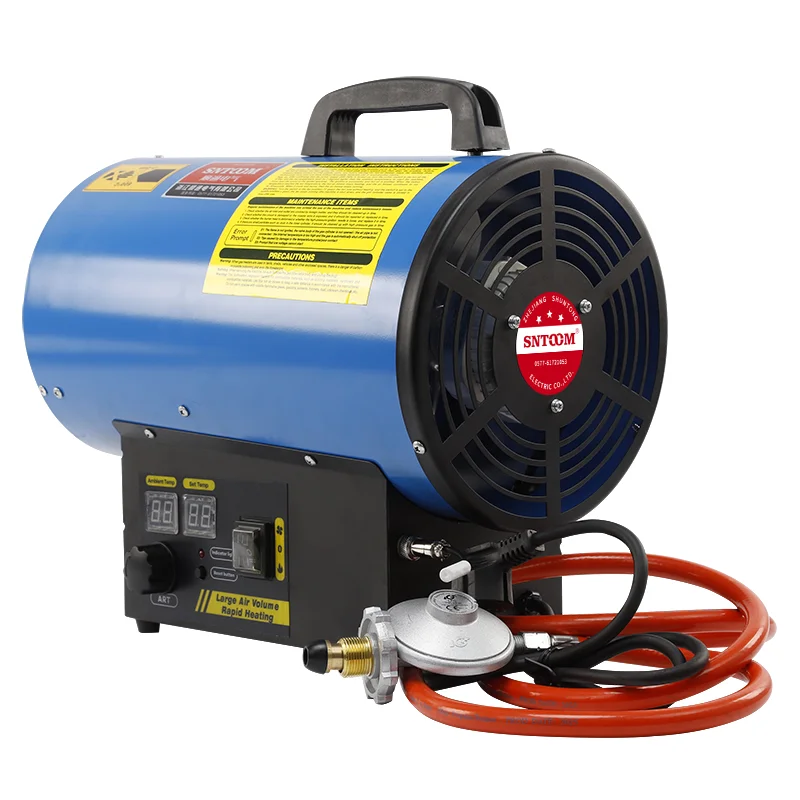

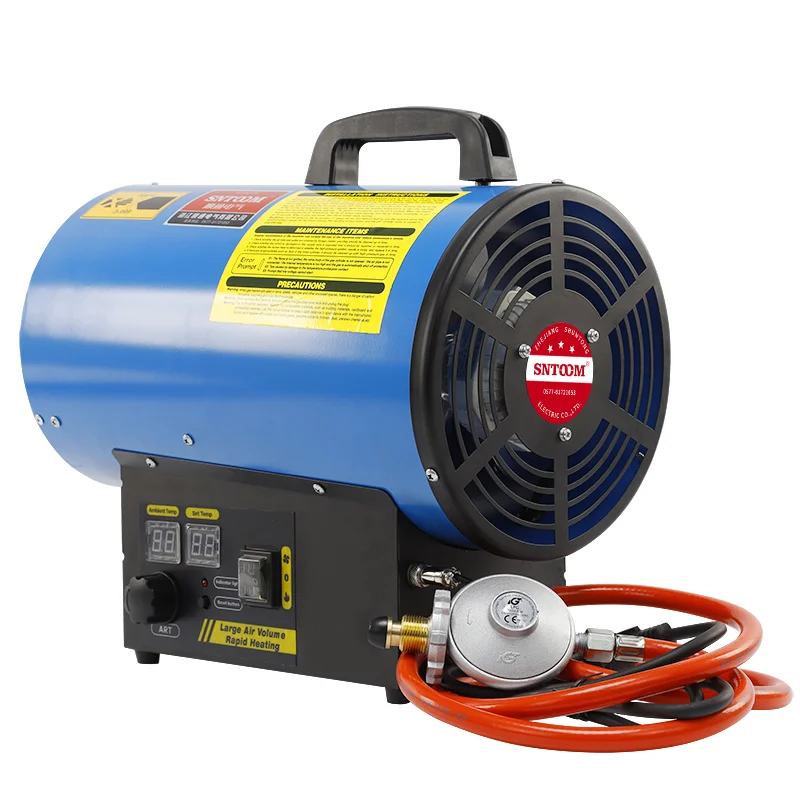

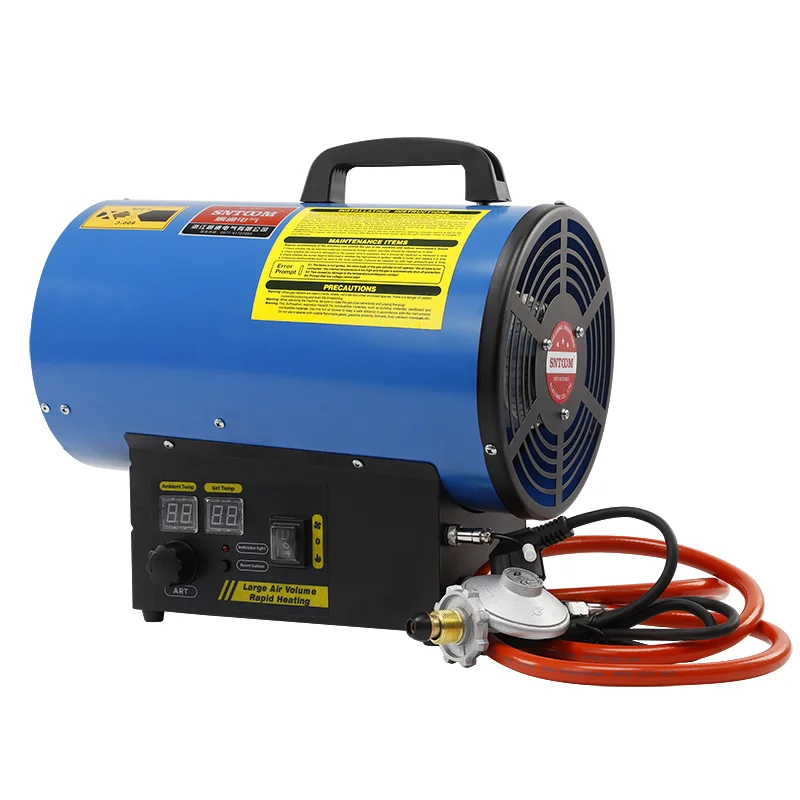

Product images
