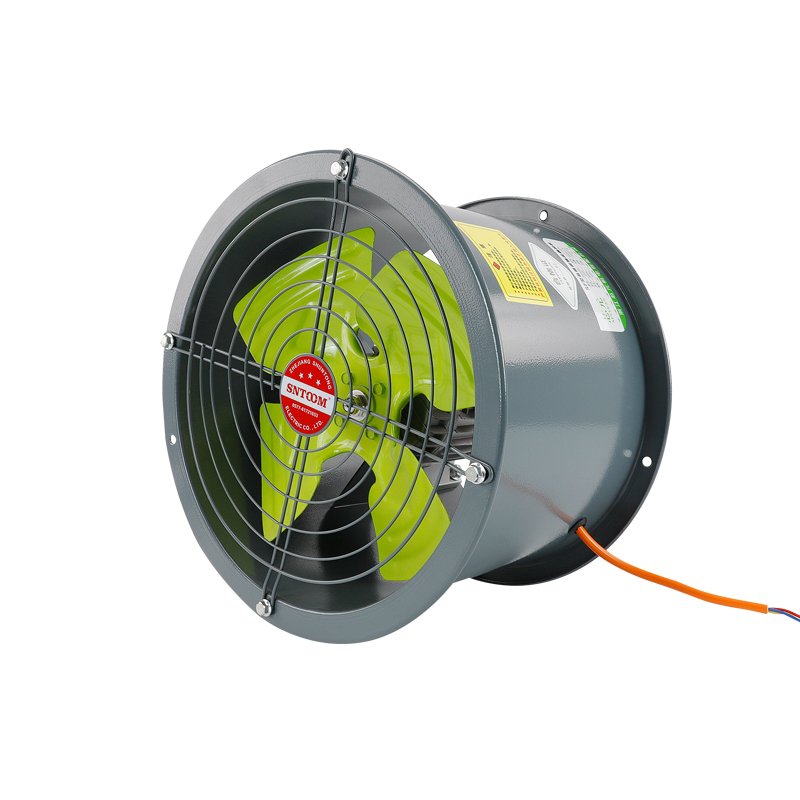

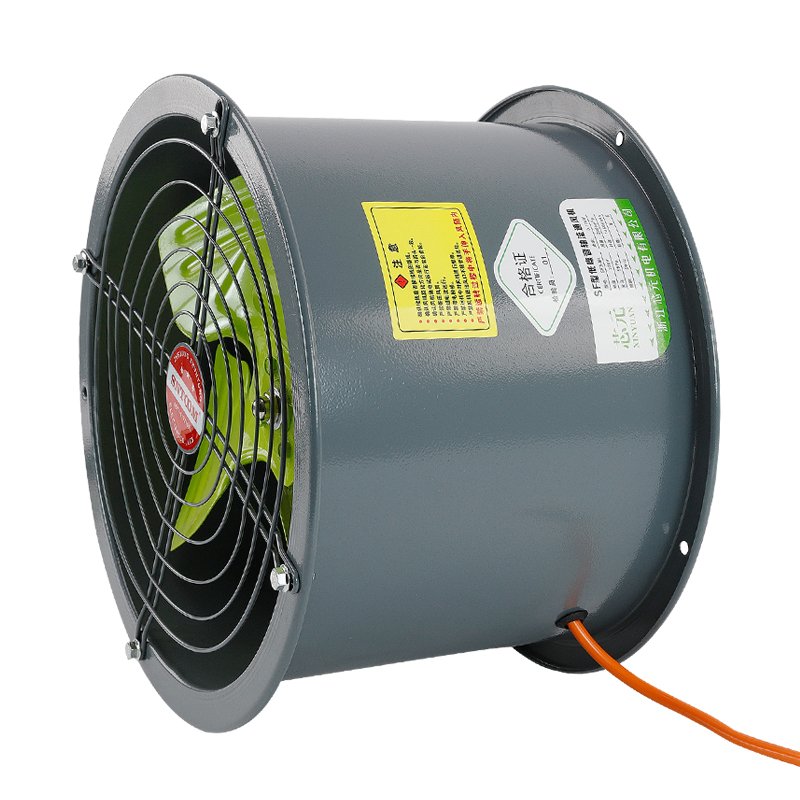

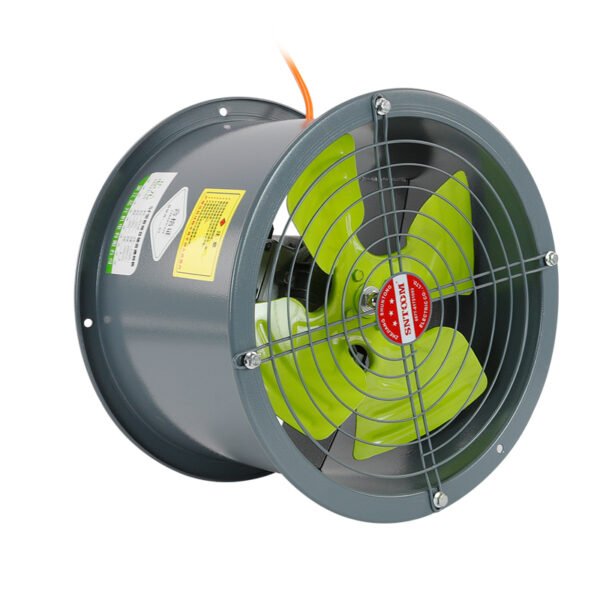

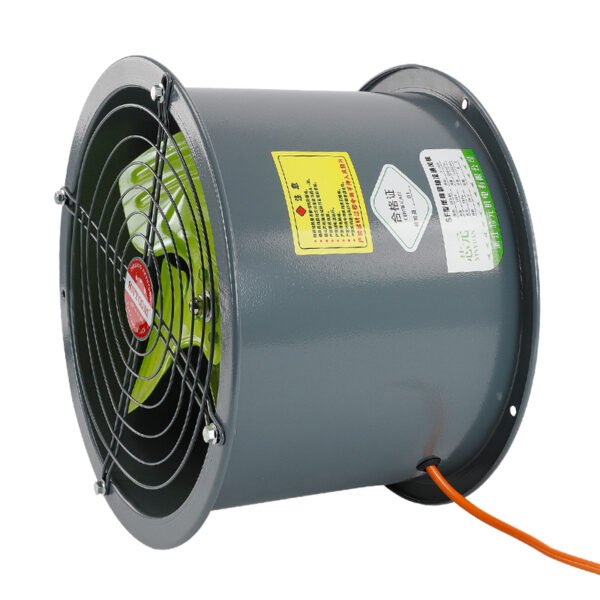

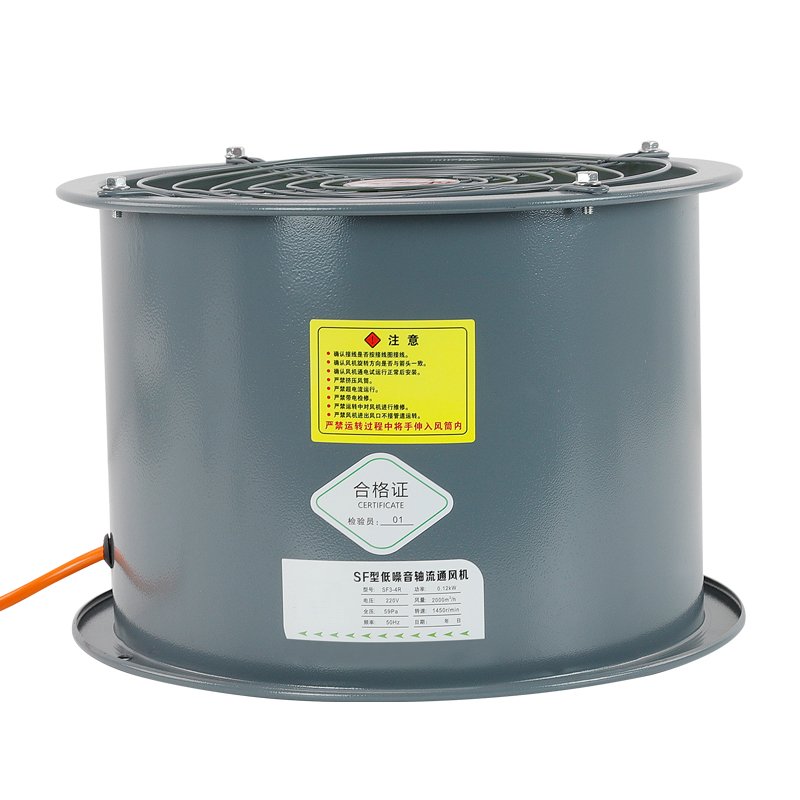

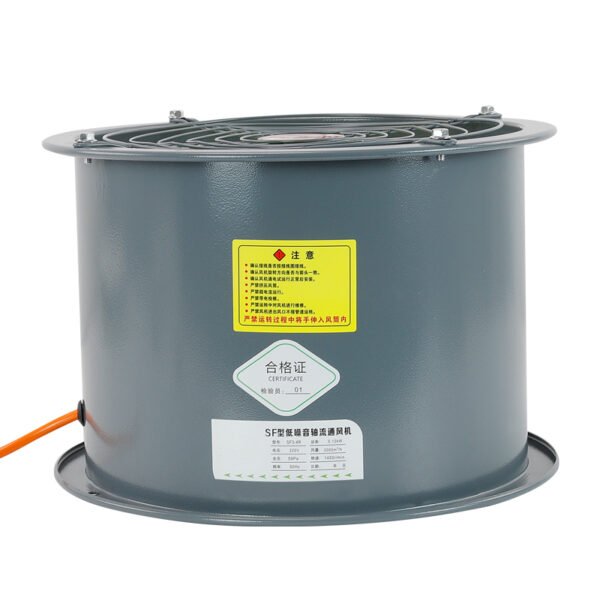

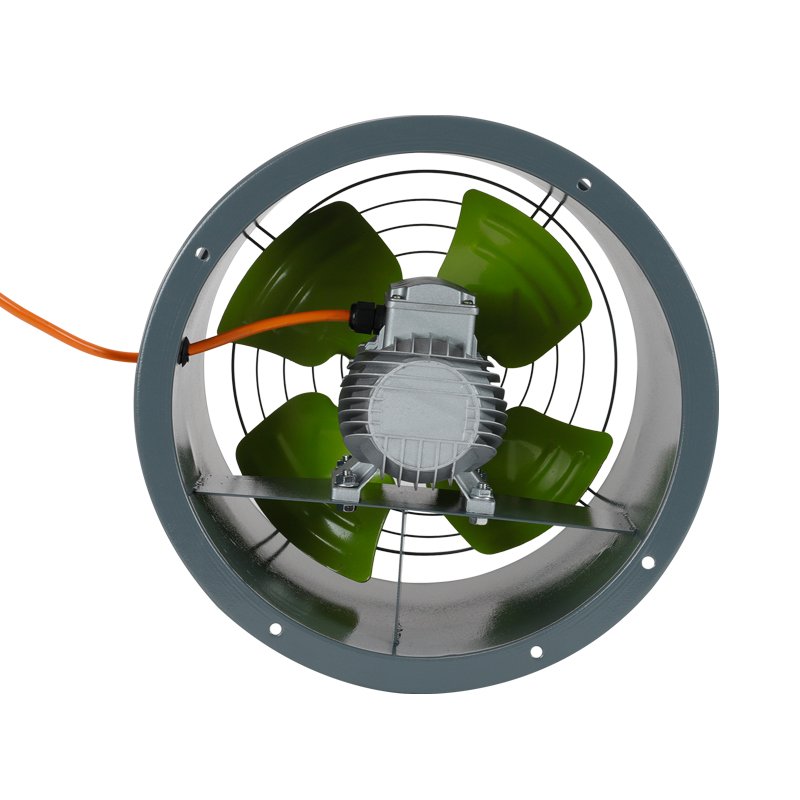

SF series low-noise axial flow fan industrial axial flow fan

The SF series low-noise axial flow fan is designed for efficient ventilation in industrial, commercial, and residential settings. Featuring a streamlined structure, high-efficiency motor, and noise-reduction technology, it offers large air volume, stable operation, and energy savings. Ideal for warehouses, factories, and HVAC systems.

Request a Quote

Description

Description

Product Introduction

The SF series low-noise axial flow fan is an efficient ventilation solution designed specifically for industrial, commercial, and residential applications. It adopts aerodynamic noise reduction technology and low-speed high-pressure coefficient design, providing strong airflow while maintaining the lowest noise level. The main features include energy efficiency, compact modular structure, and dust-proof and waterproof performance. It is very suitable for factories, hospitals, warehouses, and HVAC systems, supporting horizontal/vertical installation. Ensure reliable and low maintenance operations.

Use

The SF series low-noise axial flow fans are designed for versatile applications, including industrial plants, warehouses, hospitals, and commercial buildings. They feature low noise levels, high efficiency, and stable operation. Suitable for environments requiring ventilation, air exchange, and temperature control, they operate effectively in temperatures up to 60°C with corrosion-resistant materials.

Parameter

Model	Electrical machinery (Kw-p)	Rotating speed (r/min)	Wind flow （m³/h)	Total pressure (pa)	Noise level A (dB)
SF2-2	0.12	2900	1300	140	66
SF2-4	0.09	1450	600	20	57
SF2.5-2	0.25	2900	2100	215	65
SF2.5-4	0.09	1450	1000	35	53
SF3-2	0.37	2900	3000	230	74
SF3-4	0.15	1450	2000	59	61
SF3.5-2	0.75	2900	6000	260	72
SF3.5-4	0.37	1450	4000	100	63
SF4-2	1.5	2900	11000	320	83
SF4-4	0.55	1450	5300	167	74
SF5-2	2.2	2900	16000	320	82
SF5-4	0.75	1450	10000	200	78
SF6-2	3.0	2900	32000	500	87
SF6-4	2.2	1450	18700	300	85
SF7-4	3	1450	24500	350	87
SF8-4	4	1450	37200	380	88
SF10-6	4	960	50000	260	88

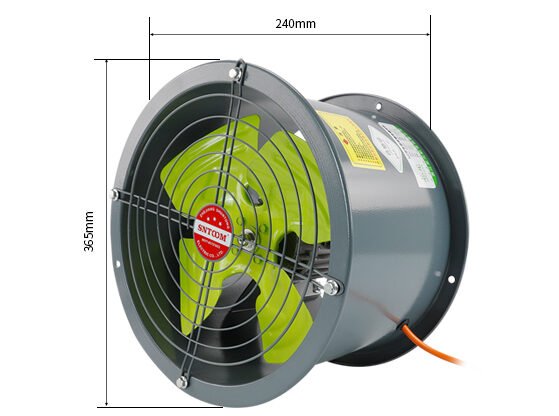

Dimension

Product installation and instructions

Choose a stable and flat installation surface for the SF series low-noise axial flow fan. Ensure the area is free from obstructions that could impede airflow or cause vibrations during
If wall-mounting, mark the drill holes accurately according to the fan’s mounting template. Use appropriate anchors and screws for the wall material to guarantee a secure attachment.
Carefully lift the fan into place, aligning it with the mounting points. Double-check the orientation to ensure the airflow direction matches your requirements.
Have a qualified electrician connect the fan to the power supply following local electrical codes. Make sure the wiring is properly insulated to prevent electrical hazards.
Apply a suitable sealant around the fan’s mounting edges to prevent air leakage and enhance the overall efficiency of the ventilation system.

Note: Before turning on the fan for the first time, inspect it for any signs of damage or loose parts. Then, switch it on briefly to check for abnormal noises or vibrations.

Operate the fan as needed to maintain proper ventilation. Avoid running it continuously at maximum speed unless necessary to extend its lifespan and reduce energy consumption.
Periodically clean the fan blades and housing to remove dust and debris that could affect performance and increase noise levels. Also, inspect the electrical connections for any signs of wear or corrosion.
