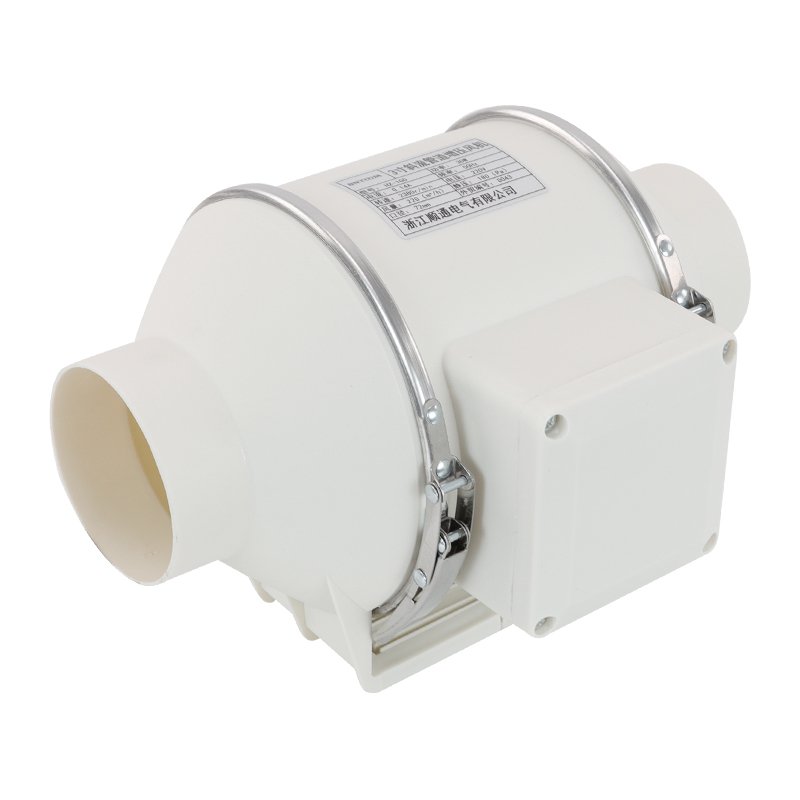

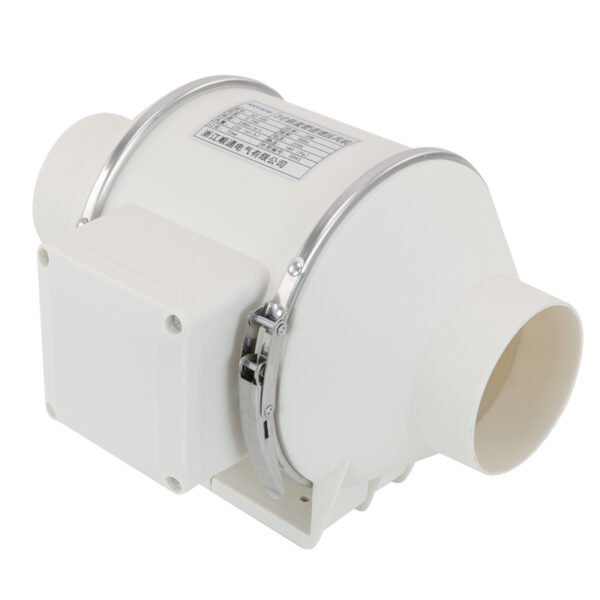

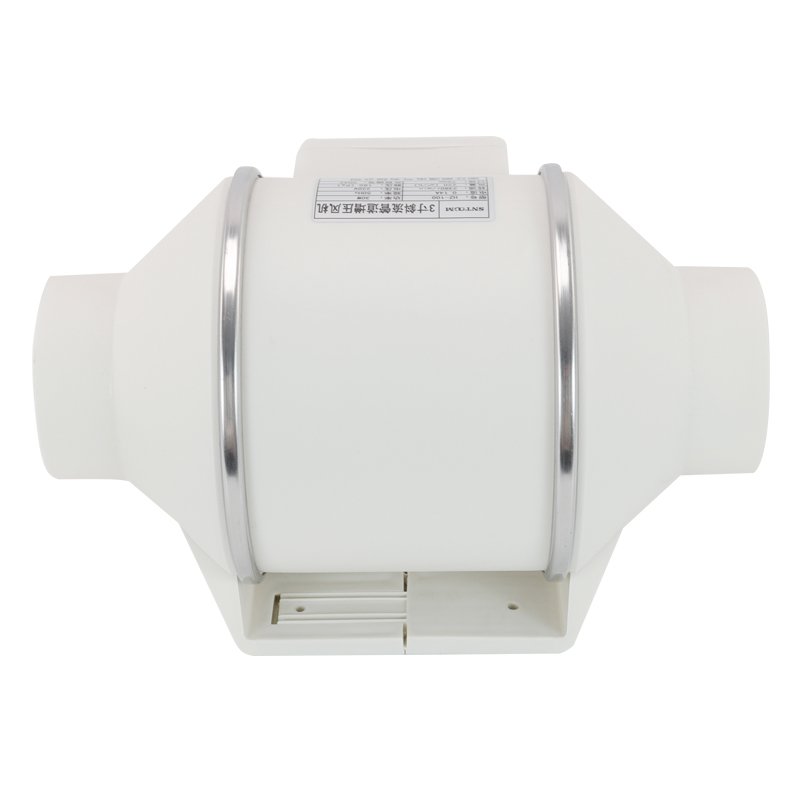

ST-100 oblique flow pipeline booster fan

The ST-100 Diagonal Flow Pipeline Booster Fan is a cutting-edge solution designed to enhance airflow efficiency in piping systems. With its innovative diagonal flow technology, it effectively boosts pressure while maintaining a compact and streamlined design, making it ideal for various industrial and commercial ventilation applications.

Get A Quote

Description

Description

Product Introduction

The ST-100 Axial-Mixed Flow In-Line Booster Fan is a cutting-edge solution designed to enhance airflow efficiency in ducted systems. Combining the benefits of axial and centrifugal fans, it delivers a powerful yet balanced air movement, making it ideal for various ventilation applications. With its robust construction and advanced blade design, it ensures quiet operation and reliable performance. Whether for commercial, industrial, or residential use, the ST-100 optimizes air circulation, improving indoor air quality and comfort.

Use

The ST-100 diagonal flow pipeline booster fan is designed for versatile applications in enhancing airflow within piping systems. It is ideal for environments where efficient air circulation and pressure boosting are crucial, such as in HVAC systems, industrial ventilation setups, and commercial exhaust applications. Its robust construction allows it to operate reliably in settings with varying temperatures and moderate humidity levels. The fan is well-suited for both new installations and retrofits, ensuring optimal performance in diverse operational conditions.

Parameter

Model	Configuratuin	Voltage （V)	Frequency（HZ)	Power (W)	Speed (r/min)	Static pressure (Pa)	Air volume (m³/h)	caliber (mm)
ST75	AC motor	220	50	40	2550	180	220	150
ST100H	AC motor	220	50	40	2550	180	220	150
ST100	AC motor	220	50	40	2500	260	310	150
ST125	AC motor	220	50	40	2500	260	310	150
ST150	AC motor	220	50	80	2500	300	540	150
ST160	AC motor	220	50	80	2500	300	540	150
ST200	AC motor	220	50	130	2500	360	1200	150
ST250	AC motor	220	50	175	2500	420	1600	150
ST315	AC motor	220	50	320	2500	450	2500	150
ST350	AC motor	220	50	500	2500	600	4000	150

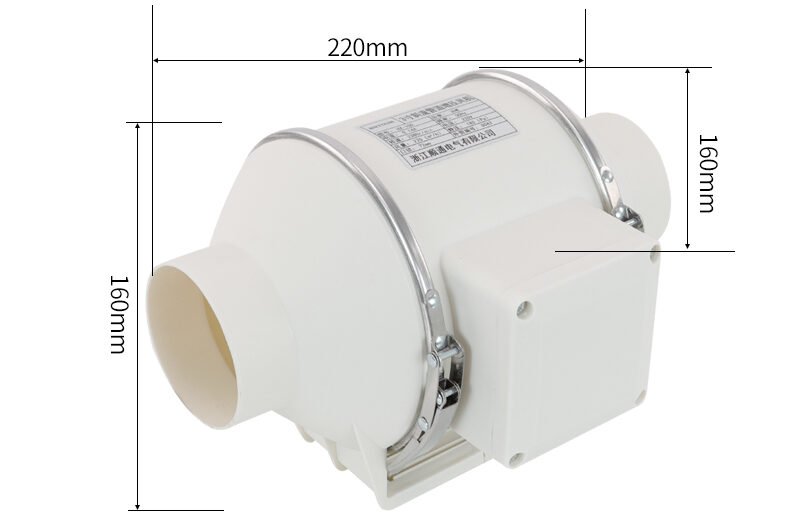

Dimension

Product installation and instructions

The ST-100 integrates axial and centrifugal airflow principles, enabling efficient gas conveyance with balanced pressure and flow characteristics. This hybrid design optimizes performance in ventilation systems requiring both medium-to-high pressure and substantial air volume.
Engineered with a space-saving cylindrical casing and modular flange connections, the fan minimizes installation footprint while ensuring structural integrity. Its lightweight yet durable construction simplifies integration into ductwork without compromising reliability.
Equipped with aerodynamically optimized blades and vibration-dampening components, the ST-100 operates quietly, making it suitable for noise-sensitive environments such as offices, hospitals, and residential buildings.
Constructed from high-grade, rust-resistant alloys and coated with protective finishes, the fan withstands harsh environmental conditions, including high humidity and corrosive gases, ensuring longevity and reduced maintenance.
The fan’s quick-release fasteners and tool-less access panels streamline assembly, cleaning, and component replacement. Its intuitive design allows for hassle-free integration into existing HVAC systems.

Note:These features collectively position the ST-100 as a reliable, adaptable, and eco-conscious solution for modern ventilation challenges.

Ideal for both supply and exhaust ventilation, the ST-100 adapts to diverse industrial and commercial settings, including factories, tunnels, shopping malls, and underground parking facilities, where air circulation and pressure boosting are critical.
Leveraging advanced impeller geometry and precision-engineered motor couplings, the fan maximizes airflow efficiency while minimizing power consumption, aligning with sustainable building practices and operational cost savings.
