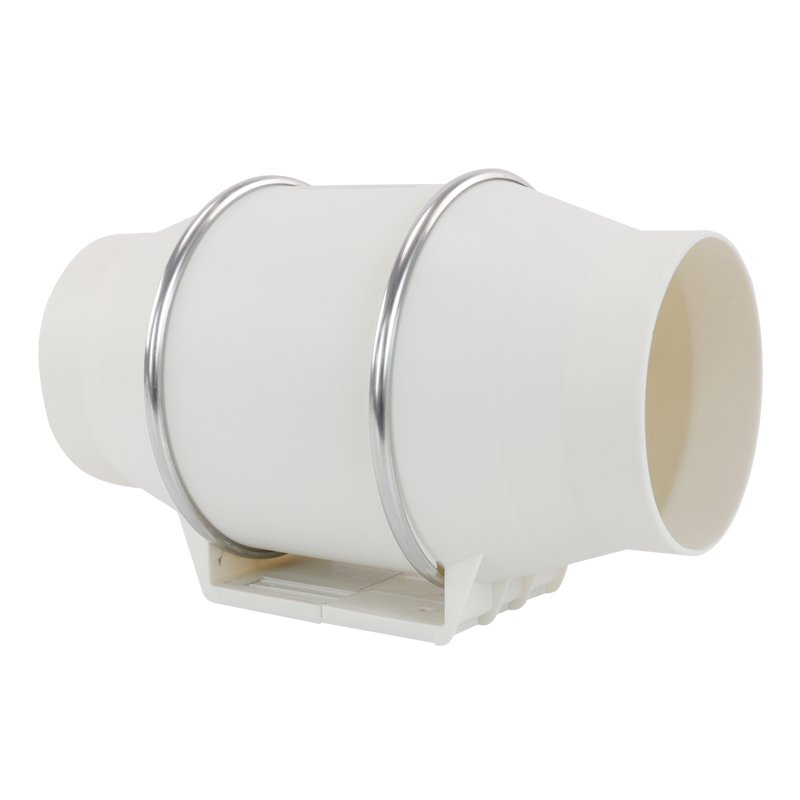

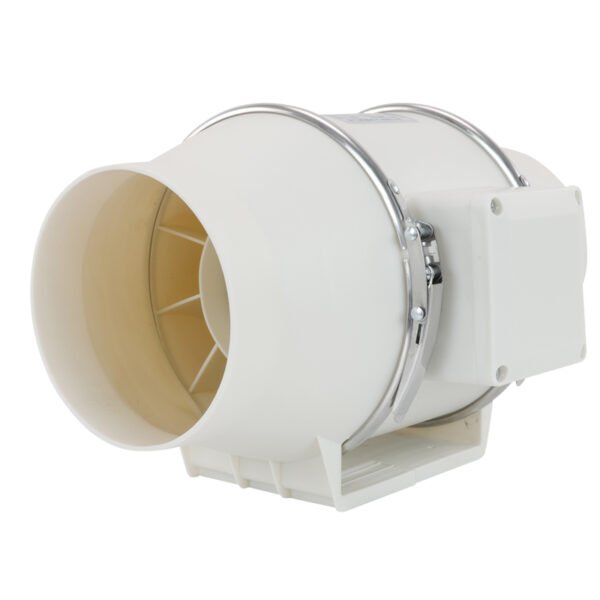

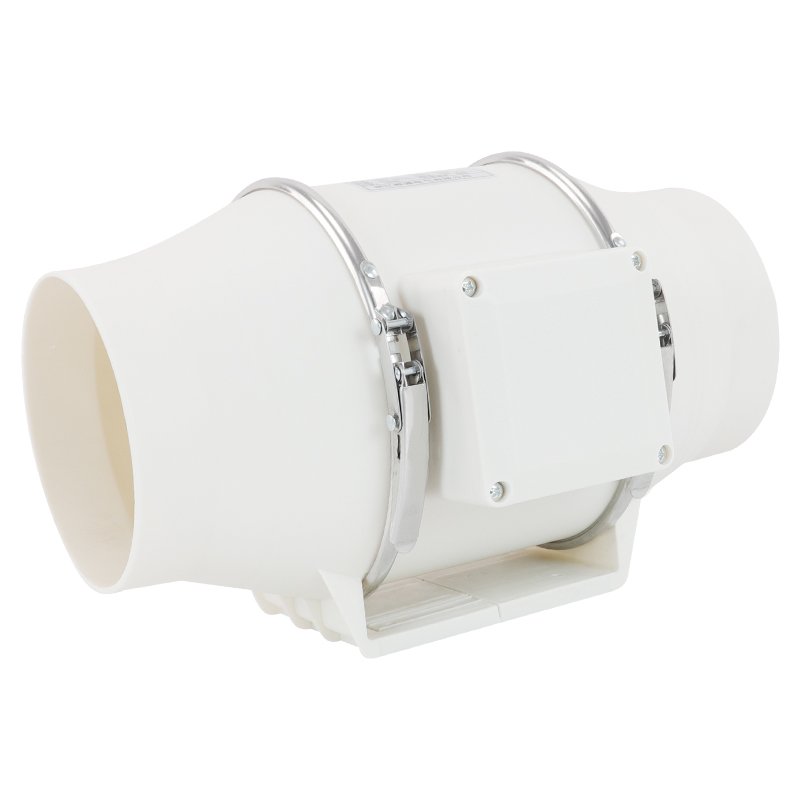

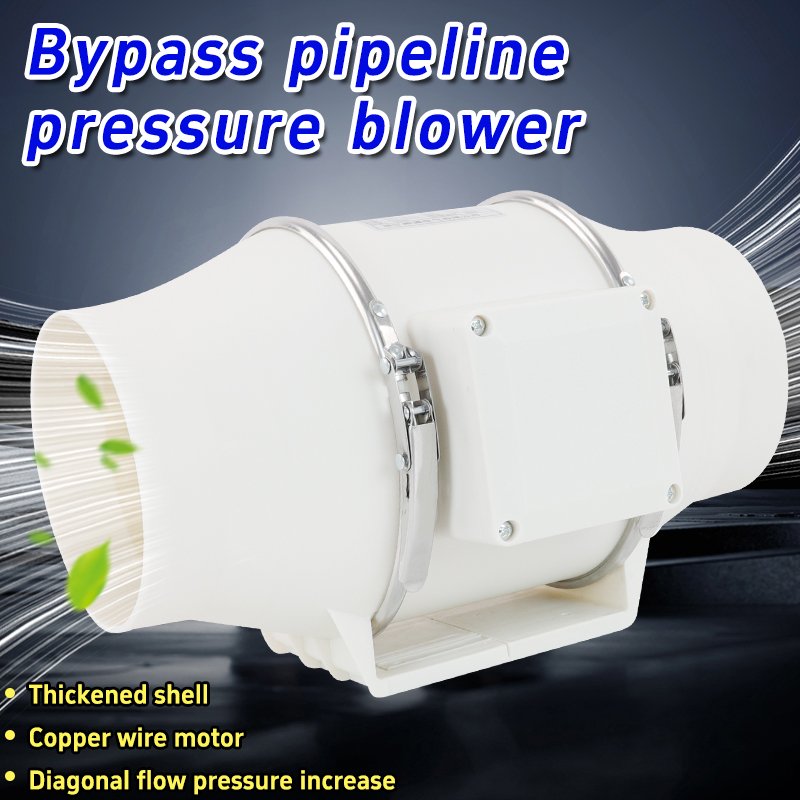

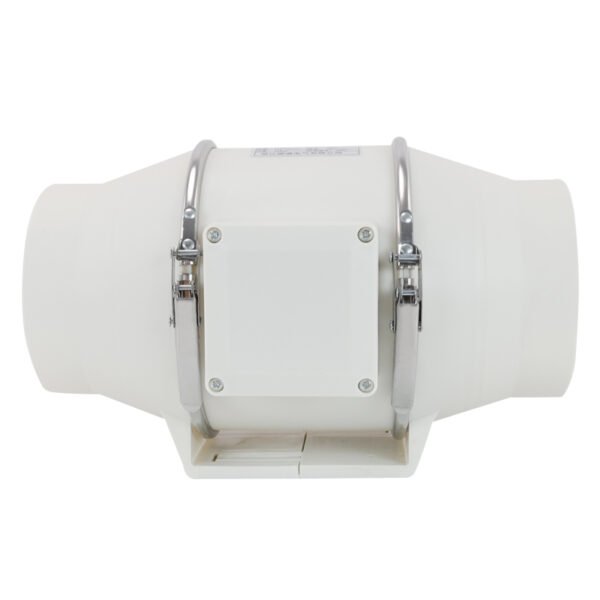

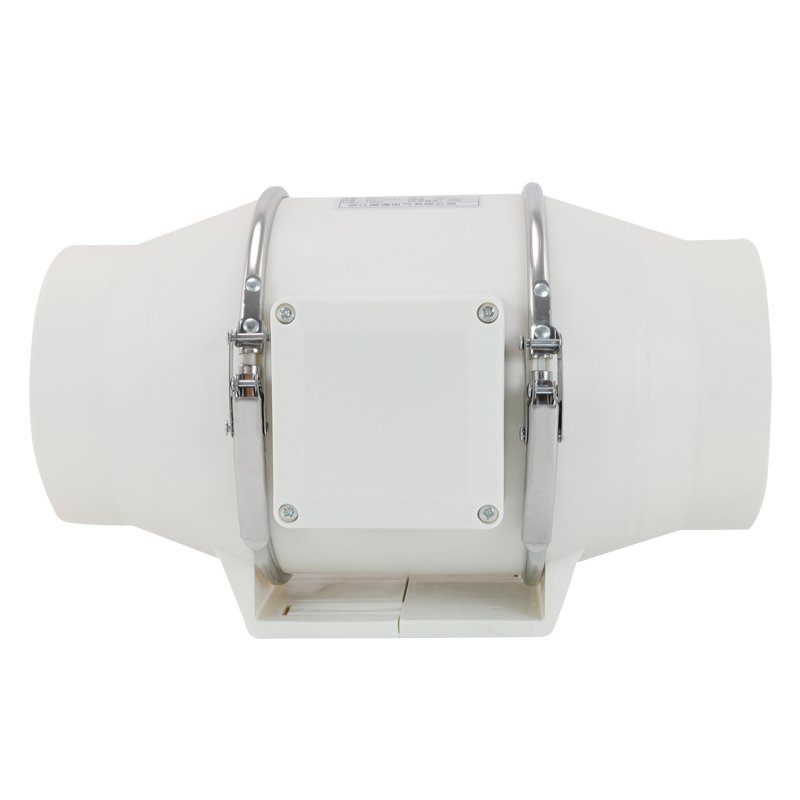

ST-125 Bypass pipeline pressure blower

The ST-125 Oblique-Flow Pipeline Booster Fan combines axial and centrifugal design principles, offering high-efficiency airflow with low noise. Ideal for ventilation systems requiring balanced pressure and volume, it ensures silent operation and durable performance in residential, commercial, or industrial environments.

Request a Quote

Description

Description

Product Introduction

The ST-125 diagonal flow duct booster fan is a cutting-edge solution designed to improve airflow efficiency in various ventilation systems. With its innovative diagonal flow (mixed flow) technology, it seamlessly combines the advantages of axial flow fans and centrifugal fans, providing balanced performance with high airflow and moderate pressure increase. This fan is very suitable for applications that require enhanced air circulation in pipeline environments, ensuring optimal ventilation while maintaining quiet operation. Its sturdy structure ensures durability and reliability in harsh environments.

Use

The ST-125 Bypass pipeline pressure bloweris designed for efficient air circulation and pressure enhancement in ducted systems. It excels in environments requiring balanced airflow and moderate pressure boosts, such as HVAC systems, industrial ventilation, and commercial building air distribution, ensuring optimal performance and reliability.

Parameter

Model	Configuratuin	Voltage （V)	Frequency（HZ)	Power (W)	Speed (r/min)	Static pressure (Pa)	Air volume (m³/h)	caliber (mm)
ST75	AC motor	220	50	40	2550	180	220	150
ST100H	AC motor	220	50	40	2550	180	220	150
ST100	AC motor	220	50	40	2500	260	310	150
ST125	AC motor	220	50	40	2500	260	310	150
ST150	AC motor	220	50	80	2500	300	540	150
ST160	AC motor	220	50	80	2500	300	540	150
ST200	AC motor	220	50	130	2500	360	1200	150
ST250	AC motor	220	50	175	2500	420	1600	150
ST315	AC motor	220	50	320	2500	450	2500	150
ST350	AC motor	220	50	500	2500	600	4000	150

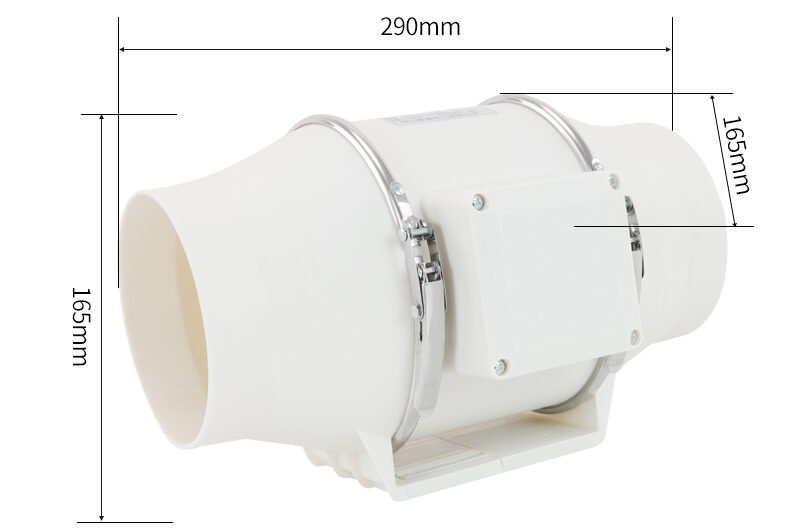

Dimension

Product installation and instructions

Combines axial and centrifugal flow principles, offering balanced airflow volume and static pressure capabilities. This design ensures efficient ventilation in scenarios requiring moderate pressure and flow rates, bridging the gap between axial and centrifugal fans.
Features a robust yet lightweight shell, often crafted from high-grade plastics or corrosion-resistant metals. The compact form factor simplifies installation in tight spaces, such as ductwork or confined mechanical rooms.
Engineered with noise-reduction technologies, including optimized blade profiles and vibration-dampening materials. This minimizes operational disruption, making it suitable for residential, commercial, or noise-sensitive environments.
Utilizes advanced motor designs and aerodynamic efficiency to reduce power consumption while maintaining consistent airflow. This contributes to lower long-term energy costs and environmental impact.
Equipped with quick-release mechanisms and standardized mounting interfaces, enabling hassle-free setup and disassembly. The design also facilitates routine cleaning or component replacement without specialized tools.

Note:These features collectively highlight the ST-125’s emphasis on efficiency, durability, and user-friendly design, positioning it as a versatile solution for modern ventilation needs.

Constructed from high-quality materials, such as galvanized steel or reinforced polymers, to withstand harsh environmental conditions, including humidity, temperature fluctuations, and airborne contaminants.
Suitable for a wide array of ventilation systems, including HVAC ductwork, exhaust systems, and pressurization applications. Its adaptability makes it ideal for residential, industrial, or commercial buildings requiring reliable air circulation.
