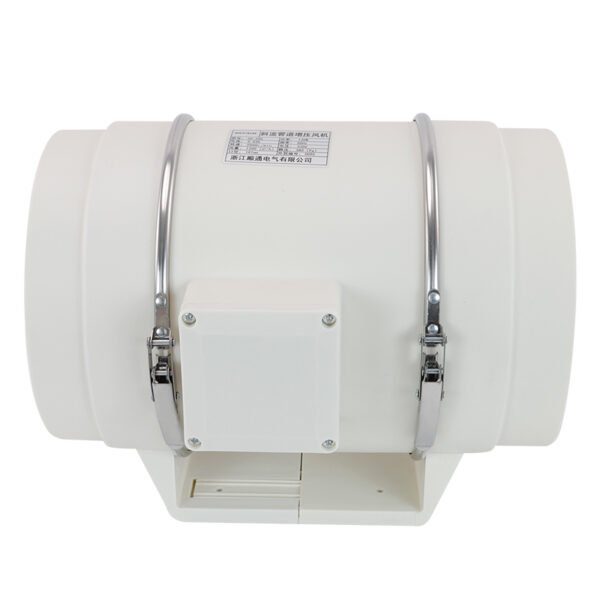

ST-200 diagonal flow pipeline booster fan

The ST-200 diagonal flow pipeline booster fan features a high-efficiency diagonal airflow design, enhancing ventilation in complex systems. With robust construction and optimized aerodynamics, it ensures stable airflow, reduces hotspots, and improves overall system reliability in industrial or server environments.

Get A Quote

Description

Product Introduction

The ST-200 diagonal flow pipeline booster fan is a high-performance axial fan designed for industrial ventilation and cooling applications. Featuring a diagonal airflow design, it enhances air pressure and flow efficiency in pipelines. With a robust motor and aerodynamic blades, it delivers strong airflow while maintaining low noise levels. Ideal for factories, warehouses, and commercial spaces, the ST-200 ensures optimal air circulation and heat dissipation, improving system reliability and energy efficiency.



Use

The ST-200 diagonal – flow pipeline booster fan is designed for efficient air movement in various settings. It is simple to install within piping systems, offering a straightforward setup process. This fan is well – suited for environments where a reliable boost in airflow is required, such as commercial ventilation ducts, industrial exhaust systems, and large – scale building air circulation networks, ensuring optimal air distribution.

Parameter

Model Configuratuin Voltage     （V) Frequency（HZ) Power         (W) Speed       (r/min) Static pressure      (Pa) Air volume (m³/h) caliber (mm)
ST75 AC motor 220 50 40 2550 180 220 150
ST100H AC motor 220 50 40 2550 180 220 150
ST100 AC motor 220 50 40 2500 260 310 150
ST125 AC motor 220 50 40 2500 260 310 150
ST150 AC motor 220 50 80 2500 300 540 150
ST160 AC motor 220 50 80 2500 300 540 150
ST200 AC motor 220 50 130 2500 360 1200 150
ST250 AC motor 220 50 175 2500 420 1600 150
ST315 AC motor 220 50 320 2500 450 2500 150
ST350 AC motor 220 50 500 2500 600 4000 150



Dimension

7286c8f2c26151dcaa851c3c47cf309

Product installation and instructions

  1. The ST-200 adopts a diagonal flow structure, optimizing airflow efficiency while minimizing spatial footprint, making it ideal for confined installations in industrial or commercial settings.
  2. Its unique diagonal blades generate a spiral airflow pattern, ensuring uniform ventilation across large areas without dead zones, suitable for warehouses or workshops.
  3. Engineered with aerodynamic blade profiles and vibration-damping materials, the fan operates silently, maintaining a peaceful environment in offices or residential spaces.
  4. The streamlined design reduces power consumption by minimizing airflow resistance, lowering operational costs without compromising airflow volume.
  5. Built with high-grade metal alloys and corrosion-resistant coatings, the fan withstands harsh conditions, ensuring longevity in factories or humid environments.
  6.  Equipped with adjustable brackets, it supports ceiling, wall, or duct-mounted installations, adapting seamlessly to diverse ventilation system layouts.
  7.  The diagonal blade angle prevents dust accumulation by promoting continuous airflow, reducing maintenance frequency and ensuring consistent performance over time.
Note:These features highlight the ST-200’s efficiency, durability, and adaptability for modern ventilation systems.
  1. Configurable for both positive pressure supply and negative pressure extraction, the ST-200 adapts to diverse ventilation needs, from air circulation to exhaust applications.
  2. Designed for extended temperature ranges the fan operates reliably in varying climates and industrial settings.

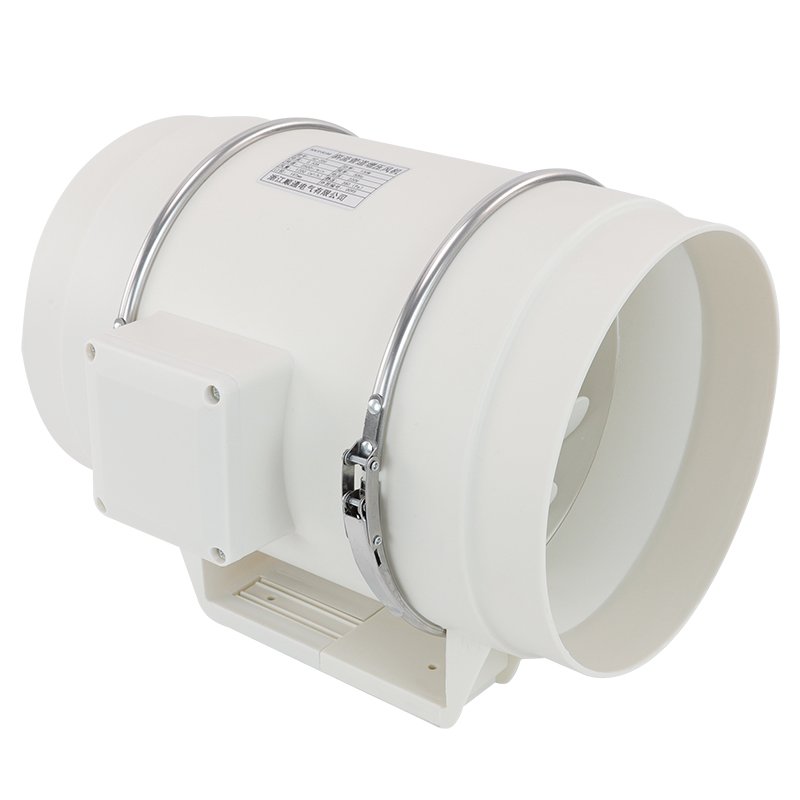

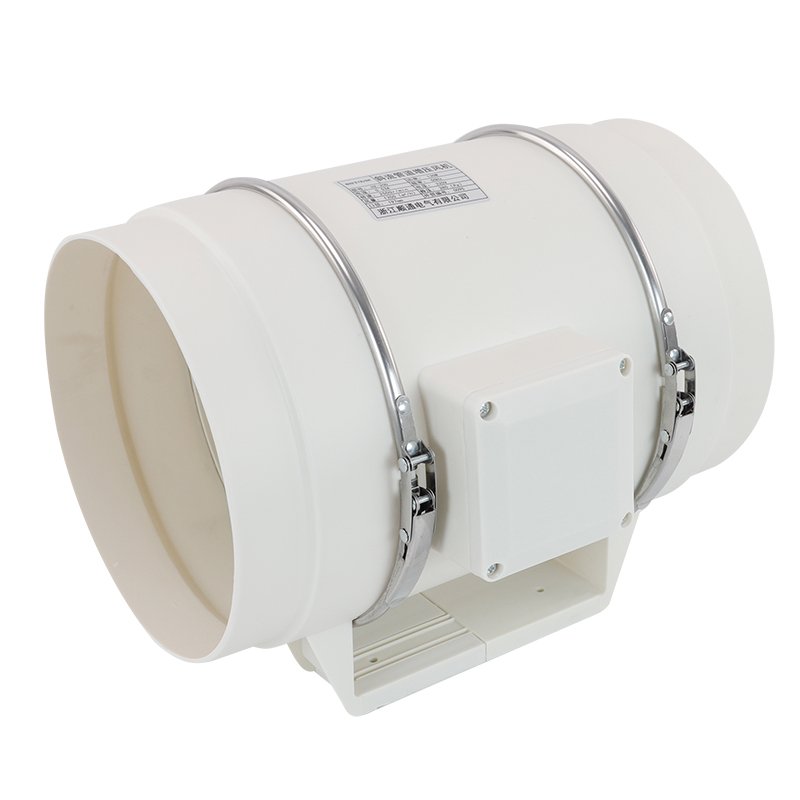

Product images

b18f56481cc022acdfe2ba4078a1b8531147bdeb00f93b2780c1b51bafecdc38dd641f036e1110bc80e8cfad6db1ee17e5066ffabe40f8a8b9b762aaaee17bc9e4e620e10672fd29fd20e71f31ea5077232d42cde90e8da9e3d1184a8e
