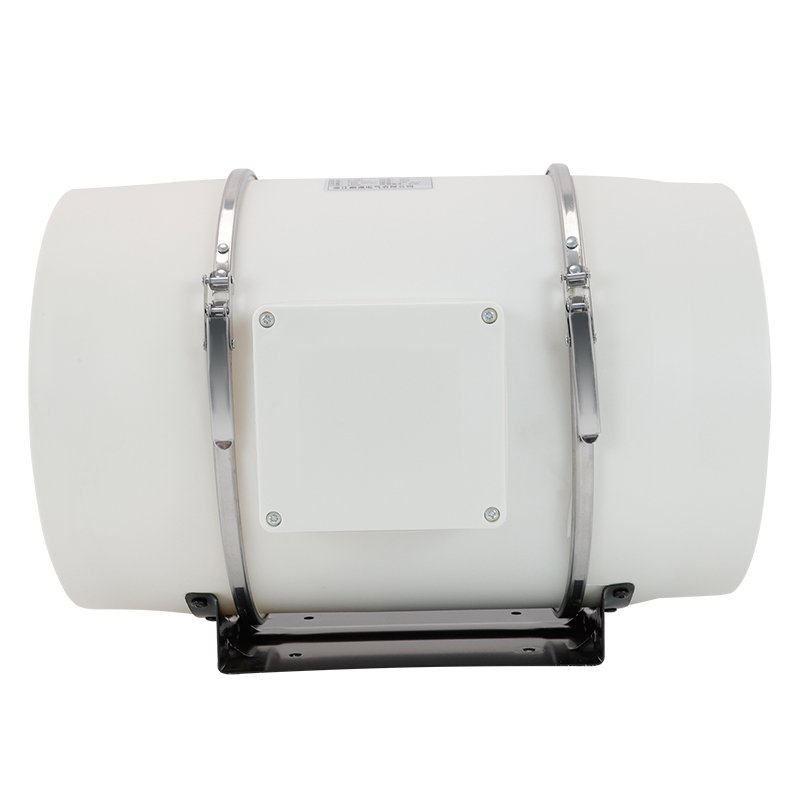

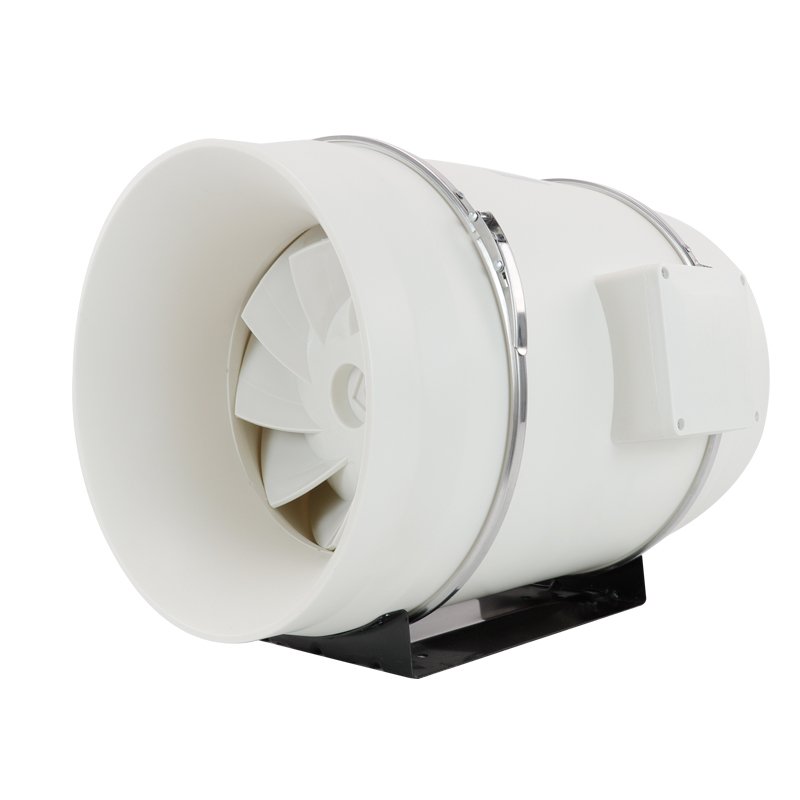

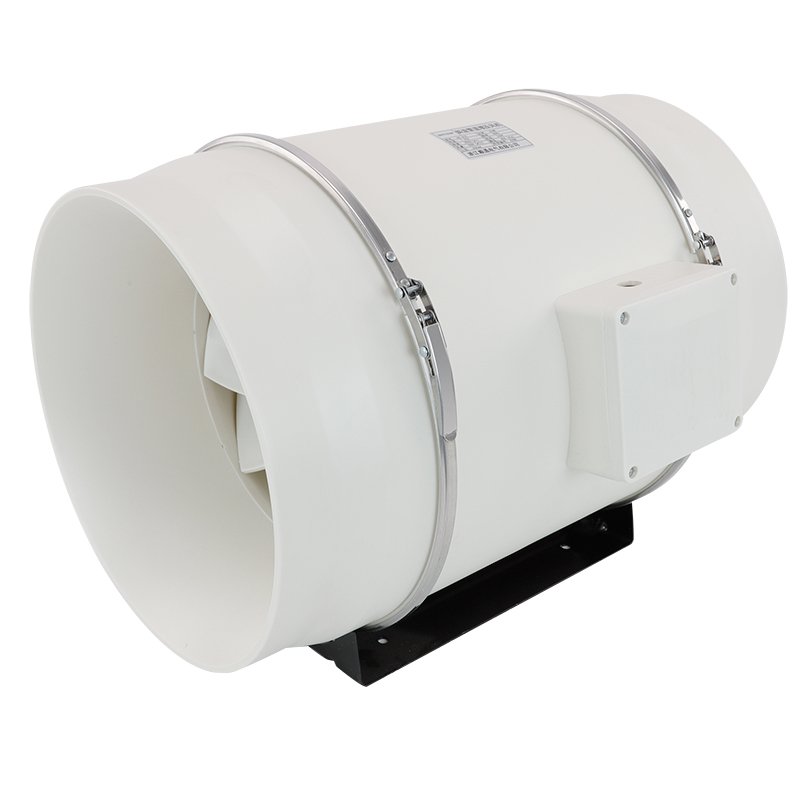

ST-315 oblique flow bypass pipeline pressure blower

The ST-315 Oblique Flow Bypass Pipeline Pressure Blower integrates advanced oblique-flow impeller design, optimizing airflow direction between axial and radial paths. This hybrid structure ensures efficient pressure generation while maintaining low noise levels, making it ideal for industrial ventilation and pipeline pressure boosting systems.

Request a Quote

Description

Description

Product Introduction

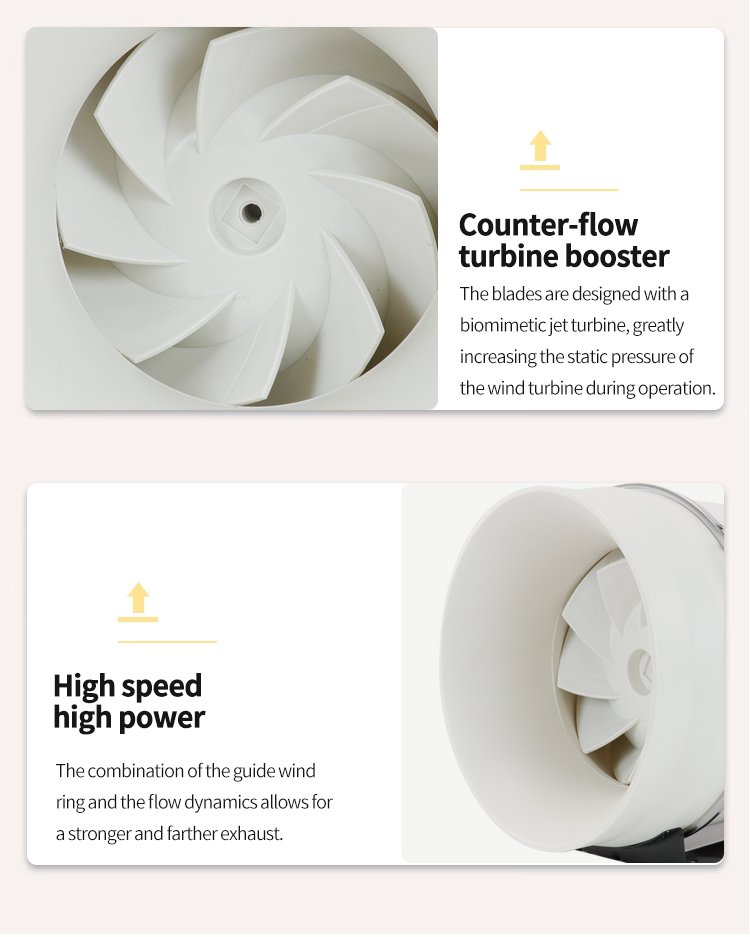

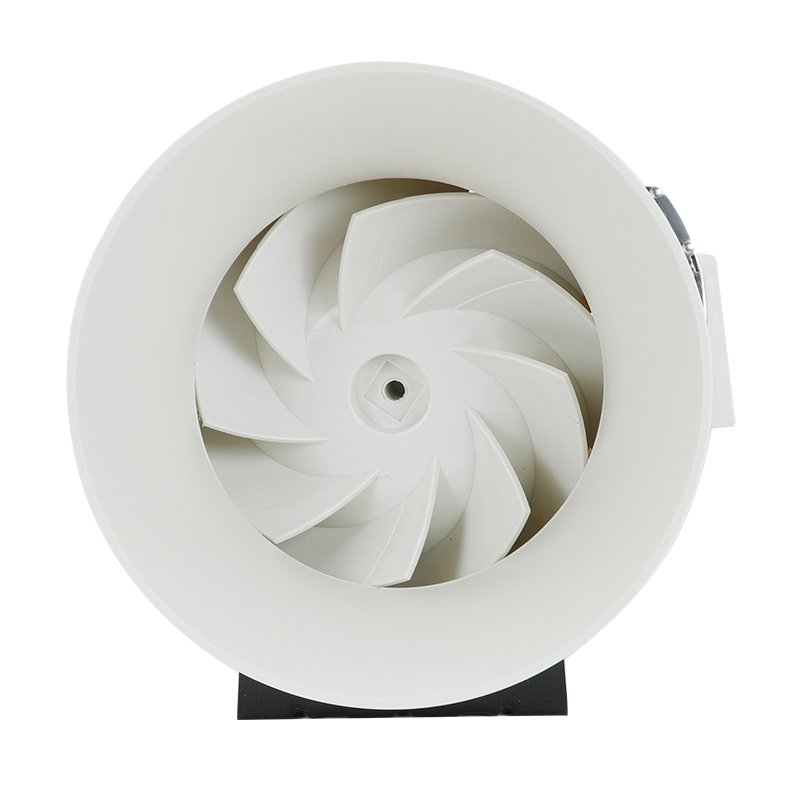

The ST-315 Oblique Flow Bypass Pipeline Pressure Blower integrates advanced mixed-flow technology, combining axial and radial airflow paths for balanced pressure and airflow optimization. Its precision-engineered impeller minimizes turbulence, ensuring quiet operation while maintaining high efficiency. Designed for industrial ventilation and bypass systems, it features a compact, corrosion-resistant structure with a streamlined airflow channel, enabling seamless integration into complex pipeline networks while delivering stable pressure output.

Use

The ST-315 diagonal – flow pipeline booster fan is designed for efficient air movement in various settings. It is simple to install within piping systems, offering a straightforward setup process. This fan is well – suited for environments where a reliable boost in airflow is required, such as commercial ventilation ducts, industrial exhaust systems, and large – scale building air circulation networks, ensuring optimal air distribution.

Parameter

Model	Configuratuin	Voltage （V)	Frequency（HZ)	Power (W)	Speed (r/min)	Static pressure (Pa)	Air volume (m³/h)	caliber (mm)
ST75	AC motor	220	50	40	2550	180	220	150
ST100H	AC motor	220	50	40	2550	180	220	150
ST100	AC motor	220	50	40	2500	260	310	150
ST125	AC motor	220	50	40	2500	260	310	150
ST150	AC motor	220	50	80	2500	300	540	150
ST160	AC motor	220	50	80	2500	300	540	150
ST200	AC motor	220	50	130	2500	360	1200	150
ST250	AC motor	220	50	175	2500	420	1600	150
ST315	AC motor	220	50	320	2500	450	2500	150
ST350	AC motor	220	50	500	2500	600	4000	150

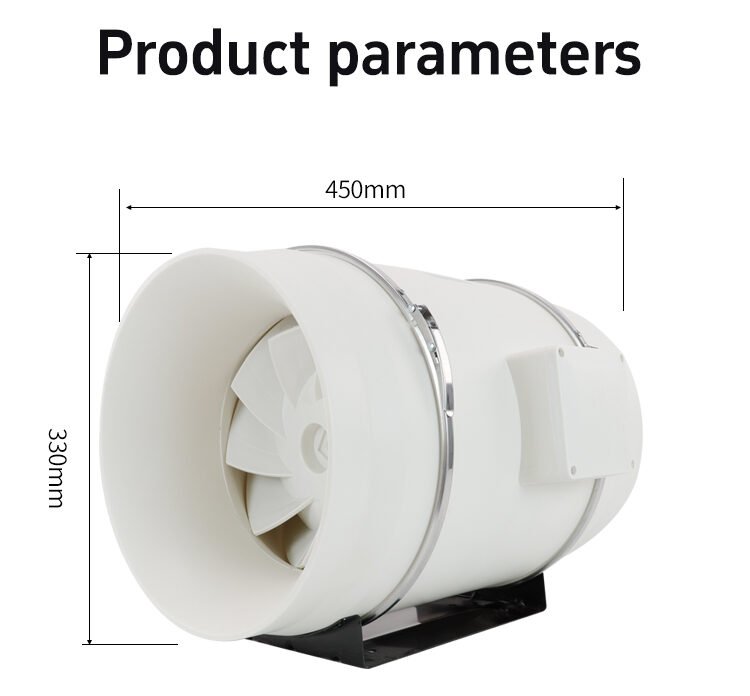

Dimension

Product installation and instructions

High-efficiency oblique flow design ensures optimal airflow performance, minimizing energy consumption while maintaining powerful pressure generation.
Robust construction with corrosion-resistant materials guarantees long-term durability in harsh industrial environments.
Compact structure enables easy installation and integration into existing pipeline systems with minimal space requirements.
Low-noise operation reduces workplace disruption, enhancing user comfort without compromising performance.
Advanced sealing technology prevents air leakage, ensuring stable pressure output and reliable operation.

Note:These features highlight the ST-315’s efficiency, durability, and adaptability for modern ventilation systems.

ST-315 can adapt to various ventilation needs from air circulation to exhaust applications.
This fan is designed to expand the temperature range and can operate reliably in various climates and industrial environments.
