Description
The ST-YYD1.8/5.3-14 mobile smoke extractor, with its 1.8kW motor and DC48V power, boasts a high exhaust volume. Its large 67Ah battery ensures stable, long-lasting operation. Featuring a rust-proof shell, thick turbine blades, and a sturdy steel frame, it is durable and highly mobile. The reasonable design allows for easy angle adjustment, making it an ideal solution for efficient smoke extraction in various situations.
Application environment
The ST-YYD1.8/5.3-14 mobile smoke extractor is suitable for a variety of environments. In storehouses and workshops, it can effectively remove smoke and maintain air quality. In offices and internet cafes, it ensures a comfortable atmosphere by clearing out any accumulated smoke. Additionally, in clubhouses, supermarkets, restaurants, and kitchens, this extractor provides efficient smoke evacuation, making it an ideal choice for diverse commercial settings.
Product parameters
| Product model | Voltage | Power （kW） | Rated battery capacity（Ah） | Exhaust volume（m³/h) | Fanspeed |
| ST-YYD1.8/5.3-14 | DC 48 V | 1.8 | 67 | 13822.4 | 3500±100 r/min |
| Charging time | Fan swing angle | Weight | Noise (A-weighted) | Continuous working time | |
| ≤2.5H | -20°~40° | 24.9 kg (Battery not included) | 103.1dB | 82min (Full speed), 256min (60% Speed) | |
Product Function
- The ST-YYD1.8/5.3-14 mobile smoke extractor features a strong wind output with low noise. Its high-efficiency turbine blade design ensures effective smoke extraction, making it ideal for various environments such as basements, restaurants, and offices.
- Equipped with a high-capacity battery, this smoke extractor offers stable and long-lasting performance. It can operate continuously for up to 256 minutes at 60% speed, ensuring reliable smoke clearance during extended use.
- Designed for mobility, this extractor is lightweight and easy to operate. Its sturdy steel frame and compact size allow for quick movement and deployment in different locations, including storehouses, workshops, and internet cafes.

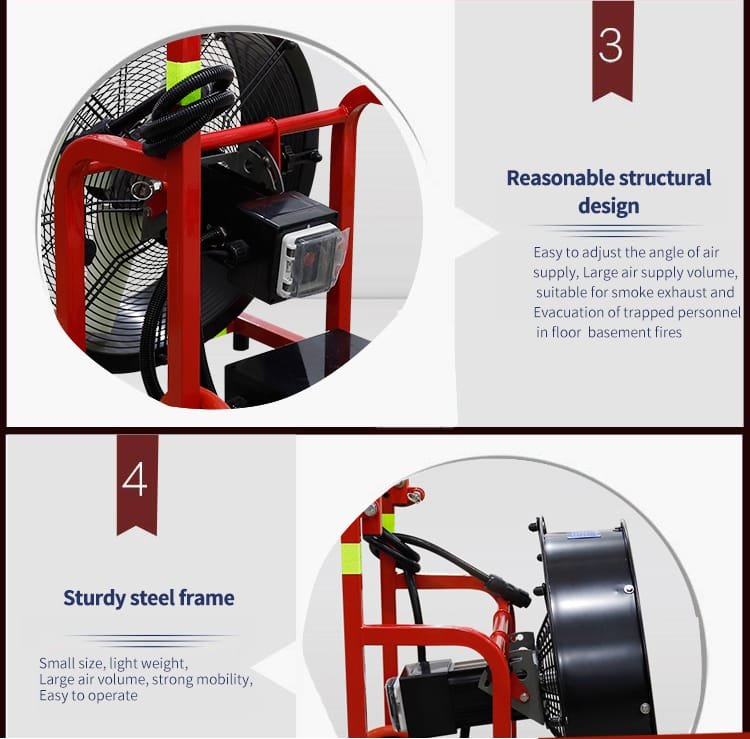

- The extractor allows for easy adjustment of the air supply angle, providing flexibility in directing airflow where it’s needed most. This feature is particularly useful in scenarios like floor basement fires, where targeted smoke extraction is crucial.
- With a thickened, rust-proof, and anticorrosive shell, this smoke extractor is built to withstand harsh conditions. Its robust design ensures longevity and consistent performance, even in challenging environments.
- Suitable for a wide range of applications, including clubhouses, supermarkets, restaurants, and kitchens, the ST-YYD1.8/5.3-14 mobile smoke extractor is a versatile solution for smoke management. Its strong wind output and adjustable settings make it an essential tool for maintaining air quality and safety.
Note：When using the ST-YYD1.8/5.3-14 mobile smoke extractor, ensure it’s placed on a stable surface. Regularly check the battery and charge as needed. Avoid blocking the fan inlet/outlet. Keep away from water to prevent damage.
Installation and Instructions
- Unpack carefully and check all parts against the manual to ensure nothing is missing before installation.
- Assemble the steel frame by firmly connecting the red support bars and tightening all bolts.
- Securely attach the turbine blade unit to the frame with fasteners for stable operation.
- Connect the battery pack to the main unit, matching voltage and polarity to avoid issues.
- Adjust the fan swing angle between -20° and 40° for optimal air direction.
- Inspect all connections and test the device at low speed to confirm proper function.

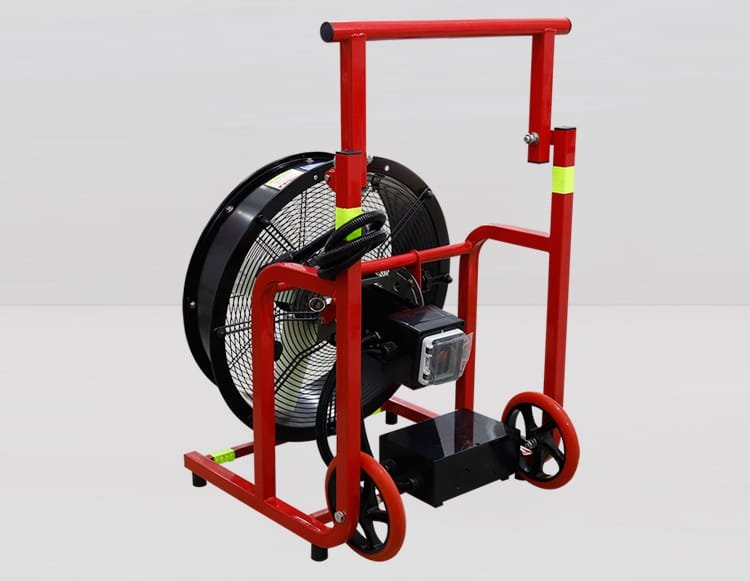

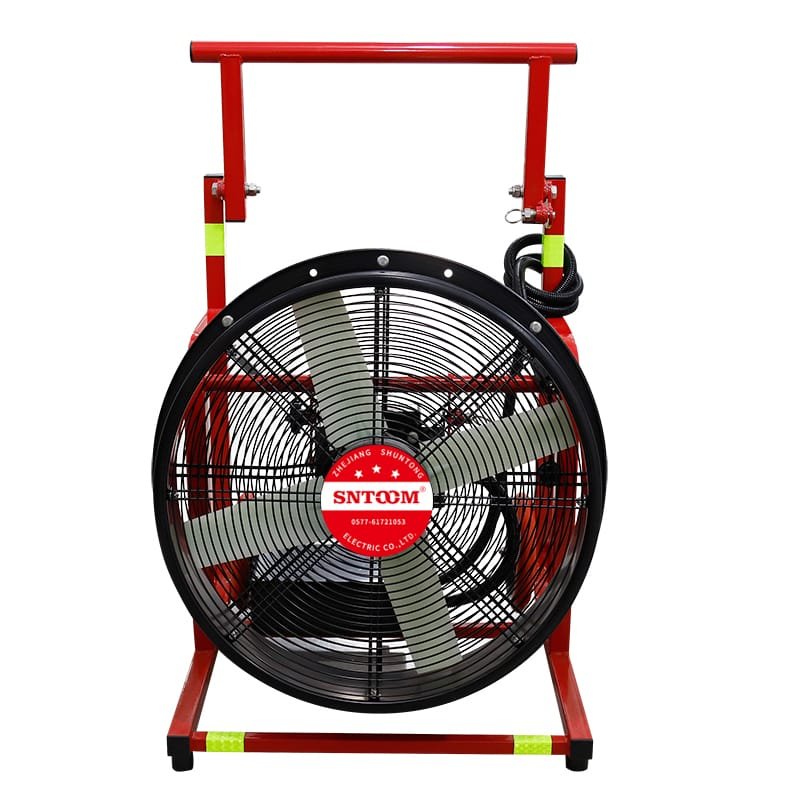

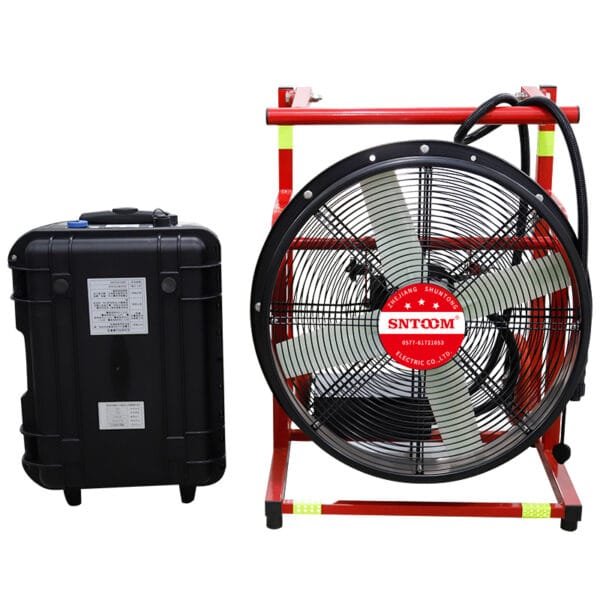

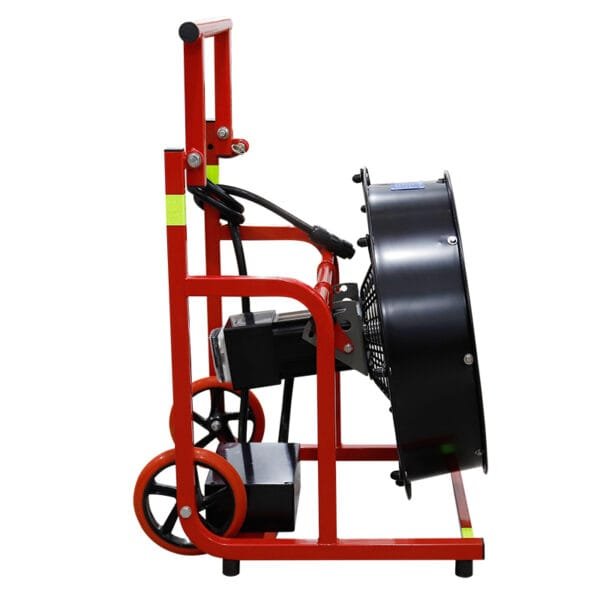

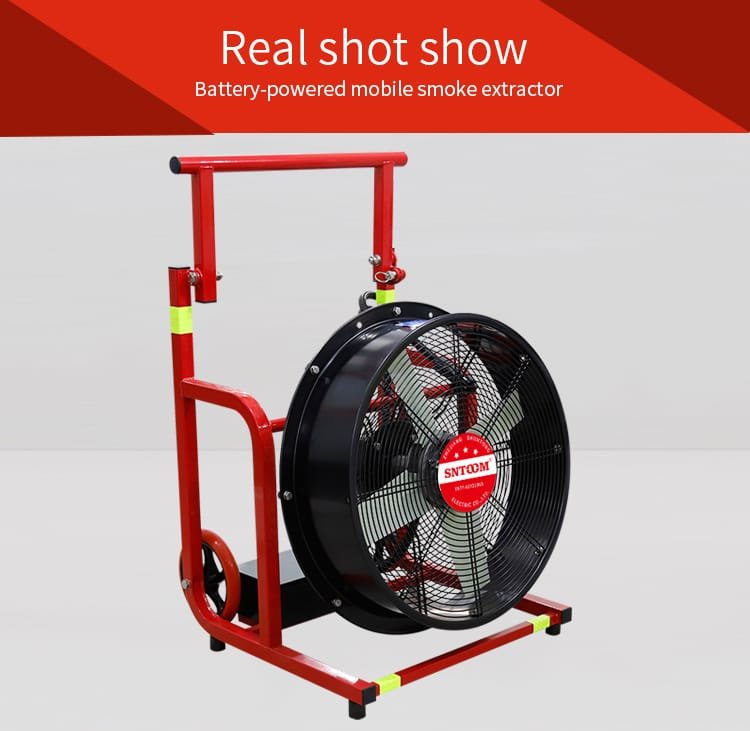

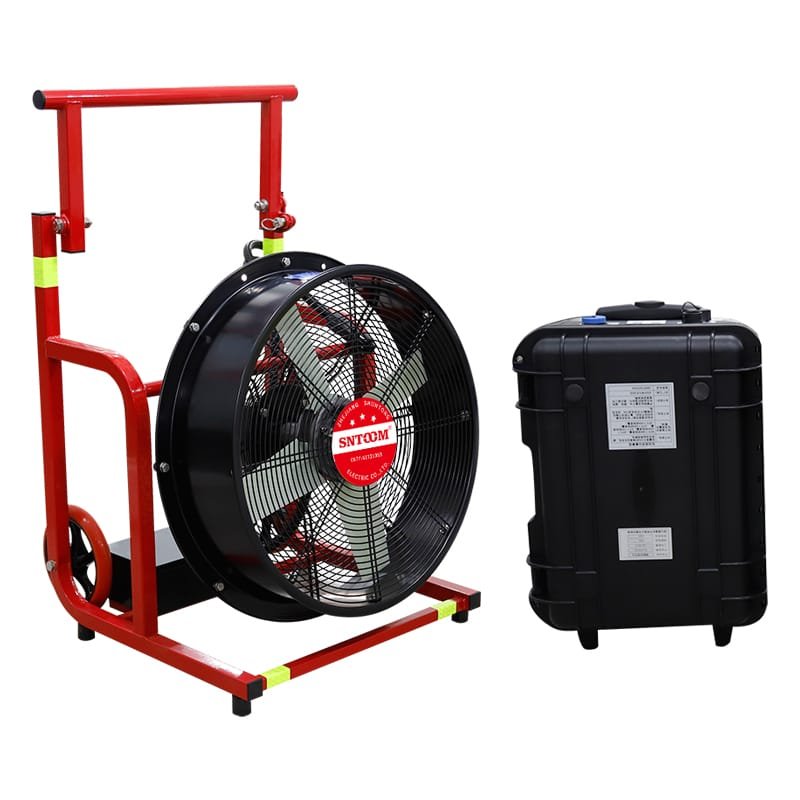

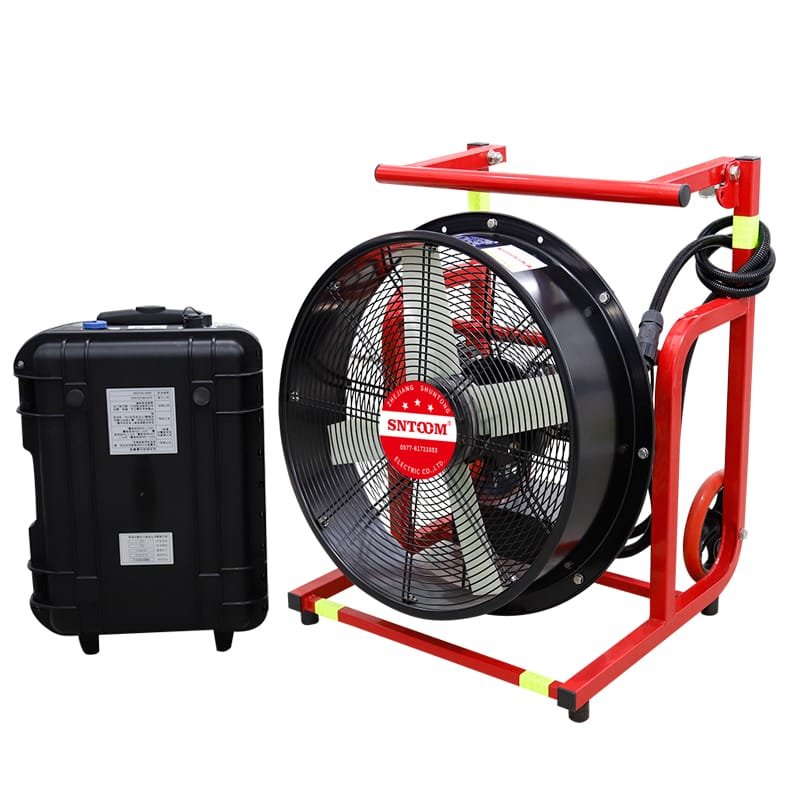

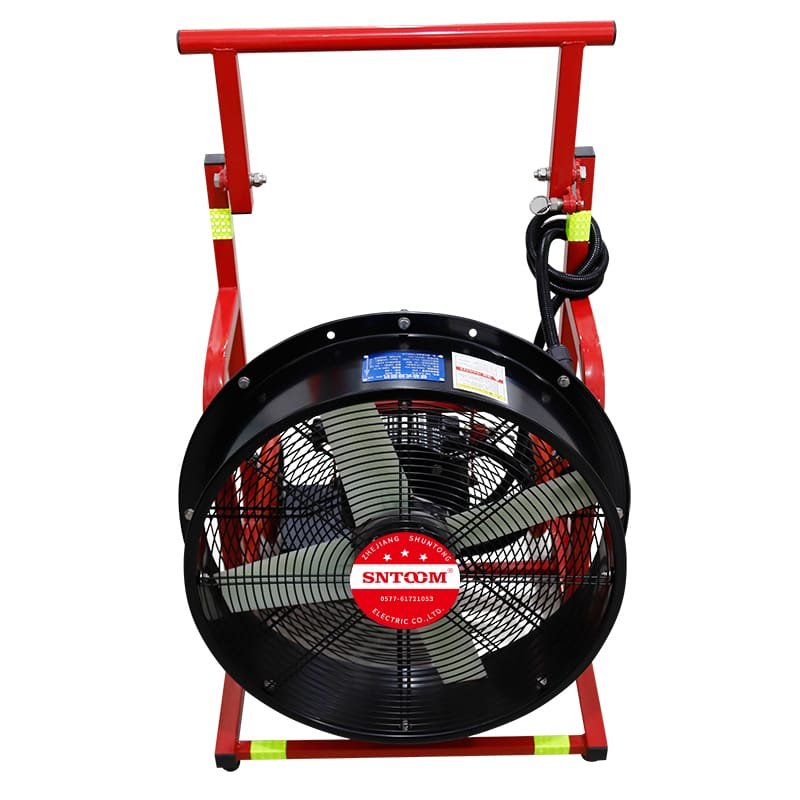

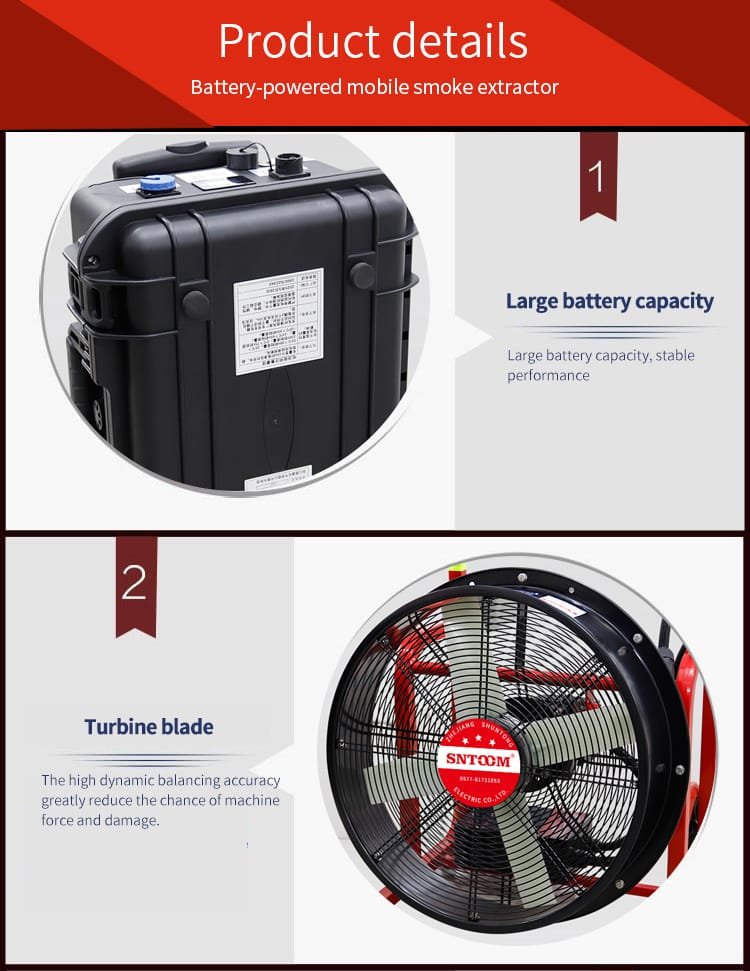

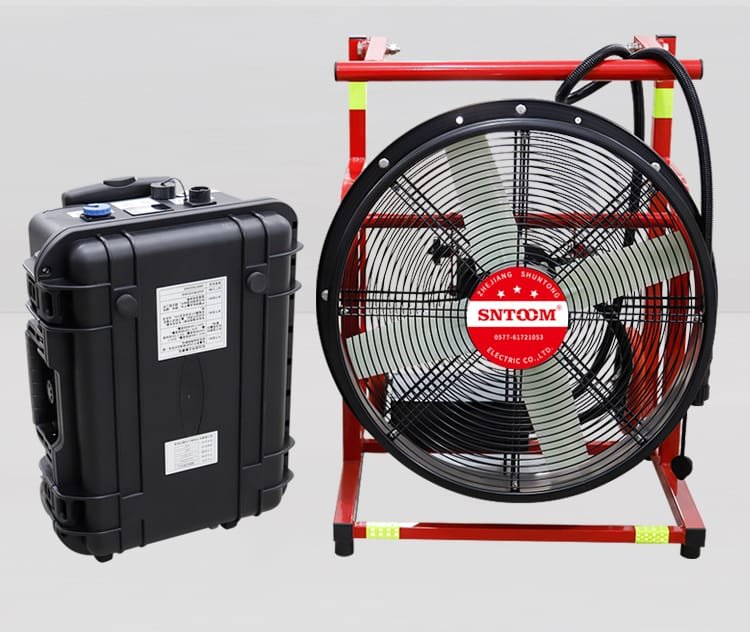

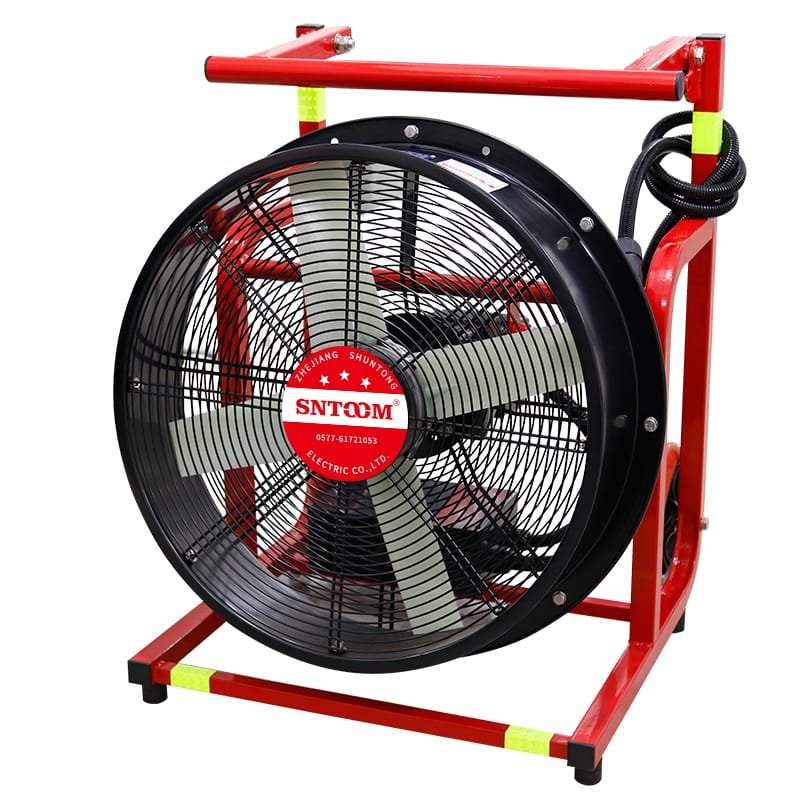

Product image
