In the world of industrial machinery, centrifugal blower fans play a crucial role in moving large volumes of air or gas with high efficiency. These powerful devices utilize the principles of centrifugal force to generate airflow, making them indispensable in a wide range of applications.
From ventilation systems to pneumatic conveying, centrifugal blower fans are designed to deliver consistent performance under demanding conditions. In this blog post, we will dive deep into the inner workings of these impressive machines, exploring their design, components, and operational principles.
What is Centrifugal Blower Fan

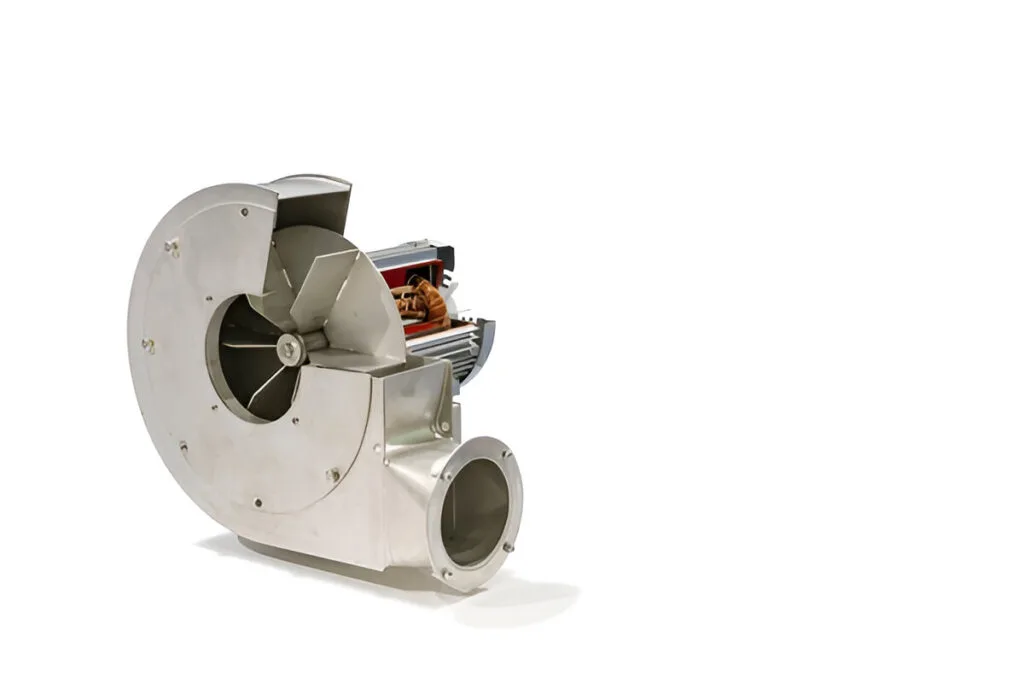

A centrifugal blower fan is a mechanical device designed to move large volumes of air or gas by utilizing the centrifugal force generated by a rotating impeller.
This type of industrial blower consists of a fan wheel with multiple blades mounted on a shaft that rotates within a spiral or circular housing, known as the fan casing or volute. As the impeller rotates at high speed, it draws air into the center of the fan wheel and accelerates it radially outward, creating a flow of air perpendicular to the shaft.
Centrifugal blower fans are capable of generating high pressures and are well-suited for applications requiring a wide range of airflow rates and pressure levels. They are commonly used in industrial processes, ventilation systems, air conditioning systems, and other applications where large volumes of air need to be moved efficiently.
How Centrifugal Blower Fans Work
Centrifugal blower fans operate on the principle of centrifugal force. As the impeller rotates within the fan housing, it draws air into the center of the fan wheel and accelerates it radially outward.
The high-velocity airflow is then directed into a spiral casing, known as the volute, which converts the kinetic energy of the airflow into static pressure. The volute’s increasing cross-sectional area allows for the gradual expansion and deceleration of the airflow, resulting in a high-pressure discharge.
Functions of Centrifugal Blower Fan
The primary function of centrifugal blower fans is generating high-pressure airflow by utilizing the centrifugal force created by the rotating impeller. This mechanical device is designed to move large volumes of air or gas efficiently, making it an essential component in various systems.
Types of Centrifugal Blower Fans
Centrifugal blower fans come in various types, each designed for specific applications and operating conditions. The main types include forward-curved fans, backward-curved fans, radial blade fans, mixed flow fans, and multi-stage blowers.
Forward-Curved Fans
Forward-curved fans, also known as squirrel cage blowers, feature blades that curve in the direction of rotation. This blade design allows for a high flow rate and produces a relatively low noise level compared to other types of centrifugal fans.
Forward-curved fans are compact and well-suited for moving large volumes of air at lower static pressures. They are commonly used in air conditioning systems, ventilation systems, and other applications where a high volume of air flow is required.
Backward-Curved Fans
Backward-curved fans have blades that curve against the direction of rotation. This design provides a more energy-efficient operation compared to forward-curved fans, as it reduces the flow separation and turbulence within the fan housing.
Backward-curved fans are capable of handling higher static pressures and are often used in industrial applications where energy efficiency is a priority. They are also known for their quiet operation and ability to maintain a constant volume of air flow over a wide range of conditions.
Radial Blade Fans
Radial blade fans, also called paddle wheel fans, have straight blades that extend radially from the center of rotation. These fans are designed for applications requiring high static pressure, such as dust collection systems, pneumatic conveying, and industrial exhaust systems.
Radial blade fans are robust and can handle airstreams containing particulates or contaminants. However, they are less energy-efficient compared to backward-curved fans and generate higher noise levels.
Mixed Flow Fans
Mixed flow fans combine the characteristics of both axial and centrifugal fans. They have a unique impeller design that allows the air to enter axially and exit in a direction between axial and radial.
Mixed flow fans provide a balance between static pressure and air flow, making them suitable for applications requiring medium to high pressures and flow rates. They are often used in air pollution control systems, cooling towers, and drying processes.
Multi-Stage Blowers
Multi-stage blowers consist of multiple impellers arranged in series, allowing for a higher pressure rise compared to single-stage blowers. Each stage increases the pressure of the air, enabling multi-stage blowers to achieve higher static pressures than single-stage centrifugal fans.
These blowers are utilized in applications demanding high-pressure air, such as wastewater treatment plants, pneumatic conveying systems, and industrial processes requiring compressed air.
Advantages of Centrifugal Blower Fans
High Static Pressure
The high static pressure is achieved through the fan’s unique design, which efficiently converts the rotational energy of the impeller into kinetic energy of the airflow.
Wide Range of Airflow Rates
Centrifugal blower fans are capable of handling a wide range of airflow rates, making them suitable for various industrial and commercial applications.
Energy Efficiency
Modern centrifugal blower fans are designed with energy efficiency in mind. The design of centrifugal blower fans contributes to reduced power consumption, resulting in lower operating costs and a smaller environmental footprint.
Durability in Harsh Environments
Centrifugal blower fans are built to withstand harsh industrial environments. They can handle high temperatures, dust, and other challenging conditions without compromising performance or reliability.
Low Noise Operation
Despite their high-performance capabilities, centrifugal blower fans can operate with relatively low noise levels.
Applications of Centrifugal Blower Fans
Air Pollution Control Systems
Centrifugal blower fans play a critical role in air pollution control systems, such as scrubbers, baghouses, and electrostatic precipitators. They provide the necessary airflow and pressure to move contaminated air through the filtration or treatment processes, ensuring efficient removal of pollutants and compliance with environmental regulations.
Heating, Ventilation, and Air Conditioning (HVAC)
Centrifugal blower fans are widely used in HVAC systems for buildings and industrial facilities. They are responsible for distributing conditioned air through ductwork, maintaining proper ventilation, and managing indoor air quality.
Drying and Cooling Processes
In various industrial processes, centrifugal blower fans are employed for drying and cooling purposes. They provide the necessary airflow to remove moisture from materials, such as in food processing, pharmaceutical manufacturing, and textile production. Additionally, they are used in heat exchangers and cooling towers to dissipate heat and maintain optimal operating temperatures.
Pneumatic Conveying Systems
Centrifugal blower fans are essential components in pneumatic conveying systems, which transport materials through pipes using airflow. They generate the high-velocity airstream needed to suspend and move particles, powders, or granular materials from one location to another. This application is common in industries such as chemical processing, agriculture, and waste management.
Industrial Exhaust and Ventilation
Centrifugal blower fans are used extensively in industrial exhaust and ventilation systems to remove harmful fumes, dust, and heat from workspaces. They help maintain a safe and healthy environment for workers by capturing and expelling contaminants, ensuring compliance with occupational health and safety regulations.
