The world of industrial machinery is constantly evolving, driven by the need for increased efficiency and cost-effectiveness. Ec centrifugal fans have emerged as a game-changer in this arena, offering a range of benefits that traditional fans simply cannot match.
In this blog post, we will dive deep into the world of ec centrifugal fans, exploring their working principles, key features, and the numerous advantages they bring to various industrial applications. We will also discuss the potential drawbacks of these fans and shed light on their diverse range of applications across industries.

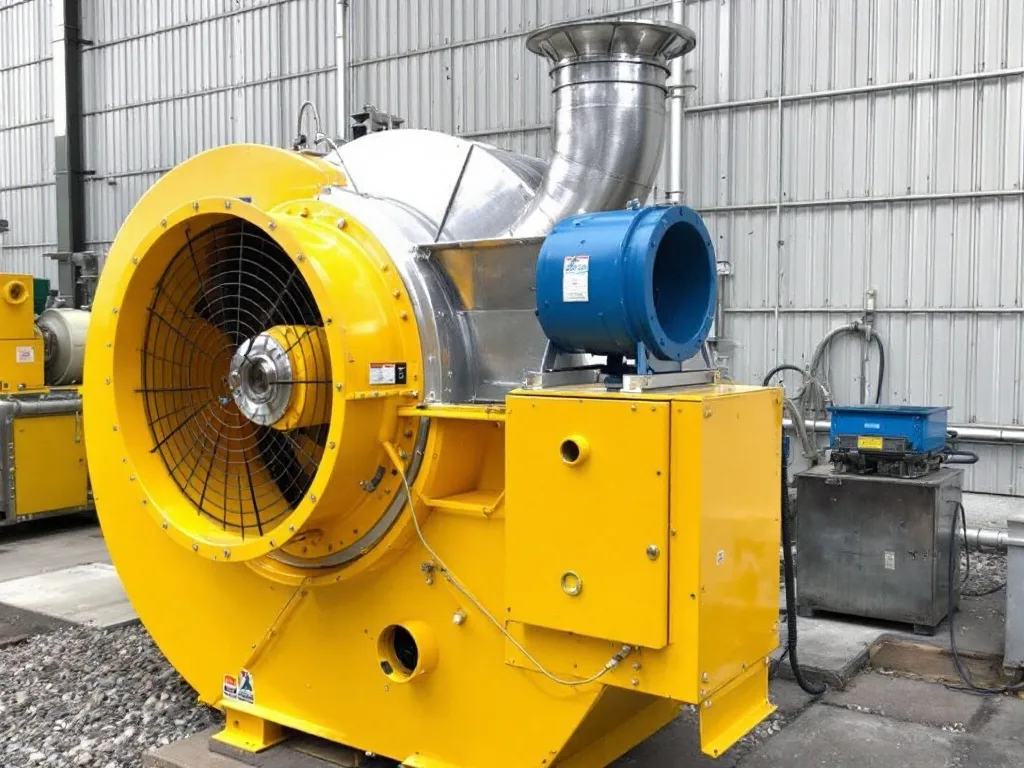

What Is an EC Centrifugal Fan
An EC centrifugal fan is a type of air-moving device that combines the efficiency of electronically commutated (EC) motors with the high-pressure capabilities of centrifugal fan design. EC centrifugal fans are used in various applications, such as HVAC systems, industrial processes, and ventilation equipment, where reliable and energy-efficient air movement is required.
How Do EC Centrifugal Fans Work
EC centrifugal fans operate by using an EC motor to drive a centrifugal impeller. The impeller, which consists of a series of blades arranged radially around a central hub, rotates at high speeds within a scroll-shaped housing. As the impeller spins, it draws air in through the inlet and accelerates it outward using centrifugal force.
The airflow is directed through the scroll housing, which gradually expands in cross-sectional area, allowing the air to decelerate and convert its kinetic energy into static pressure. This pressure buildup enables the fan to overcome resistance in the connected ductwork or system, effectively moving air from one location to another.
The EC motor, which powers the impeller, uses advanced electronic controls to provide precise speed regulation and high efficiency across a wide range of operating conditions. By adjusting the motor’s speed, the airflow and pressure generated by the fan can be easily controlled to meet the specific requirements of the application.
Features of EC Centrifugal Fans
Electronically Commutated Motor
EC centrifugal fans are equipped with electronically commutated motors, which offer several advantages over traditional AC or DC motors. EC motors use permanent magnets and electronic controls to provide brushless commutation, resulting in higher efficiency, longer lifespan, and precise speed control. The motor’s speed can be easily adjusted to optimize airflow and pressure, allowing for better system performance and energy savings.
Centrifugal Design
The centrifugal design of EC fans enables them to generate higher static pressures compared to axial fans. This makes them suitable for applications with higher resistance, such as long ductwork runs or systems with air filters. The scroll housing of the fan helps to convert the kinetic energy of the airflow into static pressure, allowing the fan to effectively overcome system resistance and maintain consistent airflow.
Compact Size
EC centrifugal fans are often designed with a compact footprint, making them ideal for space-constrained applications. The combination of an EC motor and centrifugal impeller allows for a smaller overall fan size compared to traditional belt-driven or direct-drive centrifugal fans. This compact design enables easier installation and integration into various systems, such as air handling units, rooftop units, and fan coil units.
Low Noise and Vibration
EC centrifugal fans are designed to operate with low noise and vibration levels, making them suitable for use in noise-sensitive environments, such as offices, hospitals, and schools. The EC motor’s precise speed control and the absence of mechanical commutation help to minimize vibration and ensure smooth operation. Additionally, the centrifugal impeller design and scroll housing contribute to reduced noise levels by efficiently managing airflow and minimizing turbulence.
Advantages of EC Centrifugal Fans
Energy Efficiency
One of the primary advantages of EC centrifugal fans is their exceptional energy efficiency. The electronically commutated (EC) motor technology employed in these fans enables them to consume significantly less power compared to traditional AC motor-driven fans. EC motors can operate at higher efficiency levels across a wide range of speeds, resulting in reduced energy consumption without compromising performance.
Cost Savings
The energy efficiency of EC centrifugal fans directly translates into cost savings for users. By consuming less power, these fans can significantly reduce electricity bills, particularly in large-scale industrial or commercial settings where multiple fans are in use. The long-term operational costs of EC centrifugal fans are considerably lower than those of traditional AC motor-driven fans.
Precise Control
EC centrifugal fans offer precise control capabilities, enabling users to fine-tune the fan’s performance to meet specific application requirements. The electronic control system of EC motors allows for accurate speed regulation, enabling the fan to maintain consistent airflow even under varying conditions.
Low Maintenance
EC centrifugal fans are designed for low maintenance, making them a convenient and cost-effective choice for various applications. The brushless design of EC motors eliminates the need for regular brush replacements, which are typically required in traditional AC motors. This reduction in maintenance requirements saves time and effort for users, as well as minimizes the associated costs.
Disadvantages of EC Centrifugal Fans
Higher Initial Cost
One of the main disadvantages of EC centrifugal fans is their higher initial cost compared to traditional AC motor-driven fans. The advanced technology and electronic components used in EC motors contribute to the increased upfront expense. This higher initial investment may be a barrier for some users, particularly those with limited budgets or short-term projects.
Limited Availability for High-Temperature Applications
EC centrifugal fans may have limitations in high-temperature applications. The electronic components and control systems used in EC motors are sensitive to extreme temperatures, which can affect their performance and reliability. In applications where the fan is exposed to high ambient temperatures or hot airstreams, traditional AC motor-driven fans may be more suitable.
Potential Electromagnetic Interference
The electronic control system of EC motors can generate electromagnetic interference (EMI) in some cases. This interference may affect the operation of nearby electronic devices or sensitive equipment.
Applications of EC Centrifugal Fans
HVAC Systems
EC centrifugal fans are widely used in heating, ventilation, and air conditioning (HVAC) systems. Their energy efficiency, precise control capabilities, and low noise operation make them ideal for use in residential, commercial, and industrial HVAC applications. EC centrifugal fans can be employed in air handling units, rooftop units, and ductwork to provide efficient and reliable ventilation and air circulation.
Clean Room Ventilation
Clean rooms and controlled environments require precise control over airflow and air quality. EC centrifugal fans are well-suited for clean room ventilation applications due to their ability to maintain consistent airflow and their low noise and vibration characteristics. The compact size and easy maintenance of EC centrifugal fans also make them a preferred choice for clean room installations where space is limited and downtime must be minimized.
Industrial Process Cooling
EC centrifugal fans are extensively used in industrial process cooling applications, such as cooling equipment, machinery, and production processes. The high efficiency and precise control of EC motors enable effective heat dissipation and temperature regulation in industrial settings. EC centrifugal fans can be integrated into cooling towers, heat exchangers, and other process cooling systems to ensure optimal performance and energy efficiency.
Data Center Cooling
Data centers require reliable and efficient cooling solutions to maintain optimal operating temperatures for servers and other IT equipment. EC centrifugal fans are increasingly being adopted in data center cooling systems due to their energy efficiency, precise control, and low maintenance requirements. These fans can be used in computer room air conditioning (CRAC) units, air handling units, and rack-level cooling solutions to ensure effective heat removal and temperature management.
