Blowers and centrifugal fans are both essential components in various industrial applications, playing crucial roles in moving air or gases. While these two devices may seem similar at first glance, they have distinct differences in their design, operation, and performance characteristics.
In this blog post, we will delve into the intricacies of blowers and centrifugal fans, exploring their working principles, key differences, and typical applications in industrial settings.
What Is Blower
A blower is a mechanical device designed to move volumes of air or gas for various industrial, commercial, and residential applications. Blowers are capable of generating high-pressure airflow and can operate against greater resistance compared to typical fans.
How Do Blowers Work
As the blades rotate, they generate a flow of air or gas, which is then directed through the blower housing and discharged at a higher pressure than the intake.
In centrifugal blowers, air enters the center of the impeller and is accelerated outward by the rotating blades. The air is then collected in a volute casing, where it is directed to the discharge outlet.
Axial blowers move air in a direction parallel to the axis of rotation. The blades in an axial blower are typically arranged in a cylindrical or tubular housing, and as they rotate, they draw air in from one end and discharge it at the other.
Positive displacement blowers, such as Roots blowers or rotary lobe blowers, work by trapping a fixed volume of air between two rotating elements (lobes or gears) and then forcing that air out of the discharge port.

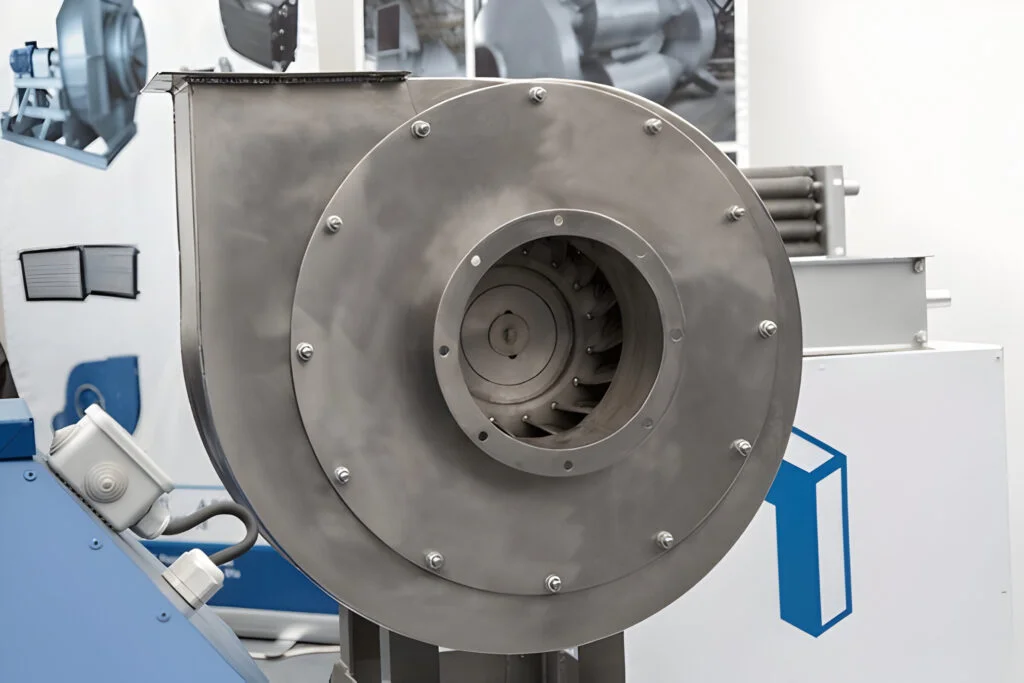

What Is Centrifugal Fan
A centrifugal fan is a mechanical device that utilizes rotating blades to move air or gases. Unlike axial blowers, which move air parallel to the shaft, centrifugal fans increase the air pressure by using the centrifugal force generated by the rotating impellers. This increase in pressure allows centrifugal fans to move air or gases through ducts, pipes, or other resistances.
Centrifugal fans come in different designs based on their blade shape and arrangement. The most common types include:
- Forward-curved blades: These blades are curved in the direction of rotation, allowing for high flow rates at lower pressures. They are often used in HVAC systems and air circulation applications.
- Backward-curved blades: These blades are curved against the direction of rotation, providing higher energy efficiency and lower noise levels. They are suitable for medium and high-pressure applications.
- Radial blades: These straight blades extend radially from the hub, making them ideal for handling dust-laden air or particles. Radial blade fans are commonly used in material handling and industrial processes.
How Do Centrifugal Fans Work
Centrifugal fans work by converting the rotational energy from an electric motor or other power source into kinetic energy in the form of airflow.
As the impeller rotates, it draws air into the fan through the inlet at the center of rotation. The air is then captured by the rotating blades and accelerated radially outward due to the centrifugal force. As the air moves from the center towards the periphery of the impeller, its velocity increases, creating a low-pressure area at the inlet and a high-pressure area near the blade tips.
The high-pressure air is then collected by the fan housing (volute) and directed towards the outlet. The shape of the volute helps to convert some of the kinetic energy into pressure energy, further increasing the air pressure. This higher-pressure air can then be discharged into ducts, pipes, or other connected systems to perform various tasks, such as ventilation, cooling, drying, or pneumatic conveying.
Key Differences Between Blowers and Centrifugal Fans
While blowers and centrifugal fans are both mechanical devices used to move air, they have several key differences in terms of their design, operation, and applications.
Airflow Direction
Blowers typically discharge air in a direction parallel to the axis of rotation, meaning the airflow is in line with the shaft of the electric motor or hydraulic motor powering the blower.
Centrifugal fans discharge air at a 90-degree angle from the intake. The air enters the fan housing near the center of rotation and is accelerated outward by the rotating blades, exiting the fan perpendicular to the axis of rotation.
Pressure Ratios
Blowers are designed to generate higher pressure ratios compared to centrifugal fans. Pressure ratio refers to the relationship between the discharge pressure and the inlet pressure of the air moving device.
Blowers can produce pressure ratios ranging from 1.1 to 1.2.
Centrifugal fans typically operate at lower pressure ratios, usually less than 1.1.
Efficiency
Generally, centrifugal fans are more energy-efficient than blowers when moving larger volumes of air at lower pressures. The blade design and shape of centrifugal fans, such as backward-curved or airfoil blades, help minimize energy losses and improve overall efficiency.
Blowers, particularly positive displacement types, may have lower energy efficiency due to the higher pressure ratios they generate. However, in applications where higher pressures are required, blowers can still be the most efficient choice compared to other air movement options.
Flow Rate and Pressure
Blowers are designed to deliver a relatively constant flow rate over a range of discharge pressures. As the pressure increases, the flow rate remains relatively stable until a certain point, after which it may start to decrease.
Centrifugal fans exhibit a more pronounced relationship between flow rate and pressure. As the pressure increases, the flow rate of a centrifugal fan decreases more rapidly compared to a blower. This means that centrifugal fans are better suited for applications where the system resistance is expected to remain relatively constant, while blowers can handle a wider range of pressure variations without significant changes in flow rate.
Noise Levels
In general, centrifugal fans tend to produce lower noise levels compared to blowers, particularly when operating at lower pressures.
Blowers, especially positive displacement types, can generate higher noise levels due to the pulsating nature of their operation and the higher pressures involved.
Applications of Blowers
Industrial Processes
Blowers are widely used in various industrial processes that require the movement of large volumes of air or gas. These applications often involve harsh environments and demand reliable, high-pressure airflow.
Wastewater Treatment
In wastewater treatment facilities, blowers play a vital role in the aeration process. Aeration is necessary to promote the growth of beneficial bacteria that break down organic matter in the water.
Air Knife Systems
Air knife systems utilize high-velocity, concentrated airflow to remove excess liquid, dust, or debris from surfaces. Blowers are the primary component in these systems, generating the powerful airflow needed for effective cleaning or drying.
Combustion Air Supply
Blowers are essential in providing combustion air for burners in industrial processes, such as boilers, furnaces, and kilns. The blower supplies a controlled flow of air to the combustion chamber, ensuring optimal fuel-to-air ratio for efficient and complete combustion.
Applications of Centrifugal Fans
Ventilation Systems
Centrifugal fans are widely used in ventilation systems for buildings, including residential, commercial, and industrial spaces. They are responsible for moving air through ductwork, providing fresh air, and removing stale or contaminated air.
Cooling and Air Conditioning
In cooling and air conditioning systems, centrifugal fans play a crucial role in distributing cooled air throughout the space. They are used in air handling units (AHUs) to circulate the conditioned air through the ductwork and into the desired areas.
Dust Collection and Air Filtration
Centrifugal fans are commonly employed in dust collection and air filtration systems to capture and remove airborne particles, fumes, or contaminants from industrial processes or workspaces. These systems typically consist of hoods, ductwork, filters, and a centrifugal fan that generates the necessary airflow to capture and transport the dust or contaminants.
Drying and Curing Applications
Centrifugal fans are used in various drying and curing applications, such as in the production of paper, textiles, and coated products. They provide the necessary airflow to remove moisture or solvents from the material being processed.
