Axial fans are a critical component in numerous industrial applications, playing a vital role in ventilation, cooling, and air circulation. These powerful devices are designed to move large volumes of air in a straight line, making them ideal for use in HVAC systems, industrial processes, and equipment cooling.

In this comprehensive guide, we will delve into the intricacies of axial fans, exploring their design, performance characteristics, and various applications.

What Are Axial Fans

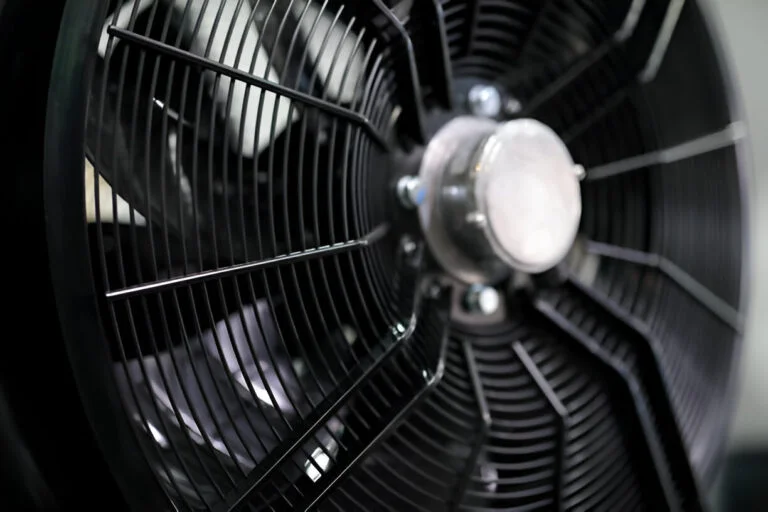

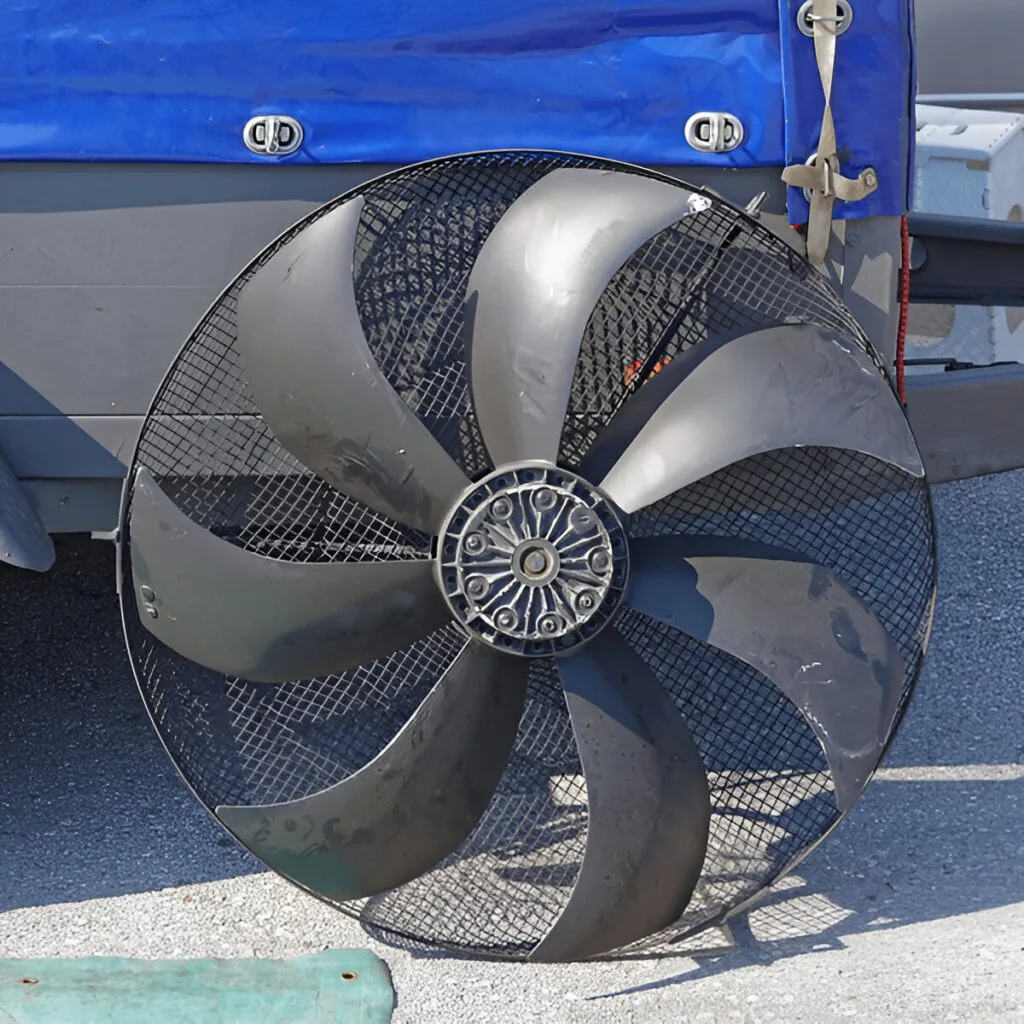

Axial fans are a type of fan designed to move large volumes of air in a straight line, parallel to the axis of rotation. Also known as propeller fans, axial fans consist of a central hub with blades attached, resembling an airplane propeller. The blades are typically mounted within a fan housing or shroud, which helps to direct the airflow.

How Axial Fans Work

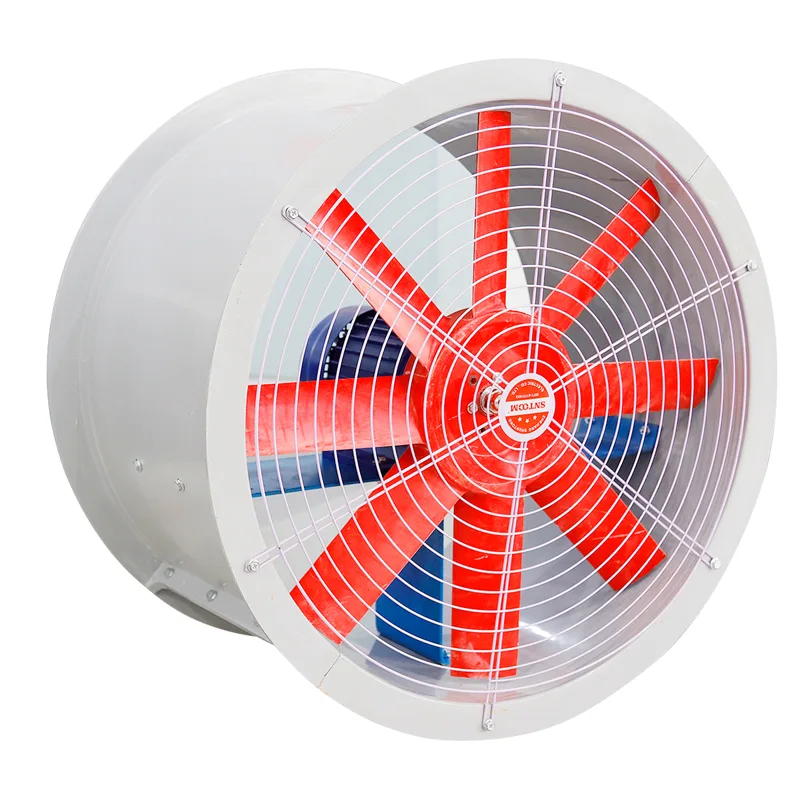

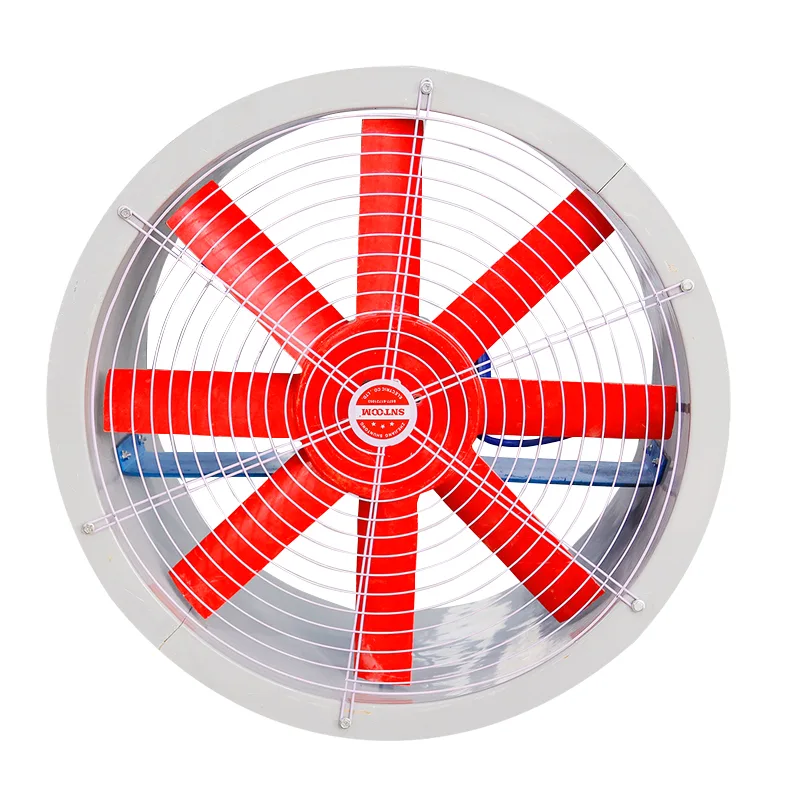

The working principle of FT35 series fiberglass axial fan is based on the aerodynamic design of the fan blades. As the blades rotate, they generate lift forces that push the air in a direction parallel to the fan’s axis of rotation. The shape and angle of the blades are critical factors in determining the fan’s performance, including airflow rates and static pressure.

When the motor powers the fan, the blades rotate, drawing air in from one side and exhausting it out the other. The airflow moves in a straight line, parallel to the fan’s axis, hence the name “axial fan.” The fan housing or shroud helps to guide the airflow and improve efficiency by reducing air leakage and turbulence.

Types of Axial Fans

Propeller Axial Fans

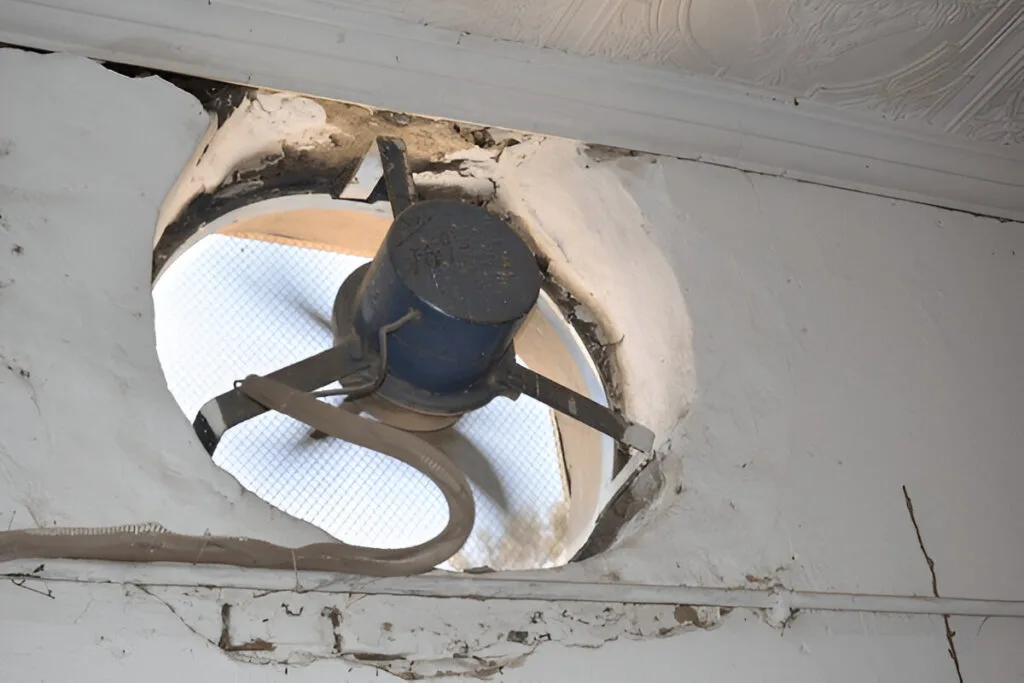

Propeller fans are the simplest type of axial fan, consisting of a propeller mounted inside a fan housing. The blades are designed to move a large volume of air at relatively low pressure, making them ideal for general ventilation and exhaust applications. Propeller fans often have an electric motor mounted directly to the fan hub, providing a compact and efficient design.

Tubeaxial Axial Fans

Tubeaxial fans are similar to propeller fans but are designed to move air through a duct or tube. These fans typically have a cylindrical housing that encloses the impeller, allowing for more efficient airflow and higher static pressure capabilities compared to propeller fans.

Vaneaxial Axial Fans

Vaneaxial fans, also known as tube axial fans with guide vanes, are designed to provide high-pressure airflow while maintaining the axial direction of the airflow. These fans include guide vanes located either upstream or downstream of the impeller, which help to straighten the airflow and increase pressure.

Components of Axial Fans

Axial fans are composed of several key components that work together to move large volumes of air efficiently.

Impeller or Blades

The impeller, also known as the blades, is the rotating component responsible for generating airflow. Axial fan blades are designed to move air in a direction parallel to the shaft, creating a high-volume, low-pressure airflow.

Common blade types used in axial fans include:

• Airfoil blades: Designed for high efficiency and low noise, ideal for HVAC and ventilation applications.
• Sickle-shaped blades: Provide excellent air-moving performance and are suitable for a wide range of industrial applications.
• Adjustable pitch blades: Allow for fine-tuning the fan’s performance to meet specific airflow requirements.

Hub

The hub is the central component that connects the blades to the shaft. It is designed to withstand the rotational forces generated by the fan and ensure stable operation.

Shaft

The shaft is the rotating element that transmits power from the motor to the impeller. It is typically made of high-strength materials, such as steel or stainless steel, to withstand the mechanical stresses generated during operation. The shaft is supported by bearings, which allow for smooth rotation and minimize vibration.

Motor

The motor is the power source that drives the axial fan. It converts electrical energy into mechanical energy, which is then transmitted to the impeller via the shaft. Axial fans can be powered by various types of motors, including AC induction motors, DC motors, and electronically commutated motors (ECMs).

Casing

The casing, also known as the housing, is the stationary component that encloses the impeller and motor. Its primary function is to direct the airflow and protect the internal components from damage.

Casings may also incorporate additional features, such as:

• Guide vanes: Improve airflow efficiency and reduce turbulence.
• Acoustic insulation: Reduces noise levels in noise-sensitive applications.
• Vibration dampeners: Minimize the transmission of vibrations to the surrounding structure.

Free Technical Guidance

Industrial Axial fans offer adjustable speeds to meet the ventilation needs of various industrial scenarios, creating a safe and comfortable work environment.

Click here to learn more!

Advantages of Axial Fans

High Airflow Rates

One of the primary advantages of axial fans is their ability to move large volumes of air efficiently. The airflow direction is parallel to the axis of rotation, allowing for high airflow rates.

Compact Design

Axial fans feature a simpler, more compact design compared to centrifugal blowers. The straightforward construction allows for easy installation in tight spaces, making them suitable for a wide range of applications.

Energy Efficiency

Axial fans are known for their energy efficiency, especially in low-pressure, high-volume applications. The aerodynamic design of the blades and the direct airflow path contribute to reduced power consumption.

Disadvantages of Axial Fans

Limited Pressure Development

One limitation of axial fans is their relatively low pressure development capabilities compared to centrifugal fans. While they excel at moving large volumes of air, axial fans are less suitable for applications requiring high static pressure.

Sensitivity to System Changes

Axial fans are more sensitive to changes in the system resistance than centrifugal fans. Variations in the system, such as altered ductwork or the accumulation of dirt and debris, can significantly impact the performance of an axial fan. This sensitivity necessitates careful system design and regular maintenance to ensure optimal operation.

Noise Generation

Axial fans can generate higher noise levels compared to centrifugal fans, particularly at high rotational speeds.

Unsteady Airflow

In certain operating conditions, axial fans may experience unsteady or unstable airflow. This can occur due to factors such as impeller stall, flow separation, or adverse interactions with the system. Unsteady airflow can lead to reduced performance, increased noise, and potential vibration issues.

Motor Cooling Challenges

The close proximity of the motor to the airstream in axial fans can pose challenges for motor cooling. In applications involving high-temperature air or the presence of contaminants, the motor may be subjected to additional heat and debris.

What Is the Purpose of Axial Fans

The primary purpose of axial fans is to generate a high volume of airflow in a specific direction, typically for ventilation, cooling, or exhaust applications. Some common uses of axial fans include:

1. HVAC Systems: Axial fans are used in air conditioning and ventilation systems to move large volumes of air through ductwork, helping to maintain a comfortable indoor environment.
2. Cooling Electronics: In electronic equipment, axial fans help to dissipate heat generated by components, preventing overheating and ensuring optimal performance. They are often used in computers, servers, and other electronic devices.
3. Industrial Ventilation: Many industrial processes require the removal of heat, fumes, or dust from the workspace. Axial fans are employed in exhaust systems to efficiently move air and maintain a safe working environment.
4. Agriculture and Greenhouses: Axial fans help to circulate air and regulate temperature and humidity levels in agricultural settings, promoting healthy plant growth.
5. Power Generation Facilities: In power plants, axial fans are used for cooling purposes, such as in heat exchangers and cooling towers.

Axial fans are well-suited for applications that require high airflow rates and low to moderate static pressure. They are often preferred over centrifugal fans in situations where space is limited, as they have a more compact design and can be easily installed in-line with ductwork. Additionally, axial fans generally operate at lower noise levels compared to centrifugal fans, making them ideal for noise-sensitive applications.
