Portable air cooler actually have been gaining more and more attention in the market in recent years. Especially in hot and dry environments, more and more businesses and wholesale buyers are looking for efficient cooling solutions. Portable air coolers are an ideal alternative to traditional air conditioners because of their economical, practical, and environmentally friendly features.
Wondering How Does a Portable Air Cooler Work? Discover the simple science behind air cooling in just 5 minutes, plus key features and buying tips for smarter choices. This article will take a deep look at how portable air coolers work, analyze their differences from traditional air conditioners, and help you better understand why they are becoming a new favorite in many commercial places.

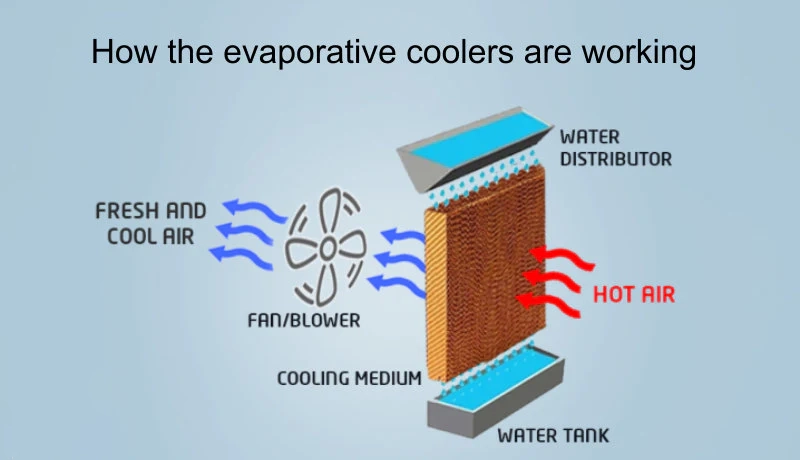

The Basic Science Behind Portable Air Cooler
What is evaporative cooling? The core principle of evaporative cooling is simple but highly effective. It cools the air by evaporating water, which removes heat from the air. When air passes through a moist medium, the water evaporates and absorbs heat, causing the air temperature to drop. This natural cooling method does not require a lot of electricity and does not release harmful gases.
Compared with traditional air conditioners, evaporative air coolers have a simpler structure and lower operating costs. Traditional air conditioners rely on compressors for cooling, which consumes a lot of energy and is complex to maintain. Portable air coolers are favored by more and more companies for their low energy consumption and ease of mobility.

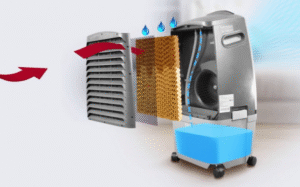

How Does a Portable Air Cooler Work?
Step 1: Warm air is drawn into the cooler.
The portable air cooler’s working principle is actually very simple: first draw the hot air from the room into the device via a built-in fan. The fan power ensures that the air flows smoothly, laying the foundation for subsequent cooling.
Step 2: Air passes through a cooling pad filled with water.
The drawn-in hot air then passes through a cooling pad that is fully soaked with water. These pads are usually made of honeycomb or fiber materials, which can maximize the contact area between water and air, thereby improving evaporation efficiency.
Step 3: The evaporation process reduces the air temperature.
As the hot air flows through the wet cooling pad, the water begins to evaporate. During the evaporation process, the water absorbs heat from the air, causing the air temperature to drop significantly. This physical process not only brings about a cooling effect but also moderately increases the humidity of the air, improving the dry environment.
Step 4: The fan sends the cooled fresh air into the room.
Finally, the cooled air is sent out by the fan directly into the indoor space. In this way, the room temperature is effectively lowered, and users can enjoy a continuous flow of cool air.

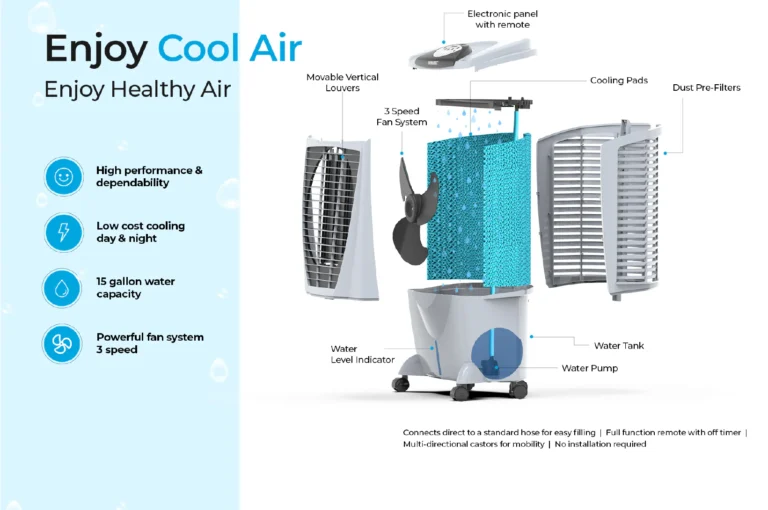

Key Components of a Portable Air Cooler
Water tank
The water tank is one of the core components of the cooler, which is used to store water required for the cooling process. The capacity of the water tank directly affects the operating time and cooling efficiency of the device. Some models have the water tank located at the bottom of the body, which is convenient for water filling and daily maintenance.
Cooling pads (honeycomb or fiber)
Cooling pads are usually made of honeycomb structures or fiber materials, such as wood fiber or cellulose. These pads can absorb a lot of water and provide a larger surface area for air to fully contact with water, thereby improving evaporation efficiency. Honeycomb cooling pads perform particularly well in high-temperature and low-humidity environments while also absorbing some noise and improving the user experience.
Fan and blower system
The fan is responsible for drawing hot air from the outside into the device and pushing the air through the wet cooling pad. After cooling, the fan then sends the cooled air into the room to achieve continuous cooling.
Control panel and smart functions
Modern portable air coolers are equipped with easy-to-operate control panels, and some products also support smart adjustment, timer switches, wind speed adjustment, and other functions so that users can flexibly control the operation of the device according to actual needs.
Ideal Conditions for Maximum Efficiency
Portable Air Cooler work best in hot, dry areas, such as parts of South America. These environments have lower humidity levels, making evaporative cooling more efficient and providing a more effective cooling effect.
When using evaporative coolers, it is important to maintain good ventilation. It is recommended to open windows appropriately to ensure air circulation, which helps to remove moisture from the room, prevent excessive humidity, and improve cooling efficiency.
Evaporative coolers work best in environments with a relative humidity of less than 40%, which is the optimal humidity range. When humidity rises above 70%, the cooling effect will drop significantly, so it is not recommended to use them in high-humidity environments.

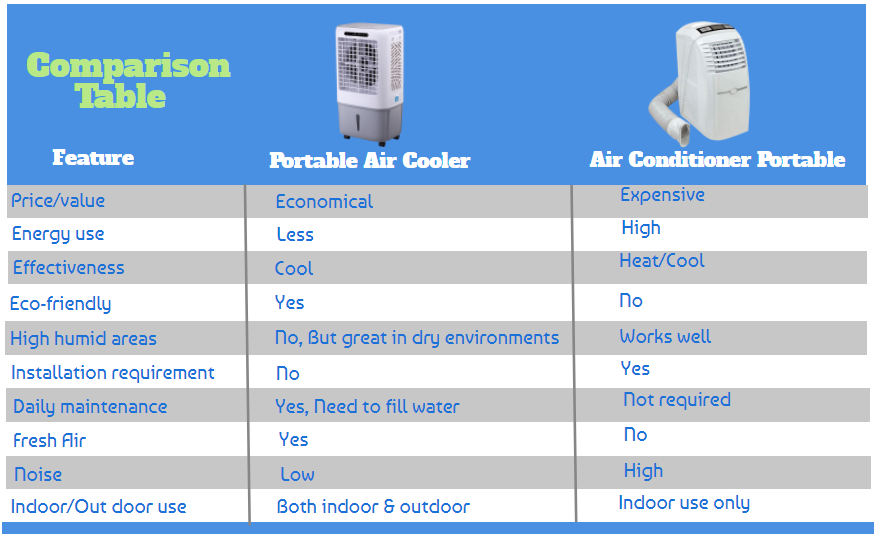

Portable Air Cooler vs. Air Conditioner: How They Differ
| Feature | Portable Air Cooler | Air Conditioner |
| Energy Consumption & Cost | Very low power usage (0.3–0.6 kWh); up to 75% less energy than AC; lower bills and operating costs. | High power usage (1.5–3.5 kWh); significantly higher electricity bills and ongoing costs. |
| Cooling Mechanism | Uses water evaporation; a fan blows air through wet pads, cooling and humidifying the air; no refrigerants. | Uses chemical refrigerants and compressors to cool air; removes humidity from the room. |
| Installation & Portability | Plug-and-play; lightweight (10–15 kg); easy to move; no professional installation required. | Requires professional installation; heavier (50–80 kg); often fixed or semi-portable. |
| Maintenance | Simple: clean pads, refill water, and rinse tank monthly; DIY-friendly. | Complex: regular filter cleaning, refrigerant checks, and annual servicing by a technician. |
Common Myths About Portable Air Cooler Debunked
Portable air cooler actually (also called evaporative coolers or “air coolers”) are increasingly popular for their flexibility and energy-saving features, but there are still many misconceptions in the market.
Myth 1: “They don’t really cool.”
Many people believe that portable air coolers can’t effectively cool down the environment. In fact, evaporative coolers work best in hot, dry environments. By passing hot air over a moist cooling pad, the device quickly removes heat from the air, significantly reducing the room temperature. Modern product designs are constantly being optimized, and proper use can achieve significant cooling effects even in moderate humidity environments.
Myth 2: “They only work indoors.”
Some people mistakenly believe that portable air coolers can only be used indoors. In fact, these devices are not only suitable for indoor spaces such as offices and warehouses but also have flexible applications in semi-open or outdoor places such as open-air dining areas, temporary booths, and job sites. As long as the environment has proper ventilation conditions, the coolers will work effectively and improve local temperatures.
Myth 3: “They require special installation.”
Compared with traditional air conditioners, portable air coolers are extremely easy to install. Users only need to add water, plug in electricity, and ensure proper ventilation before putting it into use. No professional personnel or complicated tools are required. Some models are even equipped with casters, which can be easily moved to the area that needs cooling at any time. This “plug and play” feature greatly improves the flexibility and efficiency of the equipment.
Advantages of Using a Portable Air Cooler
- Environmentally friendly (low carbon footprint): Portable air cooler actually use the principle of water evaporation to cool and do not rely on chemical refrigerants, so they do not emit harmful gases, which greatly reduces greenhouse gas emissions.
- Energy-saving benefits: The coolers have extremely low energy consumption, which not only reduces operating costs but also reduces the pressure on the power grid.
- Easy to move and maintain: The portable design allows the equipment to be flexibly moved according to needs without complex installation. The maintenance process is simple, and users can operate it by themselves without professional technical support.
- Cost-effective for seasonal use: Portable air coolers are ideal for seasonal or temporary sites. The equipment has low investment costs and flexible use, suitable for short-term projects or temporary work areas.
Maintenance Tips to Keep Your Air Cooler Working Efficiently
- Clean the cooling pad regularly: It is recommended to rinse the cooling pad with clean water once a week and gently clean the surface deposits with a soft brush when necessary to prevent clogging and performance degradation.
- Fill the water tank correctly: Keep the water level in the water tank sufficient to ensure that the cooling pad is always moist. Completely draining and replacing the water every week can reduce scale and bacterial growth and extend the life of the equipment.
- Prevent mold growth: Avoid long-term accumulation of water. You can regularly add a small amount of white vinegar or special cleaning agent to the water tank to effectively inhibit mold and odor.
- Seasonal storage tips: After the season is over, completely drain the water tank, clean the cooling pad and internal components, and dry all parts before storing. Store the equipment in a dry and ventilated place to prevent mold and aging of parts.
How to Choose the Best Portable Air Cooler for Your Needs
When choosing, you need to pay attention to the airflow rate (CFM) to determine how much space the device can cover. The water tank capacity affects the continuous working time, and the coverage area needs to match the actual site.
Residential coolers are small in size and low in noise, suitable for small spaces such as bedrooms and offices. Industrial models have large air volume and sturdy structure, suitable for large areas such as warehouses and workshops.
Modern products are often equipped with smart functions such as timer switches, remote control operation, and wind speed adjustment. Some models also come with ice trays to further improve the cooling effect and meet diverse needs.
Signs You Need a New Portable Air Cooler
If the unit is clearly unable to lower the room temperature, it could be due to aging of the cooling pad, a faulty water pump, or reduced fan efficiency. In this case, consider replacing a new unit rather than continuing repairs.
Abnormal noises such as rubbing, clicking, or humming usually indicate a damaged fan, motor, or transmission component. If the water tank is leaking or the unit is seeping, it could be due to aging of the seal or damage to the internal pipes.
Older models not only have poor cooling effects, but also high energy consumption and increased maintenance frequency. Newer generation coolers typically have higher energy efficiency and smart features that can significantly reduce operating costs.
What’s Next for Portable Cooling Technology?
Smart air coolers (IoT integration)
The new generation of coolers is integrating IoT technology to achieve remote control, automatic adjustment and interconnection with smart home systems, improving user experience and energy efficiency.
Solar portable coolers
Solar-powered coolers use sunlight during the day to supply energy and automatically switch to mains power at night, achieving zero-carbon operation and extreme energy saving, which is very suitable for environmentally friendly enterprises and remote areas.
Advanced ecological cooling pads
The new material cooling pad has higher evaporation efficiency and antibacterial properties, reduces maintenance frequency, extends service life, and helps green cooling solutions.
Conclusion
Portable air coolers, with their simple and efficient evaporative cooler cooling principle, provide users with a new economical and environmentally friendly cooling option. They are particularly good for hot, dry, well-ventilated environments, especially commercial and industrial sites that require flexible layout and temporary cooling.
A quick checklist includes: Is your environment dry and ventilated? Do you need equipment that is easy to move and maintain? Are you concerned about energy conservation and emission reduction and operating costs? If the answer is yes, portable air coolers are undoubtedly a solution worth considering.
Ultimately, choosing the right cooling equipment is not only about comfort, but also affects the energy consumption and operational efficiency of the enterprise. It is recommended to weigh the various functions and costs based on your actual needs and make a wise purchasing decision.
