Industrial fans are a crucial component in many manufacturing, processing and production facilities. These high-powered air-moving devices come in a wide range of designs to suit various applications, from ventilation and exhaust systems to material handling and cooling equipment.
In this blog post, we will explore the different types of industrial fans, their key features and common use cases. We will also discuss important factors to consider when selecting the right fan for your specific needs, such as air flow requirements, static pressure, energy efficiency, noise levels, durability and cost.
What is an Industrial Fan
An industrial fan is a mechanical device designed to move large volumes of air for various industrial applications. These fans are typically much larger and more powerful than residential fans, and are constructed to withstand the demands of harsh industrial environments.
The primary function of an industrial fan is to provide ventilation, cooling, and air circulation in large spaces such as factories, warehouses, power plants, and agricultural facilities. They help maintain air quality, regulate temperature and humidity levels, and remove hazardous fumes, dust, or other particulate matter from the air.
Types of Industrial Fans
Axial Fans
Axial fans move air along the axis of the fan, parallel to the shaft about which the blades rotate. They are designed to move large volumes of air at relatively low pressures.

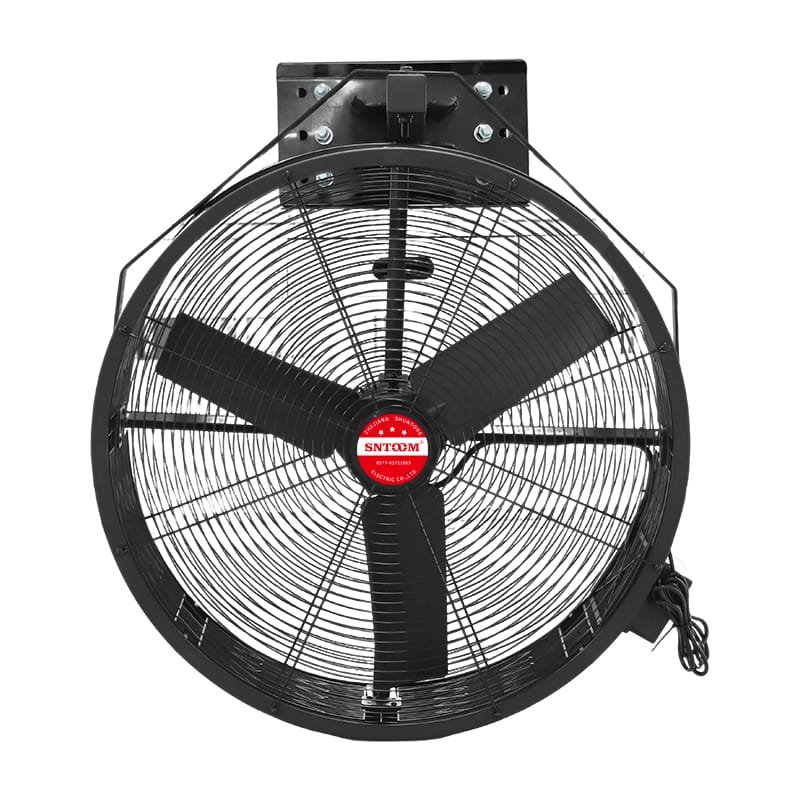

Propeller Fans
Propeller fans consist of a propeller blade mounted directly on the shaft of the motor. They are the simplest type of axial fan and are commonly used for general ventilation applications where low pressure but high flow rates are required. Propeller fans are inexpensive and can move large volumes of air, but they are not suitable for applications that require high static pressures.
Tube Axial Fans
Tube axial fans have the fan blades mounted inside a cylindrical housing. The close clearance between the blade tips and housing allows these fans to develop higher pressures compared to propeller fans. Tube axial fans are used in applications that require higher static pressures than what propeller fans can provide, such as ducted ventilation systems.
Vane Axial Fans
Vane axial fans are similar to tube axial fans but with the addition of guide vanes either before or after the blades. The guide vanes help straighten the airflow, improving efficiency and reducing turbulence. Vane axial fans can develop even higher static pressures than tube axial fans and are used in applications such as cooling towers, large air conditioning systems, and industrial process ventilation.
Centrifugal Fans
Centrifugal fans use a rotating impeller to draw air into the center of the fan and expel it radially outward by centrifugal force. They are capable of developing much higher pressures than axial fans and are well-suited for applications that require high pressures or need to overcome significant airflow resistance.
Forward Curved Fans
Forward curved fans have blades that curve towards the direction of rotation. They can move large volumes of air at low to medium pressures and are relatively quiet in operation. However, they are not as efficient as other centrifugal fan types and are best suited for clean air applications with low to medium system resistance, such as air conditioning units and air handling units.
Backward Inclined Fans
Backward inclined fans have blades that slope away from the direction of rotation. They are more efficient than forward curved fans and can operate at higher pressures. Backward inclined fans are well-suited for applications that require high efficiency and high pressure, such as industrial exhausts, material handling, and dust collection systems.
Radial Fans
Radial fans, also known as radial tip fans or paddle wheel fans, have straight blades that extend radially from the hub. They are the most robust and efficient type of centrifugal fan and can handle heavy dust loads and high temperatures. Radial fans are commonly used in industrial applications such as boiler draft systems, cement plants, and steel mills.
Inline Fans
Inline fans are designed to be installed directly within the ductwork of a ventilation system. They have a compact, tubular design with the impeller mounted in the center of the housing. Inline fans are available in both axial and centrifugal configurations and are commonly used in applications where space is limited, such as in false ceilings or enclosed spaces.
Exhaust Fans
Exhaust fans are designed to remove air from an enclosed space and expel it to the outside. They are available in both axial and centrifugal designs and are used in a wide range of applications, including bathroom ventilation, kitchen range hoods, and industrial process ventilation. Exhaust fans are typically designed to handle the specific contaminants or environmental conditions of their application, such as high temperatures, corrosive gases, or grease-laden air.
Applications of Industrial Fans
Ventilation and Indoor Air Quality
Industrial fans are widely used for ventilation purposes in factories, warehouses, and other industrial facilities. They help maintain a healthy and comfortable working environment by removing stale air, pollutants, and excess heat.
Cooling and Temperature Control
In industries such as manufacturing, food processing, and power generation, industrial fans play a vital role in cooling and temperature control. They can be used to cool machinery, dissipate heat from processes, and prevent overheating.
Drying and Moisture Removal
Industrial fans are employed in drying applications to remove moisture from materials or products. Fans can be used in combination with heaters or dehumidifiers to accelerate the drying process and achieve the desired moisture levels.
Exhaust and Fume Extraction
In industries that generate dust, fumes, or hazardous gases, industrial fans are used for exhaust and extraction purposes. They help capture and remove these contaminants from the workspace, protecting workers’ health and ensuring compliance with safety regulations. Exhaust fans can be connected to ductwork or filtration systems to effectively manage and treat the extracted air.
Process Control and Material Handling
Industrial fans are utilized in various process control and material handling applications. They can be used to convey lightweight materials, such as powder or granules, through pneumatic conveying systems. Fans also assist in the distribution and circulation of air in processes like combustion, mixing, and drying, ensuring optimal performance and product consistency.
Factors to Consider When Choosing an Industrial Fan
Air Flow Requirements (CFM)
One of the primary factors to consider when selecting an industrial fan is the required airflow rate, measured in cubic feet per minute (CFM). The CFM indicates the volume of air the fan can move in a given time period.
Static Pressure
Static pressure refers to the resistance the fan must overcome to move air through a system, such as ductwork or filters. It is measured in inches of water gauge (in. wg). Higher static pressure requires a more powerful fan. It is essential to consider the system’s pressure drop when selecting a fan to ensure it can deliver the required airflow against the total static pressure.
Energy Efficiency
Energy efficiency is a critical consideration in industrial fan selection. Fans consume a significant portion of the total energy in industrial facilities. Choosing an energy-efficient fan can lead to substantial cost savings and reduced environmental impact. Factors such as the fan’s design, motor efficiency, and control strategies (e.g., variable frequency drives) influence overall energy efficiency.
Noise Levels
Industrial fans can generate noise, which can be a concern in certain environments. Excessive noise levels can impact worker comfort and safety, as well as create disturbances in nearby areas. It is important to consider the fan’s noise rating and select a model that meets the required noise criteria. Noise reduction strategies, such as sound attenuators or acoustic enclosures, can be employed if necessary.
Durability and Maintenance
Industrial fans are subjected to continuous operation and harsh conditions. Durability and ease of maintenance are important factors to consider. Look for fans constructed from robust materials that can withstand the specific environment (e.g., corrosive, dusty, or high-temperature). Consider the fan’s design for accessibility and ease of maintenance, such as removable components and lubrication points.
Cost
Cost is always a consideration when selecting industrial fans. However, it is essential to evaluate the total cost of ownership rather than just the initial purchase price. Factors such as energy efficiency, maintenance requirements, and longevity should be taken into account. Investing in a higher-quality, more efficient fan may provide long-term cost savings through reduced energy consumption and maintenance expenses.
