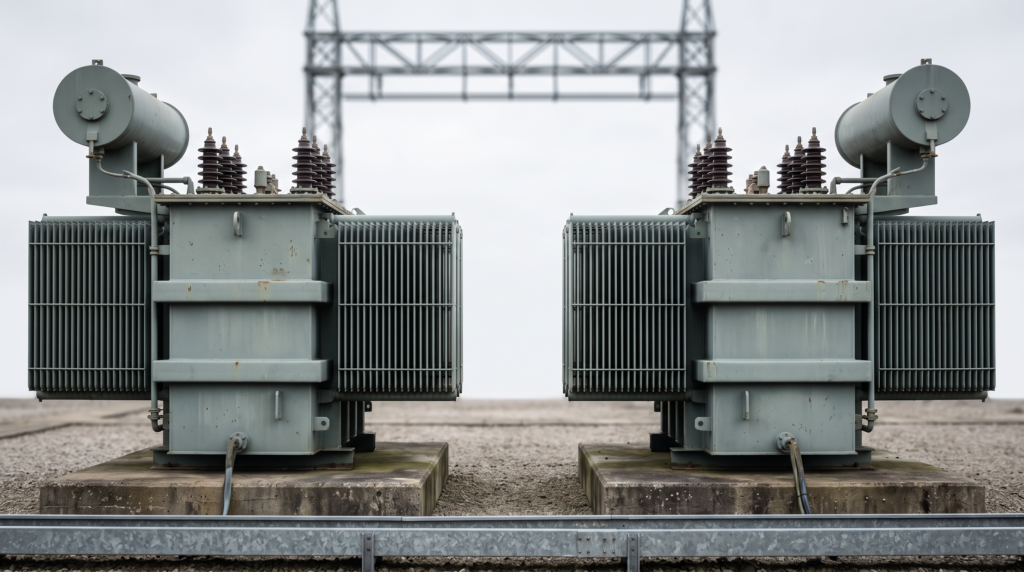

Parallel Operation of Transformers: The Conditions That Must Match
Adding a second transformer beside an existing one looks like the cheapest route to more capacity. It often is, but only when four conditions line up exactly. Where they do not, the result is not reduced capacity but circulating current flowing between the units before any load is connected, heat that appears with no explanation, and protective devices that operate without a fault. The parallel operation of transformers is therefore a matching exercise, not an addition.
Here is the content list:
- Which conditions must match before two units may be paralleled?
- What happens when one of them is not satisfied?
- How should a proposed pairing be checked?
The Conditions That Must Match
Turns ratio must be identical, and the tap changer position must match as well. Two units with different ratios produce a different secondary voltage, and the difference drives a circulating current through both windings even with no load on the busbar. The current is limited only by the impedances of the two units, which are deliberately small.
Vector group must be the same. The vector group describes the phase displacement between primary and secondary, so two transformers with different connection symbols deliver secondary voltages that are out of phase. Paralleling them is equivalent to connecting two sources with a fixed phase difference, and the resulting current can reach destructive levels within a few cycles.
Impedance voltage must be closely matched, and industry practice typically keeps the difference within about ten percent. Impedance decides how the load divides between the units: a lower-impedance transformer takes more than its share. When the mismatch is large, one unit reaches full load while the other is still lightly loaded, so the pair delivers less usable capacity than the arithmetic suggests.
Phase sequence must be identical, which is a wiring check rather than a nameplate check and is easily lost when a unit is reconnected after maintenance.
What Happens When a Condition Fails
- A ratio mismatch produces continuous circulating current, so both units run warm at no load and the losses are paid permanently.
- A vector group mismatch produces a large phase-driven current, and the practical result is usually a protection operation at energisation.
- An impedance mismatch does not create circulating current, but it distorts load sharing so that the weaker unit carries the burden and limits the whole installation.
- A capacity mismatch matters in the same way. As a rule of thumb, pairing units of very different ratings is avoided because the smaller unit reaches its limit long before the larger one is working.
How to Check a Proposed Pairing
- Compare the nameplate vector group symbols, not the secondary voltage readings alone.
- Compare the impedance voltage as a percentage, and treat a difference near or above ten percent as a design problem rather than a rounding detail.
- Confirm both tap changers sit on the same step, and confirm the step before energising rather than after.
- Verify phase sequence by measurement on site, because this is the condition most easily broken by maintenance work.
- Compare the two ratings, and confirm the intended load-sharing arrangement against the actual impedance values rather than assuming an even split.
Conclusion
Parallel operation of transformers rewards preparation and punishes assumption, because every failed condition shows up as heat or as a trip rather than as a reading the operator can see in advance. The checks are all available before energisation, and each of them takes minutes. Zhejiang Shuntong Electric has more than 30 years of experience in electrical equipment and reviews proposed combinations, including vector group and impedance, with customers before a unit is ordered. A reliable power supply depends on matching equipment deliberately rather than simply connecting more of it.
